WINDLASS V. X2 1000 W 12 V 264 mm Windlass | 4Boats

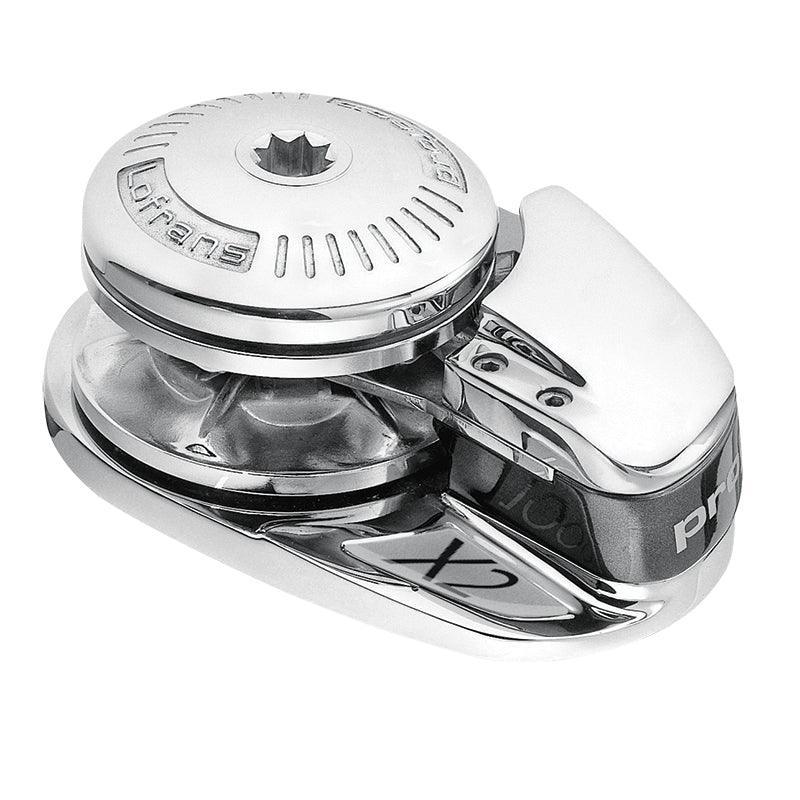

WINDLASS V. X2 CRO electric anchor windlass - 1000 W / 12 V with a 264 mm gypsy for HT chain; deck‑mounted, serviceable and built for marine use.

• Max pull: approx. 700 kg; recommended working load: ~350 kg. Line speed: approx. 12 m/min no‑load, ~3-6 m/min under typical load.
• Power: 1000 W motor for 12 V systems; typical operating current ~85-100 A at rated load; IP66 motor housing.
• Recommended circuit protection: 150 A circuit breaker or fuse; fit close to the battery and use a dedicated positive/negative run to the windlass motor/solenoid.
• Gypsy diameter: 264 mm (10 3/8 in) - designed for 10 mm HT chain (DIN/ISO); compatible with 8-10 mm depending on chain pitch - confirm chain spec before purchase.
• Electrical wiring: use heavy‑duty marine battery cables sized per run length - typically 25 mm² (4 AWG) or larger for runs over 3 m; consult the installation guide for exact sizing.
• Controls & accessories: includes solenoid/contactor and wired up/down control switch; compatible with optional handheld remote or bow‑mounted switch.
• Mounting & dimensions: unit footprint: 320 × 210 mm; overall height: ~260 mm; weight: ~22 kg - verify exact measurements with the supplier before cutting the deck; confirm deck space and reinforcement/backing plate.
• Construction & care: deck‑mounted format with corrosion‑resistant finishes and accessible components for routine servicing; rinse with fresh water after saltwater use and inspect moving parts and electrical connections regularly.
