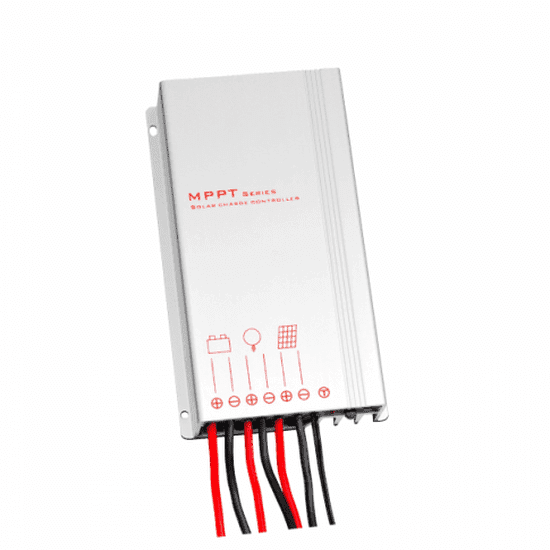

WATERPROOF LUX1524WP-LI 15A MPPT 12/24V | 4Boats

Photonic Universe LUX1524WP-LI waterproof 15 A MPPT solar charge controller for 12 V / 24 V lithium batteries, ideal for caravans, motorhomes, campervans, boats and yachts.

Controller specifications:

• Protection rating: IP67 (fully sealed for outdoor and marine use)
• Current rating: 15 A
• Max solar input power: 200 W (12 V system) / 400 W (24 V system)
• Max solar input voltage: 55 V
• Self-consumption: 6 mA
• Ambient conditions: -35 °C to +60 °C; 0–100% RH; operating altitude: see user manual
• Dimensions: 85.8 x 145 x 30 mm
• Weight: 600 g
• Mounting holes for ease of installation; robust waterproof enclosure suitable for marine applications and lighting systems
• MPPT charging for 12 V / 24 V lithium batteries only; programmable timer and dimmer functions
• Remote IR programmer available separately; user manual (LUX1524WP-LI) supplied and downloadable
• Use only with compatible lithium battery systems. Refer to the supplied user manual for installation, wiring diagrams and full specifications.
