GALVANIC ISOLATION: Features 200V DC isolation between input, output, and case, preventing ground loop interference and increasing system safety.

Key Features

• ✔ Remote On/Off: Eliminates the need for high-current switches.
• ✔ Adjustable Output: Potentiometer allows 10V to 15V tuning.
• ✔ Parallel Connection: Connect unlimited units for higher current.
• ✔ Short-Circuit Proof: Built-in protection for long-term reliability.
• ✔ IP43 Protection: Splash-proof when installed with terminals down.

Technical Specs

Input Voltage Range	8 - 17V DC
Nominal Output Voltage	12.2V DC
Cont. Output Current (40°C)	18A
Cont. Output Power (40°C)	220W
Peak Efficiency	87%
Weight / Dimensions	1.3kg / 130x186x70mm

System Type	Application	Notes
Marine / Yachting	Electronics Power Conditioning	Prevents GPS/Radio resets during engine start.
RV / Caravans	Stable 12V Distribution	Compensates for voltage drop in long wires.
Off-Grid Solar	Sensitive Load Protection	Provides clean voltage from varying battery states.

Is this a genuine Victron Energy part?

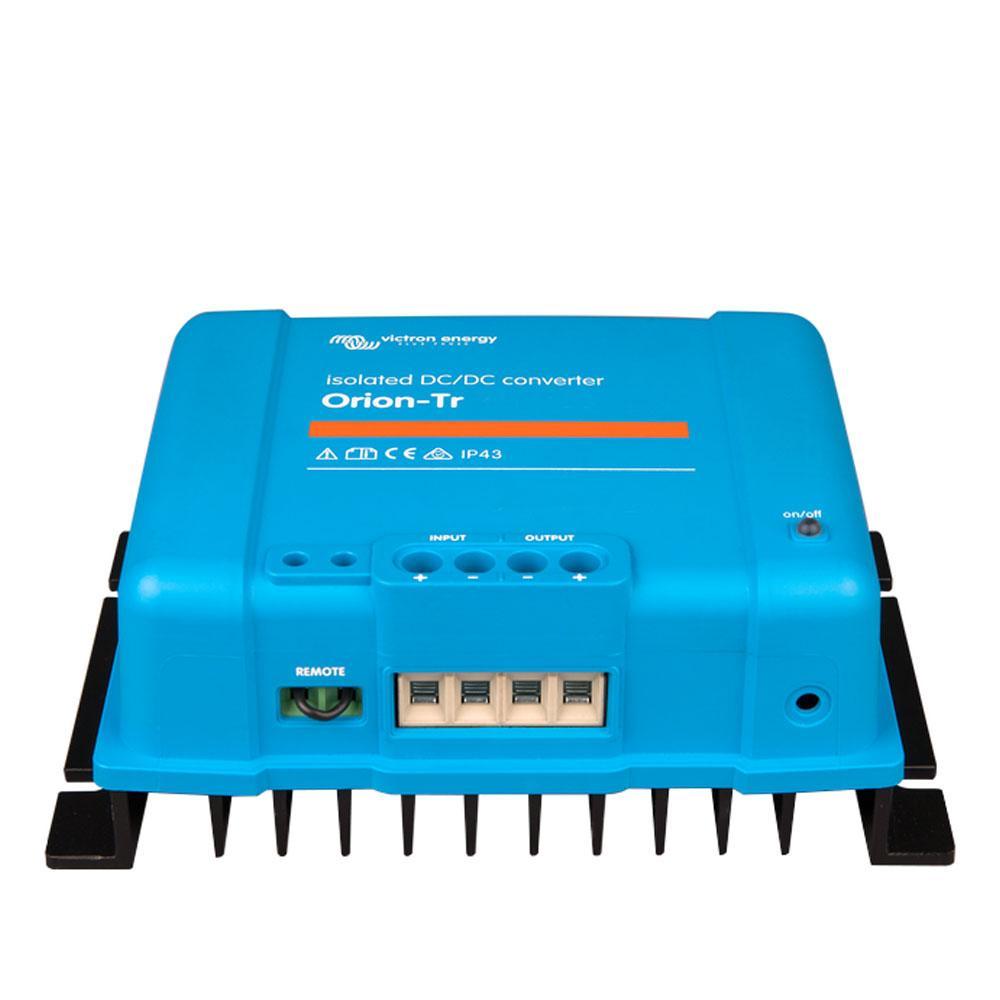

Yes, this is an authentic Victron Energy Orion-Tr isolated converter, supplied in original packaging with full manufacturer backing.

Can this model be used as a battery charger?

While you can adjust the output voltage to match a charging profile, this specific model (ORI121222110) is a constant-voltage converter. For multi-stage smart charging with Bluetooth, we recommend the Orion-Tr Smart series.

What does "Isolated" mean for this unit?

Isolation means the input and output circuits are electrically separated. This is critical for preventing electrical noise and ensuring that faults on the input side do not affect sensitive equipment on the output side.
