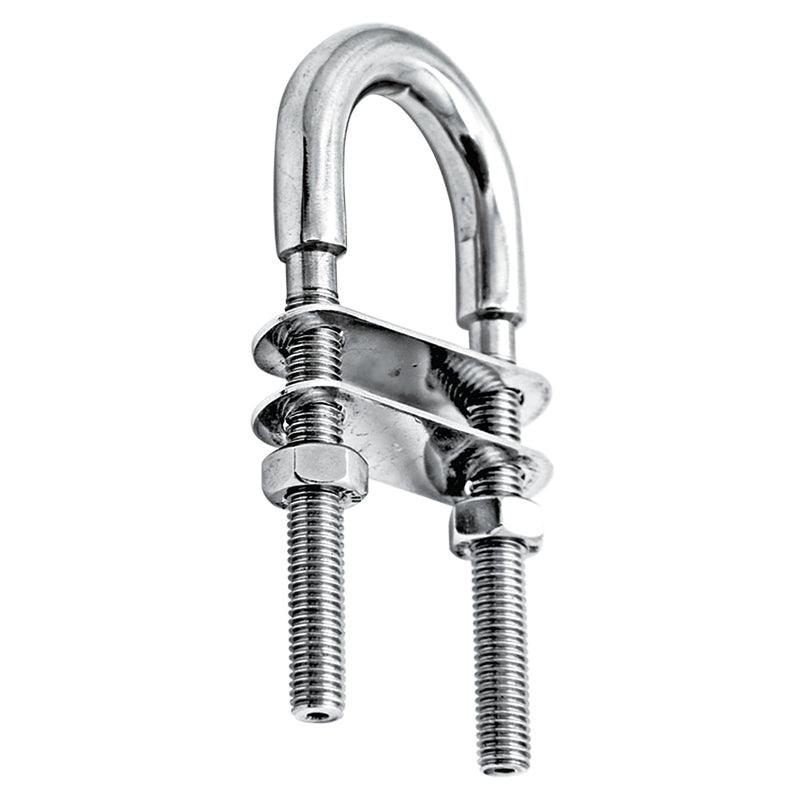

Lalizas U-Bolt 316 Stainless (91368)
Marine Grade M8 x 80mm Fastener
This Lalizas 91368 U-bolt is a high-performance marine fitting engineered for extreme durability and strength. Manufactured from premium AISI 316 (A4) stainless steel, it provides exceptional resistance to corrosion, pitting, and oxidation, making it the ideal choice for deck rigging, anchor points, and shroud attachments on both sailboats and motorboats.
Key Features
- ✔ AISI 316 Marine Grade Stainless Steel
- ✔ Precision-engineered M8 threads
- ✔ Polished finish prevents rope chafing
- ✔ Includes high-strength nuts and washers
Technical Specs
| SKU / Part Number | 91368 |
| Thread Size | M8 |
| Total Length (A) | 80 mm |
| Internal Width (B) | 35 mm |
| Thread Length (D) | 40 mm |
| Wire Diameter | ~7.3 mm |
Application & Compatibility
| Category | Application | Recommended Use |
|---|---|---|
| Deck Hardware | Bow/Stern Eye | Towing and mooring points |
| Rigging | Shroud Attachments | Securing stays and lines |
| Accessories | Bimini & Canopy Fittings | Anchor points for support straps |
OEM Cross Reference
| Lalizas Code | 91368 |
| EAN Code | 5204980913687 |
| Nuova Rade Reference | Direct Compatible (Lalizas Group) |
Questions & Answers
Is this a genuine Lalizas part?
Yes, this is an authentic Lalizas marine fitting, manufactured to their strict international safety and quality standards.
Will this bolt rust in sea water?
No. This part is made from 316-grade stainless steel, which contains molybdenum. This makes it highly resistant to chloride-induced corrosion (pitting), unlike standard 304 stainless steel.
What is the distance between the two legs?
The internal width (the gap between the legs) is 35mm.
Note: Please verify your required dimensions against the technical specifications provided above before ordering. Part numbers and dimensions provided are based on original manufacturer data from 4boats.co.uk.
