Nuova Rade 16710 EasyMount Thru-Hull Fitting 38mm 1-1/2" White Polyamide - 2PCS
Nuova Rade 16710 EasyMount Thru-Hull Fitting 38mm 1-1/2" White Polyamide - 2PCS
Couldn't load pickup availability

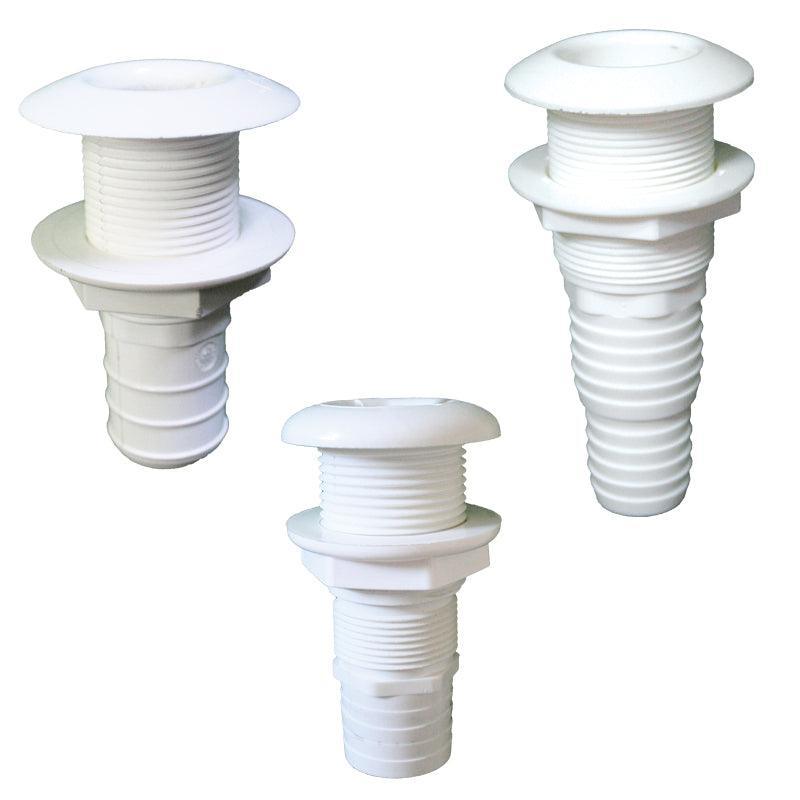

Nuova Rade EasyMount Thru-Hull 16710
38mm (1-1/2") Hose Connection | Durable White Polyamide
The Nuova Rade EasyMount Thru-Hull fitting is a high-performance marine plumbing solution designed for durability and ease of installation. Molded from premium UV-stabilized Polyamide (PA), this fitting is specifically engineered to resist electrolysis and common marine chemicals, ensuring a long service life in harsh saltwater environments.
Key Features
- ✔ EasyMount threaded system
- ✔ UV-Stabilized Polyamide construction
- ✔ Electrolysis & chemical resistant
- ✔ Compatible with marine sealants
Technical Specs
| Hose Diameter: | 38 mm (1 1/2") |
| Thread (ØA): | 1 1/2" BSP |
| Overall Length: | 121 mm |
| Flange Diameter: | 70 mm |
| Max Hull Thickness: | 50 mm |
| Color: | White |
Compatibility / Fitment Guide
| Application | Hose Size | Notes |
|---|---|---|
| Marine Plumbing | 38mm (1-1/2") ID | Above waterline only |
| Bilge System | 1-1/2" ID Hose | Direct discharge fit |
| Scupper/Drainage | 38mm ID Hose | Fits 1-1/4" seacock threads |
OEM Cross Reference
| Nuova Rade SKU: | 16710 |
| UPC/EAN: | Available upon request |
| Industry Ref: | 1-1/4WH (White 1-1/4" Thread) |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Nuova Rade part (SKU 16710), a leading European manufacturer of marine plastic equipment.
How do I know if it is compatible?
This fitting is designed for 38mm (1.5 inch) internal diameter hoses. If your discharge hose is 38mm and you are installing above the waterline, this is the correct part.
Can I use this below the waterline?
No, Polyamide and Polypropylene thru-hulls of this type are strictly rated for above-waterline installation for safety and insurance compliance.
Note: Please verify your hose diameter and hull thickness against the technical specifications above before purchasing. Distributed by 4boats.co.uk.
