Nuova Rade Thru-Hull Easy Mount 1 1/4" White Skin Fitting 28-35mm Hose x 10pcs
Nuova Rade Thru-Hull Easy Mount 1 1/4" White Skin Fitting 28-35mm Hose x 10pcs
Couldn't load pickup availability

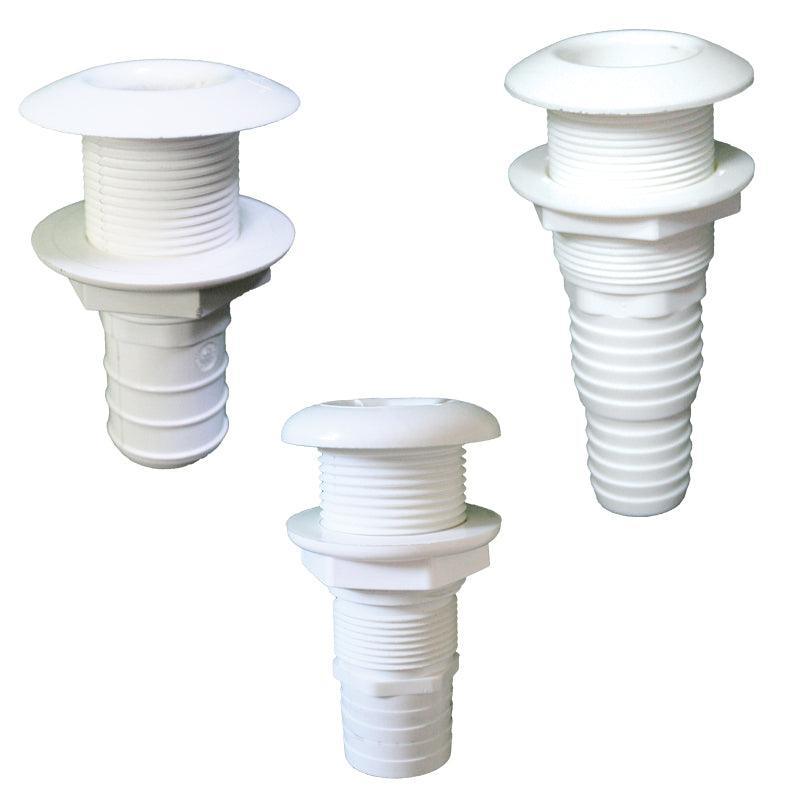

Nuova Rade Easy Mount Thru-Hull 1 1/4"
Part Number: 23671 | UV Resistant Polyamide
Upgrade your vessel’s plumbing with the Nuova Rade Easy Mount Thru-Hull skin fitting. This white polyamide fitting is specifically engineered for simple, one-person installation, making it a preferred choice for marine technicians and boat owners alike. Its UV-stabilized material ensures long-lasting durability in harsh marine environments without yellowing or becoming brittle.
Key Features
- ✔ Easy Mount System: Streamlined installation process.
- ✔ Material: High-grade UV-resistant Polyamide (PA).
- ✔ Versatile Fit: Dual-stepped hose barb for 28mm and 35mm.
- ✔ Chemical Resistant: Compatible with standard marine silicone sealants.
Technical Specs
| Part Number: | 23671 |
| Thread (ØA): | 1 1/4" BSP |
| Hose Adaptor (ØB): | 28 / 35 mm |
| Total Length (C): | 125 mm |
| Flange Diameter (ØD): | 61 mm |
| Thread Length (E): | 45 mm |
Compatibility / Fitment Guide
| Application | Hose Size Required | Placement |
|---|---|---|
| Bilge Pump Outlets | 28mm (1 1/8") or 35mm (1 3/8") | Above Waterline |
| Scupper Drainage | 1 1/4" ID Marine Hose | Transom / Hull Side |
| Sink Drains | 28mm / 35mm ID | Above Waterline |
OEM Cross Reference
| Nuova Rade SKU: | 23671 |
| Alternative Ref: | EasyMount 1 1/4" White |
Questions & Answers
Is this a genuine original part?
Yes, this is an original Nuova Rade part, precision-moulded in Italy from high-quality polyamide.
Can this be used below the waterline?
Plastic and nylon thru-hulls are strictly recommended for use above the waterline only. For below-waterline applications, please use DZR Brass or 316 Stainless Steel fittings.
What size hole do I need to drill for this fitting?
A hole matching the 1 1/4" BSP thread (approximately 42mm diameter) is required for installation.
Note: Please verify your original hose diameter and hull thickness against the technical specifications above before purchasing. Distributed by 4boats.co.uk.
