Talamex Twist Shackle 8mm x 20mm x 39mm Stainless Steel Marine Grade 08.534.080
Talamex Twist Shackle 8mm x 20mm x 39mm Stainless Steel Marine Grade 08.534.080
Couldn't load pickup availability

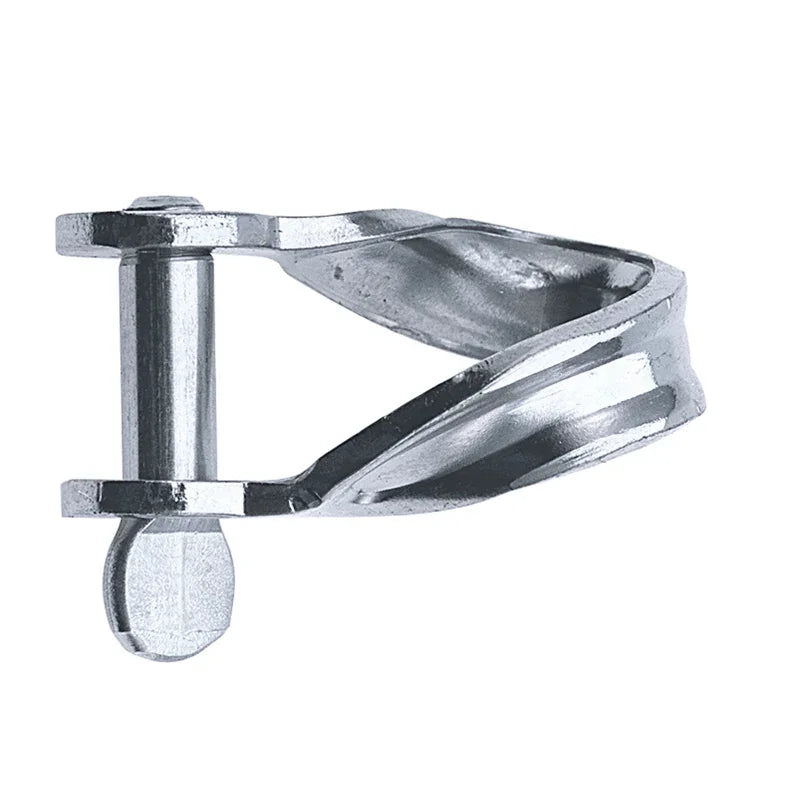

Talamex Twist Shackle 8mm
Professional Marine Grade Hardware | SKU: 08.534.080
The Talamex Twist Shackle (08.534.080) is a precision-engineered piece of marine hardware designed to solve alignment issues in sailing and rigging applications. The unique 90-degree twist in the shackle body allows for the direct connection of blocks, halyards, or deck fittings without the need for additional links, reducing weight and complexity in your setup.
Key Features
- ✔ 90-degree twist design
- ✔ High-polish corrosion resistance
- ✔ Captive-style screw pin (Standard)
- ✔ Forged construction for safety
Technical Specs
| Pin Diameter: | 8 mm |
| Internal Width: | 20 mm |
| Internal Length: | 39 mm |
| Breaking Load (BL): | 1800 daN |
| Material: | AISI 304 Stainless Steel |
Compatibility / Fitment Guide
| Application | Requirement | Notes |
|---|---|---|
| Main Sail Rigging | 8mm Attachment Point | Used to orient blocks 90° to the deck eye. |
| Halyard Connections | Universal Fit | Reduces line twist during hoisting. |
| Deck Hardware | U-Bolts / Pad Eyes | Ensures clean lead for control lines. |
Reference Numbers
| Brand Part Number (SKU) | 08.534.080 |
| Parent Company Reference | Lankhorst Taselaar 08534080 |
| Alternative Specification | 8mm twisted d-shackle |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Talamex marine component, sourced directly via Lankhorst Taselaar. It is built to high-performance nautical standards.
What is the benefit of a "twist" shackle over a standard D-shackle?
The twist shackle turns the orientation of the connection by 90 degrees. This is essential for preventing blocks from lying flat against the deck or for ensuring halyards run smoothly without twisting the line.
Is this material suitable for saltwater?
Yes. AISI 304 Stainless Steel offers excellent corrosion resistance in marine environments. For permanent immersion or high-salinity tropical environments, regular rinsing with fresh water is recommended.
Note: Please verify your required pin diameter and internal width before purchasing. Technical data sourced from 4boats.co.uk and official manufacturer documentation.
