Talamex 4mm Swage Toggle Terminal AISI 316 Stainless Steel Rigging 02.304.131
Talamex 4mm Swage Toggle Terminal AISI 316 Stainless Steel Rigging 02.304.131
Couldn't load pickup availability

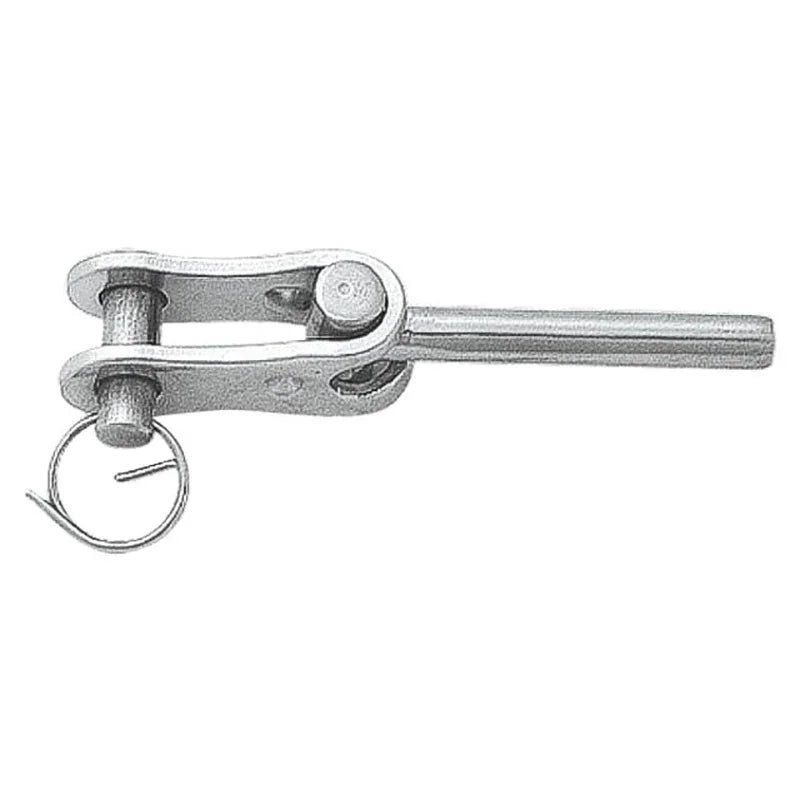

Talamex Swage Toggle Terminal 4mm
MPN: 02.304.131 | AISI 316 Stainless Steel
The Talamex Swage Toggle Terminal (02.304.131) is a precision-engineered rigging component designed for permanent attachment to 4mm stainless steel wire rope. Featuring an articulated toggle design, this terminal provides flexibility in two planes, significantly reducing the risk of fatigue caused by side-loading or mast movement.
Key Features
- ✔ Articulated Design: Toggle action allows movement to prevent wire fatigue.
- ✔ AISI 316 Grade: Premium marine-grade stainless steel.
- ✔ Mirror Polished: High-end finish for aesthetics and cleanliness.
- ✔ Standard Swage: Compatible with most hydraulic and manual swaging machines.
Technical Specs
| SKU / MPN | 02.304.131 |
| Wire Diameter | 4 mm |
| Material | Stainless Steel AISI 316 |
| Finish | Polished |
| Type | Toggle Swage |
Compatibility / Fitment Guide
| Application | Wire Compatibility | Notes |
|---|---|---|
| Marine Standing Rigging | 4mm 1x19 Stainless Wire | Primary shroud/stay termination. |
| Guardrails & Lifelines | 4mm 7x7 or 7x19 Wire | Excellent for articulating pulpit attachments. |
| Architectural Balustrading | 4mm Stainless Steel Rope | High corrosion resistance for coastal installs. |
OEM Cross Reference
| Talamex Part Number | 02.304.131 |
| Functional Equivalent | Blue Wave BW50 Series (4mm) |
Questions & Answers
Is this a genuine Talamex part?
Yes, this is an authentic Talamex product, sourced specifically for professional marine rigging applications and distributed by 4boats.co.uk.
How do I install this terminal?
This terminal requires professional swaging. The 4mm wire must be inserted into the terminal barrel and compressed using a calibrated hydraulic swaging press to ensure a permanent, high-strength bond.
Will this fit my boat's standard 4mm lifelines?
Yes, if your wire rope is exactly 4mm in diameter, this terminal is the correct size. The toggle provides the necessary articulation for connection to deck plates or u-bolts.
Note: Professional installation is recommended for all standing rigging components to ensure safety and structural integrity. Please verify your wire size before purchasing from 4boats.co.uk.
