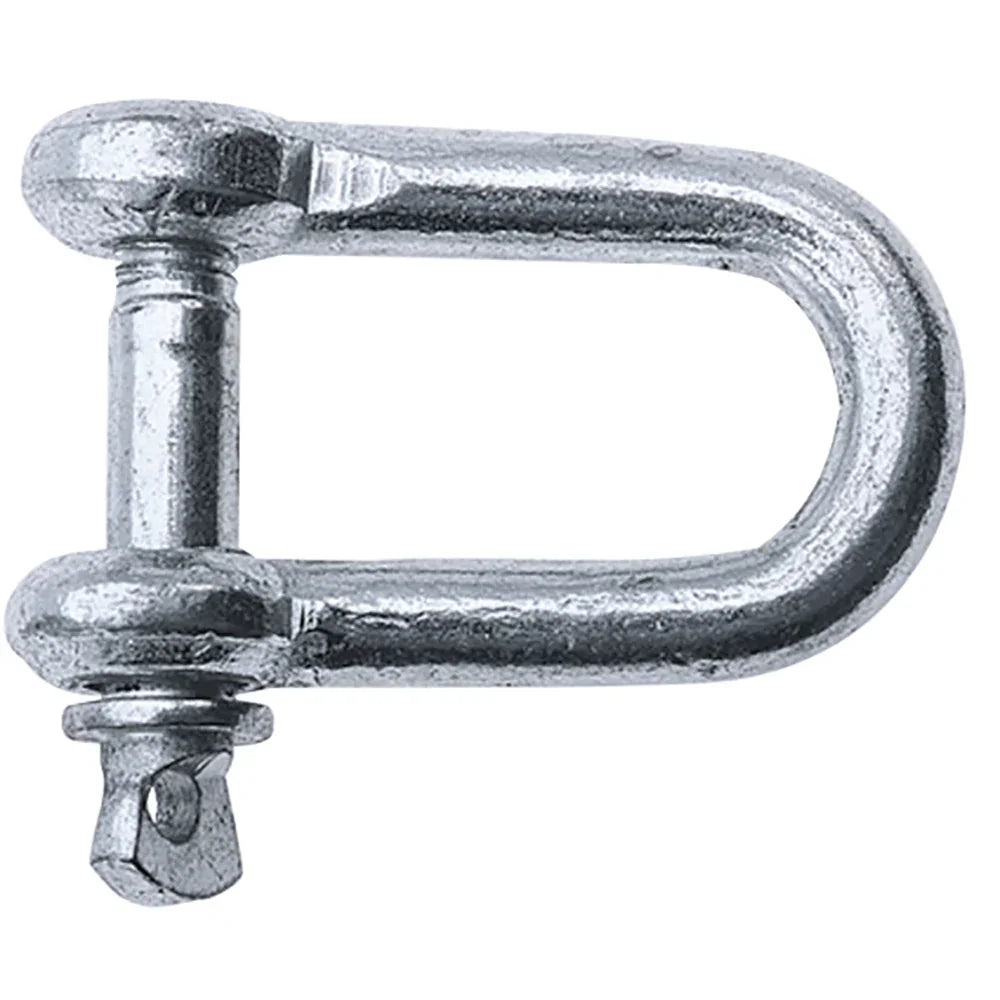

Talamex D Shackle 8mm Galvanised Steel Marine Rigging Boat 08.102.008
Couldn't load pickup availability
Talamex D Shackle 8mm (Galv)
Part Number: 08.102.008 | Premium Marine Hardware
The Talamex 08.102.008 is a professional-grade D-pattern shackle engineered for reliability in demanding marine environments. Manufactured by Lankhorst Taselaar under the Talamex brand, this shackle is crafted from high-tensile steel and finished with a robust hot-dip galvanization process to ensure maximum corrosion resistance.
Key Features
- ✔ Hot-dip galvanized for salt-water protection
- ✔ Standard D-pattern for straight-line tension
- ✔ Precision threaded pin for secure fastening
- ✔ Compact design for rigging and deck hardware
Technical Specs
| Pin Diameter (A): | 8 mm |
| Body Diameter: | 8 mm |
| Inside Length (L2): | 32 mm |
| Inside Width (B): | 16 mm |
| Breaking Load: | 1000 kg |
| Material: | Galvanized Steel |
Compatibility / Fitment Guide
| Application | Suitability | Notes |
|---|---|---|
| Anchor Chains | Highly Recommended | Fits standard 6mm-8mm chains |
| Mooring Lines | Suitable | Use for semi-permanent connections |
| Towing/Rigging | Compatible | Observe 1000kg breaking limit |
OEM Cross Reference
| Talamex MPN | 08.102.008 |
| Lankhorst Taselaar | 08102008 |
| EAN | 8711497022872 (Typical) |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Talamex product, sourced directly through authorized European distribution channels via 4boats.co.uk.
How do I know if it is compatible?
Verify the pin diameter matches your current hardware. This model uses an 8mm pin and has an internal opening of 16mm.
What is the finish of this shackle?
It features a "hot-dip" galvanized finish, which provides a much thicker protective zinc layer than standard electro-galvanizing, making it superior for saltwater use.
Note: Please verify your original part number against the references above before purchasing. Dimensions are approximate manufacturer specifications.
