RELIABILITY: Built to meet or exceed commercial marine standards, ensuring safety and performance for anchoring, mooring, and recovery tasks.

Key Features

• ✔ **Hot-Dip Galvanized:** Superior corrosion resistance in saltwater.

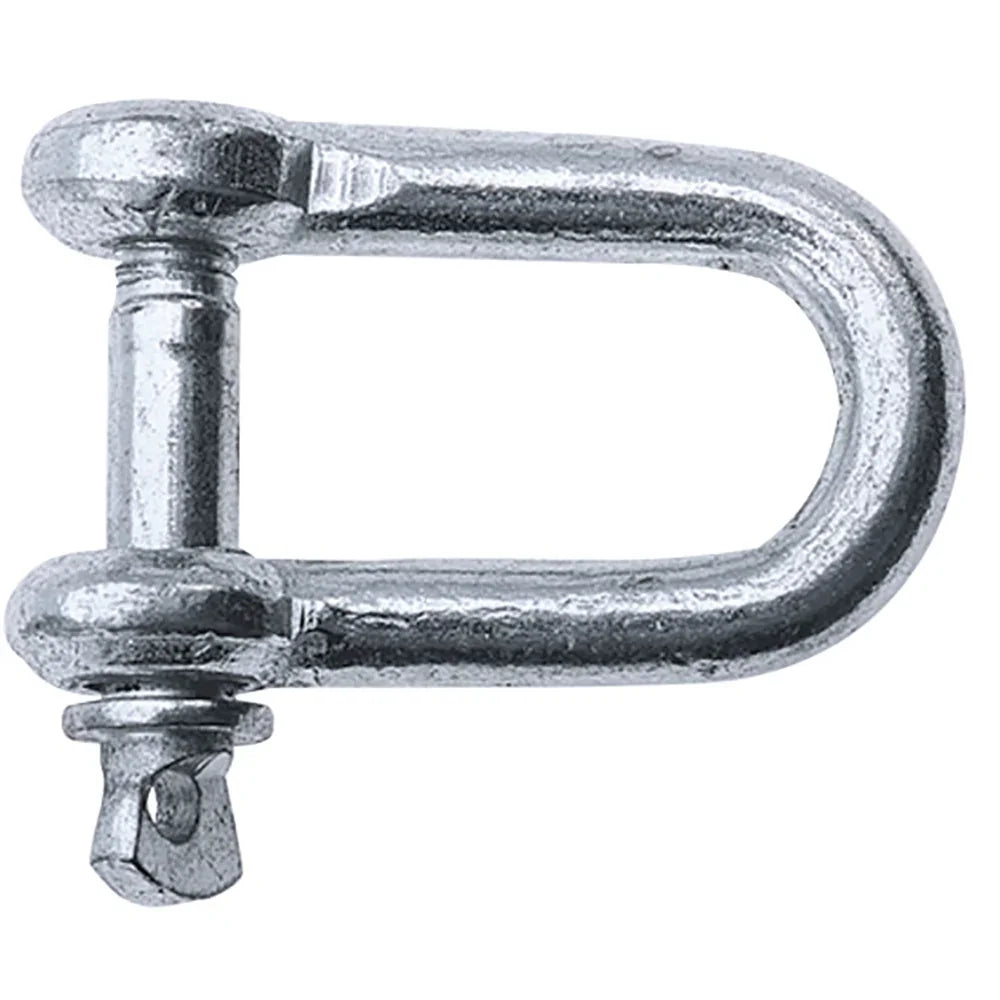

• ✔ **D-Shaped Profile:** Compact design ideal for chain connections.
• ✔ **Standard Pin:** Easy-to-use screw pin for secure attachment.
• ✔ **Precision Threading:** Ensures the pin seats fully for maximum safety.

Technical Specs

SKU / MPN:	08.102.013
Diameter (Pin):	13.0 mm
Material:	Galvanized Steel
Internal Height (L2):	52 mm
Internal Width (B):	27 mm
Breaking Load:	2600 daN (approx. 2.6t)

Application	Suitability	Notes
Marine Mooring	Excellent	Ideal for buoy to chain connection.
Anchor Systems	Primary Fitment	Suitable for 12mm and 13mm anchor chains.
Trailers & Rigging	Heavy Duty	Safety chains and recovery points.

Is this a genuine original part?

Yes, this is a genuine Talamex marine hardware component, sourced directly from the manufacturer, Lankhorst Taselaar.

How do I know if it is compatible?

Please verify the pin diameter (13mm) against the hole size in your anchor or chain link. This shackle is optimized for 12mm-13mm marine applications.

Can this be used for permanent mooring?

Yes, the hot-dip galvanized coating is specifically designed for long-term immersion in seawater, offering far superior protection compared to standard zinc plating.
