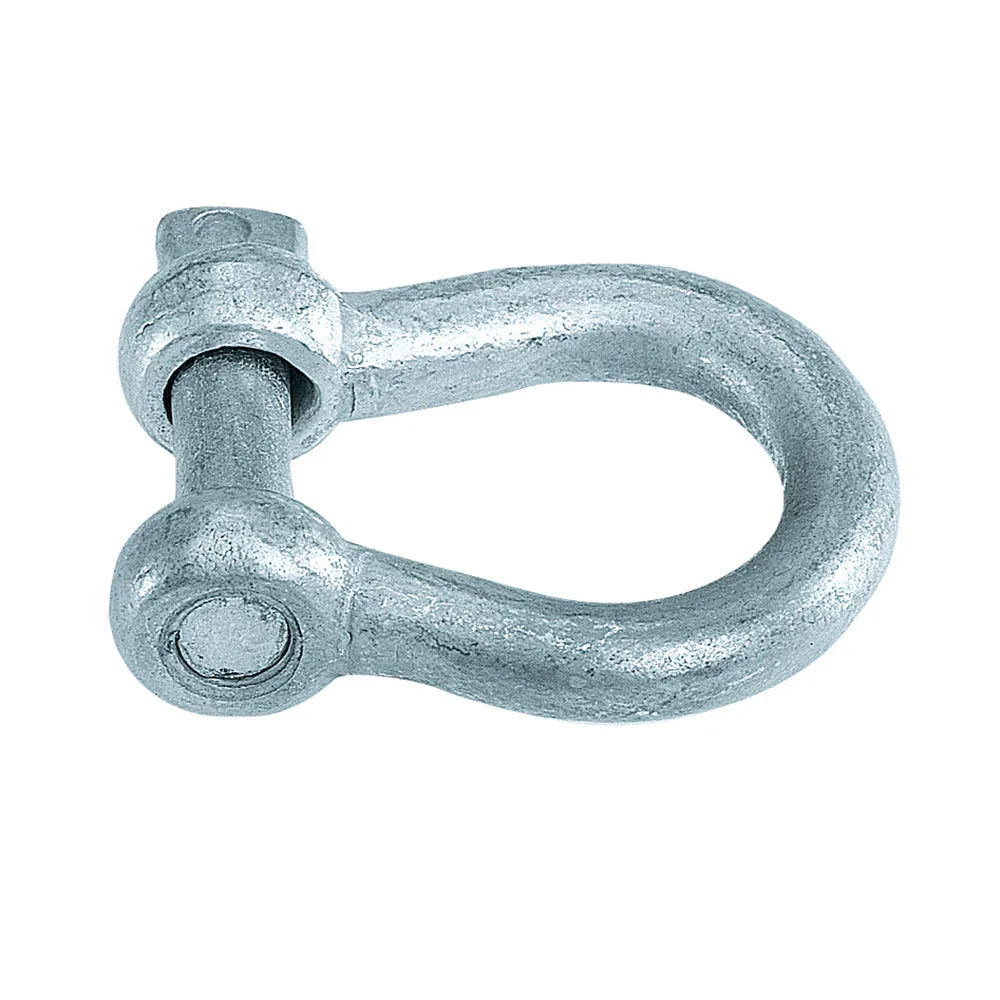

Talamex 19mm Bow Shackle (08.106.019)
Hot-Dipped Galvanised Marine Hardware
The Talamex 19mm Galvanised Bow Shackle (MPN: 08.106.019) is a high-strength rigging essential designed for the demanding marine environment. Unlike standard D-shackles, the bow design allows for multi-directional loading, making it the preferred choice for connecting anchor lines, mooring chains, and rigging where the load direction may shift.
Key Features
- ✔ Bow-shape for multi-angle load distribution
- ✔ Hot-dipped galvanised for sea-water protection
- ✔ Standard threaded screw pin for easy attachment
- ✔ High-tensile strength for heavy-duty mooring
Technical Specs
| Pin Diameter (A) | 19 mm (3/4") |
| Bow Inner Width (B) | 38 mm |
| Opening Width (C) | 20 mm |
| Total Height (L2) | 80 mm |
| Breaking Load (BL) | 5500 daN (~5600kg) |
Compatibility / Application Guide
| Application | Use Case | Notes |
|---|---|---|
| Anchoring | Connecting chain to anchor or rode | Fits standard 19mm chain links |
| Mooring | Buoy to mooring chain connection | Galvanised finish prevents early rusting |
| Towing | Heavy-duty recovery/towing bridles | High breaking load (5.5T) |
OEM Cross Reference
| Talamex Part Number | 08.106.019 |
| SKU Reference | 08106019 |
Questions & Answers
Is this a genuine original part?
This is a premium Talamex marine component, manufactured to high European standards for safety and longevity in offshore conditions.
How do I know if it is compatible?
Measure the diameter of your current pin or the opening of your chain link. This shackle uses a 19mm (3/4") pin. If your equipment requires a 19mm diameter, this is the correct part.
Can this be used for permanent underwater mooring?
Yes, the hot-dipped galvanisation is specifically intended for submersion; however, we recommend regular inspections for wear and cathodic protection in highly corrosive environments.
Note: Please verify your required load limits and pin diameter against the specifications above before purchasing. All technical data is provided for reference based on manufacturer Talamex guidelines.
