Talamex 6mm Calibrated Anchor Chain 50m Galvanised DIN 766 Short Link 07.102.206
Talamex 6mm Calibrated Anchor Chain 50m Galvanised DIN 766 Short Link 07.102.206
Couldn't load pickup availability

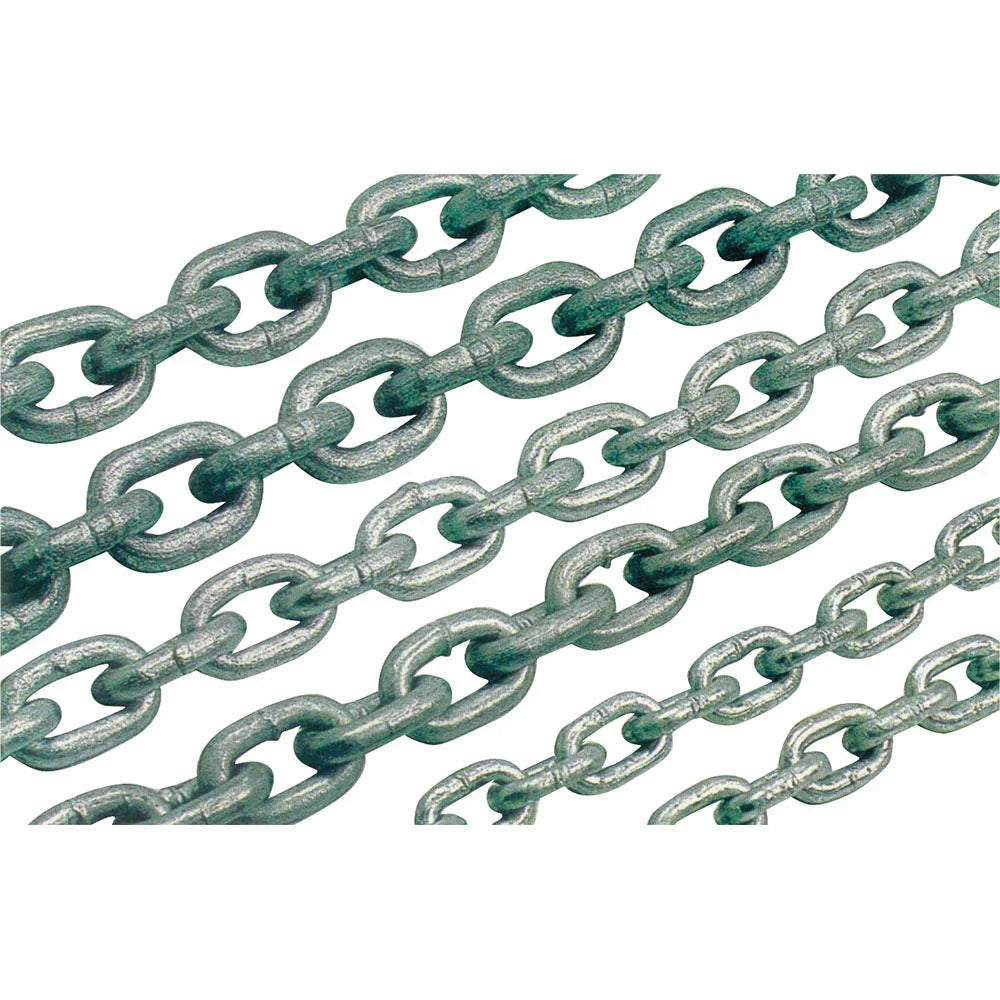

Talamex 6mm Calibrated Chain (50m)
SKU: 07.102.206 | DIN 766 Standard
This Talamex 6mm Calibrated Anchor Chain is a high-performance short-link chain specifically designed for use with marine windlasses. Manufactured by Lankhorst Taselaar under the Talamex brand, this chain is hot-dip galvanised to provide maximum protection against the harsh saltwater environment, preventing premature rust and corrosion.
Key Features
- ✔ Hot-Dip Galvanised Finish
- ✔ DIN 766 Calibrated Short Link
- ✔ Precision Pitch for Windlasses
- ✔ 50 Metre Continuous Coil
Technical Specs
| Diameter (A): | 6 mm |
| Pitch (L2): | 18.5 mm |
| External Width (B): | 20.2 mm |
| Internal Width (C): | 7.2 mm |
| Breaking Load: | 1400 daN (~1427 kg) |
| Weight: | 0.8 kg/m (40kg total) |
Compatibility / Fitment Guide
| Windlass Brand | Requirement | Notes |
|---|---|---|
| Lewmar / Lofrans | 6mm DIN 766 Gypsy | Ensure gypsy is not ISO 4565 |
| Quick / Maxwell | 6mm DIN 766 Gypsy | Standard short-link calibration |
| Talamex Windlasses | All 6mm Models | OEM matched quality |
OEM Cross Reference
| Talamex MPN | 07.102.206 |
| Lankhorst Taselaar | 07102206 |
| Standard | DIN 766 / Short Link |
Questions & Answers
Is this a genuine original part?
This is a premium Talamex branded product, manufactured by Lankhorst Taselaar, a leading European marine equipment supplier. It is original Talamex equipment.
How do I know if it is compatible?
Check your windlass user manual or the stamping on the gypsy (the wheel that moves the chain). If it specifies 6mm DIN 766, this chain is a guaranteed fit. If your gypsy specifies 6mm ISO 4565, this chain may not seat correctly.
What is the difference between DIN 766 and ISO 4565?
The main difference is the link length (pitch). For 6mm chain, DIN 766 uses an 18.5mm pitch, while ISO 4565 typically uses 18.0mm. It is vital to match the chain to your specific gypsy calibration.
Note: Please verify your windlass requirements against the technical dimensions above before purchasing. Orders for 50m coils are shipped as a single continuous length.
