1000 GPH 12V Automatic Submersible Bilge Pump Marine Boat Yacht Auto Water
1000 GPH 12V Automatic Submersible Bilge Pump Marine Boat Yacht Auto Water
Couldn't load pickup availability
1000 GPH Automatic Bilge Pump
Reliable 12V DC Submersible Water Removal for Marine Vessels
Keep your vessel dry and safe with our high-performance 1000 GPH 12V DC Submersible Automatic Bilge Pump. Designed for optimal water removal in marine environments, this essential piece of equipment provides peace of mind whether you're at sea, docked, or your boat is unattended. Its robust construction and intelligent features make it a must-have for any small to medium-sized boat, yacht, or personal watercraft.
This automatic bilge pump efficiently handles water accumulation from rain, splash, or minor leaks, activating automatically when water levels rise. With a powerful 1000 Gallons Per Hour capacity, it ensures rapid drainage, protecting your boat's hull and electrical systems from water damage. Invest in reliable marine safety with a pump built for durability and ease of use.
Key Features
- ✔ Automatic Operation: Integrated float switch activates pump when water rises.
- ✔ High Capacity: Pumps 1000 GPH (3785 L/h) for fast water removal.
- ✔ Durable Construction: Made with corrosion-resistant ASA plastic body and stainless steel shaft.
- ✔ Easy Maintenance: Snap-on strainer base allows for tool-free cleaning and installation.
- ✔ Ignition Protected: Meets ISO 8846 Marine standards for safety.
- ✔ Low Amp Draw: Efficient motor design conserves battery power.
Technical Specs
| Flow Rate: | 1000 GPH (3785 L/h) |
| Voltage: | 12V DC |
| Current Draw (Max): | 7.5A (Fuse Requirement) |

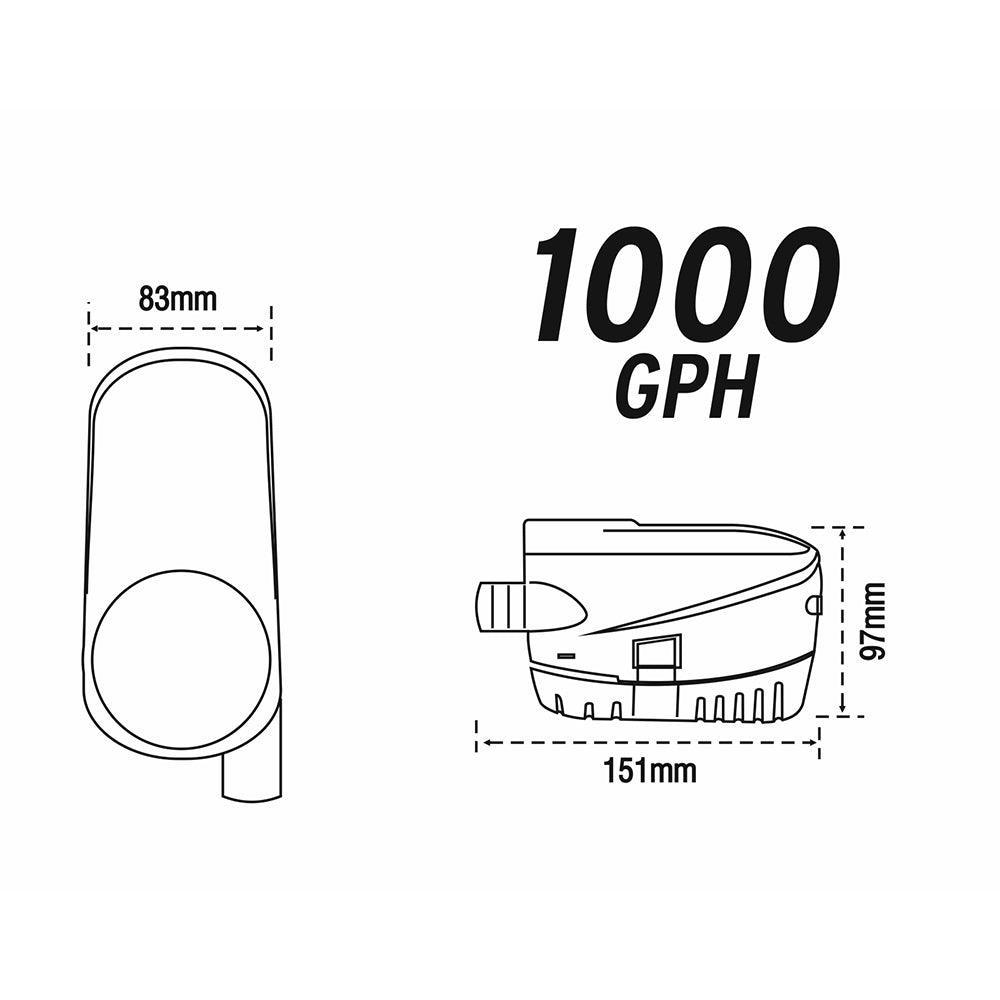

| Outlet Diameter: | 25 mm (1 inch) |
| Housing Material: | ASA Plastic |
| Shaft Material: | Stainless Steel |
Vehicle / Vessel Fitment Guide
| Application | Type | Notes |
|---|---|---|
| Marine | Small to Medium Boats | Sailboats, Powerboats, Fishing Boats |
| Marine | Yachts | Ideal for continuous automatic bilge water removal. |
| Marine | Personal Watercraft (PWC) | Suitable for PWC and jet skis requiring automatic drainage. |
OEM Part Number Cross Reference
| Generic Aftermarket | Direct Replacement for most 1000 GPH 12V automatic bilge pumps |
| Common Replacements | Check dimensions and specifications for compatibility with existing installations (e.g., Rule, Johnson Pump equivalents). |
Frequently Asked Questions
What is a 1000 GPH automatic bilge pump?
A 1000 GPH (Gallons Per Hour) automatic bilge pump is a marine pump designed to remove up to 1000 gallons of water per hour from a boat's bilge. The "automatic" feature means it includes a built-in float switch that detects rising water levels and activates the pump without manual intervention, then shuts off when the water is removed.
How do I install this 12V submersible bilge pump?
Installation is straightforward thanks to its snap-on strainer base. Mount the pump in the lowest part of your bilge, connect the 12V DC power supply (typically to a fused circuit in your boat's electrical system), and attach the outlet hose to a through-hull fitting. Always ensure proper wiring and sealing to prevent leaks. A manual test button is often included for verification.
Is this bilge pump ignition protected?
Yes, this bilge pump is ignition protected, meeting ISO 8846 Marine standards. This means it is designed to prevent external ignition of flammable vapours, making it safe for use in engine compartments where fuel fumes may be present.
What types of boats is this 1000 GPH bilge pump suitable for?
This 1000 GPH 12V automatic bilge pump is ideal for a wide range of small to medium-sized marine vessels, including sailboats, powerboats, fishing boats, dinghies, and personal watercraft. Its compact size and efficient operation make it a versatile choice for many applications.
Note: Please verify your vehicle model and year before purchasing.
Fast shipping available across the UK and Europe.
