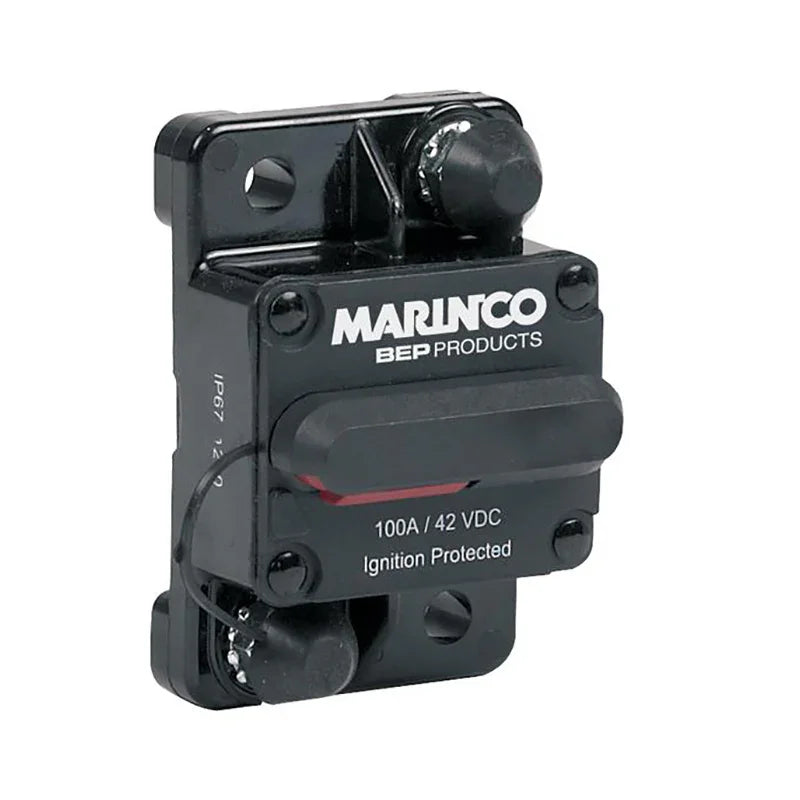

Single-Pole Thermal Breaker - 30-200 A, IP67 | 4Boats

Single-Pole thermal type breakers for auxiliary and accessory circuits in trucks, buses, RVs and marine use, sealed for engine compartment and bilge areas.

• Applications: Auxiliary and accessory circuits - trucks, buses, RVs and marine applications; sealed for engine compartment and bilge area applications.
• Housing: Thermoset plastic; stud insulators on F (surface mount) units with tin-plated copper studs, brass rivets and stainless-steel locking nuts.
• Ratings: 30-200 A; 30 V DC. Interrupt capacity: 3,000 A.
• Operating temperature: −32°C to 82°C (−25°F to 180°F). Storage temperature: −34°C to 149°C (−30°F to 300°F).
• Mounting: Panel or surface. Terminal stud torque: 5 in-lb (0.56 Nm).
• Indicator: Series 184 & 185 have a unique reset mechanism providing visible indication of a tripped condition.
• Ingress protection rating: IP67.
• Approvals: Complies with SAE J1635, J1171 and UL1500 (ignition protected) specifications.
• OEM No: BEP-185030P011.
