Shakespeare Whipflex 0.9m Stainless Steel VHF Marine Antenna Kit YWX 3dB Gain
Shakespeare Whipflex 0.9m Stainless Steel VHF Marine Antenna Kit YWX 3dB Gain
Couldn't load pickup availability
Shakespeare Whipflex VHF Antenna (YWX)
The Industry Benchmark for Sailing Yachts & RIBs

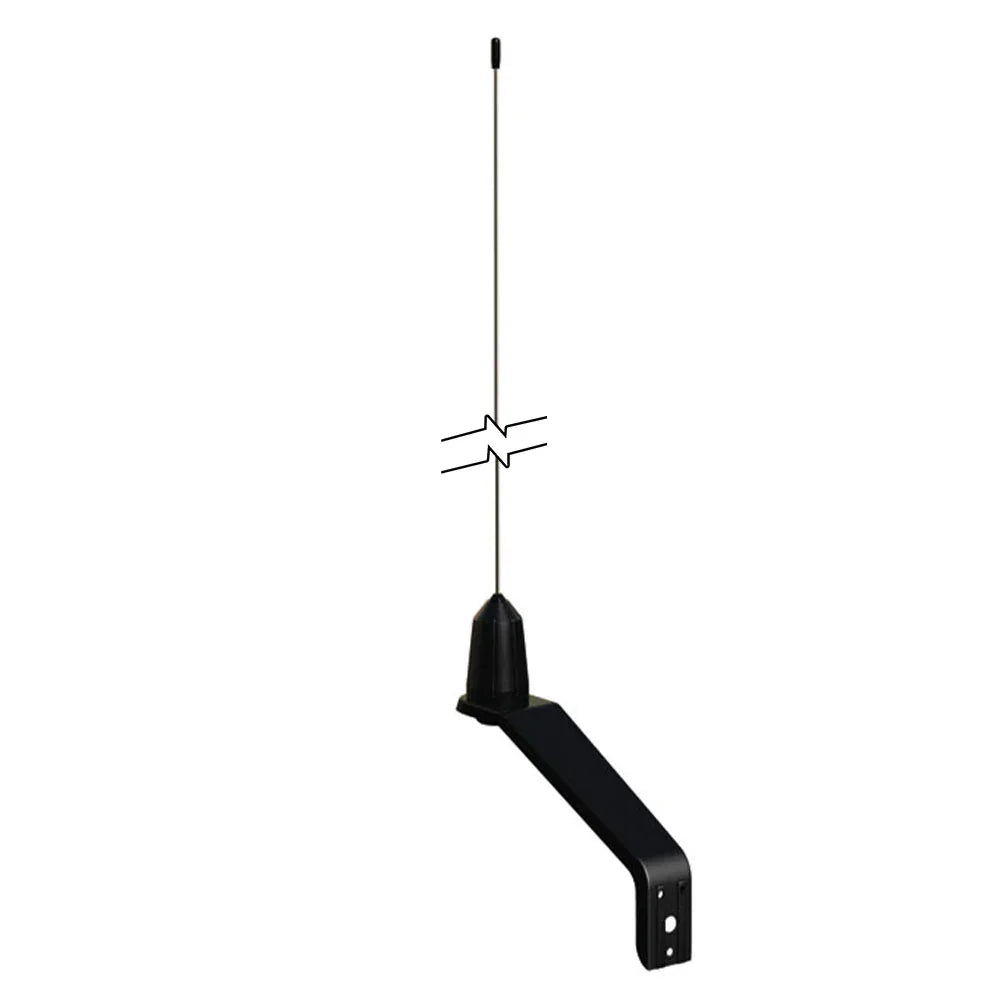

The Shakespeare Whipflex (V-Tronix) is the world-renowned standard for masthead VHF antennas. Designed specifically for sailing vessels and RIBs, this 0.9m stainless steel whip provides exceptional performance with minimal windage. It features the legendary V-Tronix solderless connector system, allowing for a waterproof connection and easy removal at the end of the season without cutting cables.
Key Features
- ✔ Lightweight stainless steel whip
- ✔ V-Tronix Solderless Connector System
- ✔ Low windage masthead design
- ✔ Sealed in epoxy resin for water resistance
- ✔ Includes 20m RG-58 Coax Cable
Technical Specs
| Frequency Range | 156 - 162 MHz |
| Antenna Gain | 3 dBi |
| Length | 0.9m (3ft) |
| VSWR | < 1.5:1 at resonance |
| Weight | 0.25 kg |
| Impedance | 50 Ohms |
Compatibility / Fitment Guide
| Application | Mounting Method | Notes |
|---|---|---|
| Sailing Yachts | Masthead Mount | Nylon cranked bracket included. |
| RIBs & Motorboats | Vertical Rail/Mast | Low windage prevents fatigue. |
| Replacement Whip | Direct V-Tronix fit | Fits existing Whipflex YWX bases. |
OEM Cross Reference
| Shakespeare MPN | YWX (Full Kit) / YWA (Whip Only) |
| V-Tronix Reference | Whipflex 0.9m Stainless Steel |
| US Equivalent | Style 5215 (Squatty Body®) |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Shakespeare / V-Tronix Whipflex antenna, the industry standard for marine VHF communications.
What is included in the box?

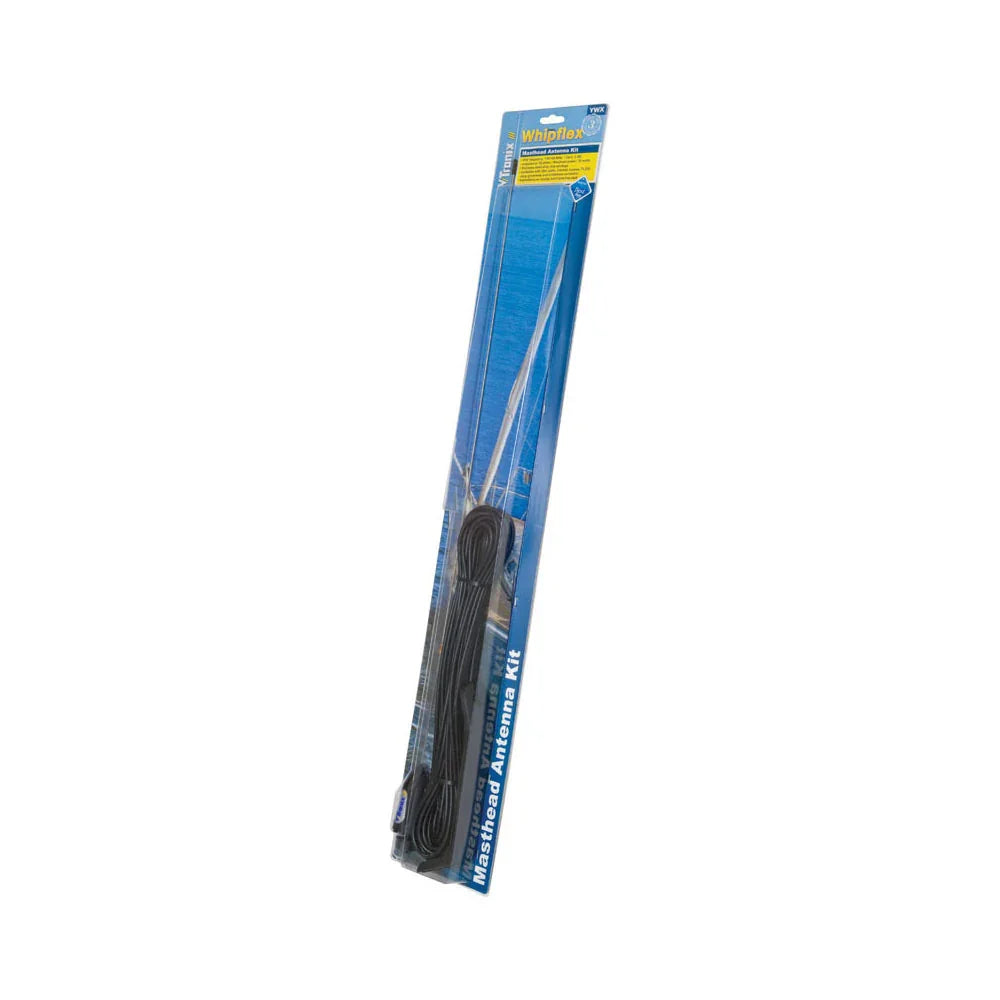

The YWX kit includes the 0.9m stainless steel whip, a 180mm nylon cranked bracket for masthead mounting, and 20m of RG-58 cable with a PL-259 connector.
Does it require soldering for installation?
No. The Whipflex uses the patented V-Tronix solderless connector system, which makes masthead installation quick, reliable, and tool-free for the final connection.
Note: Please ensure your mounting location allows for clear 360-degree transmission for optimal performance. Plain text domain: 4boats.co.uk
