Shakespeare 0.9m Stainless Steel VHF Whip Antenna N-Connector MD-20-N Marine
Shakespeare 0.9m Stainless Steel VHF Whip Antenna N-Connector MD-20-N Marine
Couldn't load pickup availability

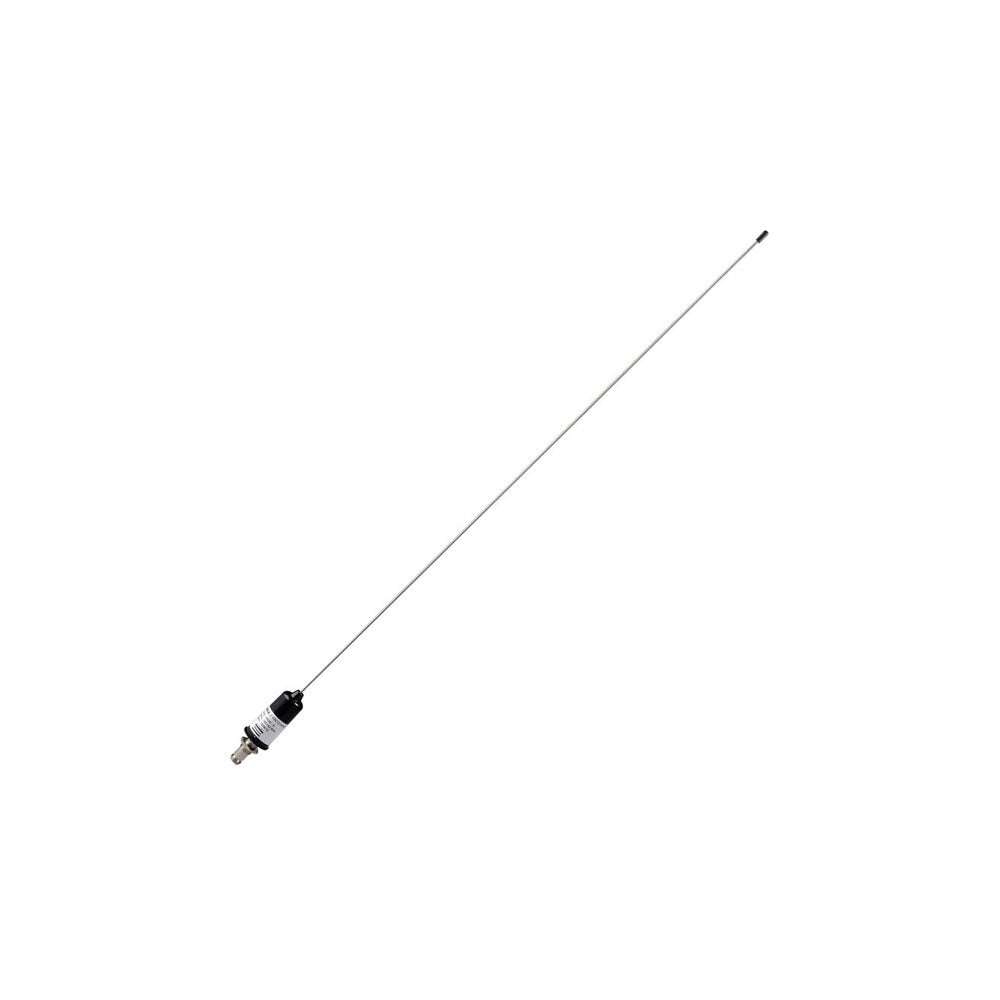

Shakespeare 0.9m VHF Whip Antenna
Professional Grade N-Connector Marine Antenna (MD-20-N)
The Shakespeare 0.9m (3ft) Stainless Steel VHF Whip Antenna is a compact, high-durability solution designed specifically for masthead mounting on sailing yachts and high-speed motorboats. Engineered to withstand the most rugged marine environments, this antenna features a lightweight, low-windage design that minimizes stress on your mast while providing exceptional communication range.
Key Features
- ✔ High-grade Stainless Steel whip
- ✔ N-Type Jack for detachable cable
- ✔ Low-profile, low windage construction
- ✔ Sealed epoxy resin internal protection
- ✔ Ideal for masthead or bracket mounting
Technical Specs
| Frequency Range: | 156 - 162 MHz |
| Gain: | 3 dB / 3 dBi |
| V.S.W.R.: | 1.5:1 @ 156.8 MHz |
| Max Input Power: | 50 Watts |
| Connector Type: | N-Type (Female) |
| Length: | 0.9 Metres (approx 3') |
| Impedance: | 50 Ohms |
Compatibility / Application Guide
| System/Boat Type | Application | Notes |
|---|---|---|
| Sailing Boats | Masthead Mounting | Low windage prevents snagging and reduces mast sway. |
| RIBs & Powerboats | Console/Gantry Mounting | Heavy-duty stainless whip resists impact and vibration. |
| VHF Marine Systems | VHF Communication | Compatible with all standard Marine VHF frequencies. |
OEM Cross Reference
| Shakespeare / V-Tronix MPN | MD-20-N / MD20N |
| Distributor SKU | 818-MD20N |
| Related Models | 5242-N (US Equivalent / Variations) |
Questions & Answers
Is this a genuine Shakespeare antenna?
Yes, this is a genuine Shakespeare Marine product (V-Tronix series), manufactured to professional standards for marine communication.
Does it come with a mounting bracket or cable?
This SKU typically includes the antenna with the integral N-connector base. Mounting brackets and coaxial cables are usually sold separately to allow for custom installation lengths and types.
Why use an N-connector instead of a PL-259?
N-connectors are professional-grade, waterproof connectors that offer better impedance matching and lower signal loss at high frequencies compared to standard UHF (PL-259) connectors.
Note: Please ensure your existing mount or cable is compatible with the N-type (Female) connector at the base of this antenna. For technical support, please contact the 4boats.co.uk team.
