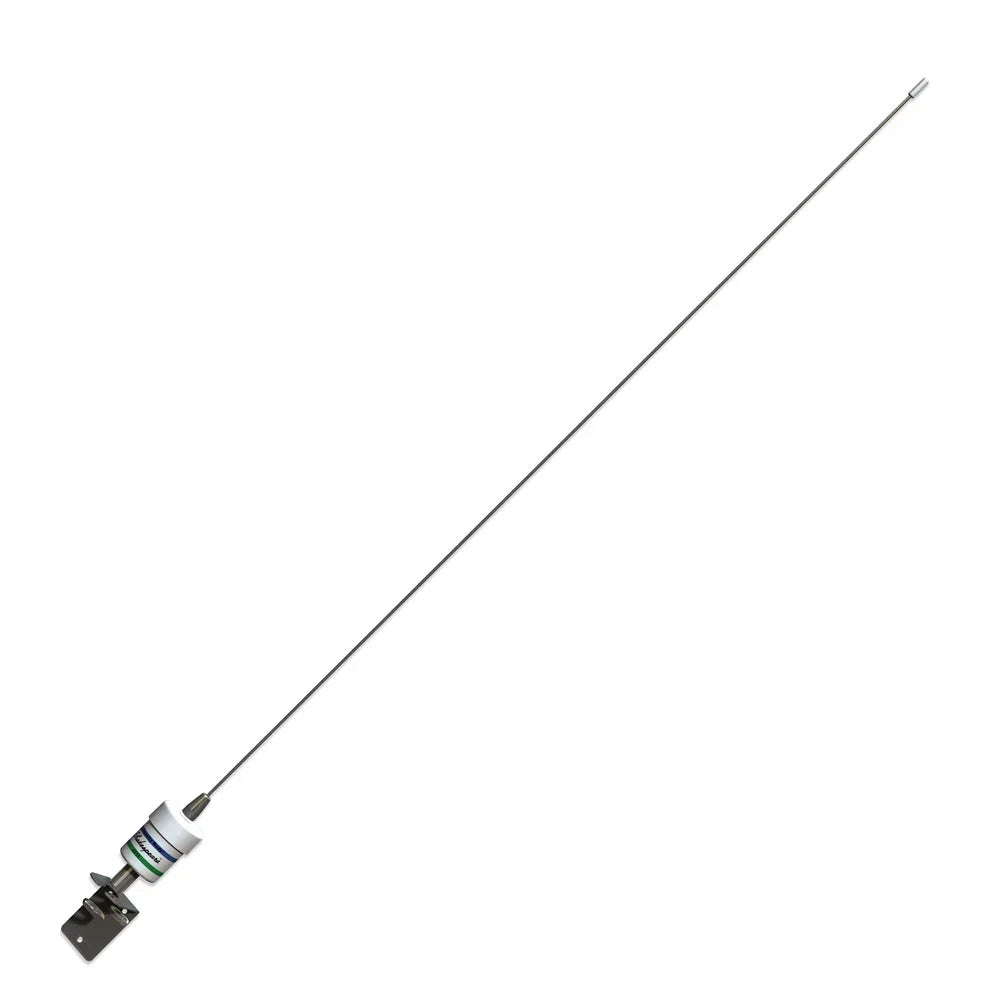

Shakespeare 5215-AIS Marine AIS Antenna 3dB Stainless Steel 0.9m 3ft Masthead
Shakespeare 5215-AIS Marine AIS Antenna 3dB Stainless Steel 0.9m 3ft Masthead
Couldn't load pickup availability
Shakespeare 5215-AIS Antenna
3dB Stainless Steel Masthead AIS Antenna - 0.9m
The Shakespeare Style 5215-AIS is a specially engineered version of the legendary "Squatty Body" antenna, designed specifically to meet the high-bandwidth requirements of AIS (Automatic Identification System) transceivers. At just 0.9m (3 feet) in length, this lightweight, low-profile antenna is the industry standard for sailboat masthead mounting, providing exceptional performance without adding significant windage or weight aloft.
Key Features
- ✔ End-fed 1/2-wave stainless steel whip
- ✔ Sealed, tin-plated copper wire coil
- ✔ Low profile & lightweight design
- ✔ Designed for masthead mounting
- ✔ Includes Stainless Steel L-bracket
Technical Specs
| Frequency: | AIS Marine Band |
| Gain: | 3 dB |
| VSWR: | 1.5:1 at 162 MHz |
| Bandwidth: | 7 MHz (within 2.0:1) |
| Max Power: | 50 Watts |
| Connector: | SO-239 |
| Impedance: | 50 Ohms |
Compatibility / Fitment Guide
| Application | Vessel Type | Notes |
|---|---|---|
| AIS Transceivers | Sailboats / Yachts | Perfect for Class A & B AIS units |
| Masthead Mounting | All Sailboats | Uses supplied L-bracket for vertical surfaces |
| Small Powerboats | RIBs / Tenders | Low profile prevents snagging |
OEM Cross Reference
| Shakespeare MPN: | 5215-AIS |
| UPC: | 719441100810 |
| Related Standard VHF Model: | 5215 (Squatty Body) |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Shakespeare Marine product, manufactured to the highest standards for marine communication safety.
How do I know if it is compatible?
If you have an AIS transceiver (Class A or B) and require a 0.9m masthead antenna, the 5215-AIS is specifically built for this purpose. It provides the necessary bandwidth that standard VHF antennas lack.
Does it include the cable?
No, this model features an SO-239 connector at the base. Coaxial cable (like RG-58 or RG-213) and PL-259 connectors are sold separately to allow for custom length installations.
Note: Please verify your mounting requirements against the included L-bracket specifications before purchasing. For use at 4boats.co.uk.
