Shakespeare LDDB 0.15 m GSM | GPRS Antenna | 4Boats

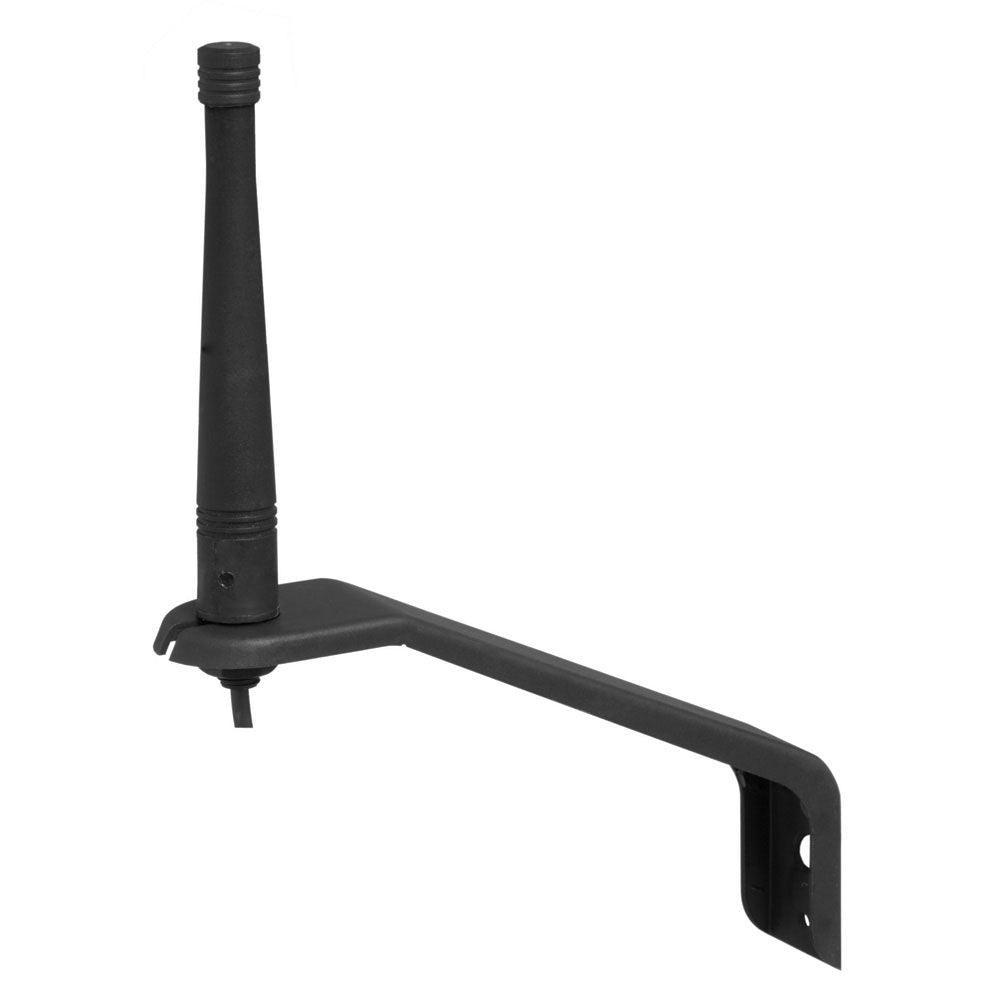

The Shakespeare LDDB 0.15 m sleeved dipole is a compact marine GSM and GPRS antenna offering 3 dB gain and wideband coverage for 860-960 and 1750-2100 MHz (0.15 m / 5.9 in). Rugged, small form factor for versatile mounting aboard vessels; supplied with stand-off (R/A) bracket and three screws for quick installation.

• Frequency: 860-960 MHz & 1750-2100 MHz
• Polarisation: Vertical
• Impedance: 50 Ω
• VSWR:
• Gain: 3 dB
• Cable: 5 m RG58
• Connector: TNC plug (standard)
• Power rating: 50 W
• Element material: Solid brass sleeved dipole
• Length: 0.15 m (5.9 in)
• Mounting: Supplied as standard with R/A bracket
• Datasheet (PDF)
