SEAFLO Marine Raw Water Strainer SF-SWF001 - 1" 1.25" 1.5" Intake Filter 200LPM
SEAFLO Marine Raw Water Strainer SF-SWF001 - 1" 1.25" 1.5" Intake Filter 200LPM
Couldn't load pickup availability
SEAFLO WATER STRAINER SF-SWF001
High-Flow Raw Water Intake Protection (91 - 200 LPM)

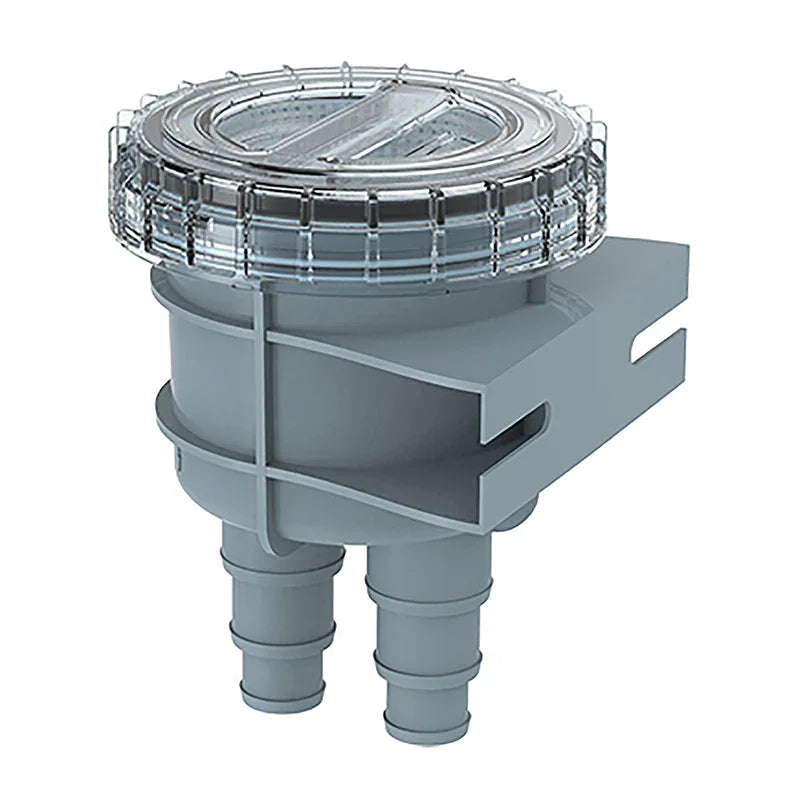

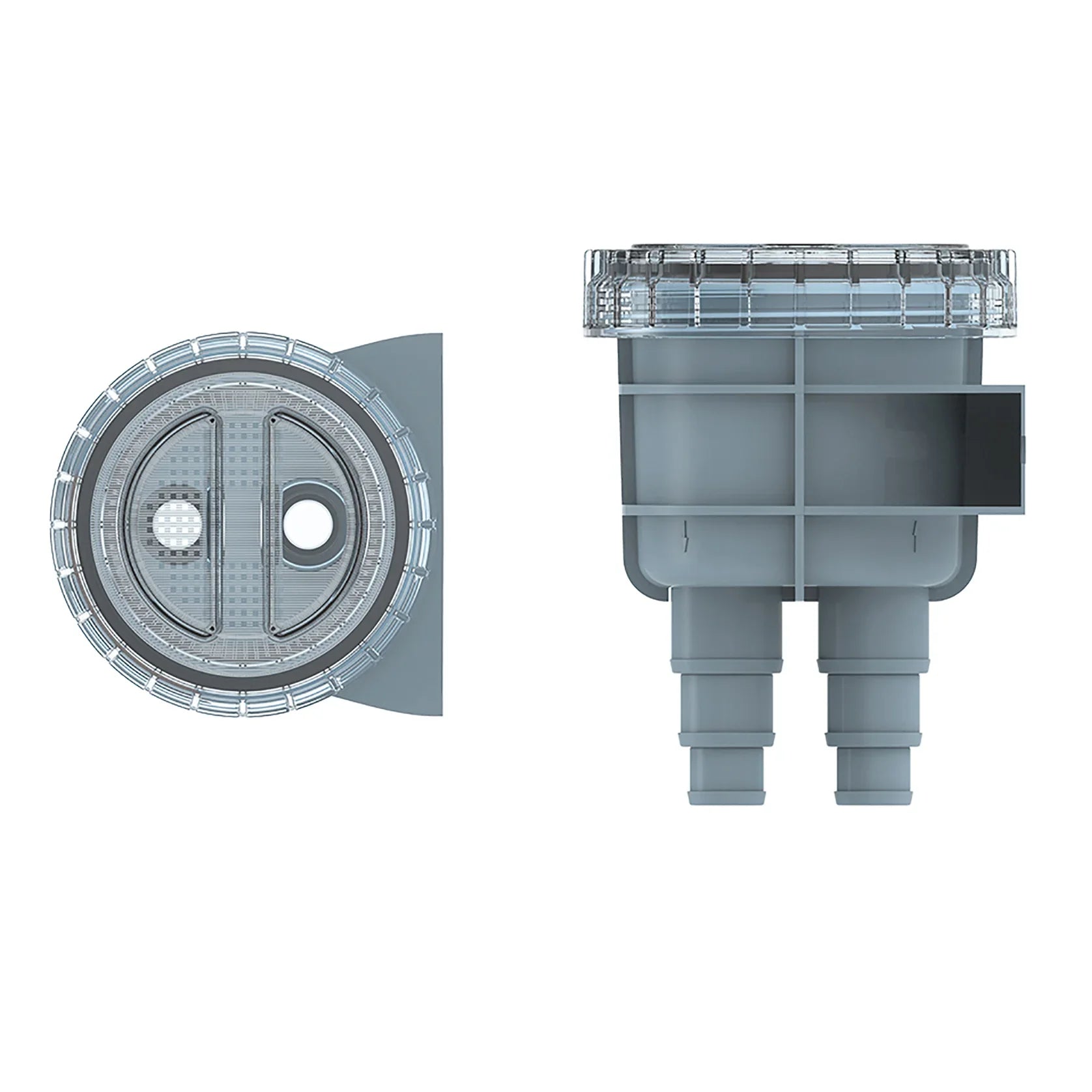

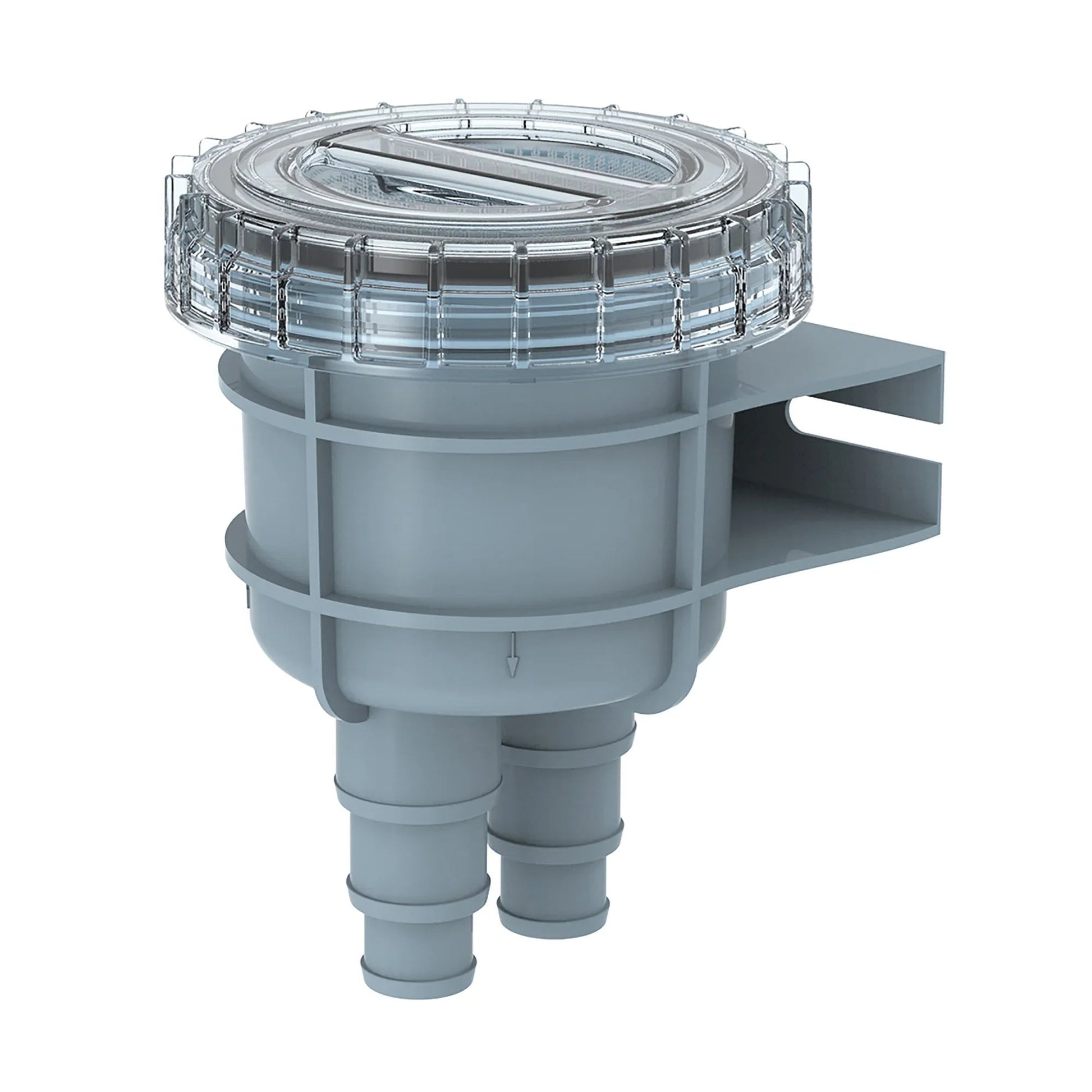

The SEAFLO SF-SWF001 is a heavy-duty raw water strainer designed to protect your marine engine, cooling system, or washdown pump from debris, algae, and sediment. Engineered for high-performance vessels, it features a transparent screw-down lid that allows for instant visual inspection without the need to dismantle the unit. The large surface area of the internal filter basket ensures minimal pressure drop and maximum interval between cleanings.
Key Features
- ✔ Tool-Free Access: Screw-down lid opens manually for easy cleaning.

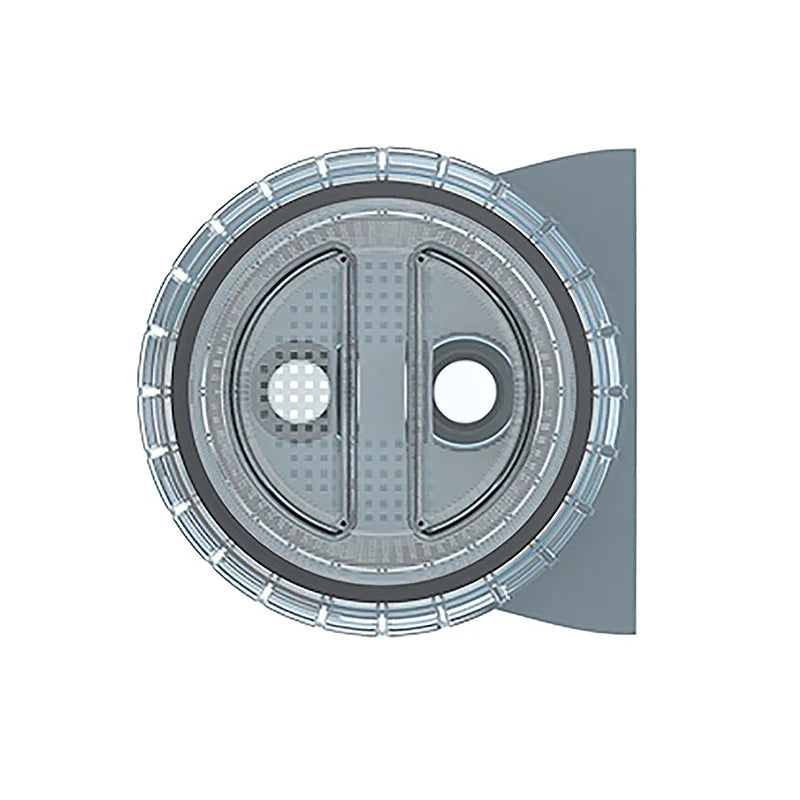

- ✔ Transparent Inspection: Clear SAN lid for at-a-glance debris checks.
- ✔ Durable Materials: Corrosion-resistant Polypropylene and Polyamide build.
- ✔ Protective Filtering: Prevents clogs in engine heat exchangers and pumps.

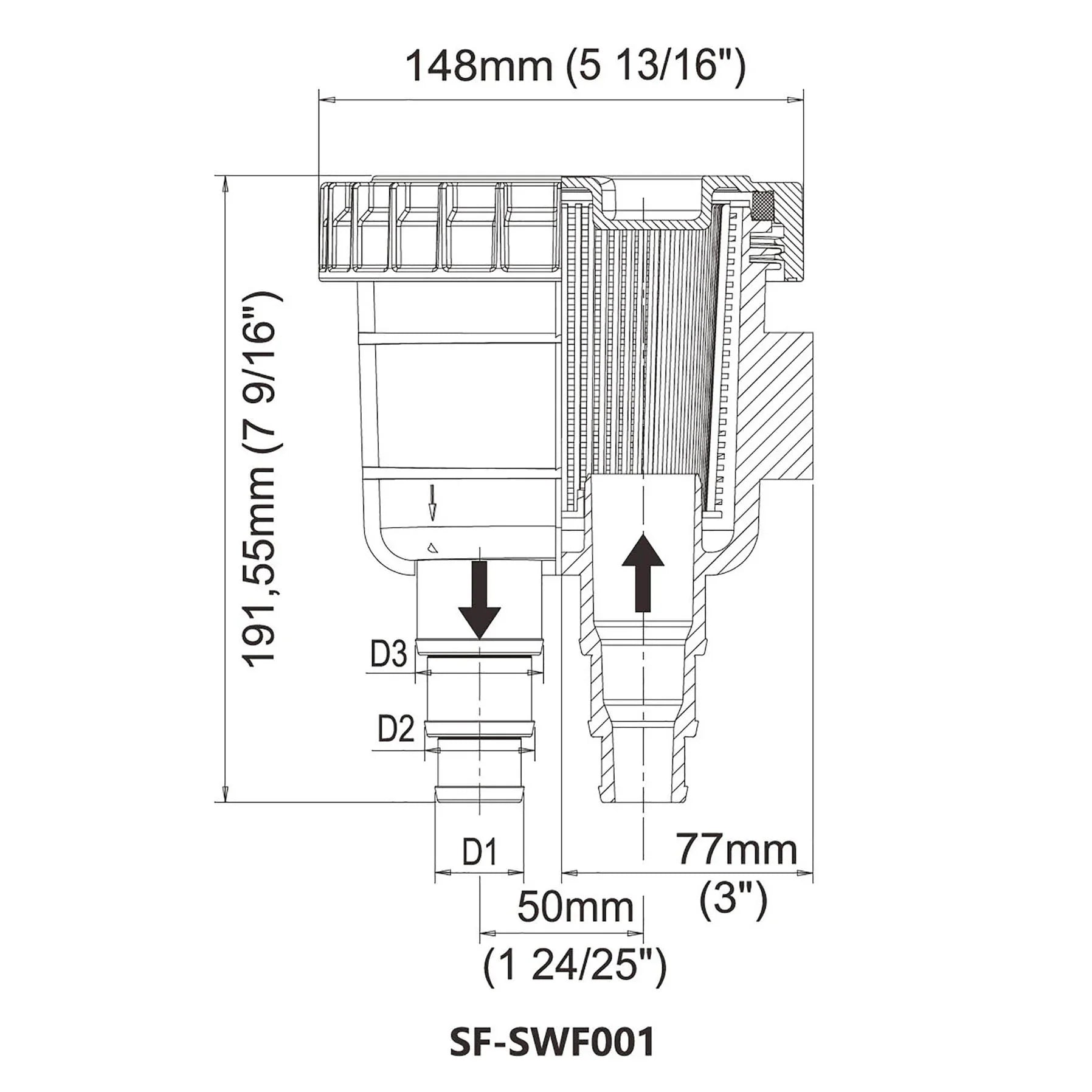

Technical Specs
| Model: | SF-SWF001 |
| Flow Rate (25mm): | 91 LPM / 24 GPM |
| Flow Rate (32mm): | 143 LPM / 38 GPM |
| Flow Rate (38mm): | 200 LPM / 53 GPM |
| Max Pressure: | 0.5 Bar (7 PSI) |
| Max Temp: | 55°C (131°F) |
Compatibility / Fitment Guide
| Application | Hose Diameter | Notes |
|---|---|---|
| Marine Engines | 25mm / 32mm / 38mm | Raw water cooling intake. |
| Air Conditioning | 1" - 1.5" I.D. | Circulation pump protection. |
| Washdown Kits | Various | Protects high-pressure pump. |
OEM Cross Reference
| Vetus Alternative | Type 330 (Similar design) |
| Sheridan Marine | GV347 |
| Seaflo MPN | SF-SWF001 / ZZSFSWF25 |
Questions & Answers
Is this a genuine original part?
This is a premium quality SEAFLO manufactured part, designed to provide high-performance filtration as a direct alternative to more expensive Vetus or Jabsco intake systems.
How do I know if it is compatible?
The SF-SWF001 model is designed for larger hoses (1 inch, 1.25 inch, and 1.5 inch). Measure the internal diameter of your intake hose; if it falls within these three sizes, this unit is compatible.
Where should I install this in my boat's system?
The strainer should be installed above the waterline and between the seacock (inlet scoop) and the engine/pump to ensure it captures debris before it enters your sensitive equipment.
Note: Always ensure the seacock is closed before opening the strainer lid for maintenance. Visit 4boats.co.uk for more technical support.
