SEAFLO 24V Self Priming Impeller Bilge Pump 30LPM 8GPM SP208000301

SEAFLO 24V Self Priming Impeller Bilge Pump 30LPM 8GPM SP208000301

£152.66 GBP
£152.66 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

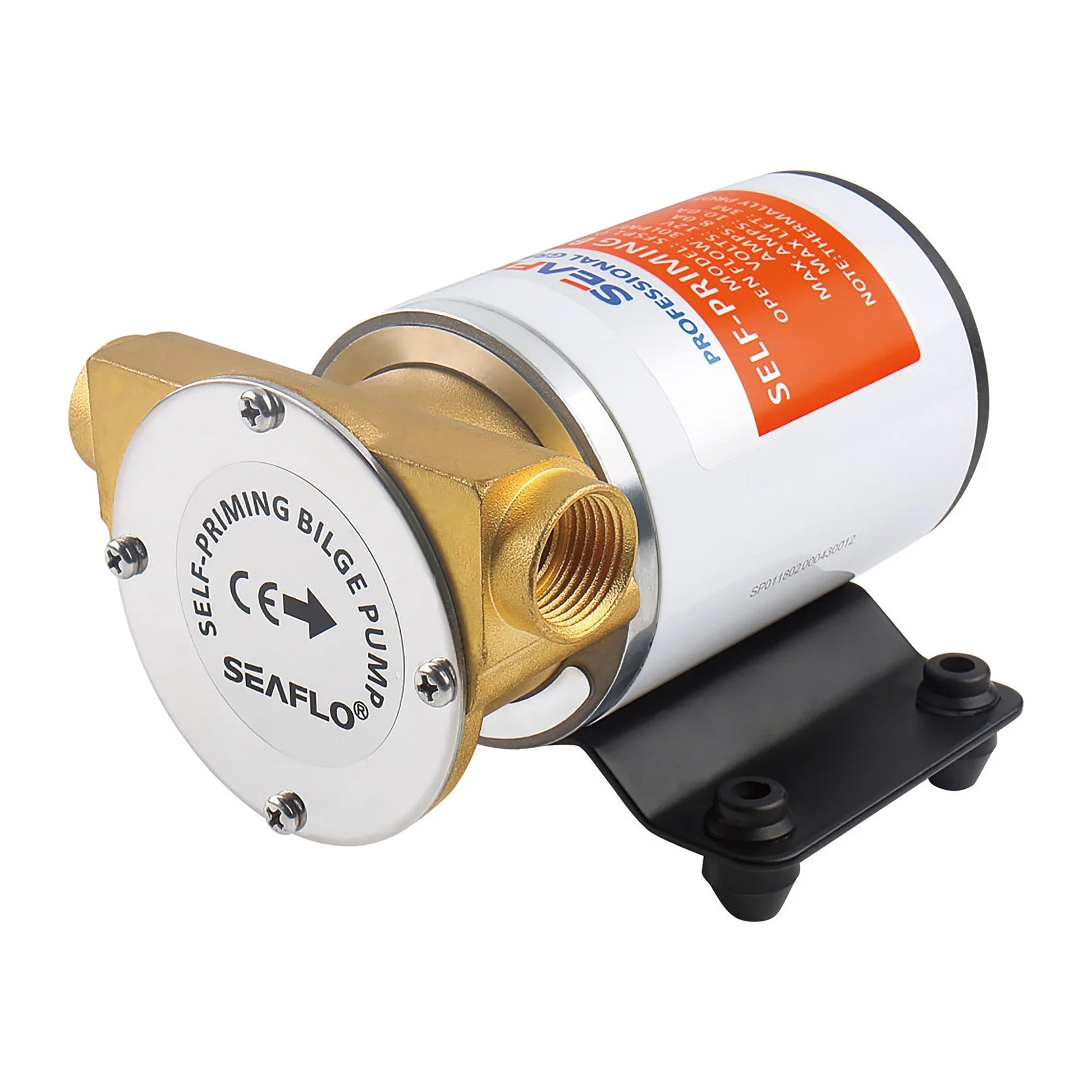

SEAFLO 24V 30LPM Self-Priming Impeller Pump

SEAFLO Marine | SP208000301

SEAFLO SP208000301 is a 24 V positive-displacement flexible-impeller pump rated at 30 L/min / 8.0 US GPM free flow. It is designed for remote bilge extraction and other marine transfer duties where a submersible pump cannot reach.

FITMENT FIRST: This is the 24 V, 30 L/min model; confirm voltage, plumbing and duty.

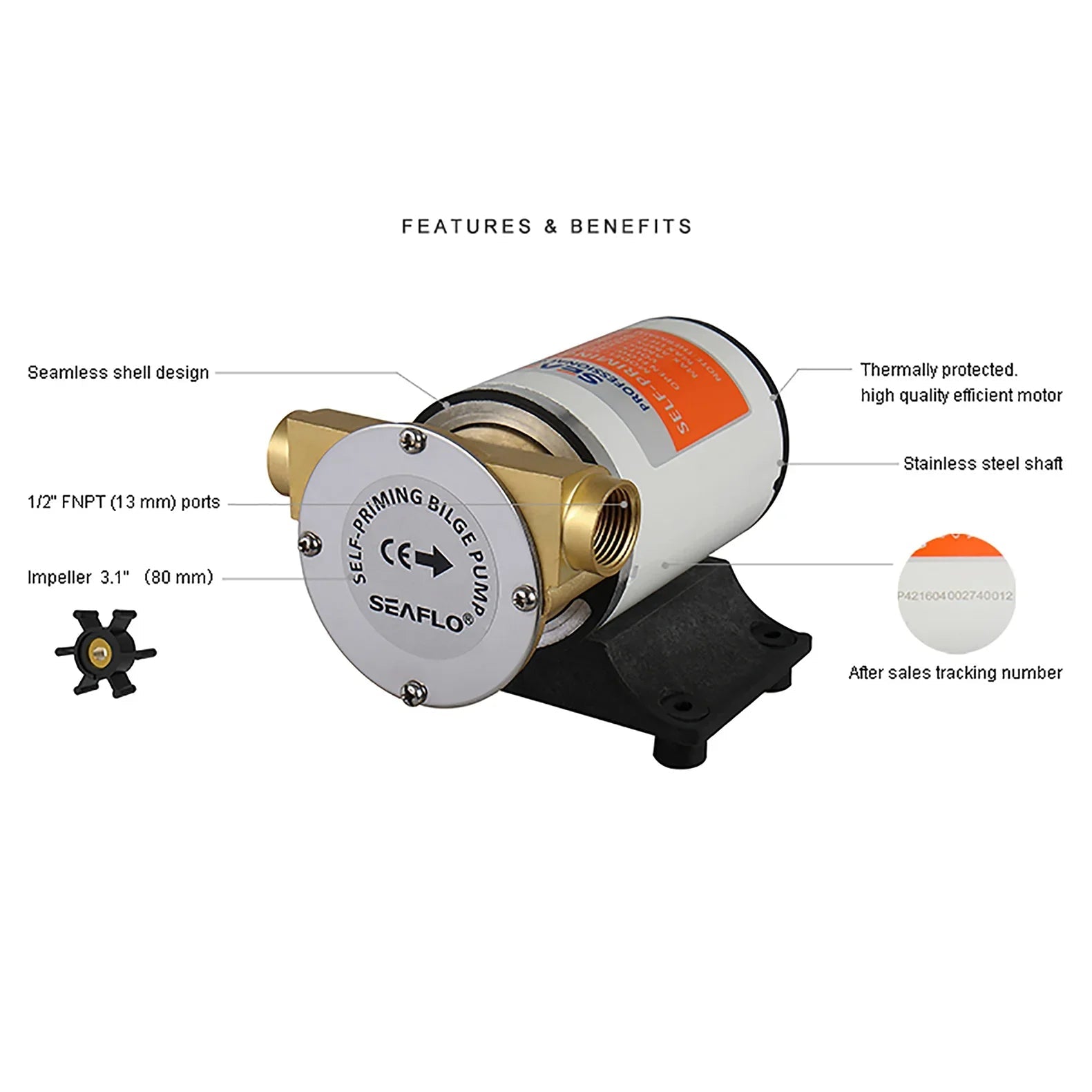

Key Features

  • ✔ 30 L/min / 8.0 GPM nominal open flow
  • ✔ 24 V DC motor with thermal protection
  • ✔ Self-primes up to approximately 1.2 m / 4 ft
  • ✔ Positive-displacement impeller can operate in either direction
  • ✔ Stainless-steel shaft and rubber/copper-hub impeller
  • ✔ Sealed, seamless motor shell

Technical Specs

Voltage 24 V DC
Open flow 30 L/min / 8.0 US GPM
Maximum draw 7 A
Maximum head 3 m / 10 ft
Priming lift 1.2 m / 4 ft
Ports 13 mm / 1/2 in
Maximum liquid temperature 60°C / 140°F
Lead 18 AWG × 1 m
Weight 2.48 kg
Part number SP208000301

Compatibility / Fitment Guide

Electrical: for 24 V DC boats only. Use marine cable, fuse and switching sized for the 7 A maximum draw and cable length. Confirm polarity for the required flow direction.

Plumbing: connect 13 mm / 1/2 inch hose, keep suction short and airtight, and mount the pump dry and accessible. The stated self-priming lift is 1.2 m; performance falls with restriction and head.

Applications: remote bilge pickup, ballast transfer, washdown or waste-water transfer where fluid compatibility allows. Fit an intake strainer and never use it as the sole emergency bilge system.

Limits: maximum liquid temperature 60°C. Do not use for petrol/gasoline or potable water, and do not assume ignition protection in a fuel-vapour space without certification.

OEM Cross Reference

SEAFLO part SP208000301
Alternative formatted reference SFSP208000301
Series 02-Series plastic-head self-priming impeller pump

Questions & Answers

Is the flow 30 LPH?
No. The rating is 30 litres per minute, about 8 US GPM.

Can it run on 12 V?
No. This model is rated for 24 V DC.

Is it reversible?
The positive-displacement impeller design can operate in either direction when wired and controlled correctly.

Can it replace an automatic submersible bilge pump?
It can extract from remote spaces but needs external control and should not be the only emergency bilge arrangement.

Use a fused marine circuit, secure hoses and an intake strainer. Flexible impellers need liquid lubrication; stop the pump promptly if it loses prime.
