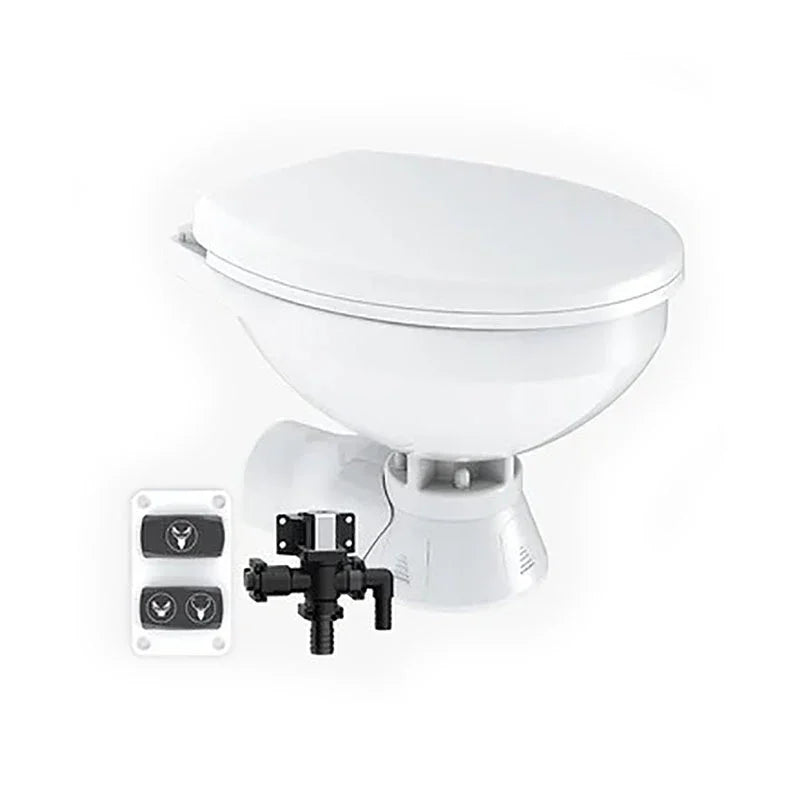

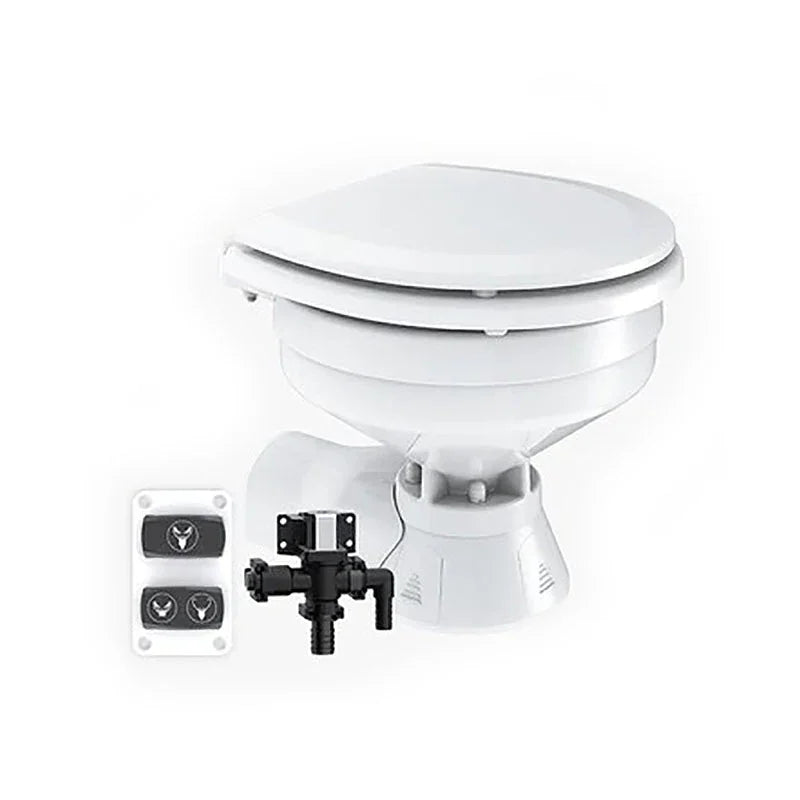

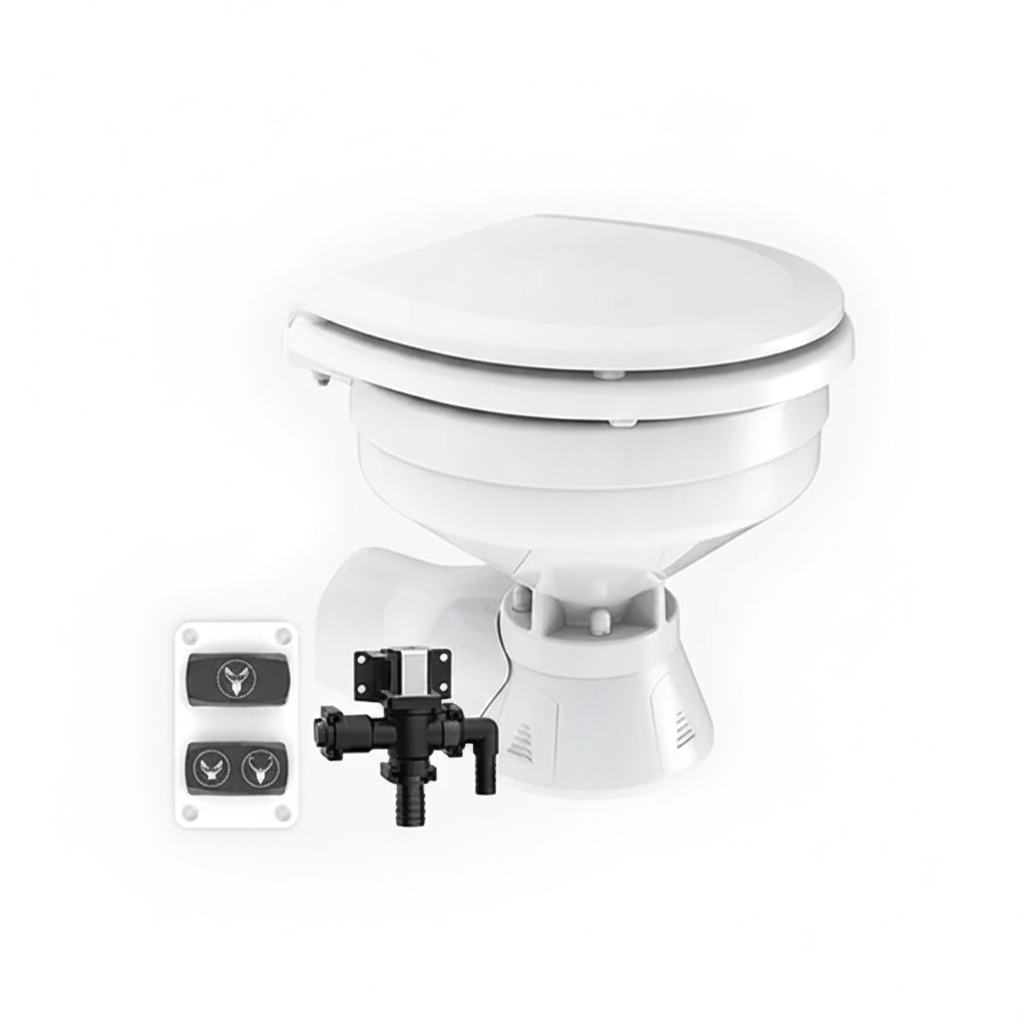

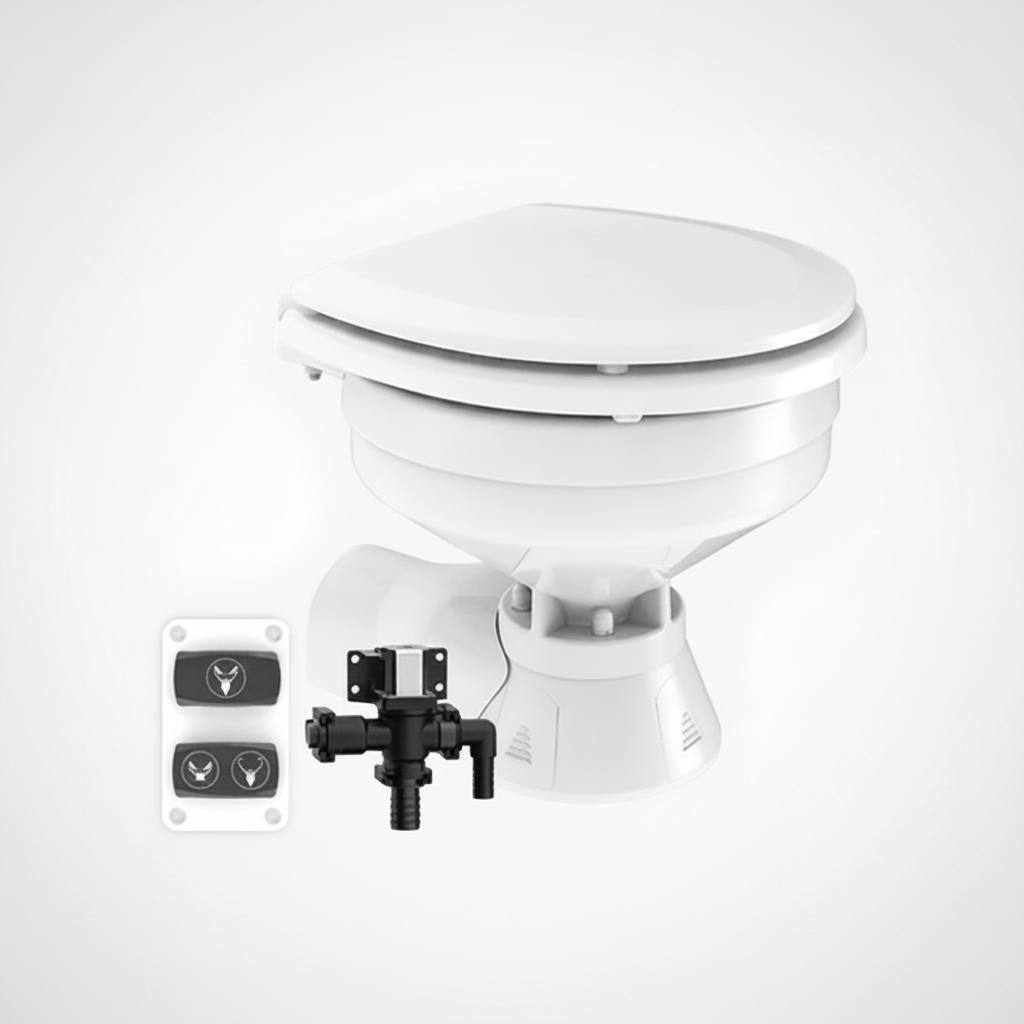

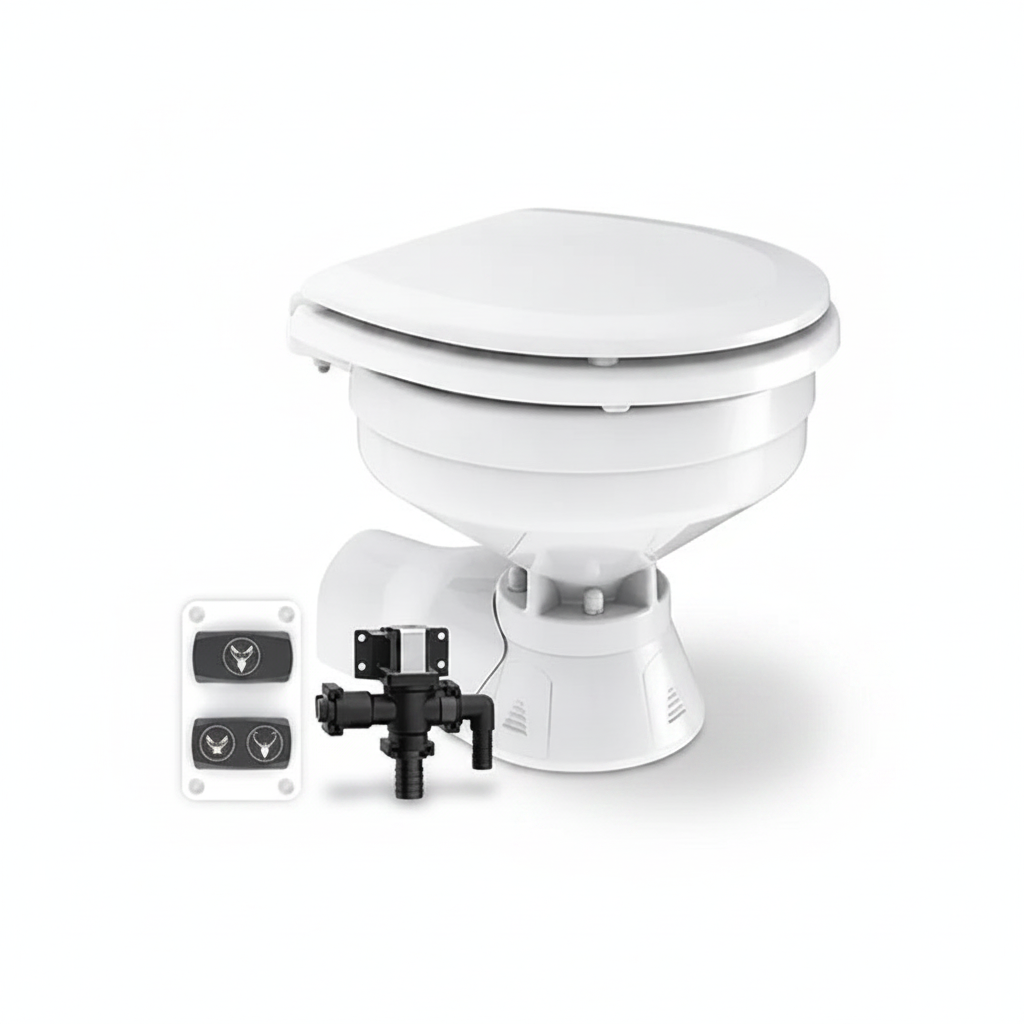

RELIABILITY: Built with a premium vitreous china bowl and a heavy-duty macerator pump, engineered to meet or exceed OEM standards for long-term marine durability.

Key Features

• ✔ Ultra-Quiet Operation: Designed to minimize noise levels during the flush cycle.
• ✔ Freshwater Intake: Eliminates odors by using the vessel's potable water.
• ✔ Compact Footprint: Ideal for tight head compartments without sacrificing comfort.
• ✔ Dual-Function Switch: Includes control panel for water level and flush management.
• ✔ Vitreous China: Easy-to-clean, high-grade ceramic bowl.

Technical Specs

Voltage	24V DC
Max Amp Draw	8 Amps
Inlet Port	3/4" (19mm) Barb
Outlet Port	1" (25mm) Barb
Fuse Size	15 Amps
Dimensions	414 x 330 x 350 mm
Bowl Material	White Vitreous China

Application	System Type	Notes
Marine Vessels	24V DC Power Only	Compact head layouts
Motorhomes / RVs	24V DC Systems	Requires pressurized water source
Replacement	Manual-to-Electric	Direct upgrade for compact footprints

Is this a genuine original part?

This is a premium Seaflo brand electric toilet, designed as a direct replacement for high-end marine sanitation systems like Jabsco and Johnson.

How do I know if it is compatible?

If your current toilet has a 24V power supply and you have a pressurized freshwater system onboard, this compact model will fit most standard marine footprints. Check the OEM Cross Reference list above for specific Jabsco matches.

Does this require a separate intake pump?

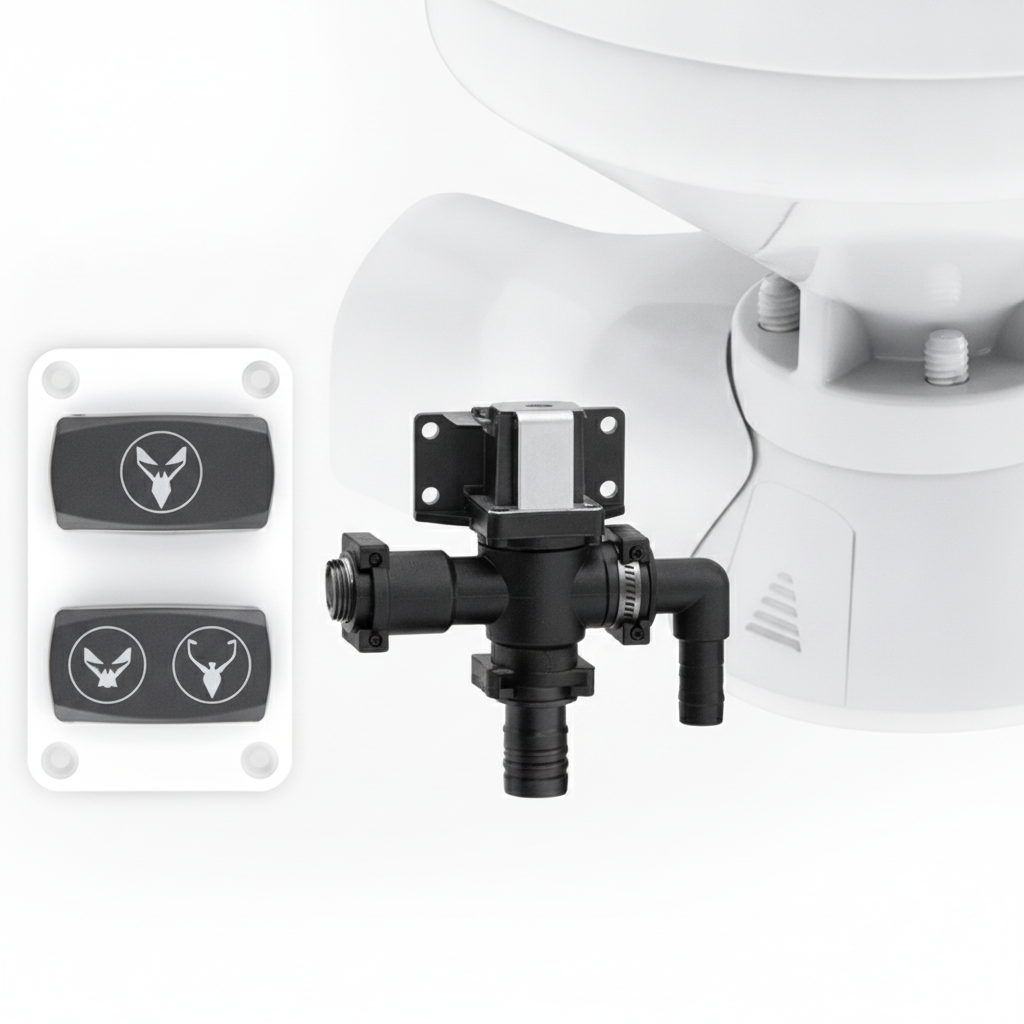

No. This freshwater model includes a solenoid valve that connects to your existing pressurized water system, eliminating the need for a dedicated intake pump and reducing overall noise.
