SEAFLO 53 Series 24V Water Pressure Pump 7.0 GPM 60 PSI DP207006053 Marine RV
SEAFLO 53 Series 24V Water Pressure Pump 7.0 GPM 60 PSI DP207006053 Marine RV
Couldn't load pickup availability
SEAFLO 53 SERIES 24V PUMP DP207006053
High-Volume 7.0 GPM / 60 PSI Heavy-Duty Diaphragm Pump

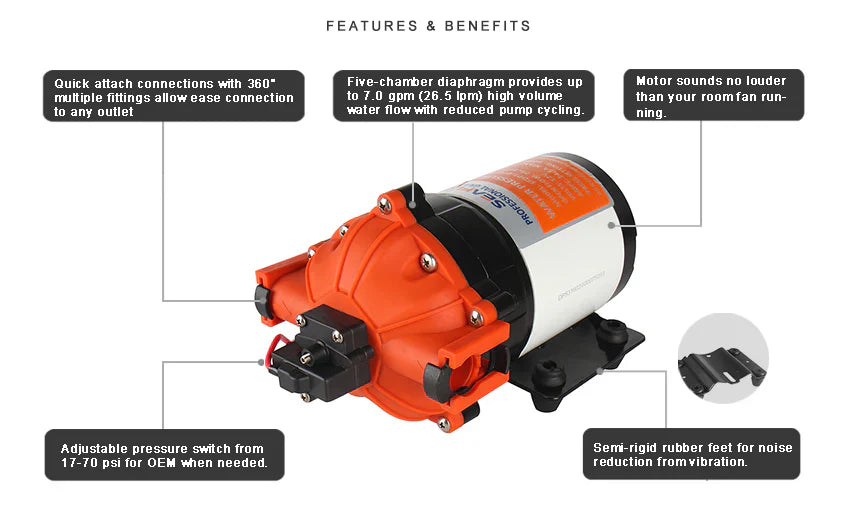

The SEAFLO 53-Series is engineered as our heaviest-duty water pump, designed to provide high-volume water flow with significantly reduced pump cycling. This is achieved through a large five-chamber diaphragm that ensures smooth, quiet operation even under heavy demand. Whether you are supplying a large marine vessel, a luxury RV, or a demanding agricultural irrigation system, the 53-Series delivers consistent performance without the need for an accumulator tank.
Key Features
- ✔ Supplies up to 6 fixtures simultaneously
- ✔ Continuous duty cycle capability
- ✔ Internal bypass technology reduces cycling

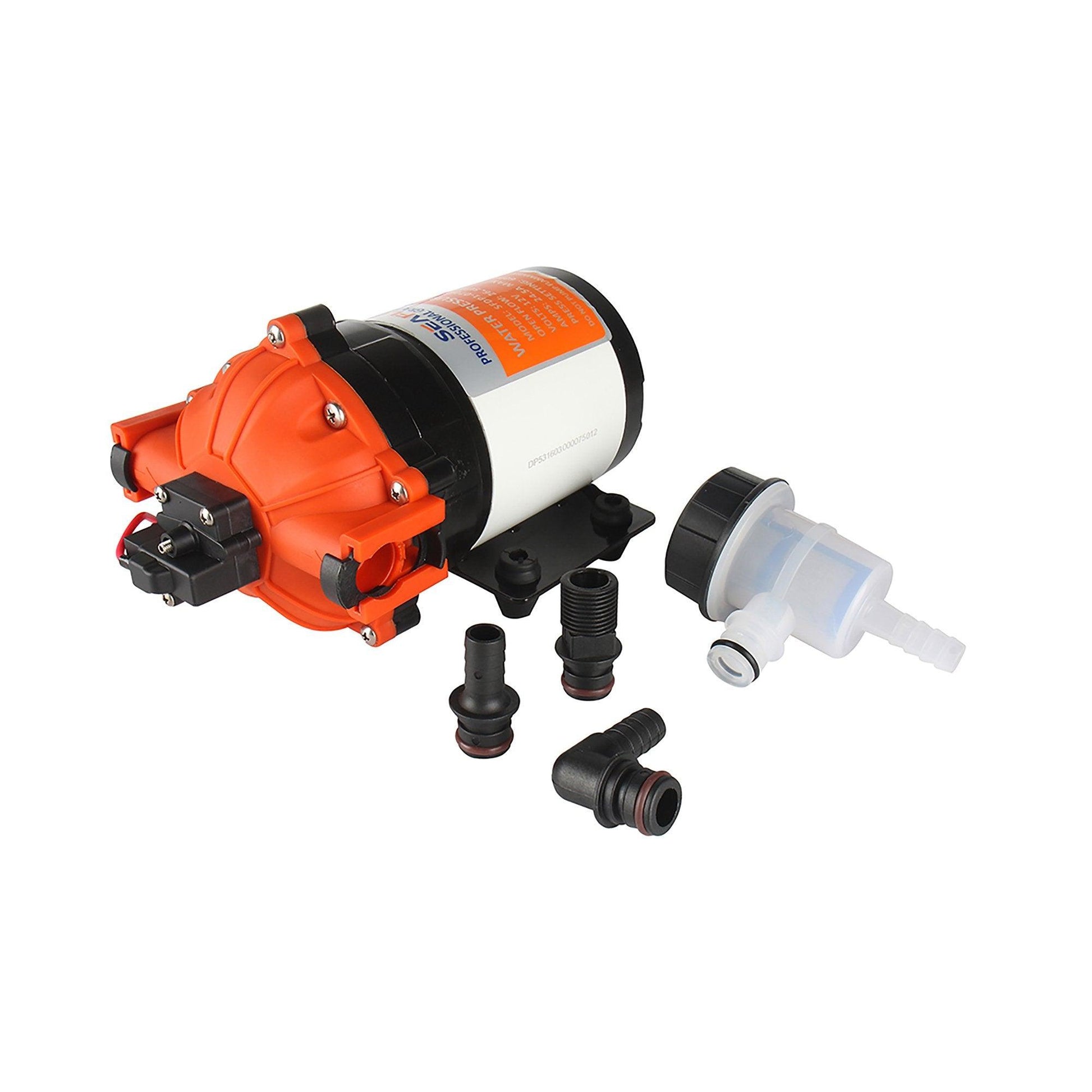

- ✔ Quick-attach fittings for easy install
- ✔ Self-priming and safe to run dry
- ✔ Fresh and salt water compatible
Technical Specs
| Voltage: | 24V DC |
| Flow Rate: | 7.0 GPM (26.5 LPM) |
| Shut-off Pressure: | 60 PSI (4.1 Bar) |
| Max Amp Draw: | 13.0 A |
| Valves / Diaphragm: | EPDM / Santoprene |
| Suction Lift: | Up to 6ft (1.8m) |
| Ports: | Quick Attach |
Application & Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| Marine / Yachting | Main pressurized water system | Supplies galley, showers, and heads. |
| RV / Coach | High-flow potable water supply | Suitable for large luxury motorhomes. |
| Agriculture | Heavy-duty spraying / transfer | Resistant to common agricultural chemicals. |
| Industrial | Fluid circulation / Wash-down | Built-in thermal protection for safety. |
OEM Cross Reference
| SEAFLO MPN | SFDP2-070-060-53 |
| SKU Reference | DP207006053 |
| Series Name | SEAFLO 53 Series |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine SEAFLO 53-Series product, manufactured to high industrial standards and comes with a manufacturer-backed warranty.
How do I know if it is compatible?
This pump is compatible with any 24V DC system requiring high-volume water pressure. Check the SKU DP207006053 against your existing pump or requirements for 7.0 GPM and 60 PSI.
Can this pump handle salt water for wash-down?
Yes, the SEAFLO 53 Series is constructed with materials suitable for both fresh and salt water applications, making it an excellent choice for deck wash-down systems.
Note: Please verify your system voltage is 24V before purchasing. For 12V systems, please refer to model SFDP1-070-060-53. Find more at 4boats.co.uk.
