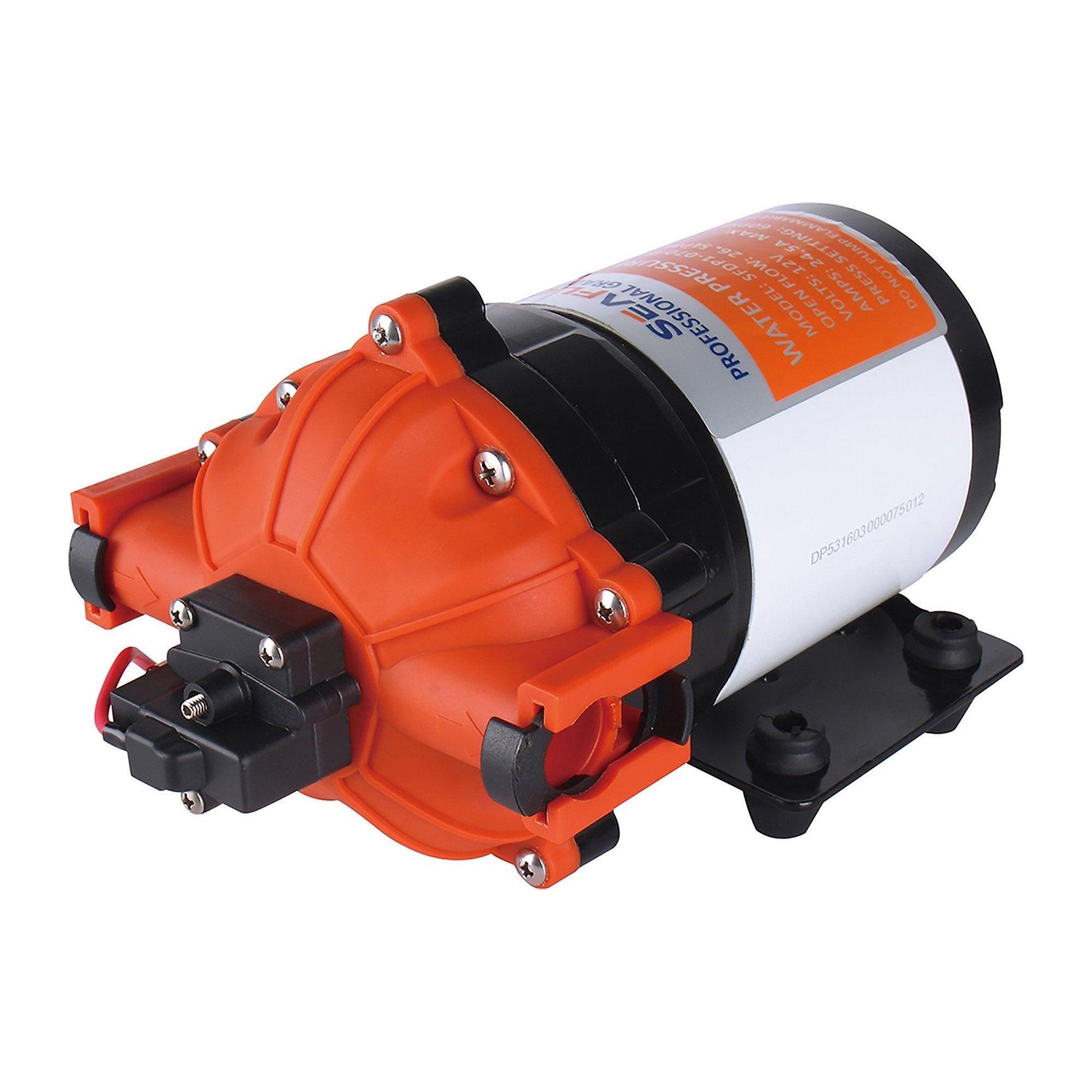

SEAFLO 12V 7.0GPM 60PSI Water Pressure Pump 53 Series Marine RV DP107006053

SEAFLO 12V 7.0GPM 60PSI Water Pressure Pump 53 Series Marine RV DP107006053

£199.99 GBP
£199.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

SEAFLO DP107006053 PRESSURE PUMP

53-Series Heavy Duty | 7.0 GPM | 12V DC

The Seaflo 53-Series is the heaviest-duty water pump in the Seaflo range, specifically engineered for high-demand environments. Utilizing a large 5-chamber positive displacement diaphragm, this pump delivers an impressive 7.0 gallons per minute (26.5 LPM) with significantly reduced pump cycling. Whether you are powering multiple fixtures on a yacht or a heavy-duty agricultural sprayer, the DP107006053 provides consistent, high-pressure performance.

RELIABILITY: Built with a high-torque sealed motor and heavy-duty construction, this pump is designed to run dry without damage and features an internal bypass to ensure quiet operation without the need for an accumulator tank.

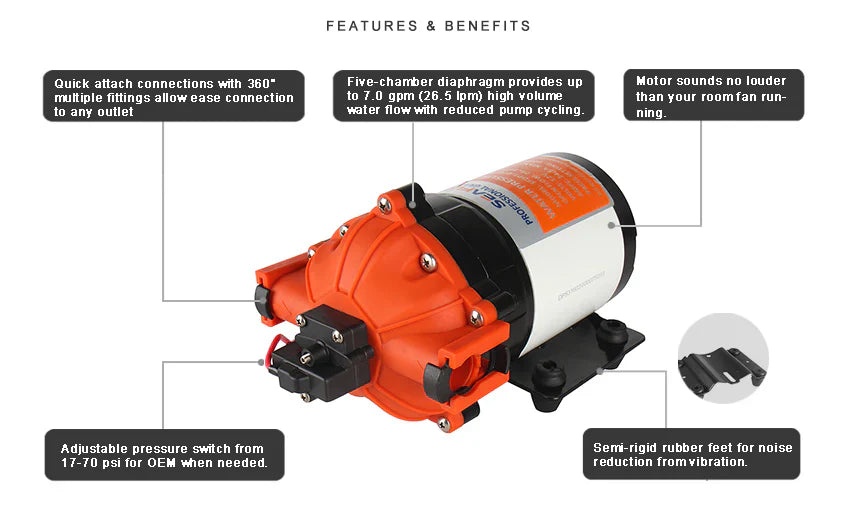

Key Features

  • ✔ 5-Chamber Design: Higher volume flow & less cycling
  • ✔ Self-Priming: Up to 6 feet (1.8m) suction lift
  • ✔ Run Dry Safe: No damage during water supply failure
  • ✔ Internal Bypass: Reduces noise & pressure spikes
  • ✔ Ignition Protected: Safe for marine engine rooms

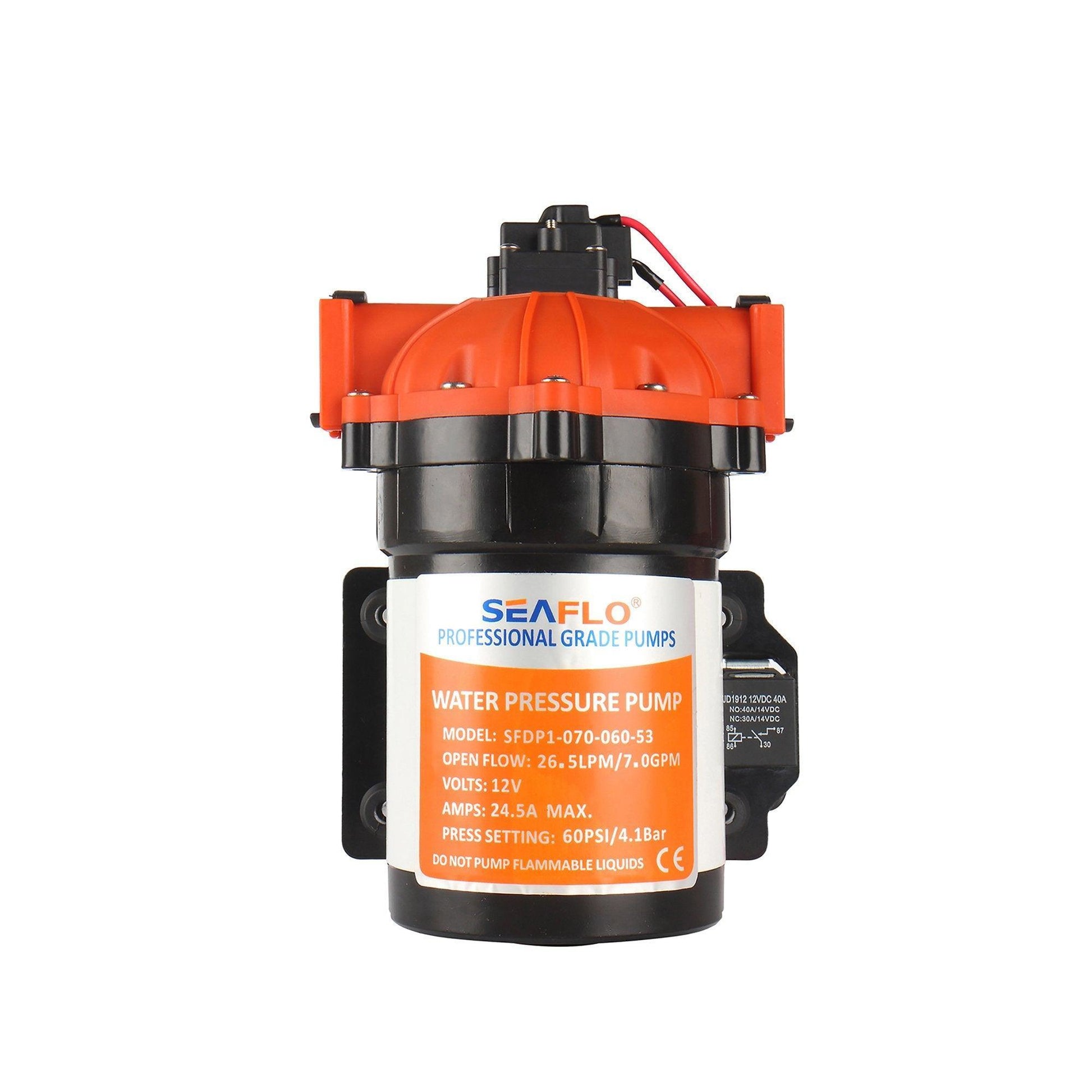

Technical Specs

Voltage: 12V DC
Open Flow: 7.0 GPM / 26.5 LPM
Shut-off Pressure: 60 PSI / 4.2 Bar
Max Amperage: 24.5 Amps

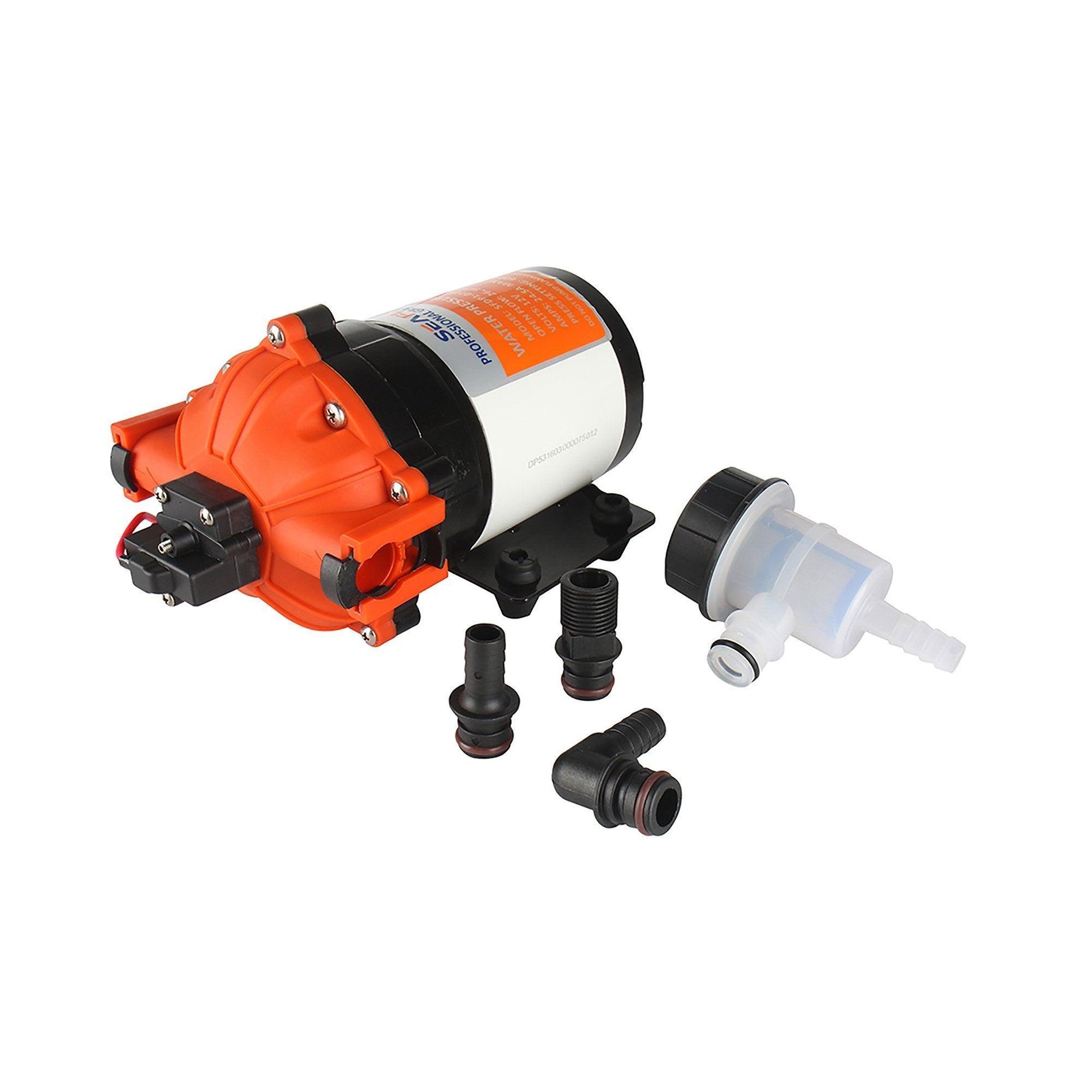

Port Type: Quick Attach
Diaphragm: Santoprene

Compatibility / Fitment Guide

Application System Use Notes
Marine / Yachting Fresh Water / Galley / Washdown Supplies up to 6 fixtures simultaneously
RV / Caravans Main Water Pressure System Quiet operation with rubber mounting feet
Agriculture Spraying / Liquid Transfer High flow for starter fertilizers & pesticides
Industrial Solar Water / Cleaning Machines Continuous duty motor performance

OEM Cross Reference

Seaflo Model DP107006053 / SFDP1-070-060-53
Recmar Reference SFDP107006053
Performance Match Shurflo 4048 & 5050 Series Equivalents

Questions & Answers

Is this a genuine original part?

Yes, this is an authentic SEAFLO product, manufactured to their highest heavy-duty specifications (53 Series).

Does this pump require an accumulator tank?

No. While older pumps required tanks to prevent rapid cycling, the 53 Series uses an internal bypass and a 5-chamber design to provide smooth, quiet flow without an external tank.

Can I use this for salt water washdown?

Yes, the materials (EPDM valves and Santoprene diaphragm) are compatible with both fresh and salt water applications.

Note: Please verify your required flow rate and amperage draw (24.5A Max) against your electrical system before purchasing.
