Seaflo 33 Series 24V Water Pressure Pump 3.0GPM 11.4LPM 25PSI DP203002533 Marine
Seaflo 33 Series 24V Water Pressure Pump 3.0GPM 11.4LPM 25PSI DP203002533 Marine
Couldn't load pickup availability

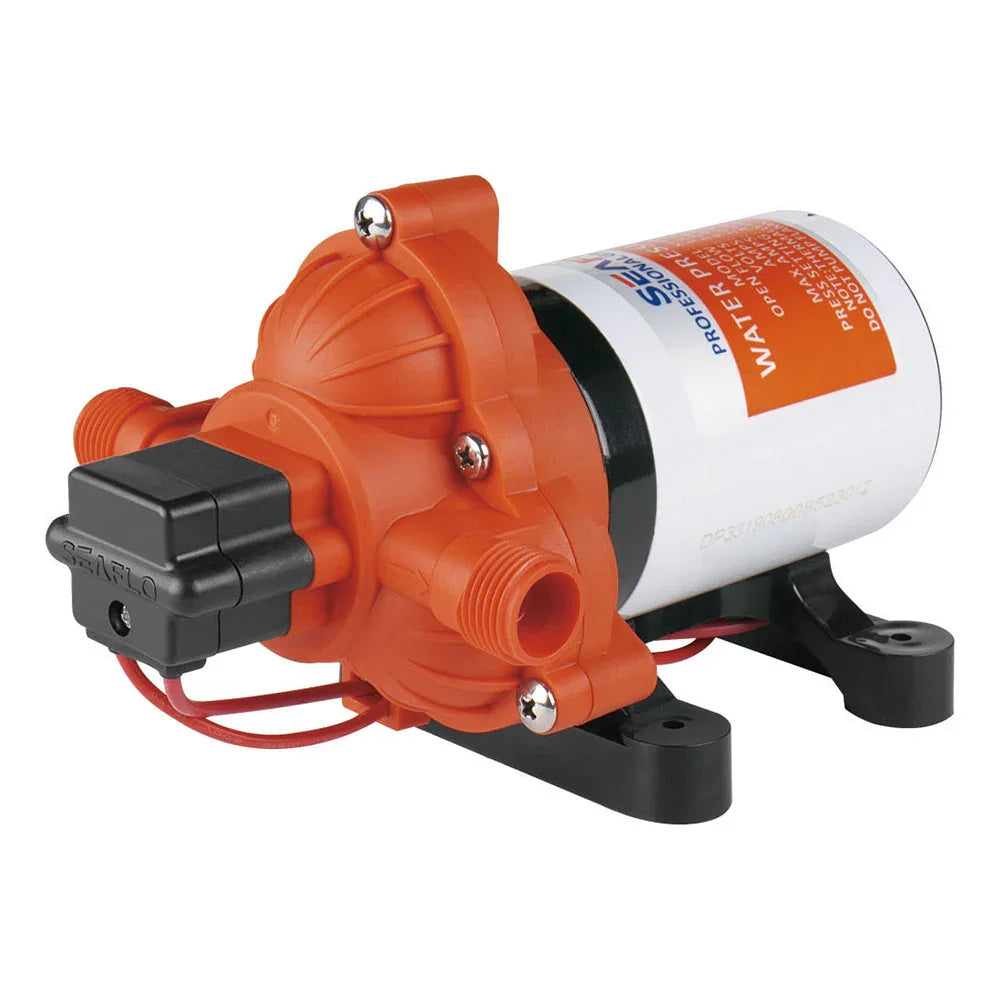

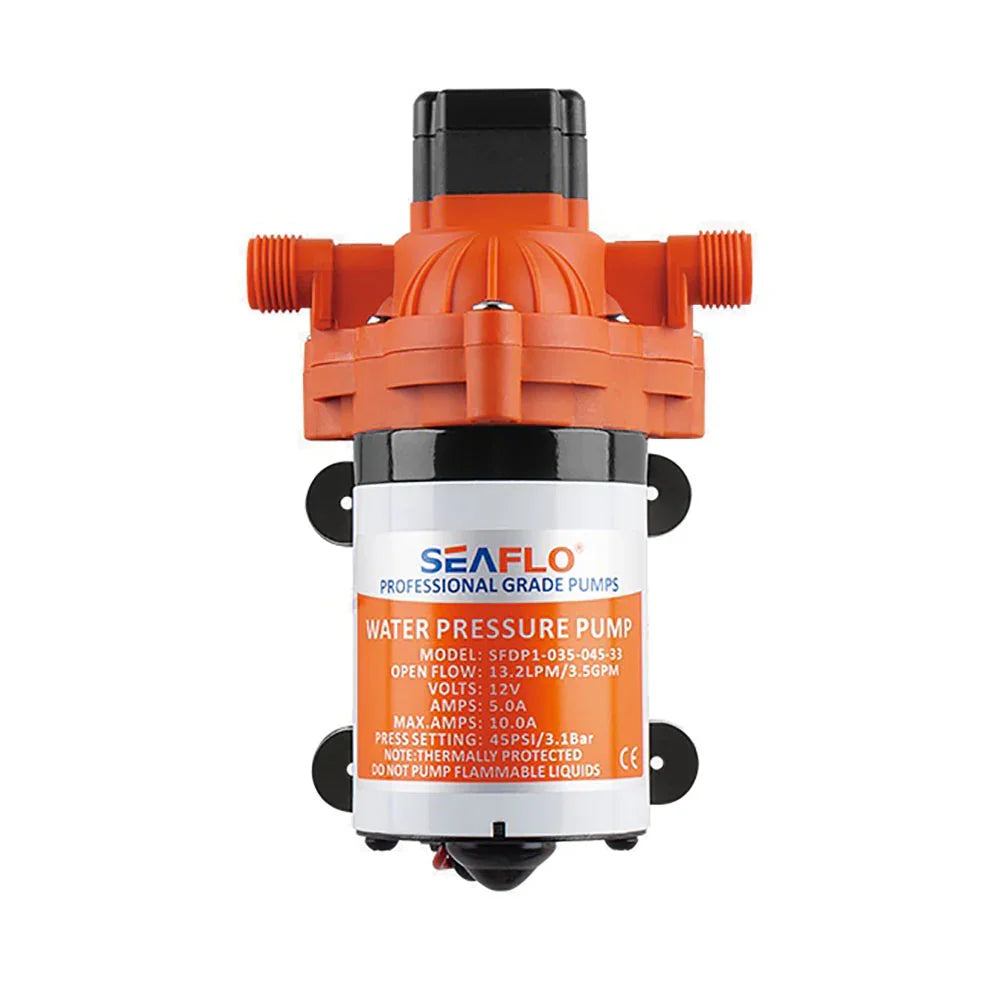

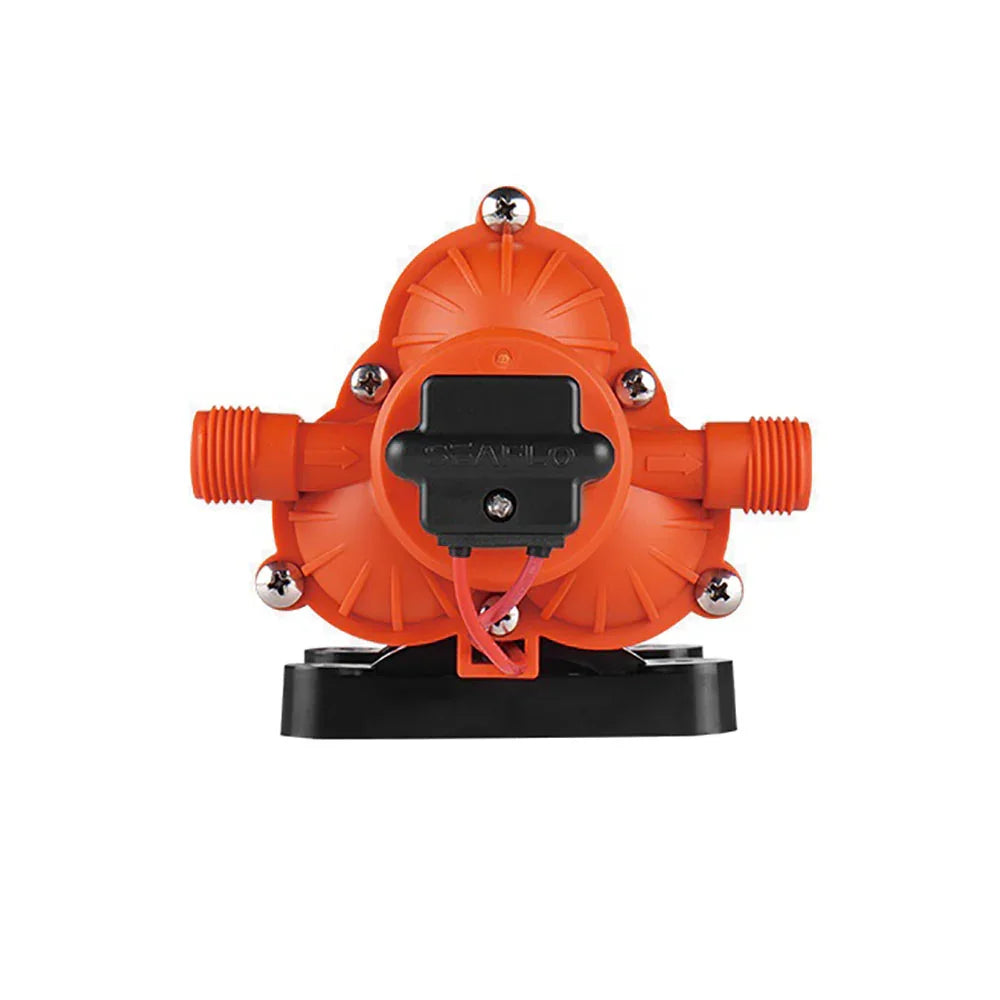

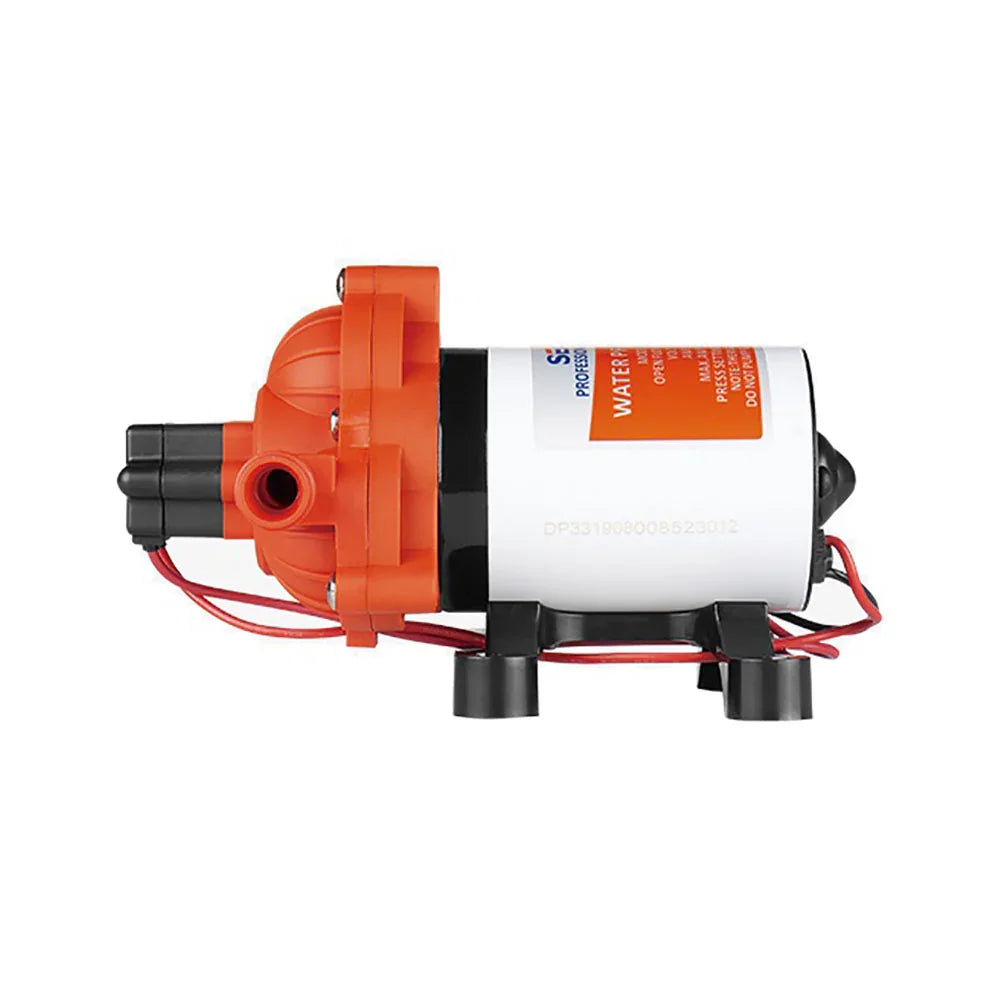

Seaflo 33 Series 24V Pump - DP203002533
Premium 3.0 GPM High-Flow Water System Pump
The Seaflo 33 Series is a general-duty, on-demand positive displacement diaphragm pump designed for reliable performance in high-flow, moderate-pressure applications. Engineered for 24V systems, this 3-chamber pump provides a smooth, consistent flow of up to 3.0 gallons per minute (11.4 LPM) and is specifically calibrated with a 25 PSI shut-off for systems requiring controlled pressure.
Key Features
- ✔ Self-Priming: Up to 6 vertical feet (1.8m)
- ✔ Run-Dry Capable: Safe for normal workloads
- ✔ Quiet Operation: Noise-reducing rubber mountings
- ✔ On-Demand: Built-in automatic pressure switch
- ✔ Thermal Protection: Prevents motor overheating
Technical Specs
| Voltage: | 24V DC |
| Flow Rate: | 3.0 GPM (11.4 LPM) |
| Shut-off Pressure: | 25 PSI (1.7 Bar) |
| Max Current Draw: | 4.0 Amps |
| Inlet/Outlet: | 1/2"-14 MNPT |
| Valves / Diaphragm: | EPDM / Santoprene |
Compatibility / Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Marine / Yachting | Fresh Water Pressure Systems | Ideal for 2-3 fixtures |
| RV / Caravans | Off-grid Water Supply | Standard 1/2" connections |
| Agricultural | Spraying / Liquid Transfer | Chemically resistant valves |
OEM Cross Reference
| Seaflo Model | SFDP2-030-025-33 / DP203002533 |
| Jabsco Alternative | Par-Max 3 (24V Models) |
| Shurflo Alternative | 2088 / 4008 series (24V Equivalents) |
Questions & Answers
Is this a genuine original part?
This is a premium quality Seaflo original part, manufactured to meet or exceed international standards (CE, RoHS, ISO 9001) for marine and industrial use.
How do I know if it is compatible?
Please verify your system voltage is 24V. This pump is a direct replacement for most standard 3.0 GPM pumps. Check the SKU DP203002533 against your current pump's label for a guaranteed match.
Can I use this with an accumulator tank?
Yes, while the 3-chamber design provides smooth flow, using an accumulator tank (like the Seaflo 0.75L or 1.0L models) will reduce pump cycling and further quiet the system.
Note: Please verify your system's power requirements (24V DC) before purchasing. 4boats.co.uk provides high-performance marine equipment you can trust.
