SMOOTH PERFORMANCE: The integrated accumulator tank acts as a pressure buffer, significantly reducing pump cycling (starting/stopping), extending motor life, and providing a steady, surge-free water flow.

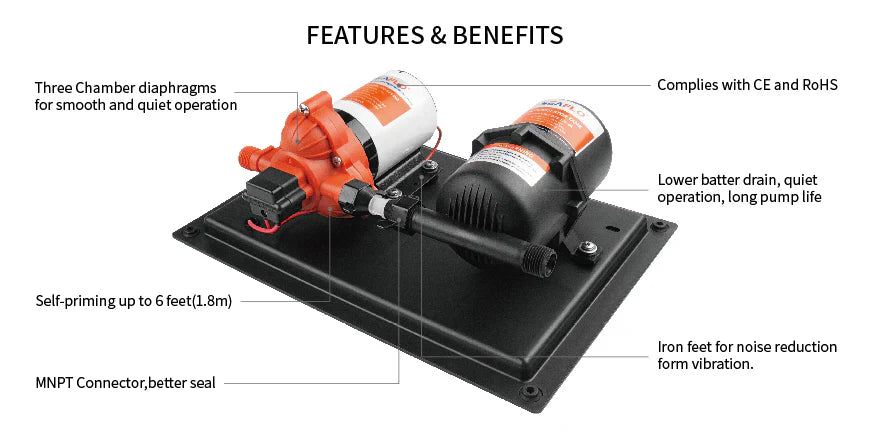

Key Features

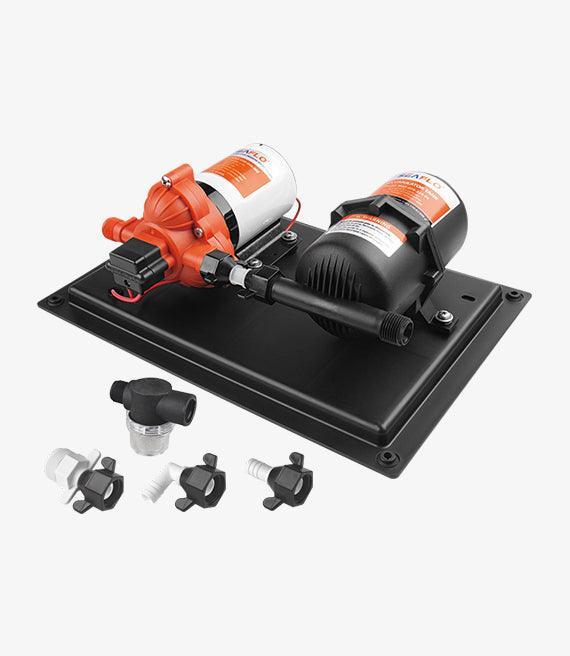

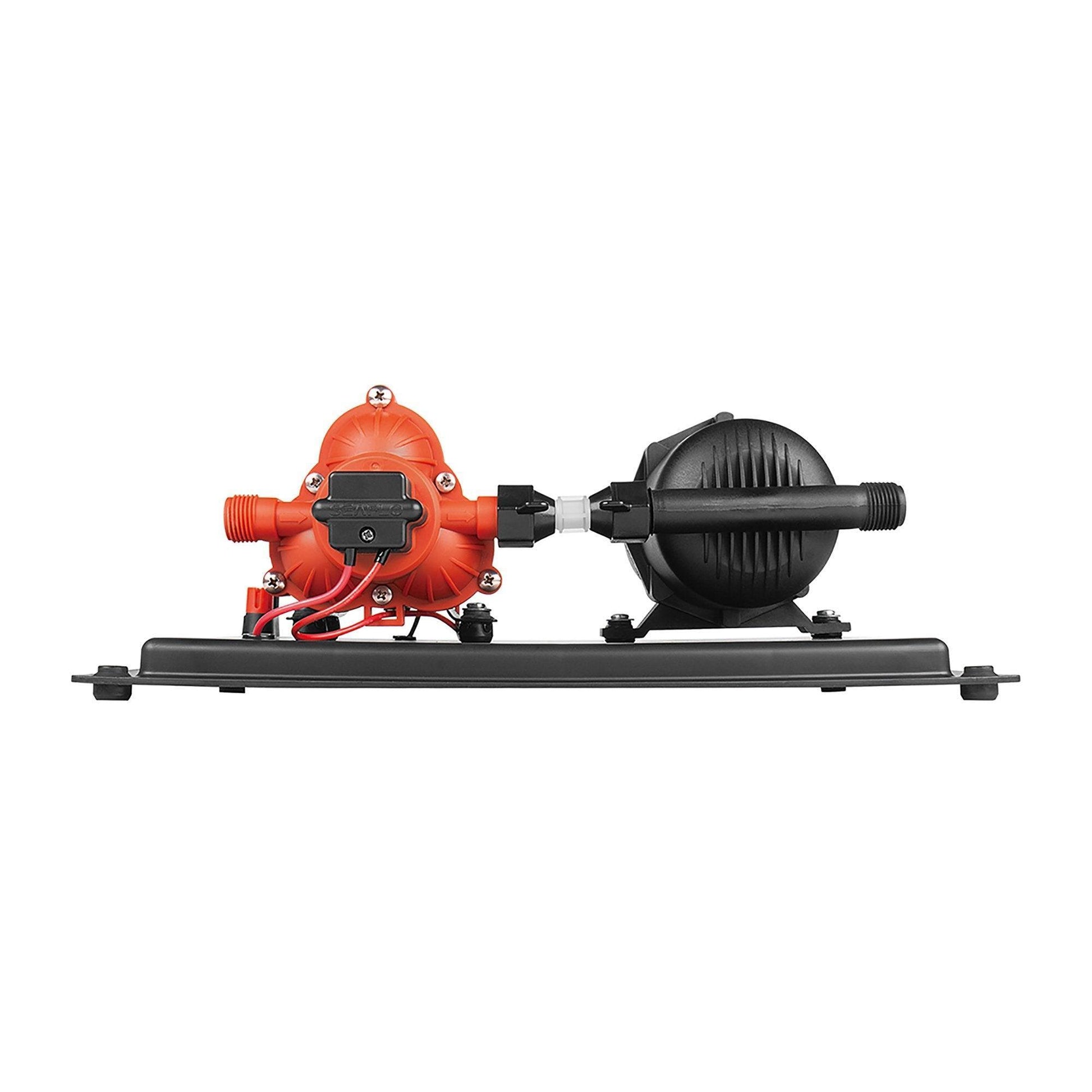

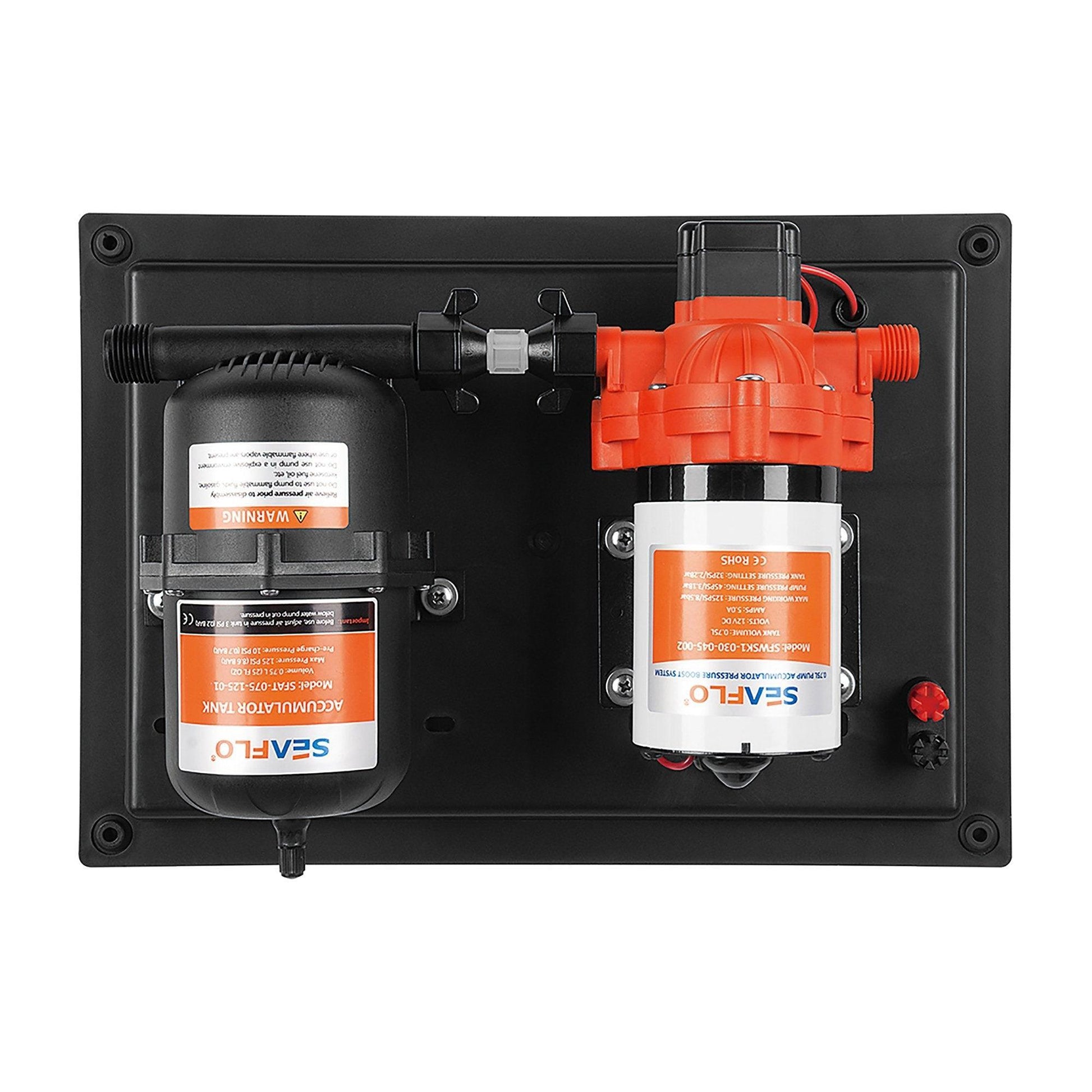

• ✔ Pre-Assembled: Mounted on board for rapid setup
• ✔ Run-Dry Safe: Can operate without water damage
• ✔ Self-Priming: Suction lift up to 6 vertical feet (1.8m)
• ✔ Multi-Fixture: Powerful enough to supply up to 3 outlets
• ✔ EPDM/Santoprene: High-grade internal materials

Technical Specs

Voltage	24V DC
Open Flow	3.0 GPM / 11.3 LPM
Max Pressure	45 PSI (3.1 Bar)
Current Draw	5.5 Amps Max
Tank Volume	0.75 Liters

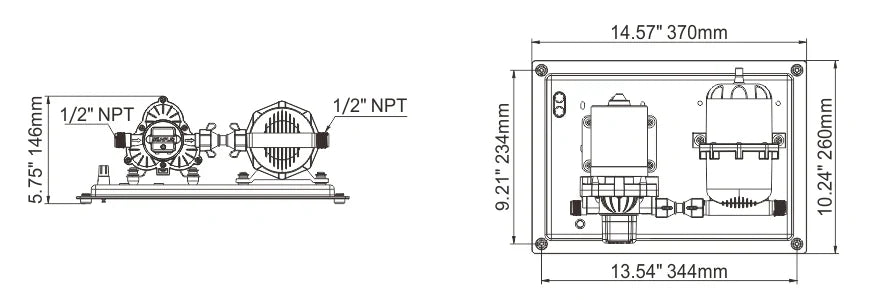

Inlet/Outlet	1/2"-14 MNPT

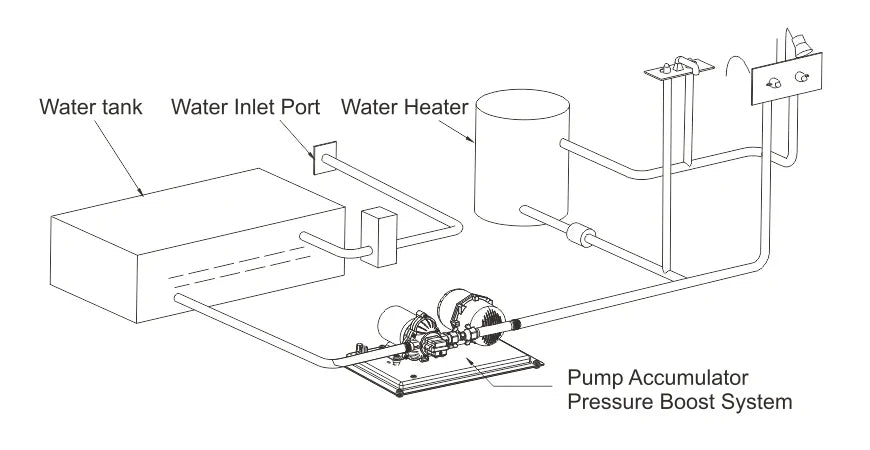

Application	System Type	Notes
Marine / Yachts	24V Pressurized Water	Ideal for 1-3 fixtures
RV / Caravans	On-board Water Systems	Reduces cycling noise at night
Off-Grid Solar	24V Battery Powered	Low power draw (5.5A peak)

Is this a genuine Seaflo part?

Yes, this is an authentic SEAFLO 33-series system kit, manufactured to industry-leading standards with ISO9001 certification.

How do I know if it is compatible?

If your current system operates on a 24V DC supply and requires a flow rate of approximately 3 GPM (11-12 LPM), this is a perfect replacement. Check the MNPT fittings match your existing plumbing.

What are the benefits of the included accumulator tank?

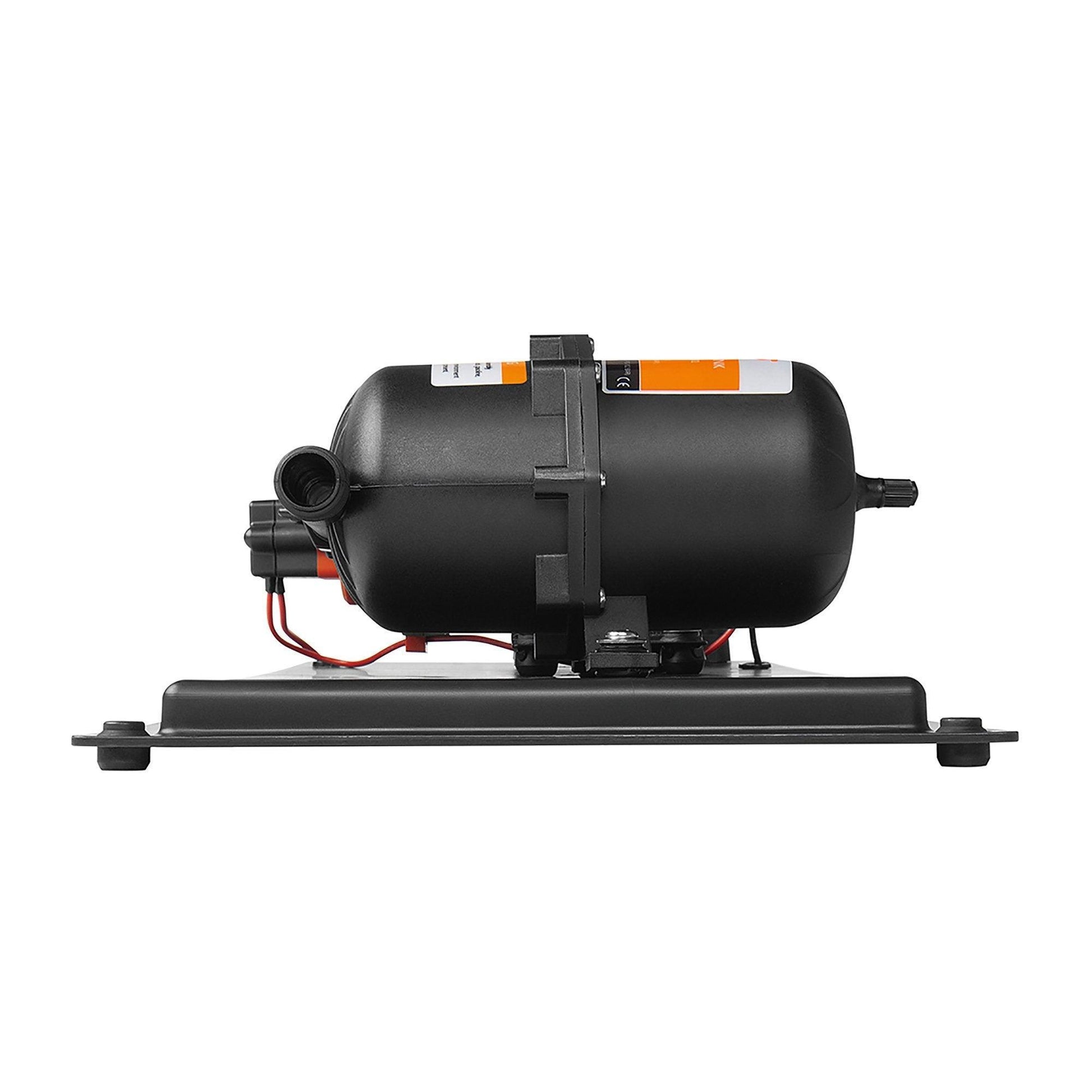

The 0.75L tank contains a pressurized air bladder that smooths out water pulses and prevents the pump from turning on for small water draws, resulting in quieter operation and less wear on the pump switch.
