Seaflo 24V 33-Series Water Pressure Pump 3.0GPM 45PSI Marine Boat RV SFDP2-030-04533
Seaflo 24V 33-Series Water Pressure Pump 3.0GPM 45PSI Marine Boat RV SFDP2-030-04533
Couldn't load pickup availability

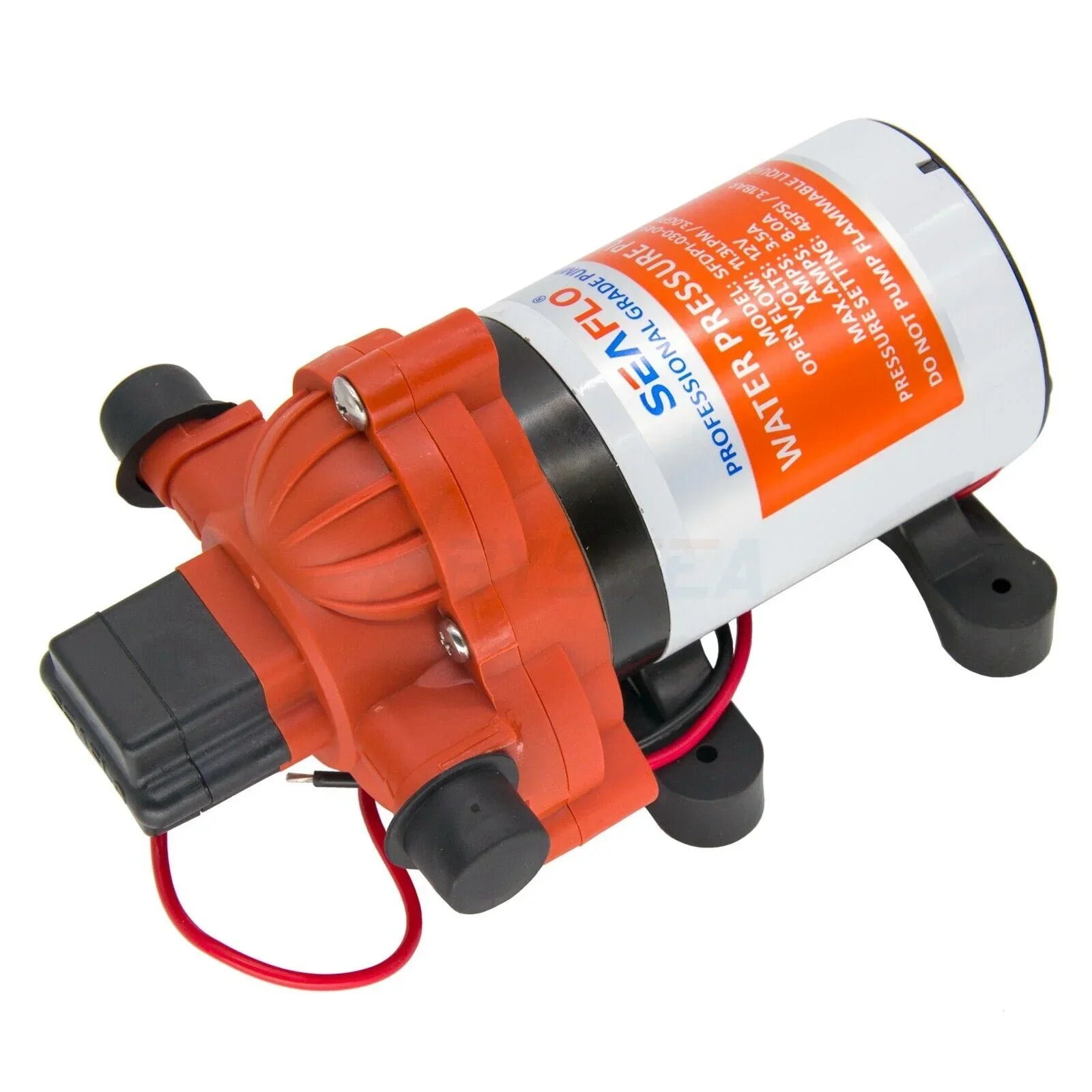

SEAFLO 33-SERIES 24V PUMP (SFDP2-030-045-33)
3.0 GPM | 45 PSI | Automatic Pressure Switch
The SEAFLO 33-Series is a general-duty, on-demand positive displacement pump designed for high-flow and moderate-pressure applications. Engineered with a robust 3-chamber diaphragm, this 24V unit provides a smooth, consistent water flow of up to 3.0 gallons per minute (11.6 LPM), making it capable of supplying up to four fixtures simultaneously.
Key Features
- ✔ Self-Priming: Up to 6 vertical feet (1.8m)
- ✔ Run-Dry Safe: Operates without damage if water supply is low
- ✔ Internal Bypass: Reduces pump cycling for quieter operation
- ✔ On-Demand: Automatic switch starts/stops with faucet use
- ✔ Easy Installation: Industry-standard mount pattern
Technical Specs
| Model: | SFDP2-030-045-33 |
| Voltage: | 24V DC |
| Flow Rate: | 3.0 GPM (11.6 LPM) |
| Shut-off Pressure: | 45 PSI (3.1 Bar) |
| Max Amp Draw: | 4.0 Amps |
| Ports: | 1/2"-14 MNPT |
| Valves / Diaphragm: | EPDM / Santoprene |
Compatibility / Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Marine / Yacht | 24V DC Main Systems | Supplies 3-4 outlets comfortably. |
| RV / Caravan | Pressurized Water Supply | Ideal for larger motorhomes with 24V electricals. |
| Agricultural | Spraying / Transfer | Compatible with most mild agricultural chemicals. |
| Off-Grid Cabin | Solar Water System | Efficient low-amp operation for battery banks. |
OEM & Cross Reference
| Seaflo MPN | SFDP2-030-045-33 |
| Jabsco Equivalent | Par-Max 3 (24V Series) |
| Flojet Equivalent | Triplex Series (24V Models) |

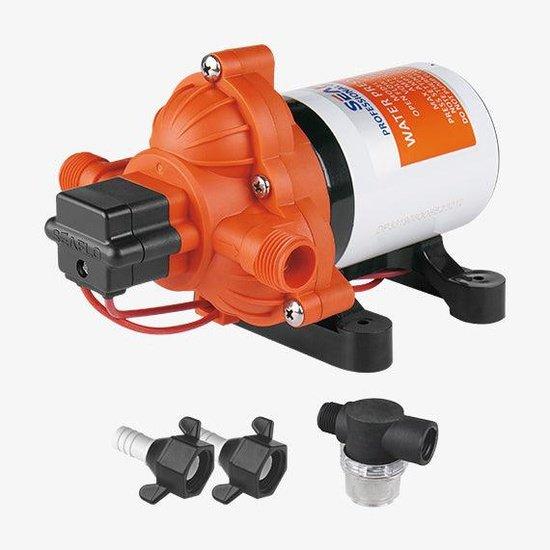

| Inclusions | 1x 50 Mesh Strainer, 2x 1/2" Hose Barb Fittings |
Questions & Answers
Is this a genuine original part?
This is a premium Seaflo brand pump, a leading global manufacturer of marine and RV water systems, backed by a 4-year limited warranty.
How do I know if it is compatible?
Check your existing pump's voltage (must be 24V) and flow rate. This model uses standard 1/2" MNPT connections which are common across Jabsco and Flojet systems.
What is the benefit of the "Internal Bypass" feature?
The internal bypass allows the pump to recycle a small amount of water within the head when demand is low. This significantly reduces rapid "cycling" (clicking on and off), leading to a much quieter operation and longer motor life.
Note: Please verify your system voltage is 24V DC before purchasing. For 12V applications, please see the 12V 33-Series model on 4boats.co.uk.
