RELIABILITY: Built with high-grade Santoprene diaphragms and EPDM valves to meet or exceed OEM specifications for long-lasting, heavy-duty performance.

Key Features

• ✔ Self-Priming: Up to 5 feet (1.5m) vertical lift.
• ✔ Run Dry Safe: Capable of running dry without damage.
• ✔ Ignition Protected: Safe for marine engine compartments (ISO 8846).
• ✔ Quiet Operation: Rubber mounting feet reduce vibration.
• ✔ Waterproof: IP54 rated for damp environments.

Technical Specs

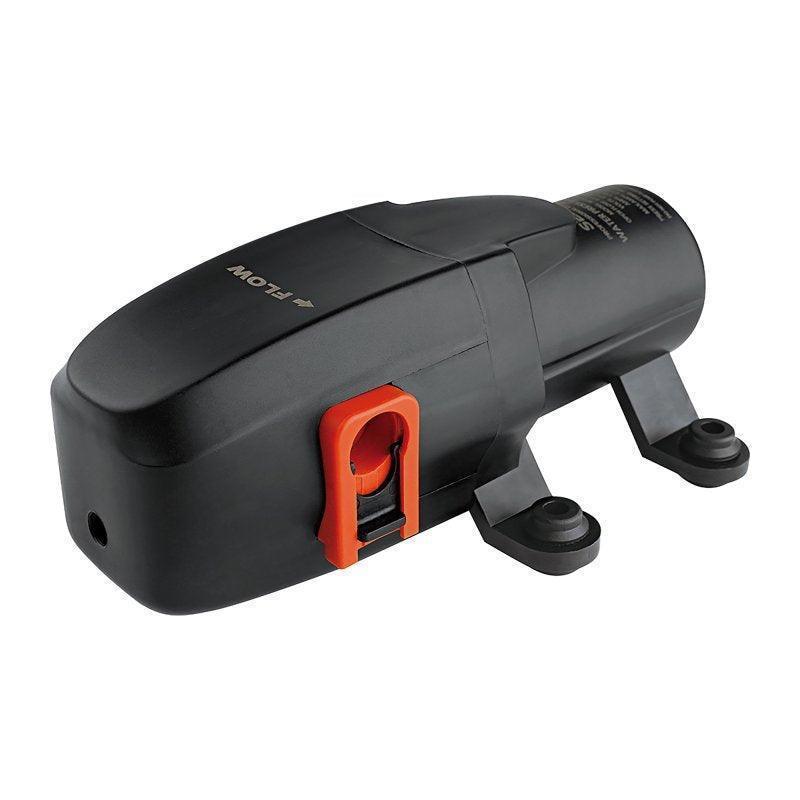

Model:	SFDP1-012-040-23A
Voltage:	12V DC
Flow Rate:	4.3 LPM (1.2 GPM)
Pressure:	40 PSI (2.8 BAR)
Max Amp Draw:	4.2 Amps

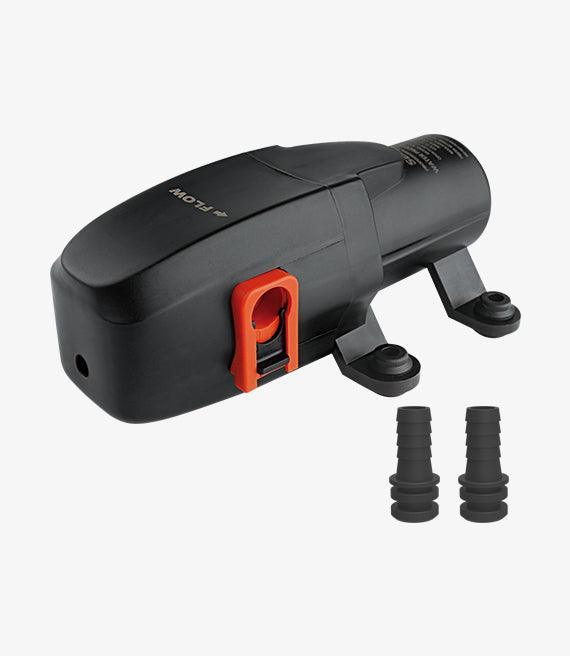

Ports:	5/8" Quick Attach

System / Application	Use Case	Notes
Marine / Yacht	Deck Wash & Fresh Water	Ideal for 1-2 fixtures.
RV / Campervan	On-Demand Water Supply	Fits standard 12V systems.
Agriculture	Spot Spraying & Transfer	Chemical resistant EPDM.
Solar Systems	Remote Water Pumping	Low power consumption.

Is this a genuine original part?

This is a genuine Seaflo manufactured part, supplied in original packaging with a full manufacturer's warranty. Seaflo is a leading ISO9001 certified manufacturer for marine and RV water systems.

How do I know if it is compatible?

If your current pump is a 12V DC system requiring approx 1.2 GPM flow and 40 PSI, this is a perfect replacement. Check the SKU SFDP1-012-040-23A against your existing unit.

Can this pump be used with salt water?

Yes, the internal EPDM valves and Santoprene diaphragm are compatible with both fresh and salt water, though we recommend a thorough flush if used with heavy chemicals.
