RELIABILITY: Engineered with a fully enclosed permanent magnet motor and corrosion-resistant materials to withstand harsh saltwater environments.

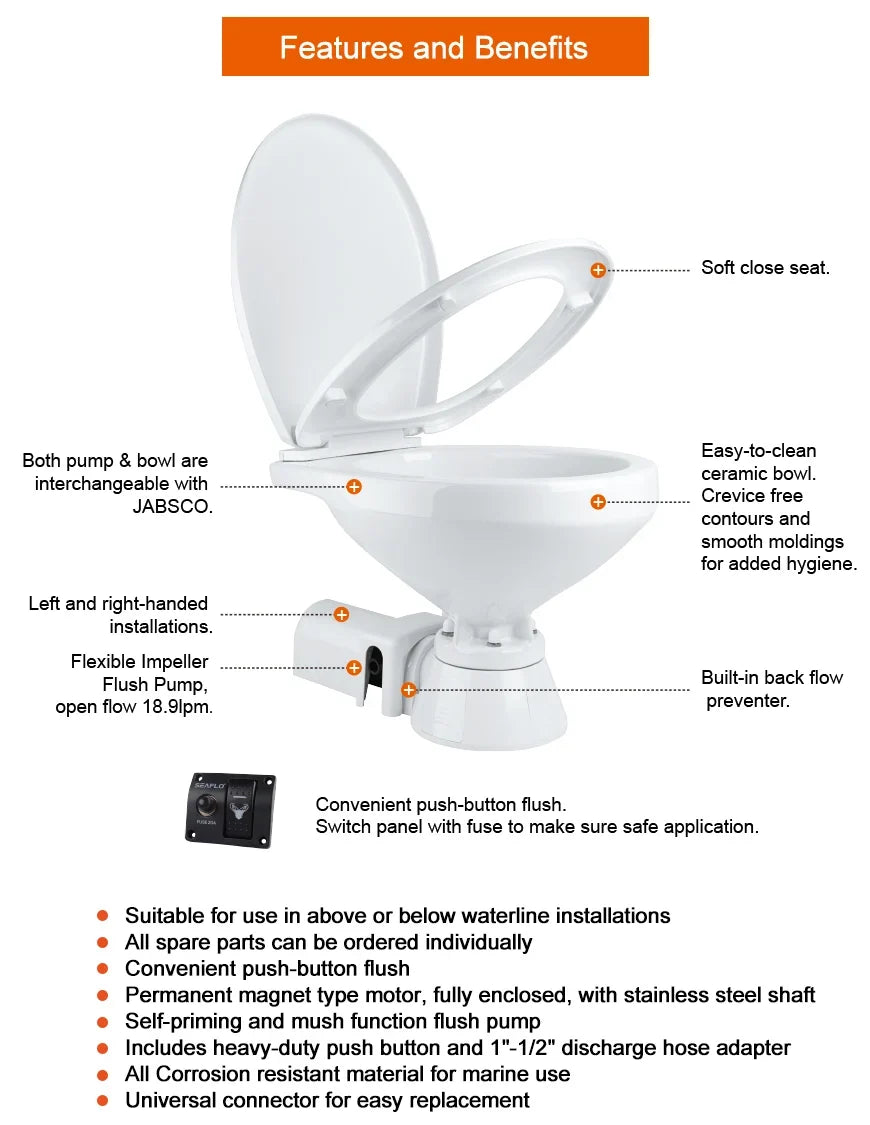

Key Features

• ✔ Push-Button Operation: Simple electric flush eliminates manual pumping.
• ✔ Integrated Macerator: Grinds waste for efficient discharge.
• ✔ Household Comfort: Regular size ceramic bowl with soft-close seat.
• ✔ Built-in Protection: Features a backflow preventer for safety.
• ✔ Versatile Install: Suitable for above or below waterline use.

Technical Specs

Voltage:	24V DC
Max Current Draw:	10 Amps
Recommended Fuse:	15 Amps
Inlet Port:	3/4" (19mm)
Discharge Port:	1" (25mm) *
Bowl Material:	White Ceramic

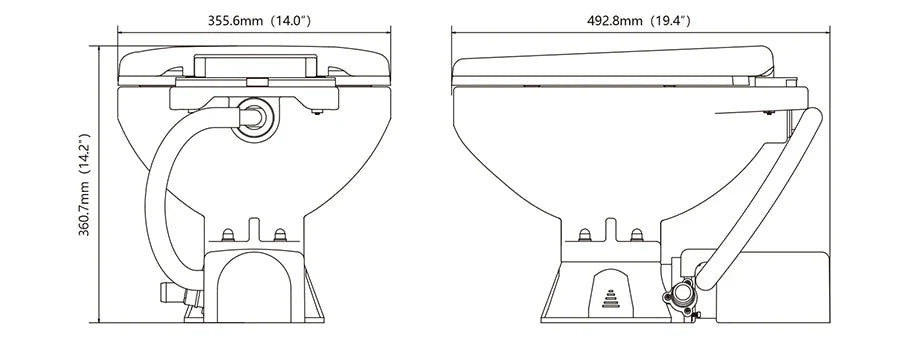

Dimensions:	492 x 356 x 361 mm

* Includes 1" to 1-1/2" discharge hose adapter.

System	Application	Notes
Marine/Yacht	Sea/River/Lake water flush	Standard regular-size fitment
Jabsco Replacement	37010-Series 24V Systems	Interchangeable components
RV / Caravans	24V Electrical Circuits	Horizontal mounting base

Is this a genuine original part?

This is a premium Seaflo manufactured complete toilet system. Seaflo is a globally recognized manufacturer of marine sanitation, and their components are often interchangeable with Jabsco systems for easy servicing.

Can this be installed below the waterline?

Yes, it can be installed either above or below the vessel's waterline. However, if installed below the waterline, it is mandatory to use vented loops and seacocks to prevent accidental siphoning.

What is the difference between this and the "Compact" version?

This "Regular" (household) version provides a larger, more comfortable bowl and includes a soft-close seat. The compact version is designed for smaller head compartments where space is limited.
