SEAFLO 12V 1500 GPH Marine Bilge Pump 01-Series Manual Water Pump BP1G150001
SEAFLO 12V 1500 GPH Marine Bilge Pump 01-Series Manual Water Pump BP1G150001
Couldn't load pickup availability

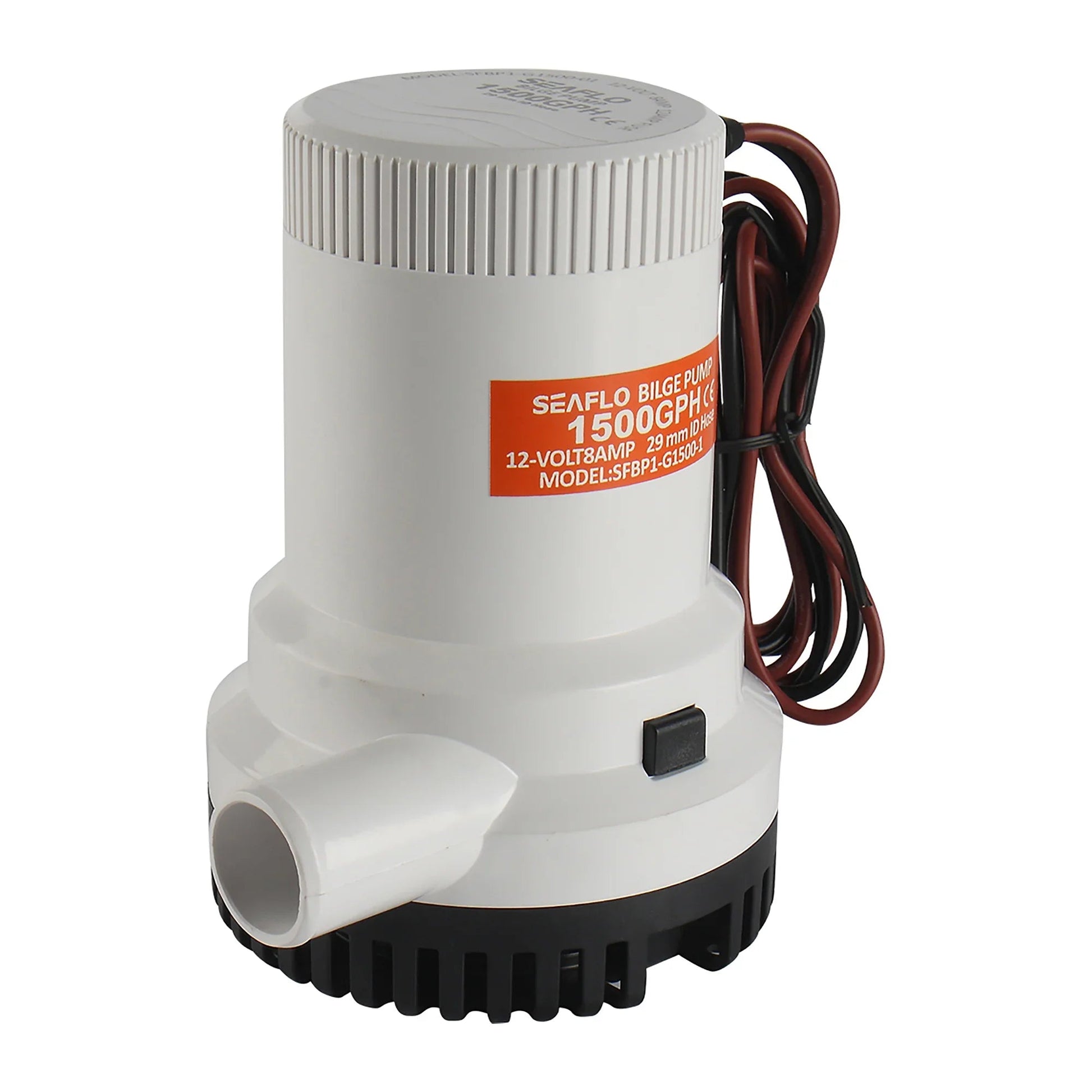

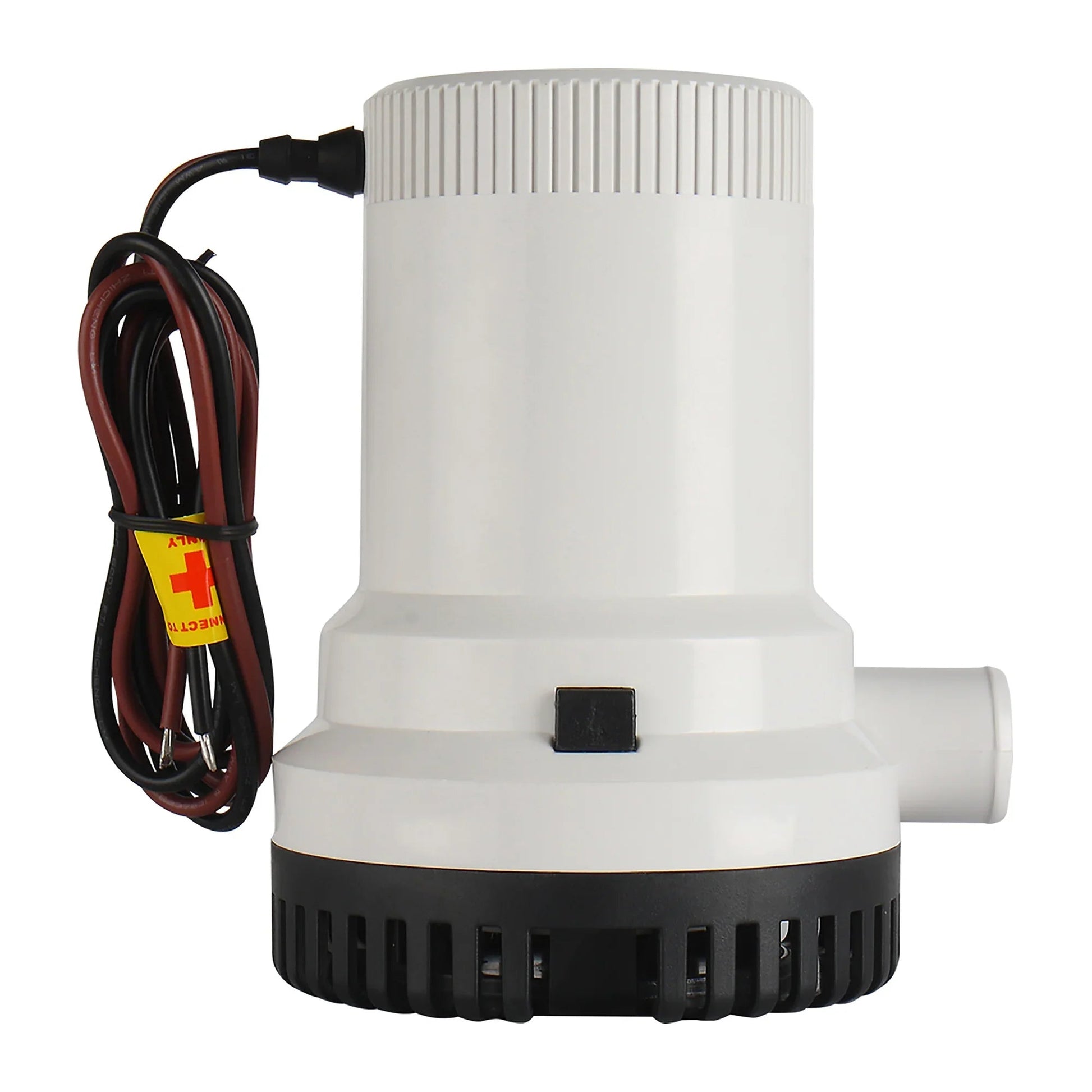

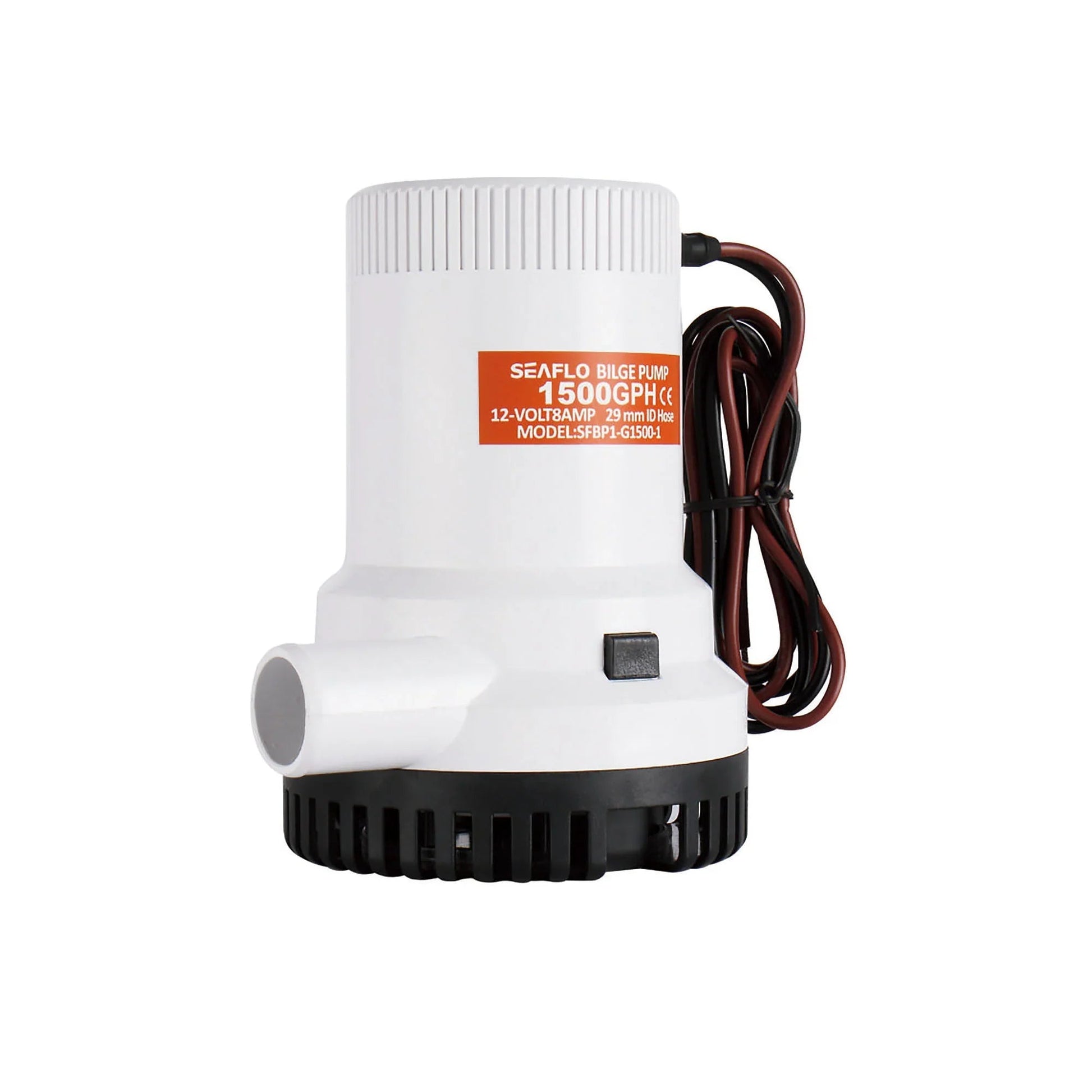

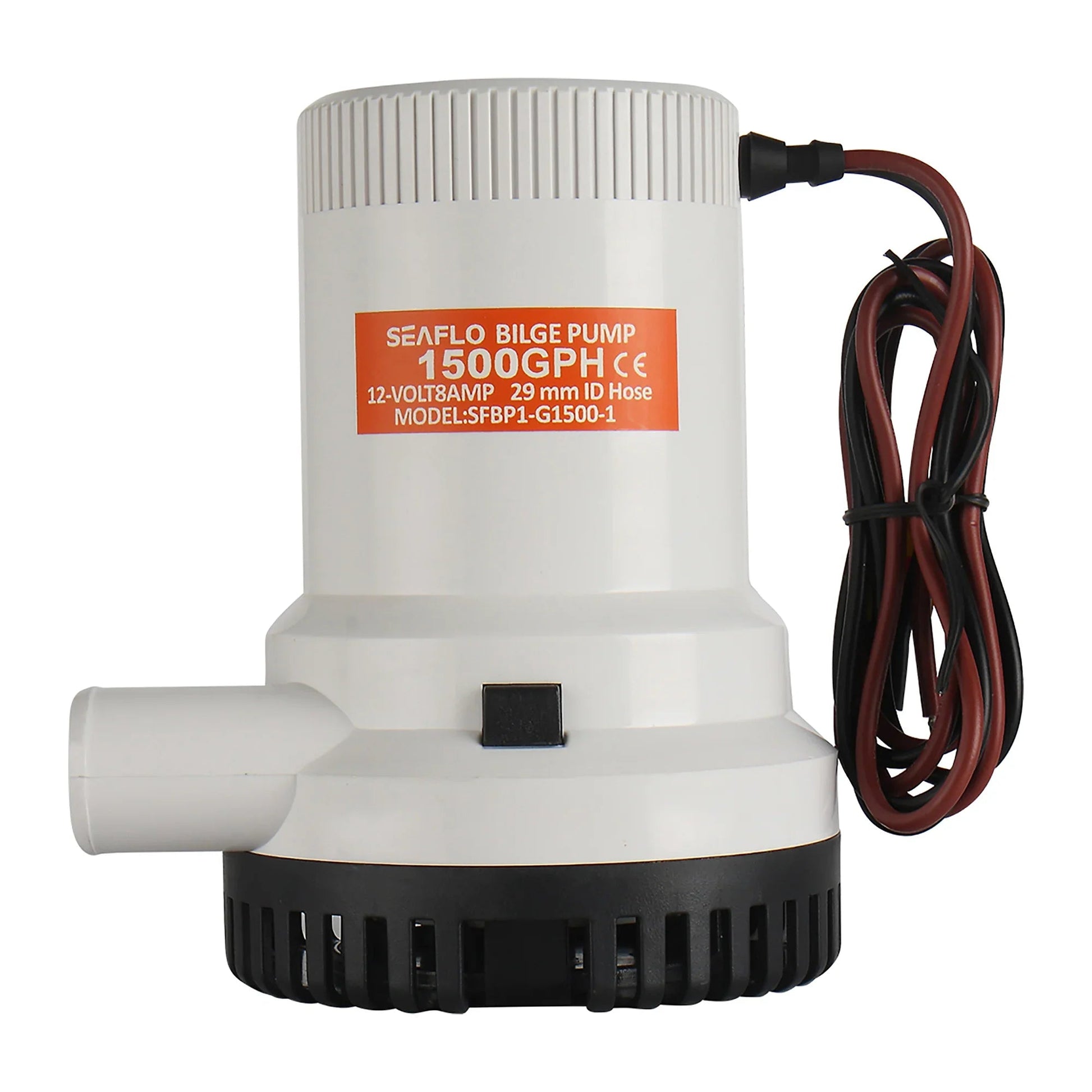

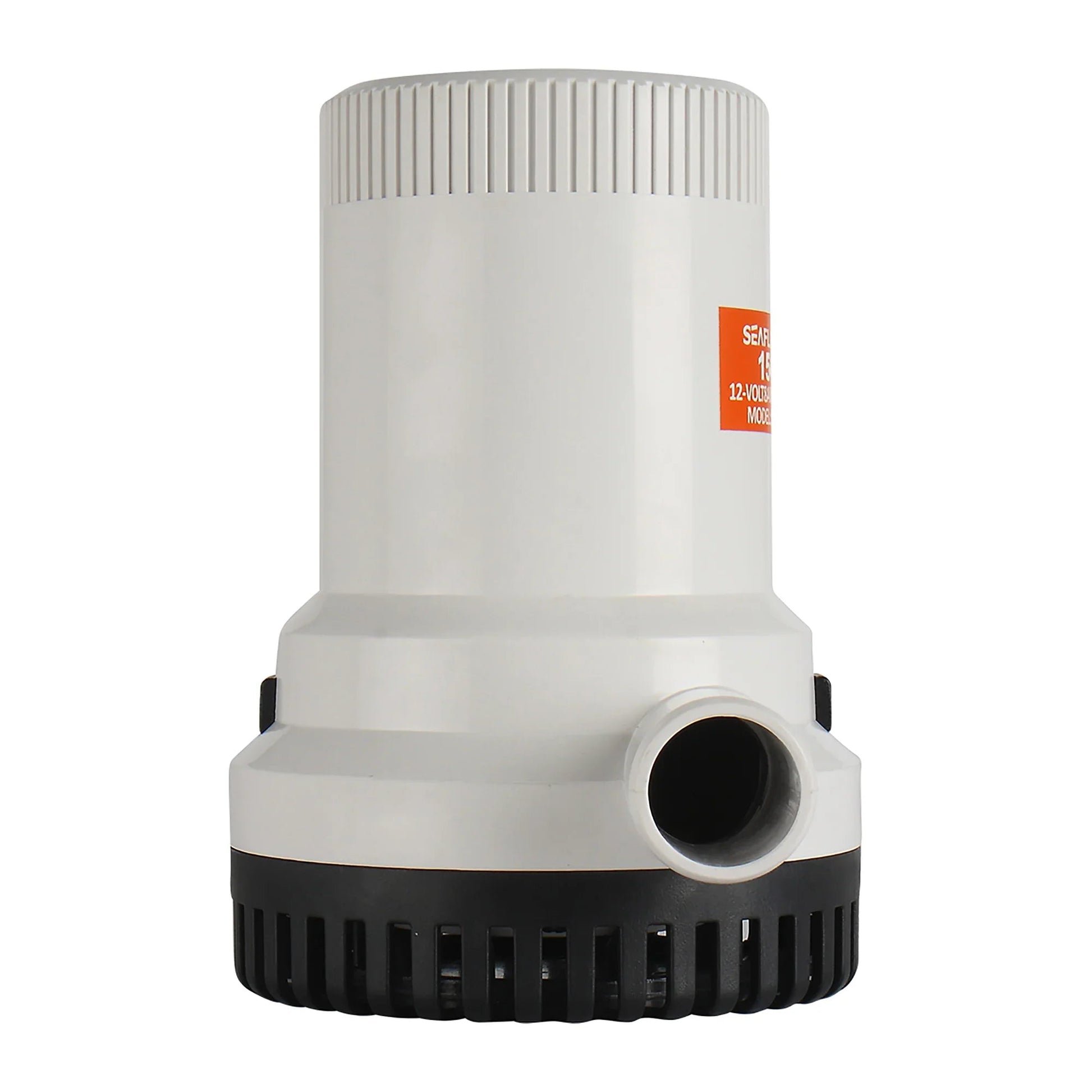

SEAFLO BP1G150001 12V 1500 GPH PUMP
Heavy-Duty 01-Series Non-Automatic Submersible Pump
The SEAFLO BP1G150001 is a high-capacity 1500 GPH (5678 LPH) manual bilge pump engineered for the demanding marine environment. As part of the 01-Series, this pump features a robust motor with a stainless steel shaft and a tough thermoplastic body to ensure a long service life. This non-automatic model is designed to be operated via a dash panel switch or a separate float switch, giving you complete control over your vessel's water management.
Key Features
- ✔ High-Flow Output: 1500 GPH capacity
- ✔ Direct Fit: Industry standard mounting footprint
- ✔ Snap-Off Strainer: Easy cleaning and maintenance
- ✔ Anti-Airlock: Prevents pump burn-out from air pockets
- ✔ Marine Grade: Blocked wiring and SS shaft
Technical Specs
| Model: | BP1G150001 |
| Voltage: | 12V DC |
| Flow Rate: | 1500 GPH (5678 LPH) |
| Current Draw: | 8.0 Amps |
| Fuse Size: | 12.0 Amps |

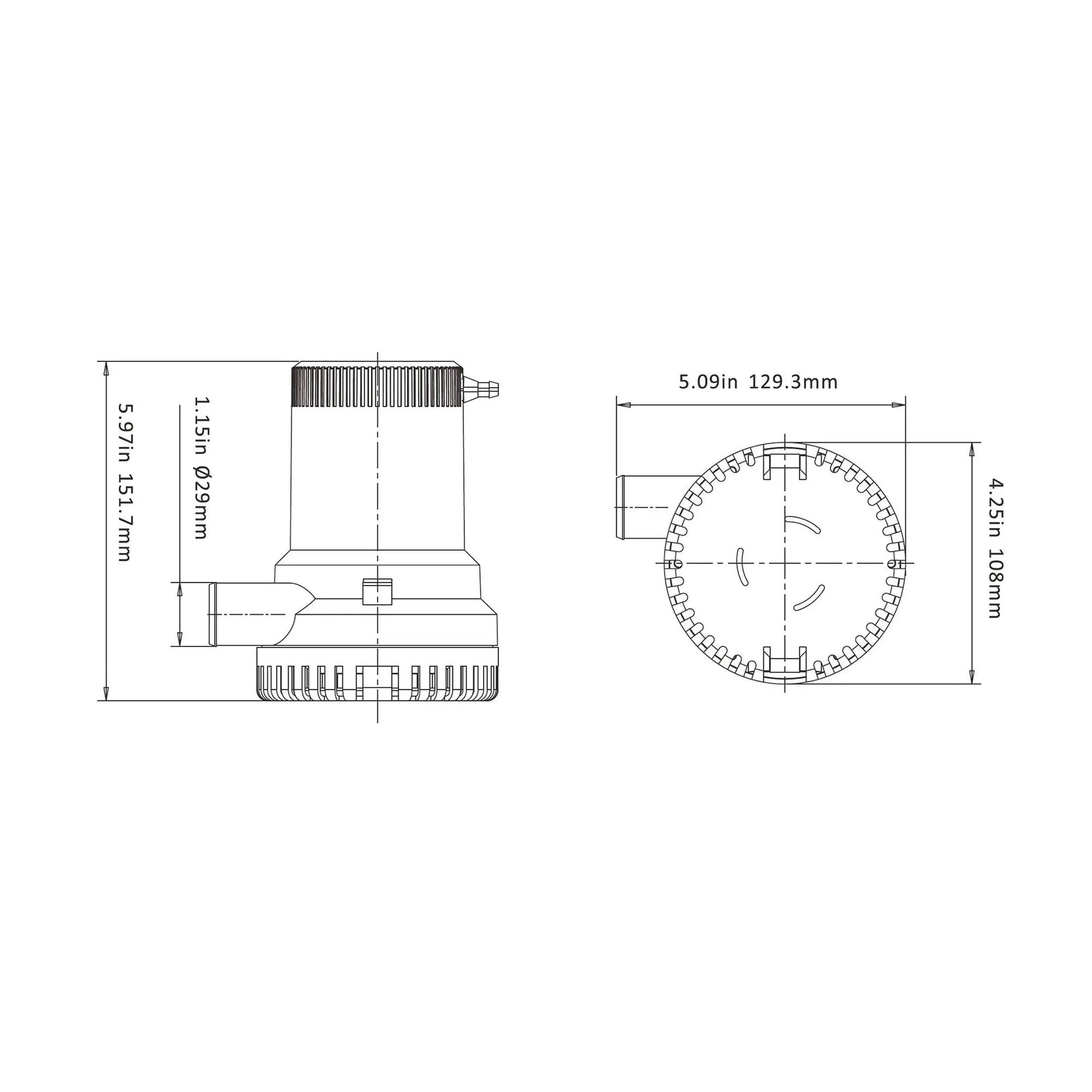

| Outlet Dia: | 1-1/8" (29mm) |
| Max Lift: | 5m (16 ft) |
| Wire Lead: | 1m (18 AWG) |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| Marine Bilge | Boats up to 35ft | Main bilge or baitwell backup |
| Water Extraction | Sump or flood control | 12V battery power required |
| Livewells | Bait tanks / Livewells | Continuous duty (intermittent cycle recommended) |
OEM Cross Reference
| SEAFLO Model | SFBP1-G1500-01 |
| Rule Equivalent | Rule 1500 (Model 02) |
| Johnson Equivalent | Johnson L1600 / 32-1600-01 |
| Attwood Equivalent | Tsunami T1200 / Sahara S1100 (Upgrade path) |
Questions & Answers
Is this a genuine original part?
This is a genuine SEAFLO 01-Series pump, a premium marine-grade product manufactured to meet or exceed international standards like ISO 8846 and CE.
How do I know if it is compatible?
We recommend checking the SKU/MPN (BP1G150001) and Cross Reference list. This pump uses a standard 1-1/8" (29mm) outlet hose and standard mounting screw patterns found on Rule and other major brands.
Does this pump turn on automatically?
No, this is a manual (non-automatic) pump. It requires an external float switch or a manual dash panel switch to operate. It does not have a built-in sensor.
Note: Please verify your existing hose diameter and fuse capacity against the references above before purchasing. Domain: 4boats.co.uk
