RELIABILITY: Features a fully sealed seamless motor shell with O-ring sealed end bells and a heavy-duty powder coating to prevent internal and external corrosion.

Key Features

• ✔ Anti-Clog Technology: 316 Stainless Steel 4-Blade Chopper.
• ✔ Self-Priming: Up to 5ft (1.5m) lift capability.
• ✔ Manual Override: Rear shaft knob to manually loosen clogs.
• ✔ Thermal Protection: Prevents motor damage from overheating.
• ✔ Seamless Shell: High-quality sealed motor for longevity.

Technical Specs

Model:	SFMP2-120-01
Voltage:	24V DC
Flow Rate:	12 GPM / 45.0 LPM
Max Current:	7.0 Amps
Fuse Size:	20.0 Amps

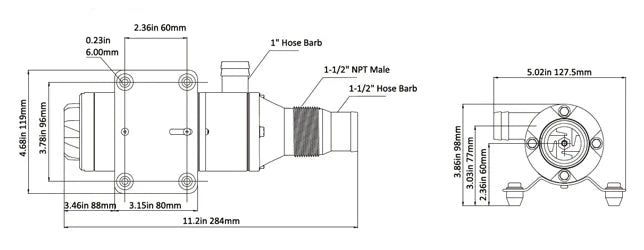

Inlet Port:	1.5" (38mm) Hose Barb / 1.5" NPT
Outlet Port:	1" (25mm) Hose Barb

Application	Model/System	Notes
Marine Sanitation	Boats, Yachts, Narrowboats	Standard 24V Electrical Systems

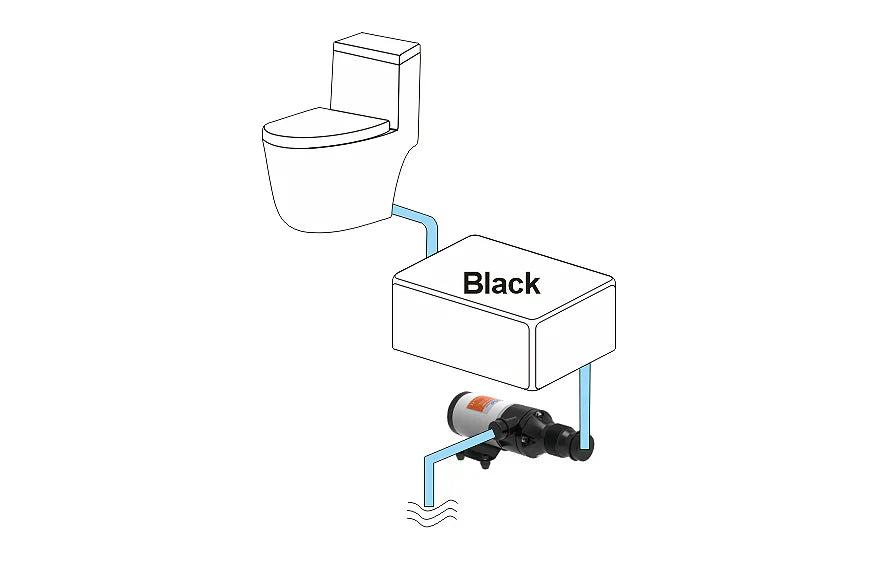

RV Waste	Motorhomes, Caravans, Trailers	Black and Grey water tanks
Fish Boxes	Sports Fishing Vessels	Clears ice, scales, and organic waste

Is this a genuine original part?

This is a premium quality SEAFLO brand pump, manufactured to meet or exceed original equipment (OE) standards and is widely used as a direct replacement for Jabsco and Johnson pumps.

How do I know if it is compatible?

Check your existing pump's voltage (must be 24V) and port sizes. This pump uses a standard 1.5" inlet and 1" outlet. Refer to the OEM Cross Reference table for verified matches.

Can this pump run dry?

While this pump features a thermally protected motor that will shut down if overheating occurs, it is recommended to only run the pump when fluid is present to maximize the lifespan of the flexible impeller.
