Seaflo 24V 800 GPH Low Profile Automatic Timer Sensing Bilge Pump SFBP2-G800-14B
Seaflo 24V 800 GPH Low Profile Automatic Timer Sensing Bilge Pump SFBP2-G800-14B
Couldn't load pickup availability

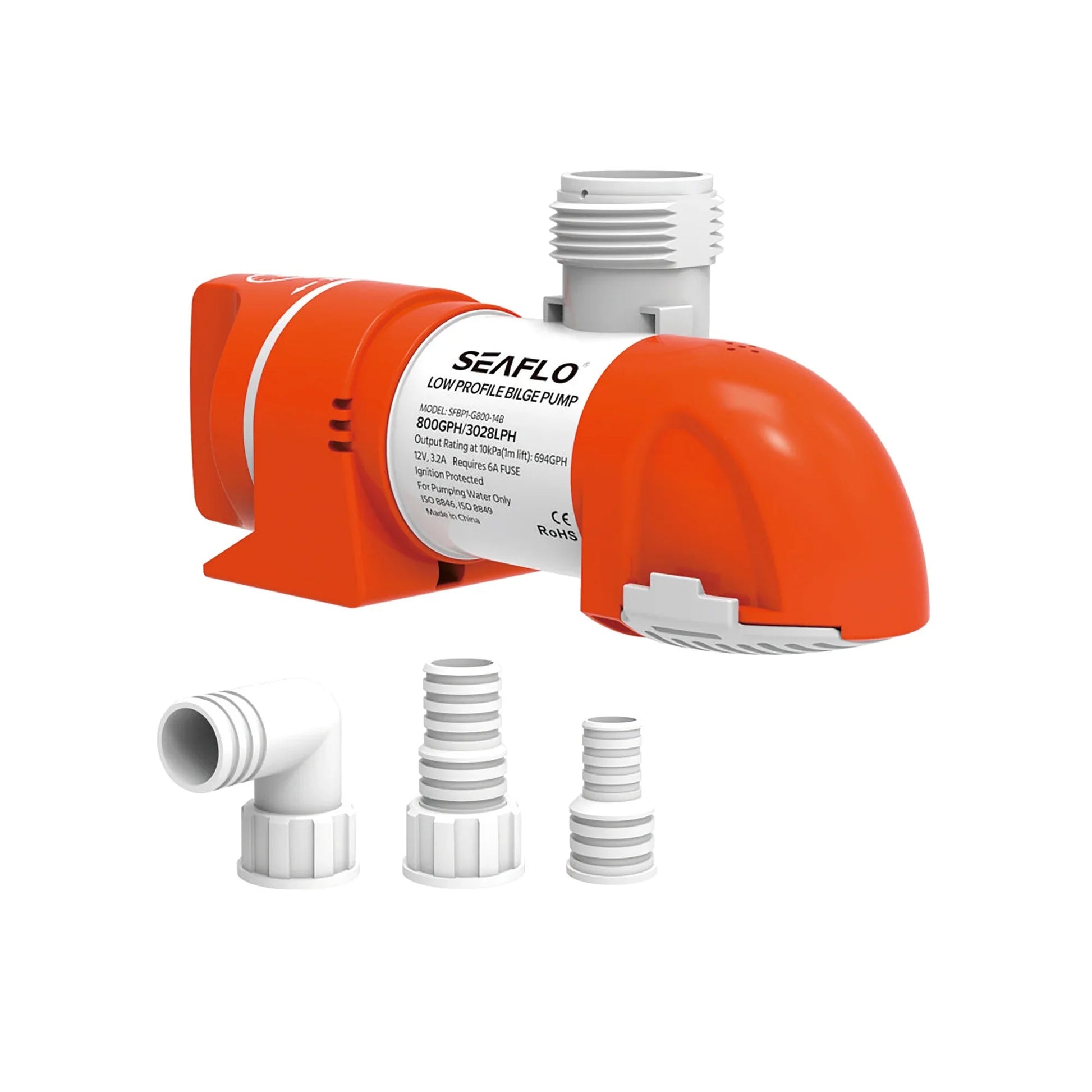

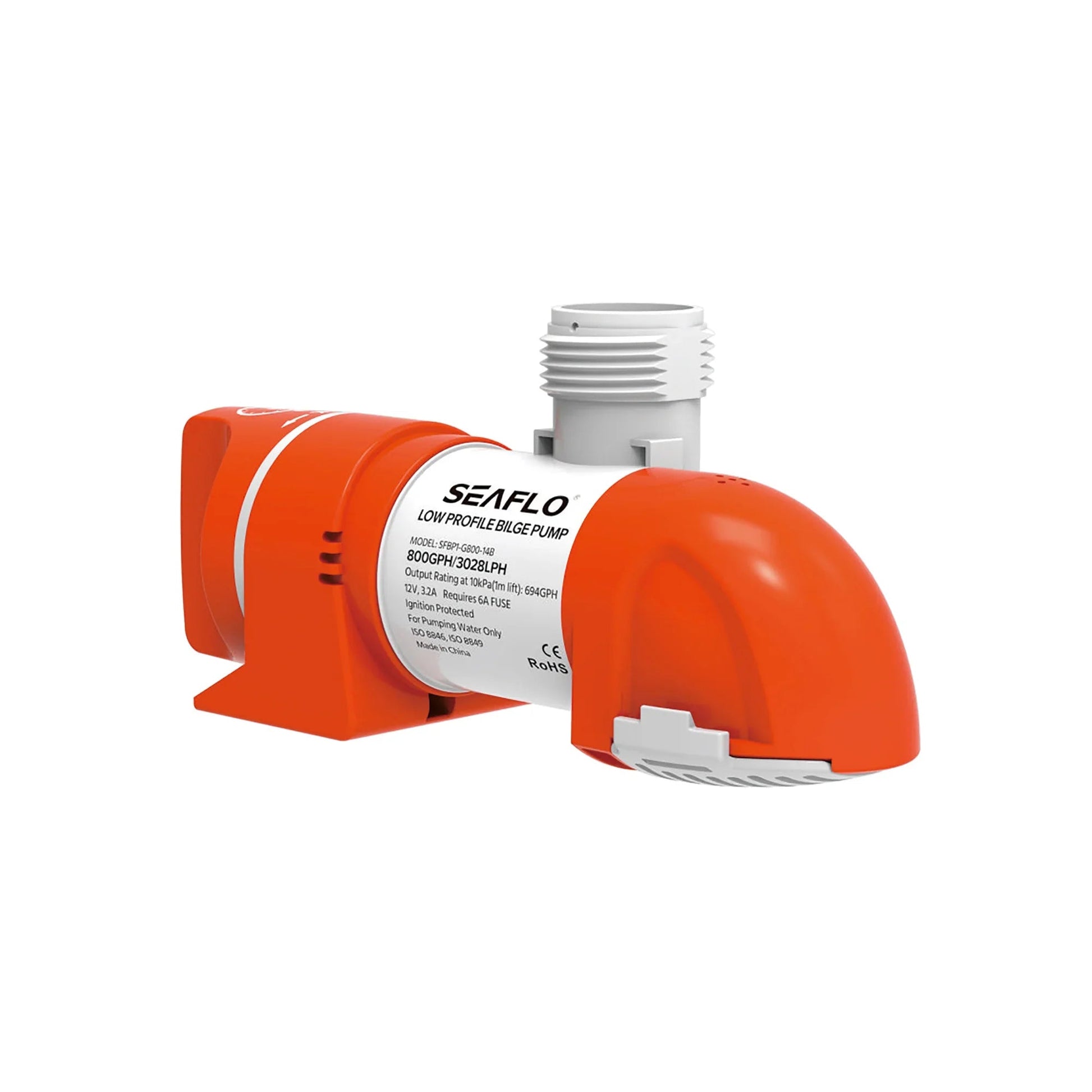

Seaflo 24V 800 GPH Low Profile Pump
Model: SFBP2-G800-14B | Automatic Timer Sensing
The Seaflo SFBP2-G800-14B is a high-performance, low-profile automatic bilge pump designed specifically for narrow or awkward bilge spaces where standard vertical pumps cannot fit. Part of the innovative 14B Series, this pump utilizes Timer Sensing technology to automatically manage water levels without the need for a separate float switch.

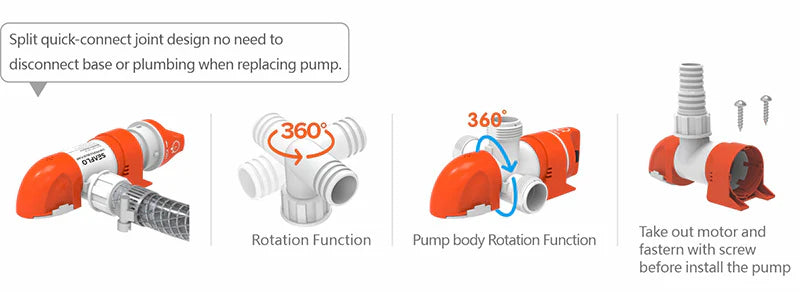

Engineered for durability in harsh marine environments, it features a 360-degree rotatable outlet and pump body for ultimate installation flexibility. The inclusion of a non-return check valve prevents annoying water backflow, while the snap-fit assembly allows for quick and easy cleaning.

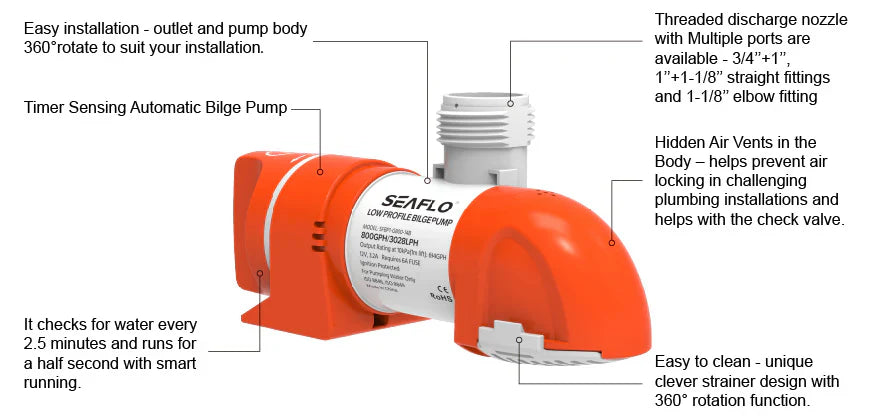

Key Features
- ✔ Timer Sensing: No float switch required
- ✔ Low Profile Design: Ideal for tight spaces
- ✔ 360° Rotation: Flexible mounting & plumbing
- ✔ Non-Return Valve: Built-in backflow protection
- ✔ Marine Grade: Tin-coated wiring & moisture seals
- ✔ Ignition Protected: Safe for engine compartments
Technical Specs
| Flow Rate: | 800 GPH (3028 LPH) |
| Voltage: | 24V DC |
| Current Draw: | 2.0A |
| Fuse Size: | 3.0A |
| Max Head (Lift): | 3.2m (10.5 ft) |
| Outlet Sizes: | 19mm, 25mm, 29mm |
| Wire Lead: | 18 AWG, 1m Length |
Compatibility / Fitment Guide
| Application | Model Type | Notes |
|---|---|---|
| Marine Vessels | Boats up to 24m | Standard bilge use |
| Narrow Bilges | Shallow / Deep Vee | Fits where vertical pumps fail |
| RV / Camper | Drainage Systems | 24V DC Systems only |
OEM & Aftermarket Cross Reference
| Seaflo MPN | SFBP2-G800-14B / BP2G80014B |
| Rule Cross Reference | LP800S-24 (Low Profile 24V) |
| Whale Cross Reference | Supersub Smart 1100 (24V Version) |
| Attwood Cross Reference | S3-800 Series |
Questions & Answers
Is this a genuine original part?
This is a genuine Seaflo premium marine part, manufactured by one of the world's leading boat and RV pump specialists, backed by a 4-year limited warranty.

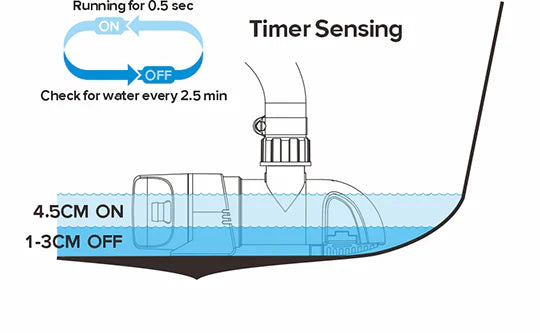

What is "Timer Sensing" and how does it differ from a float switch?
Timer sensing pumps do not use a mechanical float. Instead, they run momentarily every 2.5 minutes. If the impeller feels resistance from water, it stays on. This eliminates the risk of stuck float switches in debris-heavy bilges.
Can this pump be used in a 12V system?
No, this specific model is designed for 24V DC systems. Using it on a 12V system will result in significantly reduced performance or failure to start.
Note: Please ensure your electrical system is 24V before purchasing. Visit 4boats.co.uk for our full range of 12V alternatives.
