SEAFLO BP1G80013D LIVEWELL PUMP
800 GPH | 12V | 13D Series Aerator System
The SEAFLO 13D Series Livewell/Baitwell pump is engineered for the demanding marine environment, providing consistent oxygenated water to keep your catch or bait fresh and active. This professional-grade pump features a unique modular design that allows the pump housing and discharge nozzle to rotate 360 degrees, offering unparalleled flexibility in tight bilge spaces.
Key Features
- ✔ Dual Port Fitting: Allows for optional washdown pump connection.

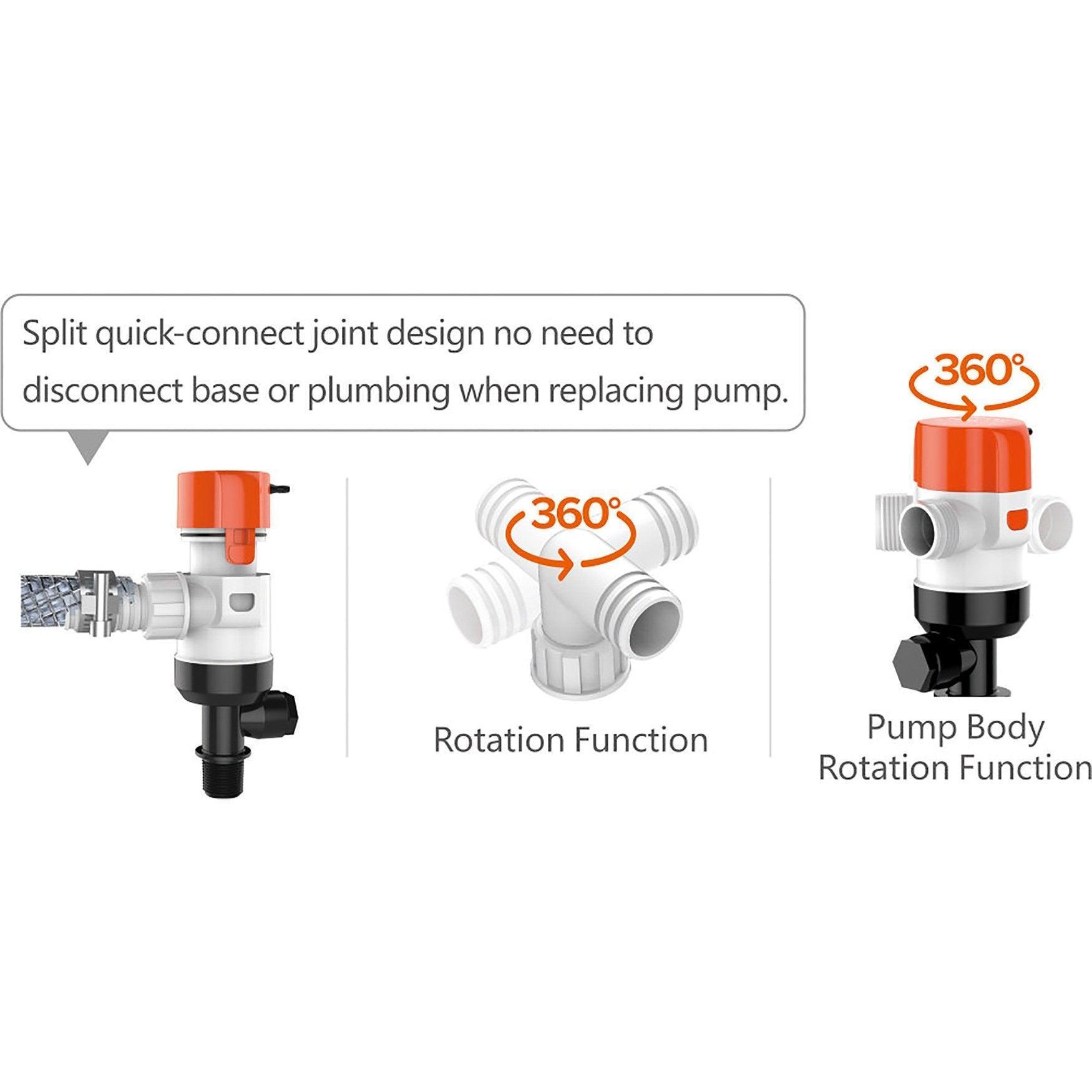

- ✔ 360° Adjustability: Rotating housing and nozzle for easy pipe routing.
- ✔ Anti-Airlock: Built-in protection ensures continuous flow.
- ✔ Marine Grade: Stainless steel shaft and ignition-protected motor.
Technical Specs
| Flow Rate: | 800 GPH (3028 LPH) |
| Voltage: | 12V DC |
| Current Draw: | 3.0 Amps |
| Max Head: | 3.0m (9.0') |
| Outlet Size: | 19mm (3/4") & 29mm (1-1/8") |
| Certifications: | CE, RoHS, ISO 8846/8849 |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| Marine Livewells | Small to Medium Livewell Tanks | Direct connection to drain valve |
| Aerator Systems | Baitwell Circulation | Submersible flooded suction design |
| Washdown Prep | Dual Port Washdown Systems | Secondary port for additional pumps |
OEM Cross Reference
| Seaflo Model | BP1G80013D / SFBP1-G800-13D |
| Cartridge Motor | SFMA1-G800-13A |
| Comparable Models | Rule Tournament Series 800 GPH / Shurflo Bait Sentry |
Questions & Answers
Is this a genuine original part?
This is a premium SEAFLO original equipment part, manufactured to high marine standards for reliable fitment and high-flow performance.
How do I know if it is compatible?
Check the base of your existing pump. The 13D series is identifiable by its rotating housing and quick-release buttons. If your motor cartridge is marked SFMA1-G800, this is the correct replacement unit.
Can the discharge nozzle be oriented in any direction?
Yes, both the pump body and the discharge nozzle can be rotated 360 degrees independently, allowing you to position the outlet exactly where your hose needs to run without kinking.
Available exclusively from 4boats.co.uk. Please verify your current plumbing size (3/4" or 1-1/8") before installation.
