Seaflo 12V 4" In-Line Marine Bilge Blower 235 CFM High Volume 04 Series IB123504
Seaflo 12V 4" In-Line Marine Bilge Blower 235 CFM High Volume 04 Series IB123504
Couldn't load pickup availability

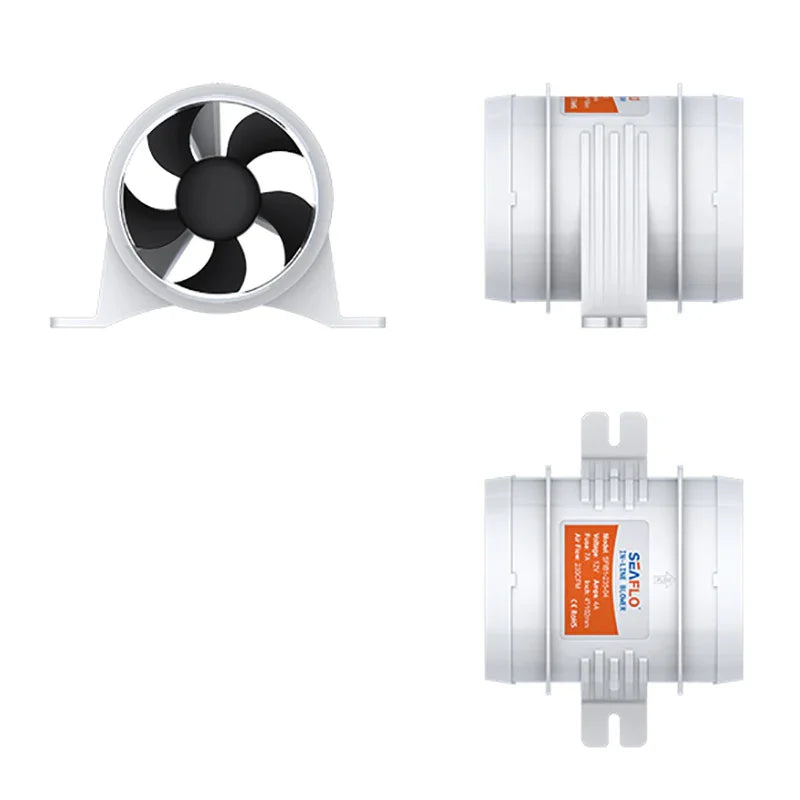

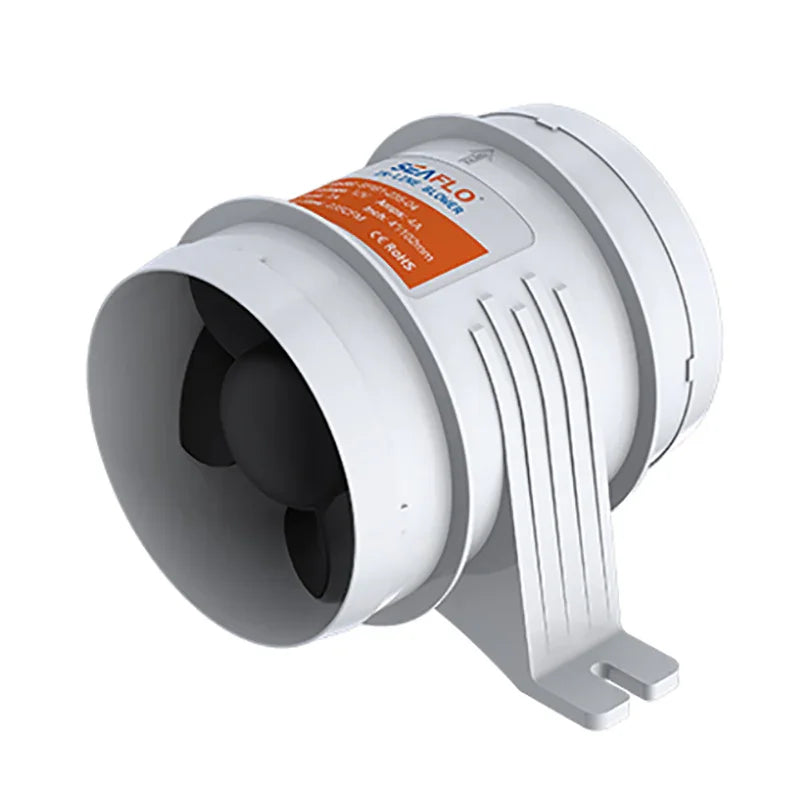

Seaflo 4" In-Line Blower 12V (IB123504)
High-Volume 04-Series Marine Ventilation
The Seaflo 04 Series In-Line Blower is engineered for high-efficiency, high-output ventilation in demanding marine environments. Designed to provide superior airflow for bilges, engine compartments, galleys, and heads, this 4-inch blower utilizes a specialized five-blade fan to maximize efficiency while maintaining a low current draw.
Key Features
- ✔ High Volume: 235 CFM (400 CMH) airflow capacity.
- ✔ Efficient Design: Low 4.0A current draw extends battery life.
- ✔ Durable Housing: Corrosion-resistant ABS plastic construction.
- ✔ Easy Install: Built-in mounting feet for vertical or horizontal setup.
- ✔ Safety Certified: Meets or exceeds ISO 8846 ignition protection.

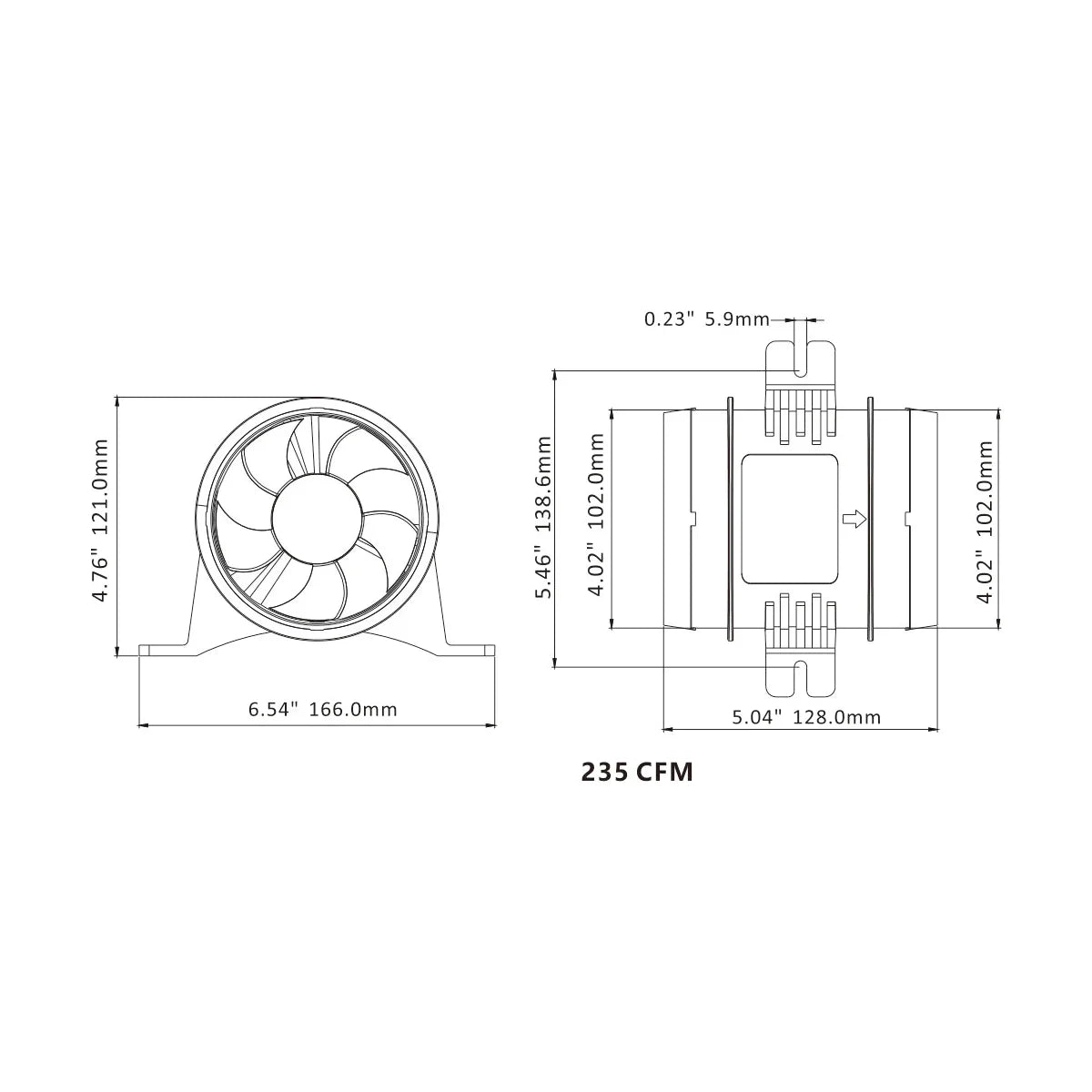

Technical Specs
| Model | IB123504 (04 Series) |
| Voltage | 12V DC |
| Air Flow | 235 CFM / 400 CMH |
| Amp Draw | 4.0 Amps |
| Fuse Rating | 7.0 Amps |
| Intake Diameter | 4" (102mm) |
| Weight | 0.49 kg |
Compatibility / Fitment Guide
| Application | System Compatibility | Notes |
|---|---|---|
| Marine Bilge | Standard 12V Marine Systems | Ideal for engine room vapor removal. |
| RV / Motorhome | Galleys & Heads | Quiet operation for confined spaces. |
| Industrial | Ventilation ducting | Compatible with 4" (102mm) flexible hose. |
OEM Cross Reference
| Brand | Reference Number |
| Rule | Rule 240, 240-6 (4" series) |
| Attwood | Turbo 4000 (1749-4) |
| Jabsco | 36760-0001 (4" Blower) |
| Seaflo Alternate | SFIB1-235-04, IB123504 |
Questions & Answers
Is this a genuine original part?
This is a premium quality Seaflo part, manufactured by one of the world's leading marine equipment specialists to meet or exceed international standards like ISO 8846 and CE.
How do I know if it is compatible?
Check your existing ducting size. If you have 4-inch (102mm) flexible hose, this unit is a direct fit. Ensure your system is 12V DC and can handle a 4A draw.
Can this blower be used continuously?
Marine bilge blowers are typically designed for intermittent duty (e.g., clearing vapors before starting the engine). For continuous ventilation needs, ensure the installation allows for adequate cooling airflow around the motor housing.
Note: Please verify your required airflow (CFM) and duct diameter against the specifications above. Available at 4boats.co.uk.
