Seaflo BS2505 Heavy Duty 25A Electromagnetic Bilge Pump Float Switch 12V 24V 32V
Seaflo BS2505 Heavy Duty 25A Electromagnetic Bilge Pump Float Switch 12V 24V 32V
Couldn't load pickup availability

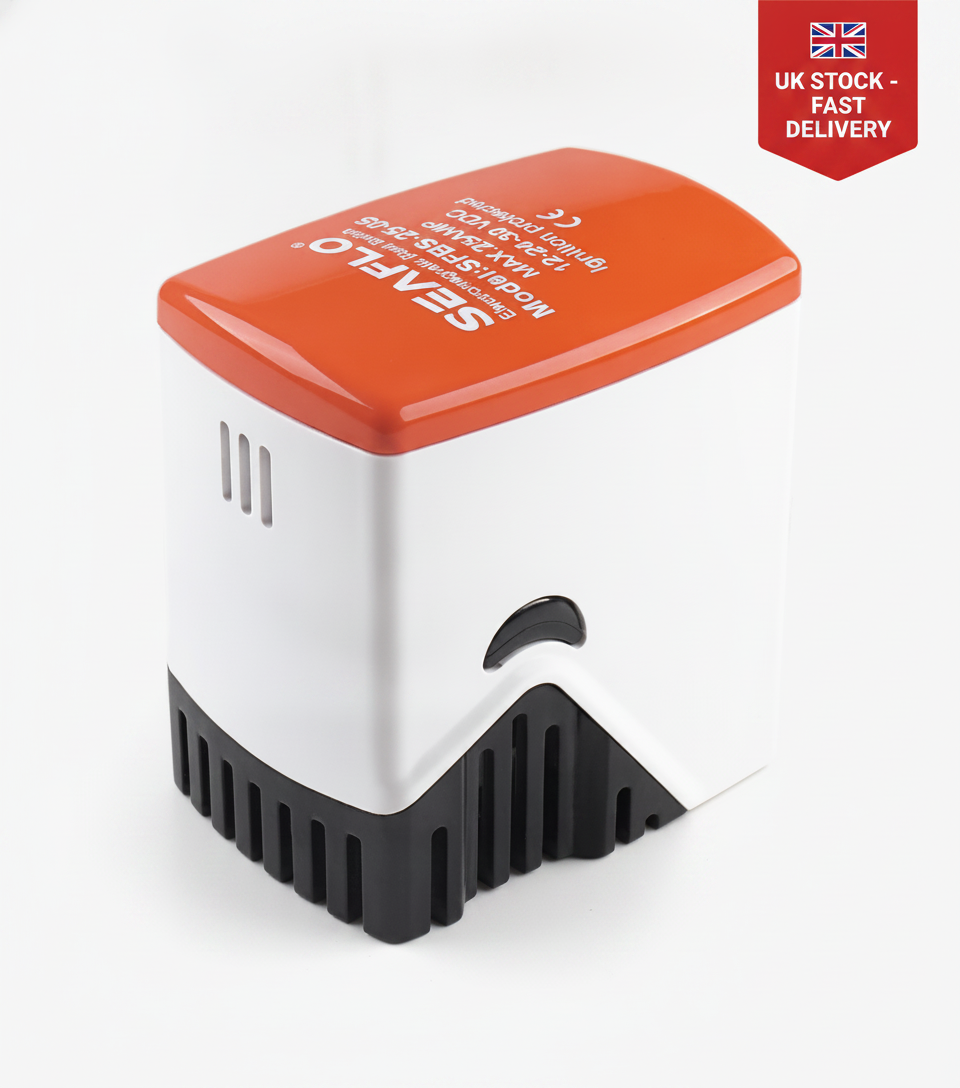

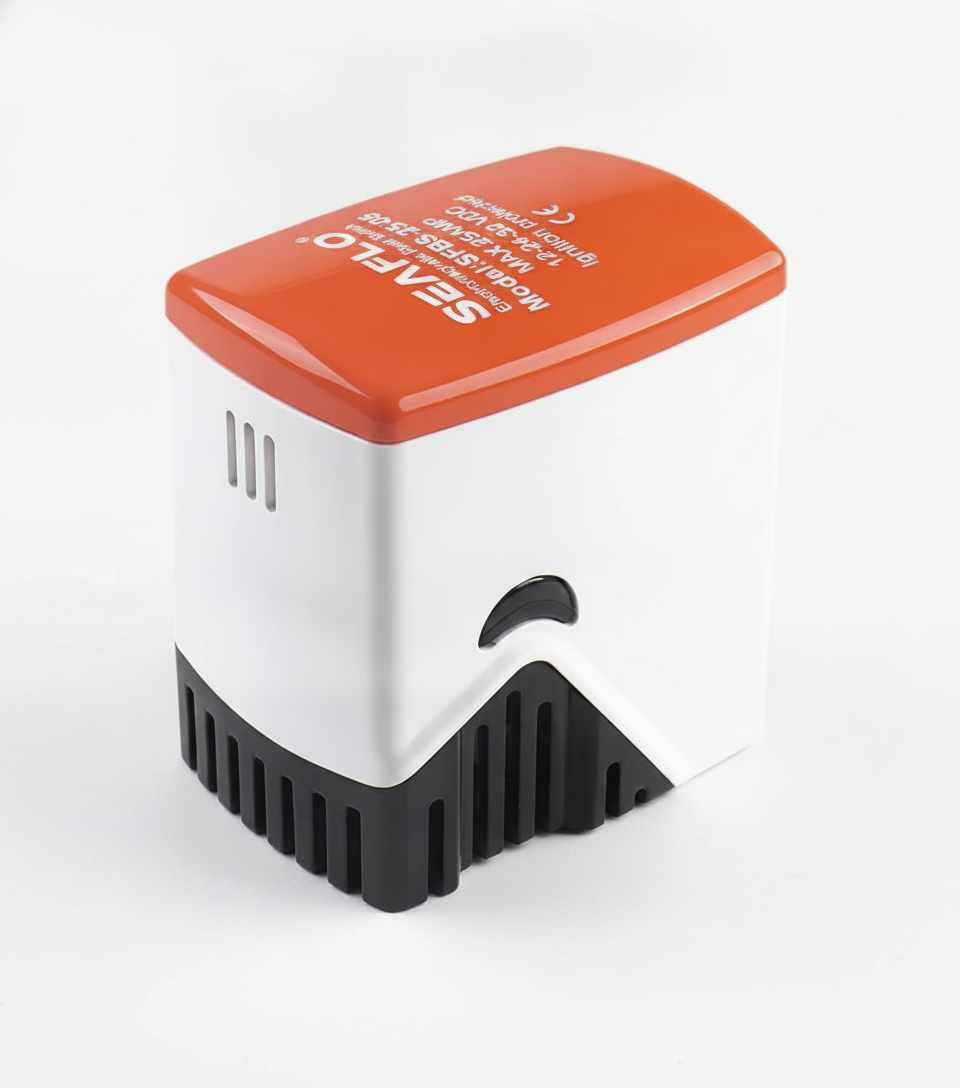

Seaflo Heavy Duty Float Switch BS2505
Premium 25A Electromagnetic Control for High-Flow Pumps
The Seaflo BS2505 (05-Series) represents the pinnacle of bilge water management technology. Unlike traditional mechanical switches that often fail due to debris or seal leakage, this heavy-duty unit utilizes electromagnetic activation. By using magnetic force to trigger the pump, the internal mechanism remains completely enclosed and protected from the harsh bilge environment.
Key Features
- ✔ Electromagnetic Design: No mechanical seal to leak or fail.
- ✔ Debris Protection: Enclosed housing prevents clogs.
- ✔ High Capacity: Rated for a massive 25 Amps.
- ✔ Mercury-Free: Environmentally friendly and safe.
- ✔ Quick Installation: Includes detachable base for easy cleaning.
Technical Specs

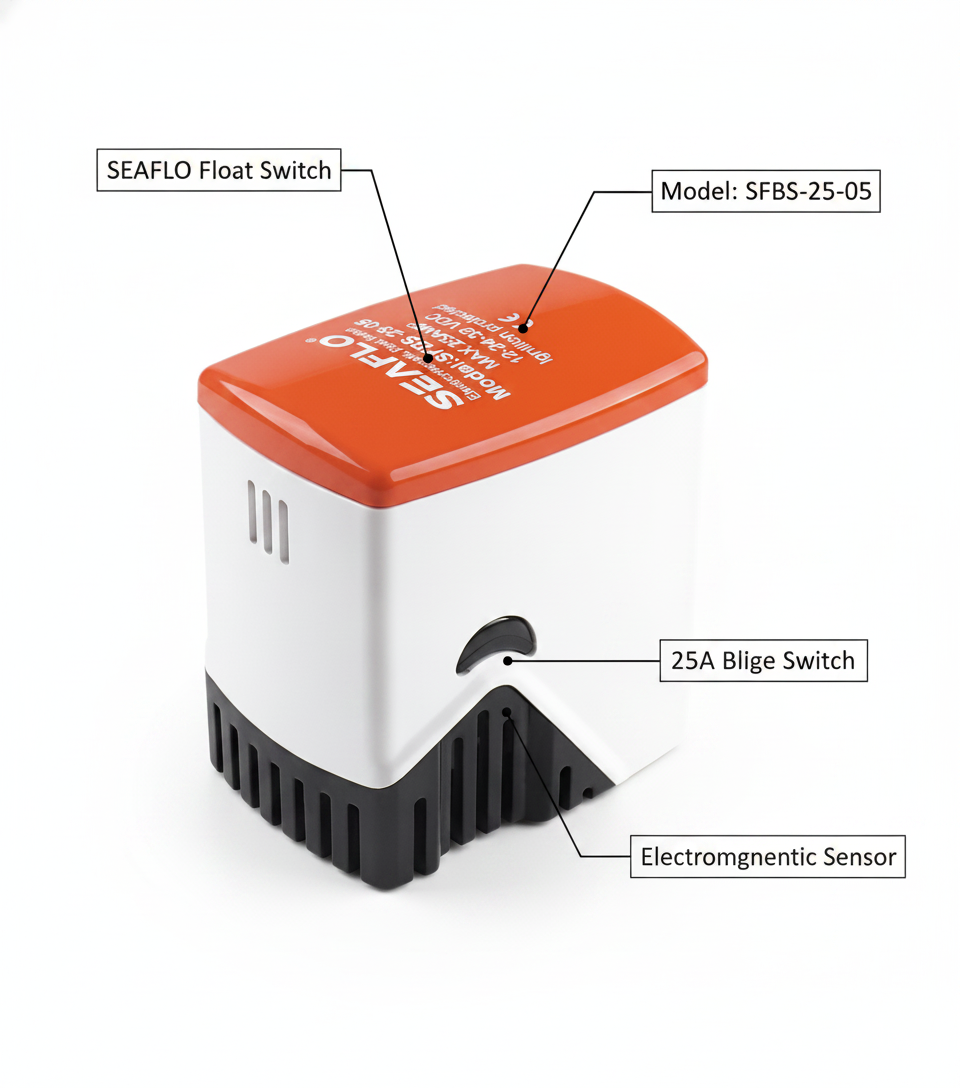

| Model: | BS2505 / SFBS-25-05 |
| Voltage: | 12V / 24V / 32V DC |
| Max Amps: | 25A (12V) / 12.5A (24V) |
| Wire Gauge: | 14 AWG (1m length) |
| Turn ON Level: | 45mm - 50mm (1.77" - 1.97") |
| Turn OFF Level: | 20mm - 25mm (0.79" - 0.98") |
Compatibility / Fitment Guide
| System Application | Compatible Flow Rates | Notes |
|---|---|---|
| Marine Bilge Systems | 3000 GPH, 3500 GPH, 3700 GPH+ | Best for high-amp non-auto pumps. |
| 12V/24V/32V DC Power | Universal Replacement | Must use correct fuse size for pump. |
OEM Cross Reference
| Manufacturer | Reference Number |
| Seaflo (Standard) | SFBS-25-05 |
| Seaflo (UK/EU) | BS2505 |
| EAN Barcode | 6971170931897 |
Questions & Answers
Is this a genuine Seaflo part?
Yes, this is an authentic Seaflo 05-Series heavy-duty electromagnetic float switch, supplied in original packaging.
Why do I need a 25A switch instead of a standard 15A or 20A?
High-flow bilge pumps (3000GPH and above) have a significantly higher amp draw upon startup. A standard switch may burn out or fuse closed under these loads; the BS2505 is built specifically to handle that surge safely.
Can this be used in salt water?
Yes. The ABS thermoplastic construction and marine-grade tinned wiring are designed specifically for both fresh and salt water environments.
Note: Ensure the switch is mounted horizontally (max 30° tilt) for optimal electromagnetic float performance. Available via 4boats.co.uk.
