SEAFLO 01 Series Bilge Pump Float Switch 12V 24V 32V 20A Max BPS2001

SEAFLO 01 Series Bilge Pump Float Switch 12V 24V 32V 20A Max BPS2001

£22.49 GBP
£22.49 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

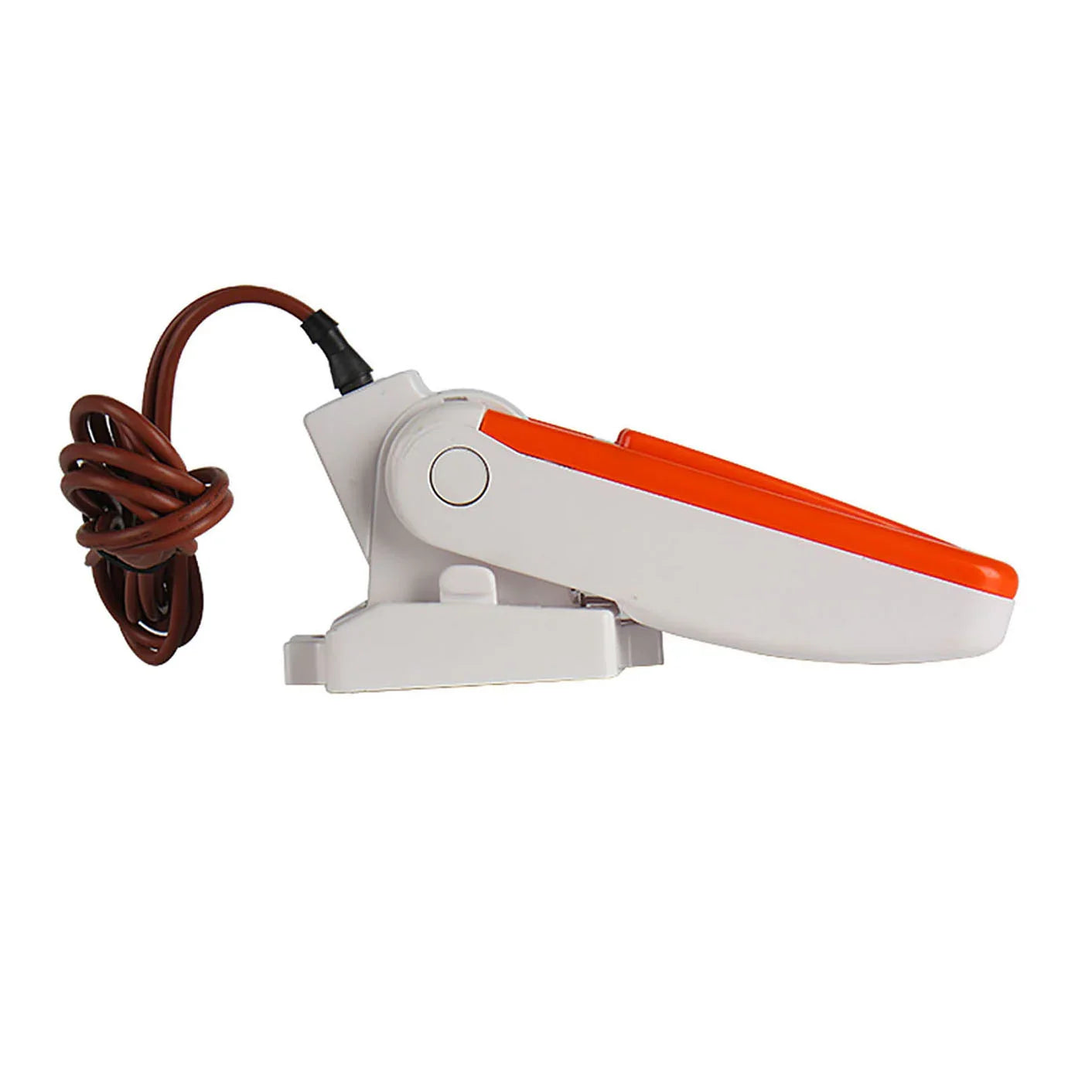

SEAFLO Float Switch BPS2001

01 Series Heavy-Duty Marine Control - 20 Amp Max

The SEAFLO BPS2001 (01 Series) is a high-performance float switch designed to provide reliable automated control for your marine bilge pump. Engineered for demanding environments, this switch utilizes a precision rolling ball mechanism to ensure consistent activation, preventing your pump from running dry or failing to engage when needed.

RELIABILITY: Built with mercury-free materials and ultrasonic welding to create a moisture-tight, reliable seal suitable for both fresh and salt water applications.

Key Features

  • ✔ Heavy Duty: Supports draws up to 20A.
  • ✔ Universal Fit: Compatible with all major bilge pump brands.
  • ✔ Mercury Free: Environmentally safe design.

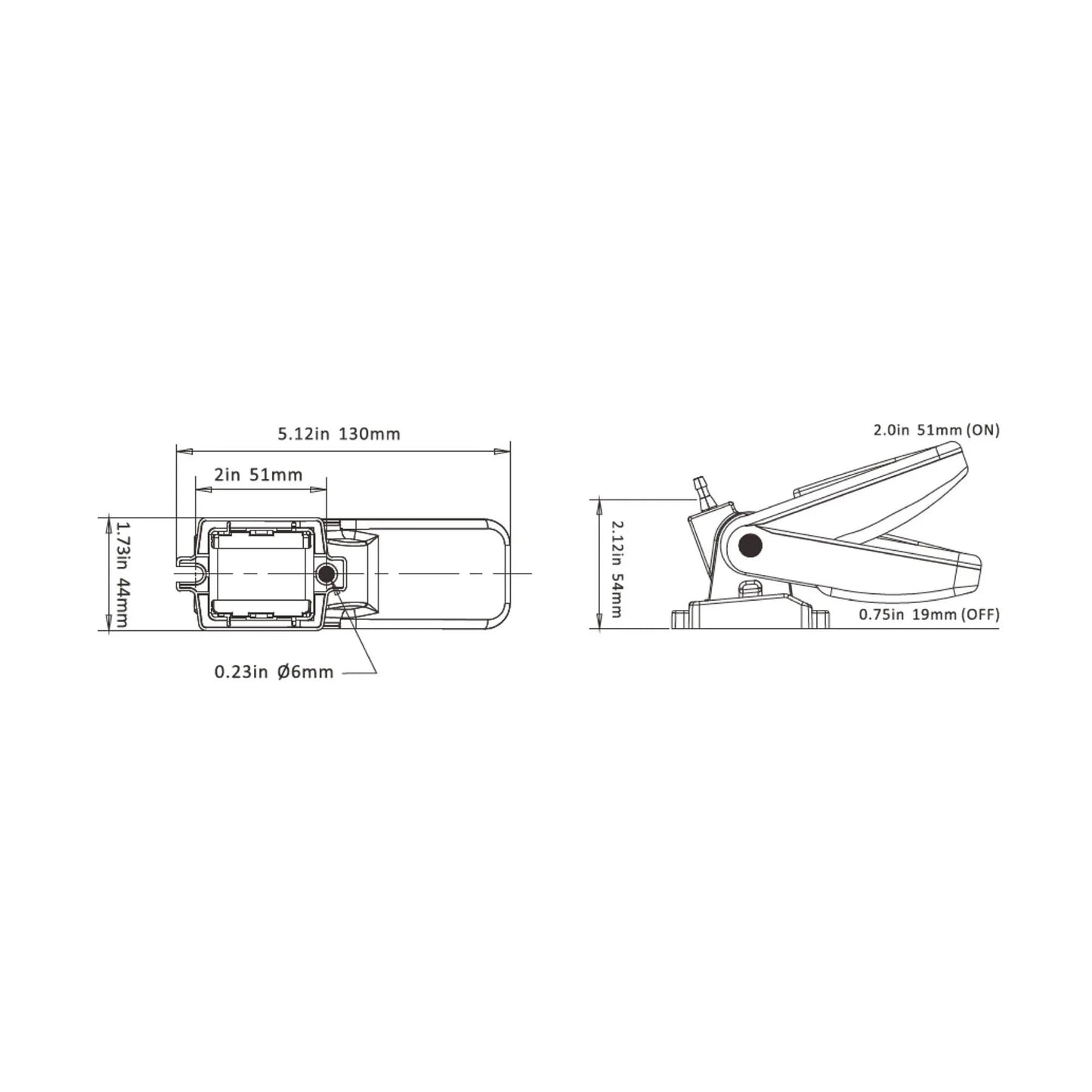

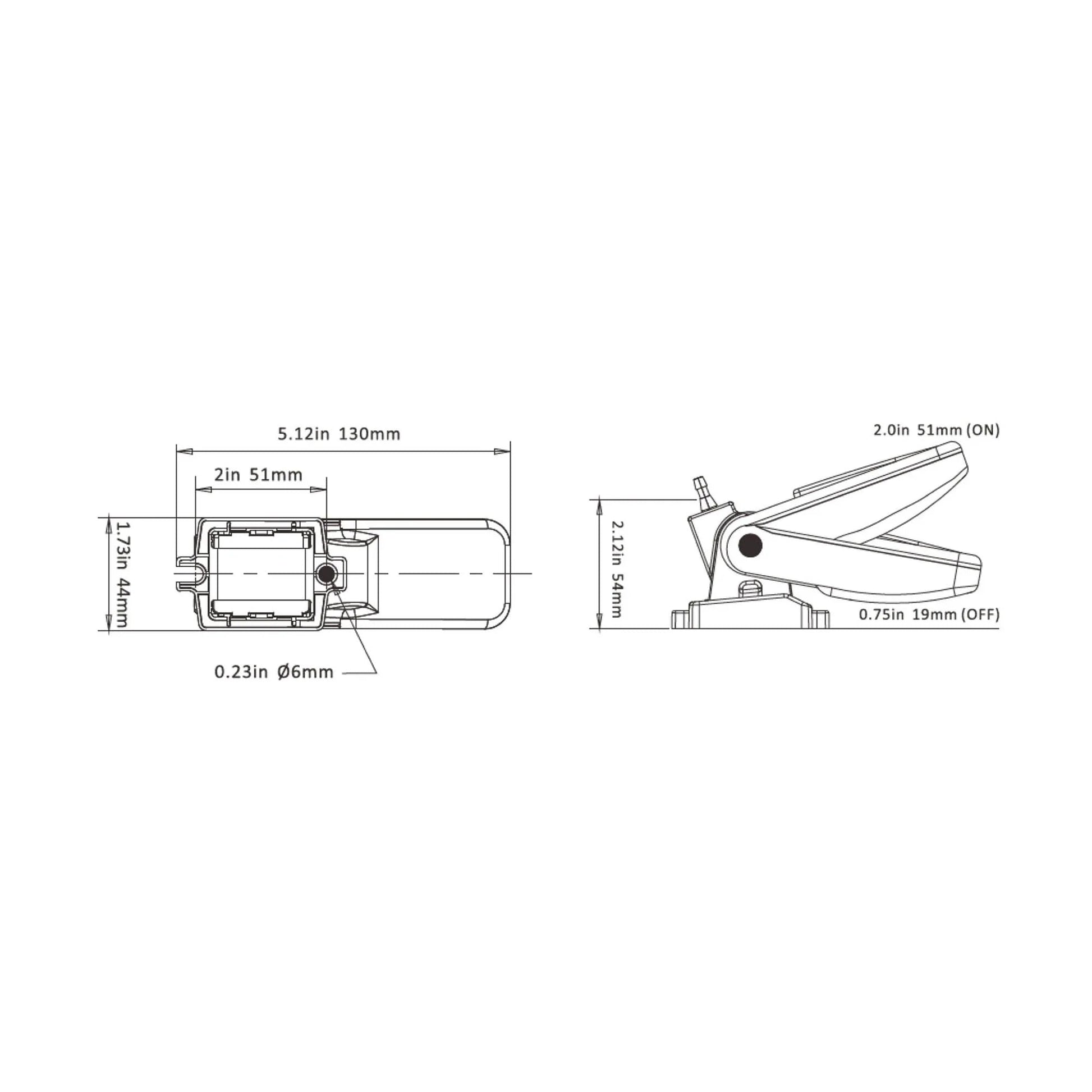

  • ✔ Auto-Leveling: On at 51mm, Off at 19mm.

Technical Specs

Voltage: 12V / 24V / 32V DC
Max Amps (12V): 20A
Max Amps (24V): 10A
Max Amps (32V): 8A
Wire Length: 1 Metre
Wire Gauge: 18 AWG

Compatibility / Fitment Guide

System Type Voltage Compatibility Notes
Manual Bilge Pumps 12V, 24V, 32V DC Converts manual pumps to automatic.
High Flow Pumps Up to 2000 GPH Ideal for pumps drawing < 20 Amps.

OEM Cross Reference

SEAFLO Internal MPN SFBS-20-01
Rule Equivalent Rule 35A (Standard Performance)
EAN Barcode 6971170935451

Questions & Answers

Is this a genuine original part?

Yes, this is a genuine SEAFLO manufactured product from the 01 Series product line.

How do I know if it is compatible?

If your bilge pump operates on 12V, 24V, or 32V and draws less than 20 Amps, this switch is a perfect fit. It is universally designed to work with all brands of manual submersible bilge pumps.

Does it contain mercury?

No, this unit is 100% Mercury-free, utilizing a mechanical rolling ball system for environmental safety and long-term durability.

Note: Always ensure the switch is mounted level or slightly above the pump base to ensure accurate water level sensing. Visit 4boats.co.uk for further technical support.
