RELIABILITY: Features a non-mercury float switch equipped with a protective filter housing to prevent debris interference, ensuring fail-safe operation when you need it most.

Key Features

• ✔ Dual Alert: Integrated 95dB buzzer and red LED visual light.
• ✔ High Capacity: Rated to handle pumps up to 20A at 12V.
• ✔ Debris Protection: Float switch includes a filter housing to block bilge waste.
• ✔ Eco-Friendly: Mercury-free float switch design.
• ✔ Expandable: Can be wired with additional switches for multi-hull monitoring.

Technical Specs

Voltage:	12V DC
Max Current:	20 Amps
Alarm Volume:	≥95 dB
Activation Level:	45mm - 55mm
Reset Level:	20mm - 25mm
Wire Gauge:	16 AWG (Switch) / 28 AWG (Alarm)
Switch Wire Length:	1000 mm (1 Metre)

System Type	Application	Notes
Marine Hulls	Boats, Yachts, RIBS, Cruisers	Universal fit for any 12V DC system.
Unmanned Spaces	Engine Rooms, Storage Lockers, Sumps	Ideal for hard-to-view areas.

Is this a genuine original part?

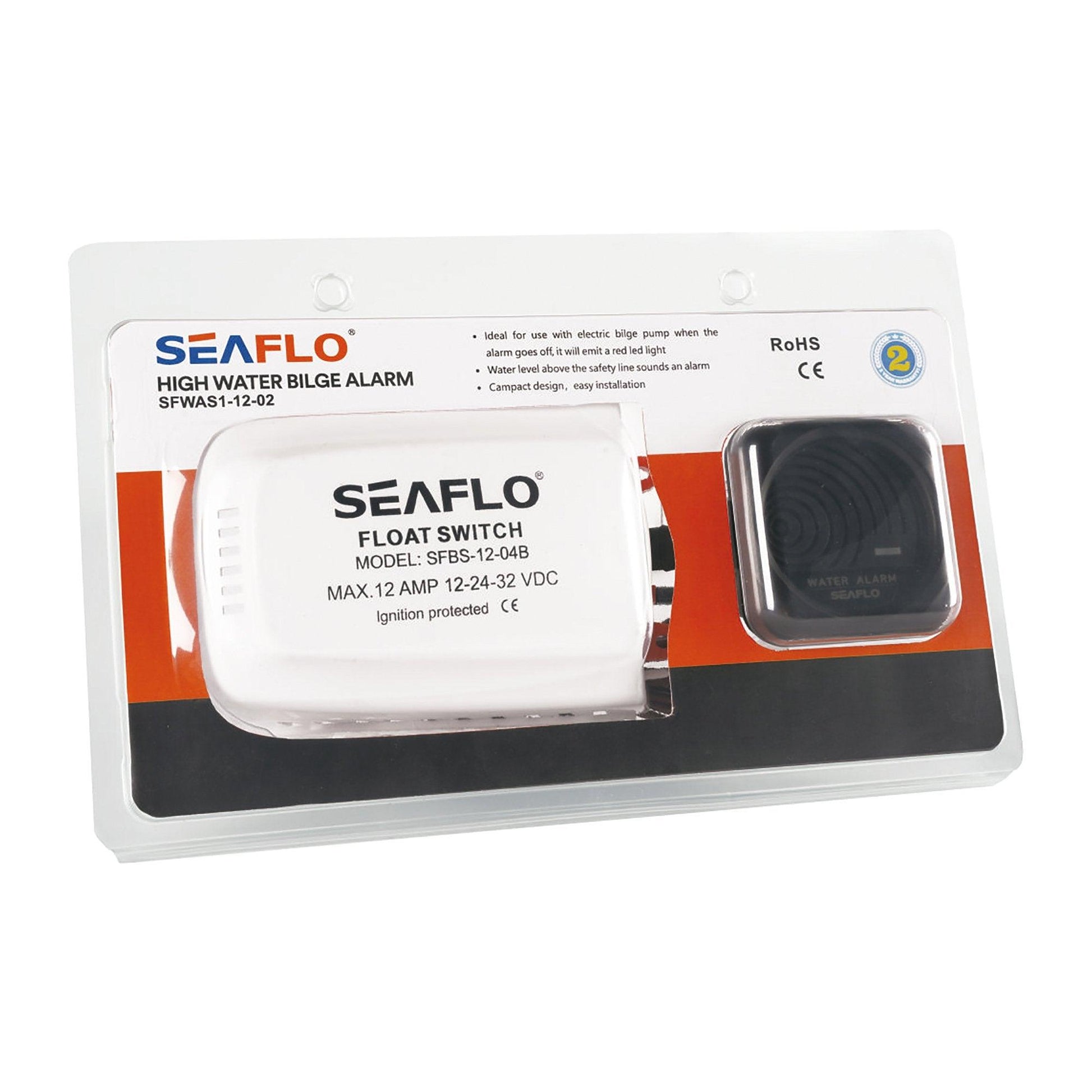

Yes, this is a genuine SEAFLO manufactured safety system, supplied in original retail packaging with all required technical manuals.

How do I know if it is compatible?

This kit is designed for 12V DC electrical systems. If your boat or application uses 12V power, this is a universal fit. For 24V systems, please look for SKU WAS21002.

Can I add more switches to this single alarm panel?

Yes, the system is fully expandable. You can wire additional Seaflo float switches (such as model SFBS-12-04B) in parallel to monitor multiple bilge compartments using the same WAS12002 alarm panel.
