Seaflo 24V 500GPH Marine Bilge Pump Non-Automatic 01 Series SFBP2-G500-01 Boat
Seaflo 24V 500GPH Marine Bilge Pump Non-Automatic 01 Series SFBP2-G500-01 Boat
Couldn't load pickup availability
Seaflo 24V 500GPH Bilge Pump
01-Series Heavy Duty Non-Automatic Marine Pump
The Seaflo 01-Series 500 GPH bilge pump is a premium 24V submersible solution designed for efficient water evacuation in marine and RV applications. Built with a robust motor and an optimized impeller design, this pump provides reliable performance in harsh saltwater and freshwater environments.

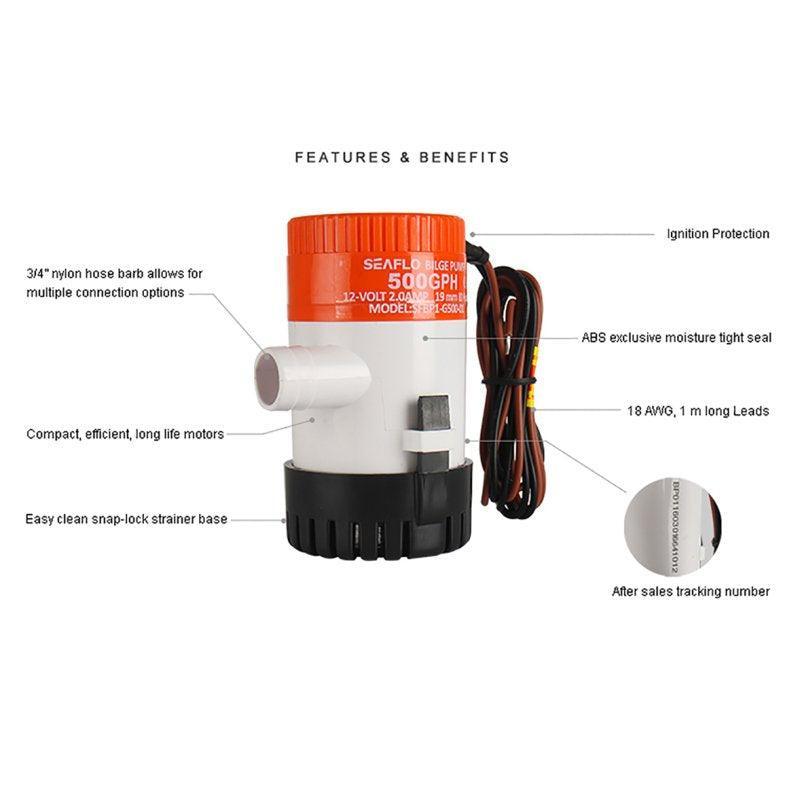

Key Features
- ✔ Anti-Airlock: Prevents air bubbles for consistent flow.
- ✔ Submersible: Completely waterproof and ignition protected.
- ✔ Easy Maintenance: Snap-off strainer for quick cleaning.
- ✔ Run Dry Capable: Safe for normal intermittent workloads.
- ✔ Stainless Steel: Corrosion-resistant internal motor shaft.
Technical Specs
| Voltage | 24V DC |
| Flow Rate | 500 GPH (1892 LPH) |
| Current Draw | 1.2 Amps |
| Max Draw | 3.0 Amps |
| Max Head | 3.0m (10ft) |
| Outlet Diameter | 19mm (3/4") |
| Wire Lead | 1m (18 AWG) |
Compatibility / Fitment Guide
| Application | System Requirements | Notes |
|---|---|---|
| Marine Vessels | Up to 20ft (6m) Boats | Standard bilge evacuation |
| Off-Grid / RV | 24V Battery Systems | Solar water systems or pond use |
| Medical/Industrial | 24V DC Circuit | Silent, vibrationless operation |
OEM Cross Reference
| Brand | Part Number |
| Rule | 25D-24 (500 GPH 24V) |
| Johnson | 32-1600-02 |
| Attwood | T500 Equivalent (24V) |
Questions & Answers
Is this a genuine original part?
This is a high-quality Seaflo manufactured part, designed to meet or exceed OEM performance. Seaflo is a globally recognized leader in marine pump technology.
How do I know if it is compatible?
If you currently have a 3/4" (19mm) discharge hose and a 24V electrical system, this pump will fit. The strainer base uses industry-standard mounting holes for easy swapping.
Does this pump turn on automatically?
No, this is a non-automatic (manual) pump. It requires a separate float switch or a manual dash switch to operate. We recommend the Seaflo SFBS-20-01 float switch for automatic operation.
Note: Always verify your system voltage (24V) before installation to ensure safe operation. Domain: 4boats.co.uk
