Seaflo 3-Way Bilge Pump Switch Panel 12V/24V Auto-Off-Manual SP01502 Marine
Seaflo 3-Way Bilge Pump Switch Panel 12V/24V Auto-Off-Manual SP01502 Marine
Couldn't load pickup availability

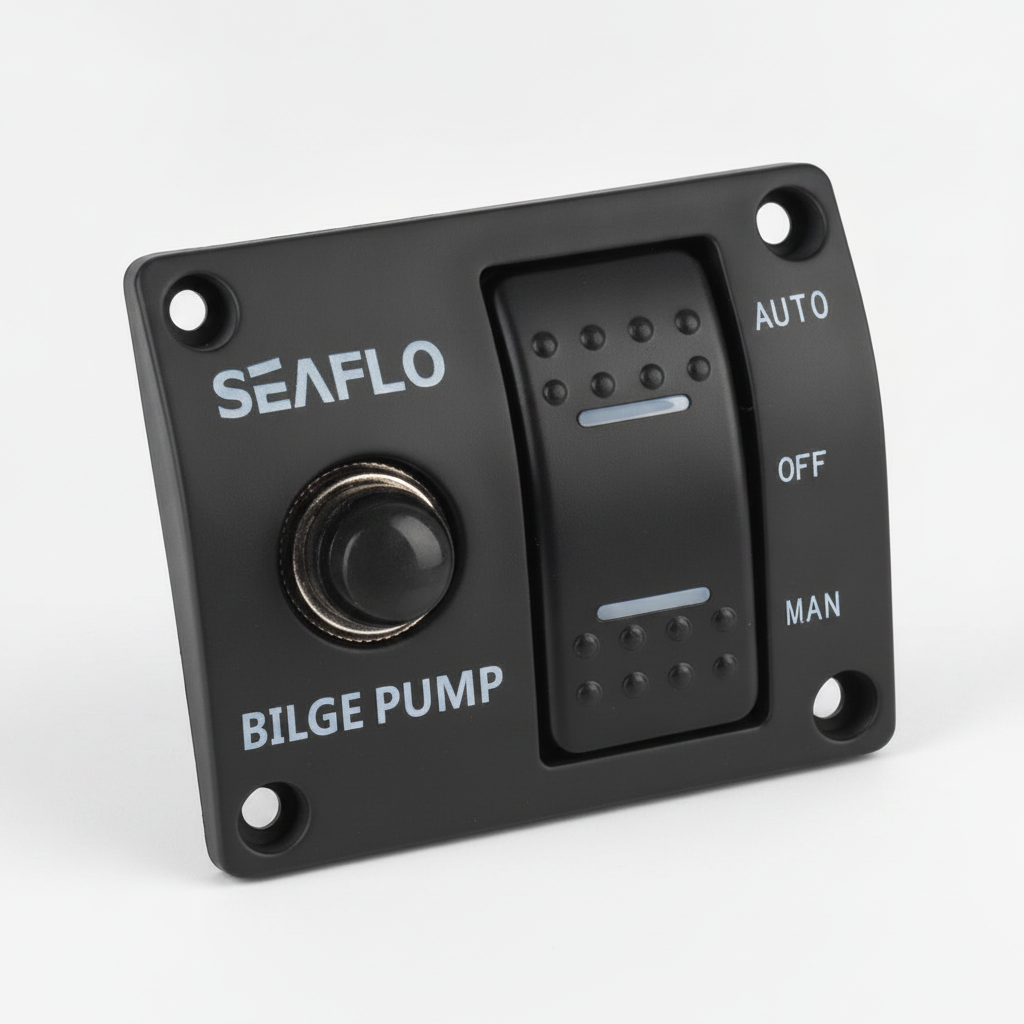

Seaflo Bilge Switch Panel SP01502

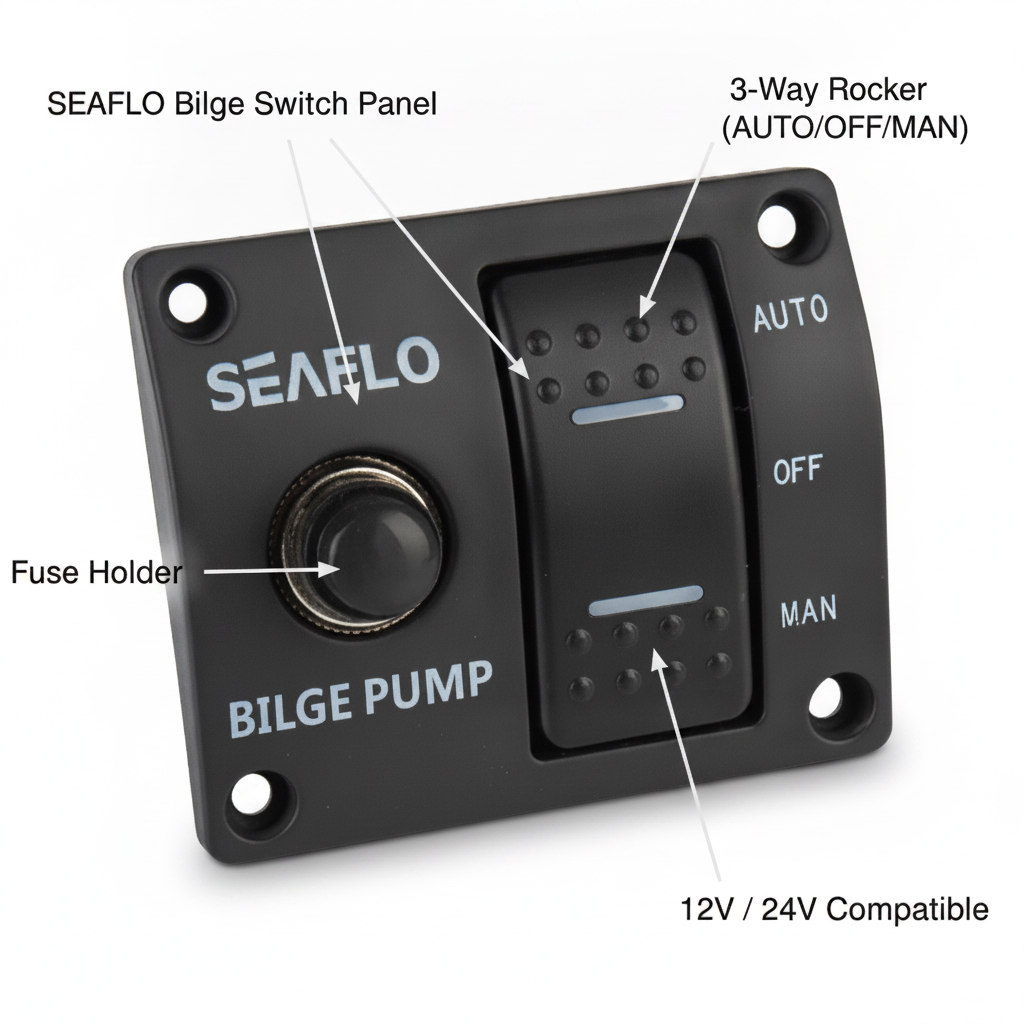

3-Way Control: Automatic | Off | Manual
The Seaflo SP01502 is a professional-grade marine switch panel designed to provide total control over your bilge pump system. Whether you are running a 12V or 24V setup, this panel allows for seamless switching between automatic float-switch operation and manual override.
Key Features
- ✔ 3-Position Toggle (Auto, Off, Manual)
- ✔ Integrated 15A Circuit Breaker/Fuse
- ✔ Built-in LED Power Indicator
- ✔ High-Impact UV-Stabilized ABS Plastic
- ✔ Fail-Safe Spring Return Design
Technical Specs
| Voltage | 12V & 24V DC |
| Current Rating | 15 Amps |
| Panel Material | Black ABS Plastic |

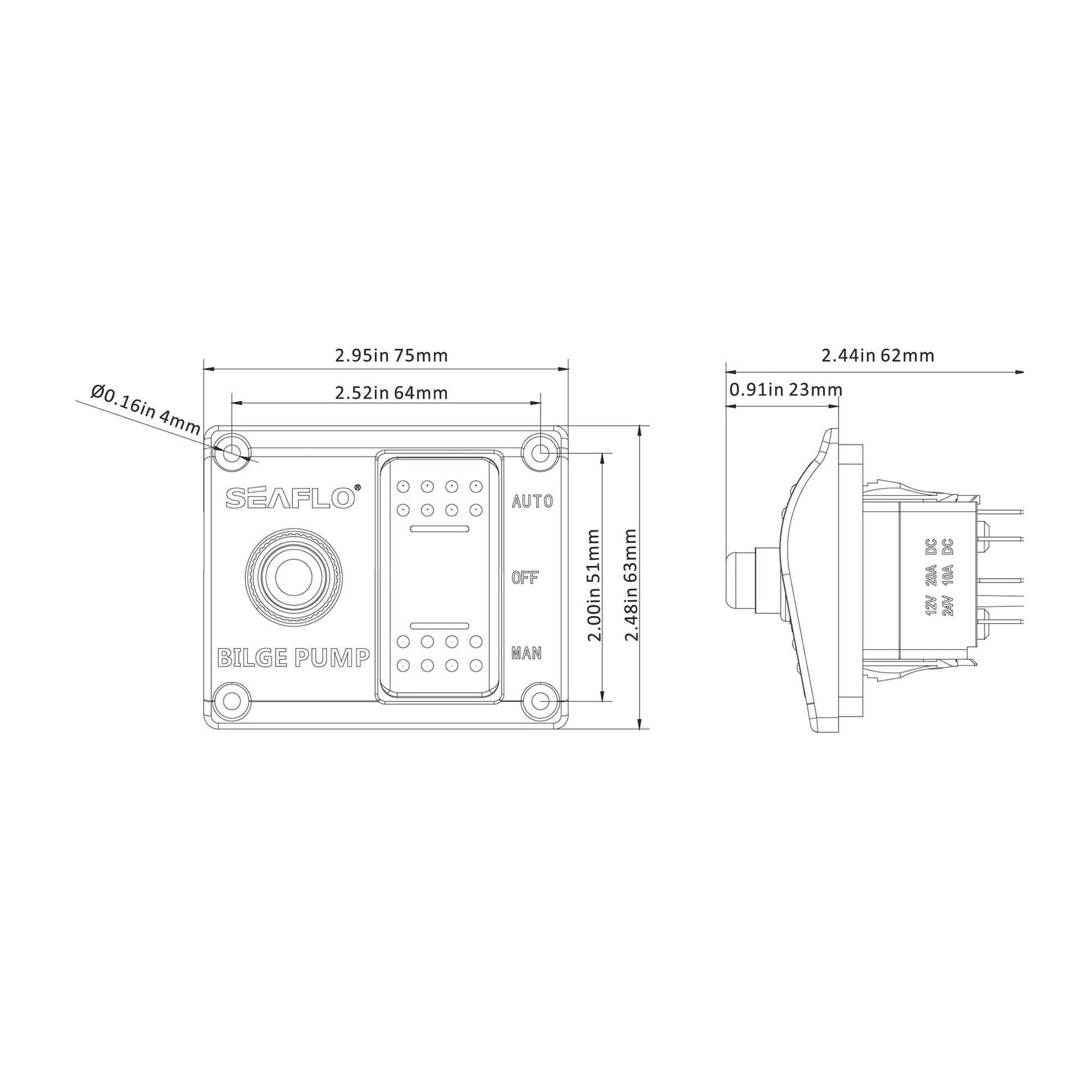

| Dimensions | 75mm x 63mm |
| Mounting Depth | 62mm |
Compatibility / Fitment Guide
| Application | System Voltage | Notes |
|---|---|---|
| Marine Bilge Pumps | 12V / 24V DC | Compatible with all pumps using a float switch. |
| Submersible Pumps | 12V / 24V DC | Ideal for RV, Yacht, and Fishing Boat installs. |
OEM Cross Reference
| Manufacturer | Part Number |
|---|---|
| Seaflo (Standard) | SFSP-015-02 |
| FridayParts | NMSP-015-02 |
| Aftermarket Ref | SP01502 / SP1502 |
Questions & Answers
Is this a genuine Seaflo part?
Yes, this is an authentic Seaflo premium quality marine component, designed for durability in harsh saltwater environments.
How does the "Manual" setting work?
The "Manual" position features a fail-safe spring return. This means you must hold the switch down for manual operation; once released, it springs back to "Off" to ensure you don't accidentally leave the pump running.
Can I use this with a 32V system?
While some similar models vary, this specific Seaflo SP01502 is officially rated for 12V and 24V DC systems.
Note: Please verify your existing wiring and pump current draw (Max 15A) before installation. For more marine parts, visit 4boats.co.uk.
