SEAFLO 3-WAY BILGE SWITCH PANEL SP01501
Premium Aluminum Marine Control Solution

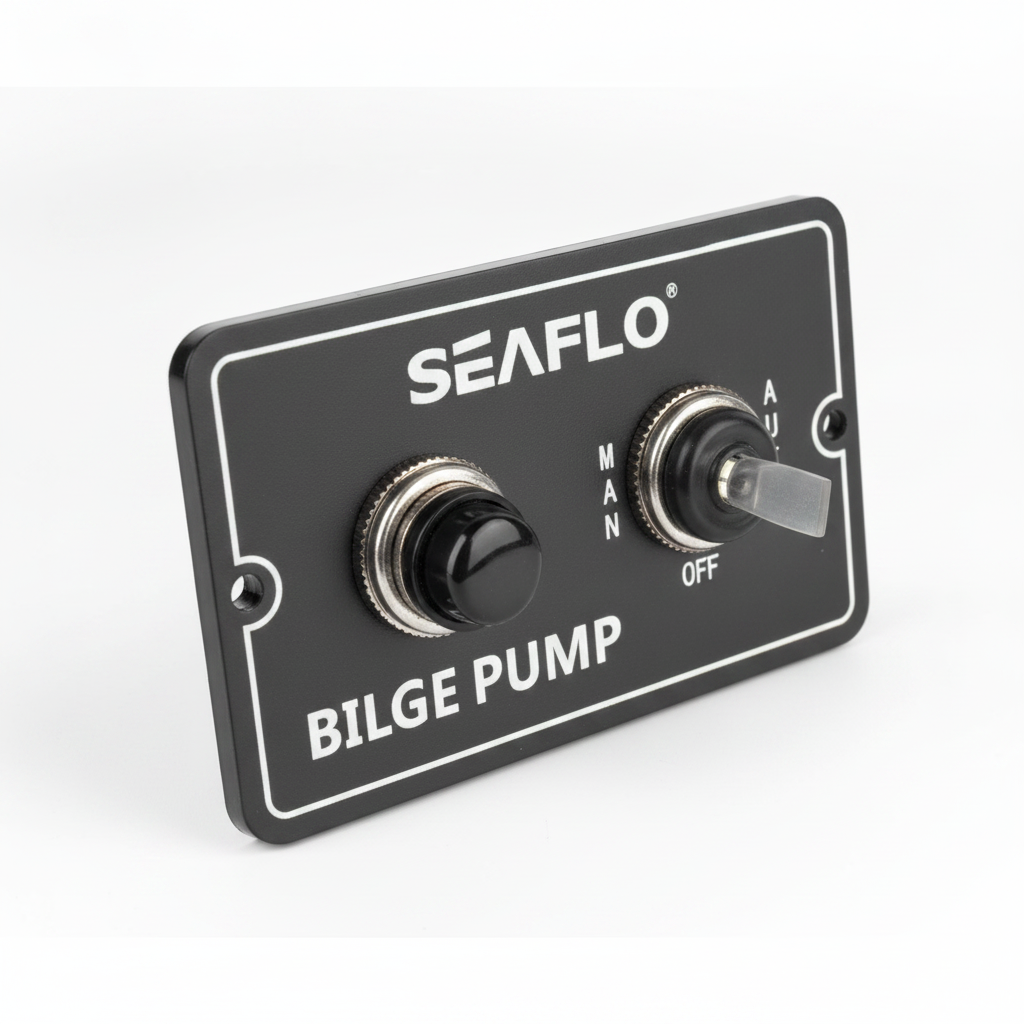

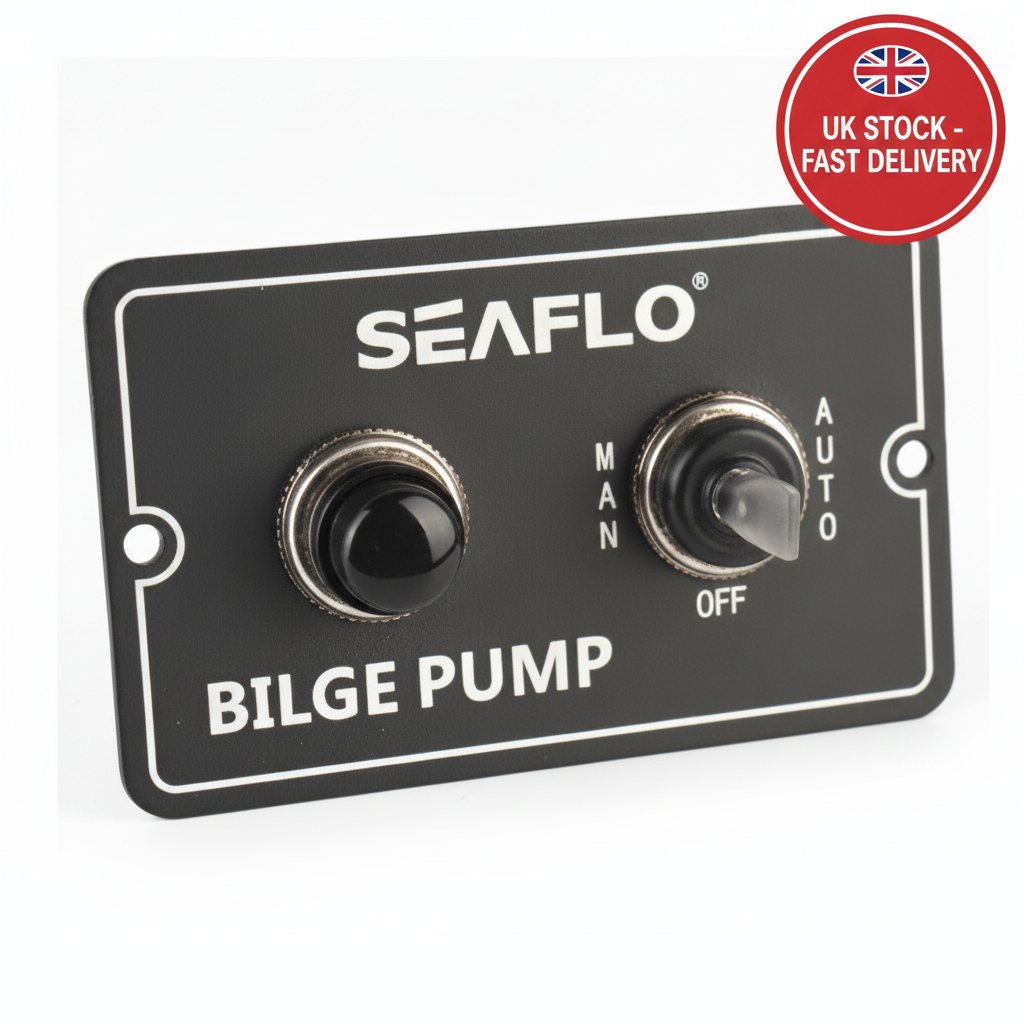

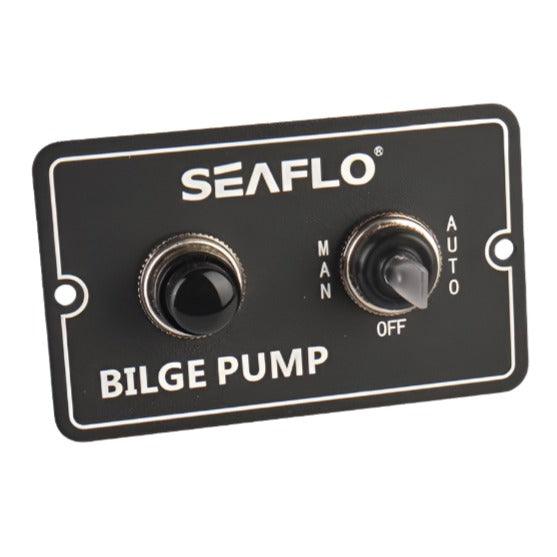

The SEAFLO SP01501 (SFSP-015-01) is a professional-grade marine switch panel designed to provide total control over your vessel's bilge system. Constructed from durable black aluminum, this panel allows you to switch between Automatic, Off, and Manual modes with ease. It is specifically engineered to work alongside any pump equipped with an automatic float switch, protecting your equipment from the impact of intermittent high currents.
Key Features
- ✔ 3-Position Toggle (MAN-OFF-AUTO)
- ✔ High-quality Black Aluminum Faceplate
- ✔ Integrated 15A Fuse Holder
- ✔ LED Indicator for active status
- ✔ Fail-safe spring return on Manual mode
Technical Specs
| Voltage | 12V / 24V DC |
| Fuse Rating | 15 Amps |

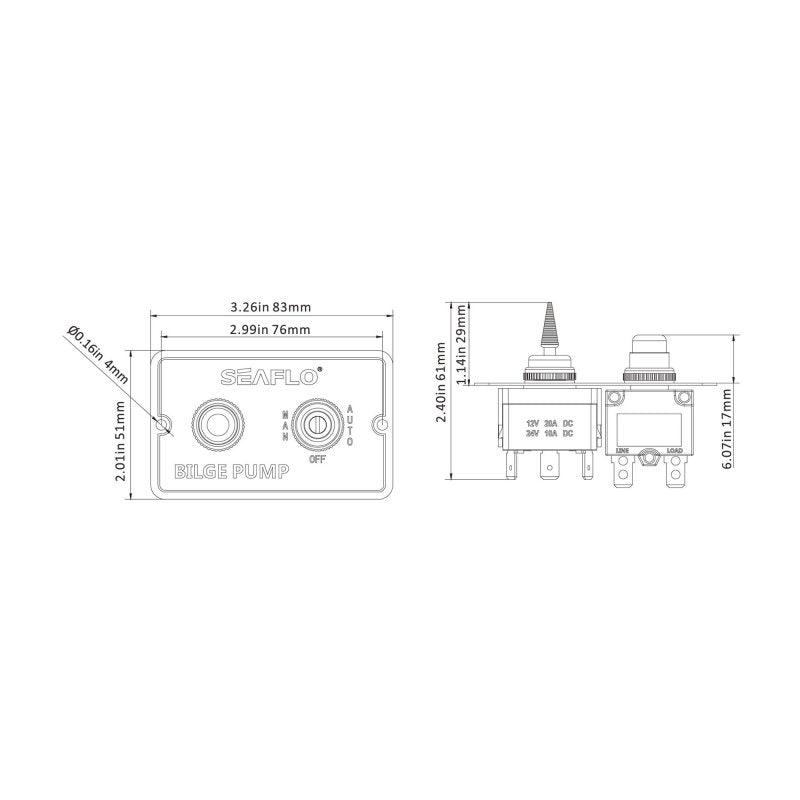

| Panel Size | 75mm x 63mm |
| Material | Black Aluminum |
| Certifications | CE, RoHS |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| Marine Bilge Systems | Boats, Yachts, Fishing Vessels | Works with any 12V/24V pump & float switch. |
| Automatic Control | Float Switches / Sensors | Enables automatic water level monitoring. |
OEM Cross Reference
| Seaflo MPN | SFSP-015-01 |
| Retail SKU | SP01501 / SP1501 |
| EAN Barcode | 6971170932245 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine SEAFLO marine product, sourced directly to ensure 100% compatibility and high-standard performance.
How do I know if it is compatible?
This panel is universally compatible with any 12V or 24V bilge pump that utilizes a separate float switch. If your current pump uses a three-wire (Auto/Manual/Ground) setup, this is the correct controller.
What does the "fail-safe" feature do?
The "Manual" position is spring-loaded. When you let go of the toggle in Manual mode, it automatically returns to the "Off" position. This prevents users from accidentally leaving the pump running manually, which could lead to pump burnout or a flat battery.
Note: Please verify your original wiring and system voltage (12V/24V) before purchasing. Professional installation by a marine electrician is recommended.
