SEAFLO 24V Bilge Blower 320CFM 4" Flex Mount Marine Ventilation BB2-320-02
SEAFLO 24V Bilge Blower 320CFM 4" Flex Mount Marine Ventilation BB2-320-02
Couldn't load pickup availability

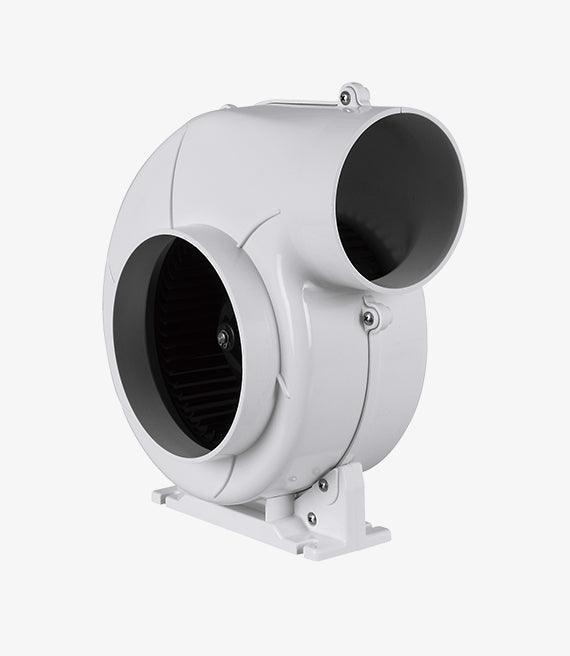

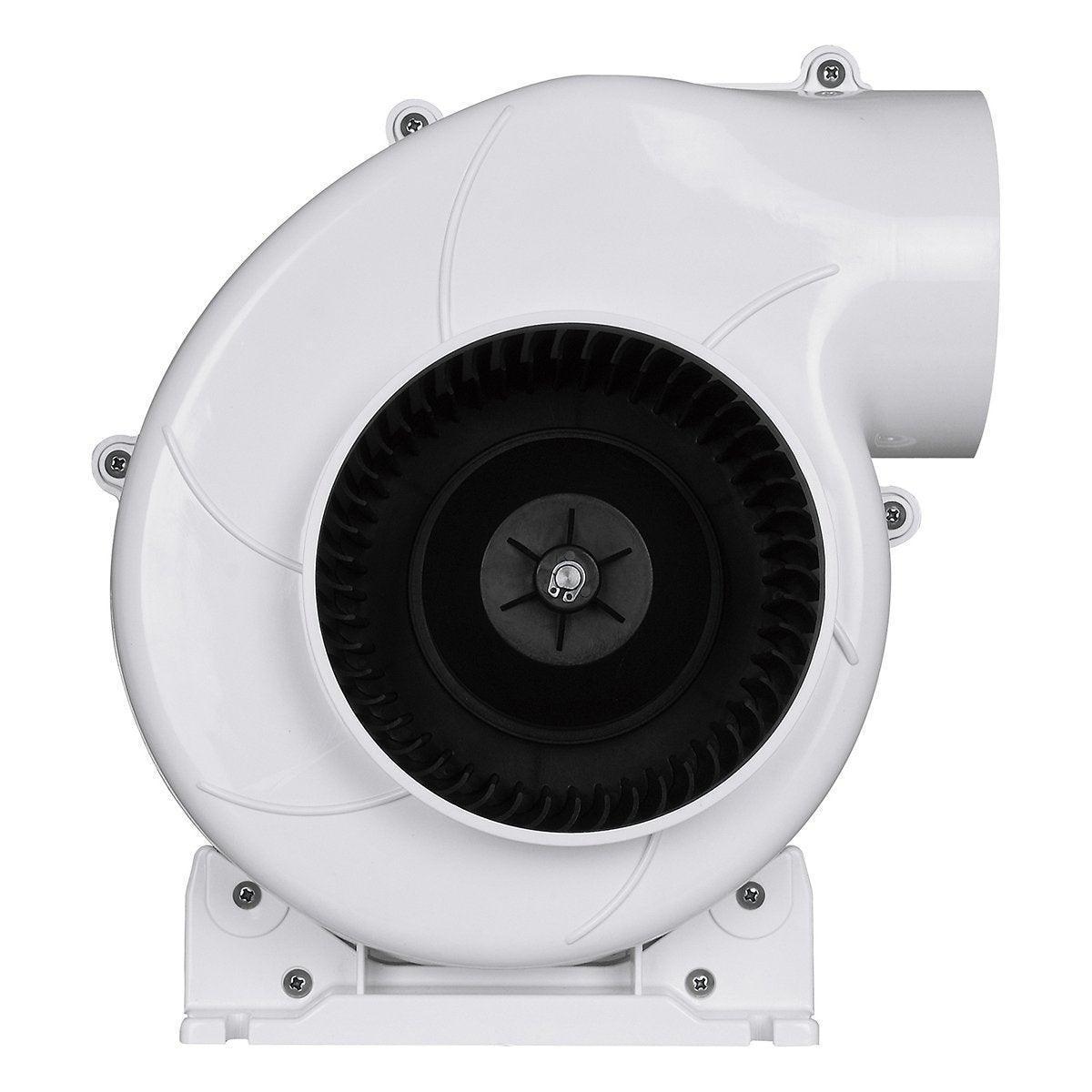

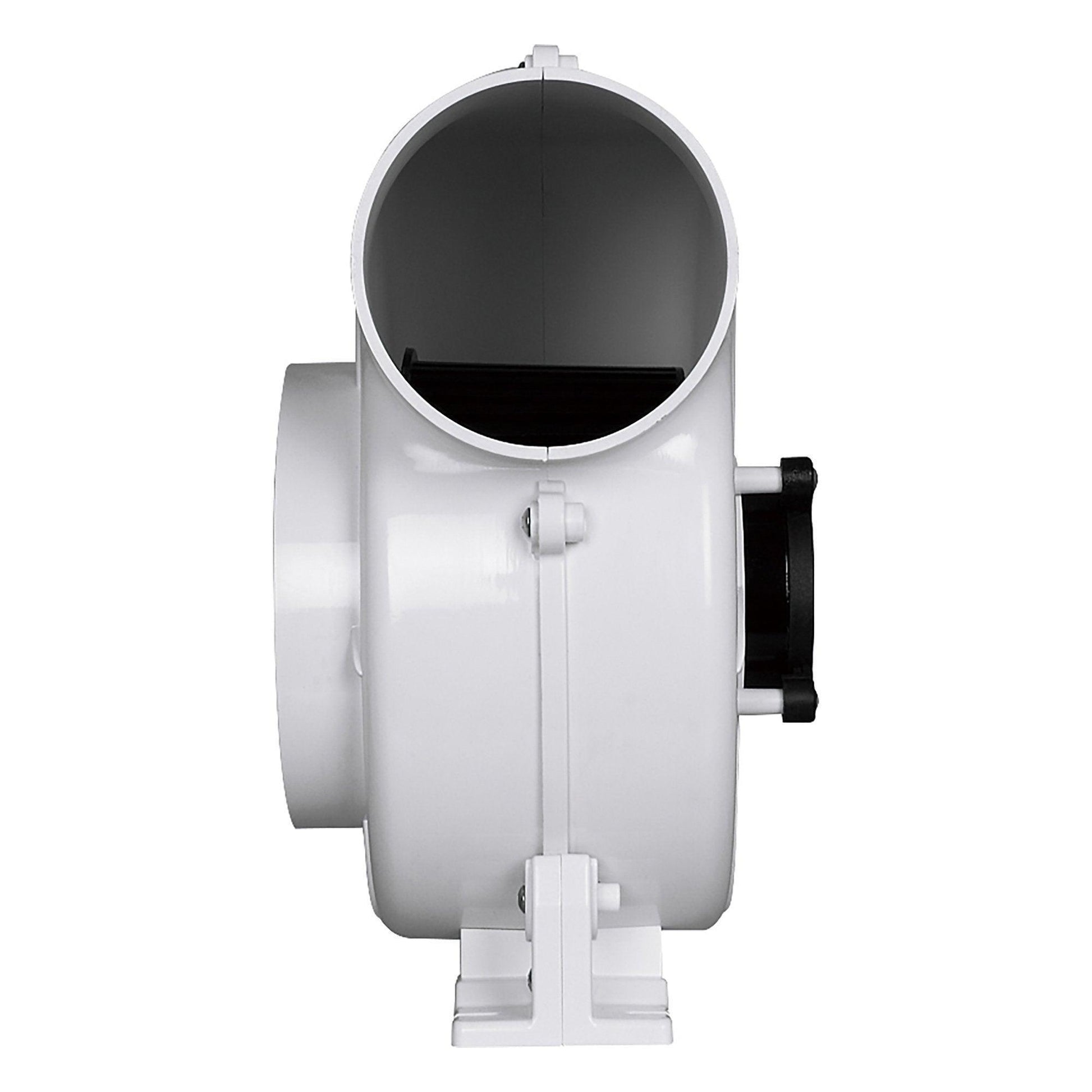

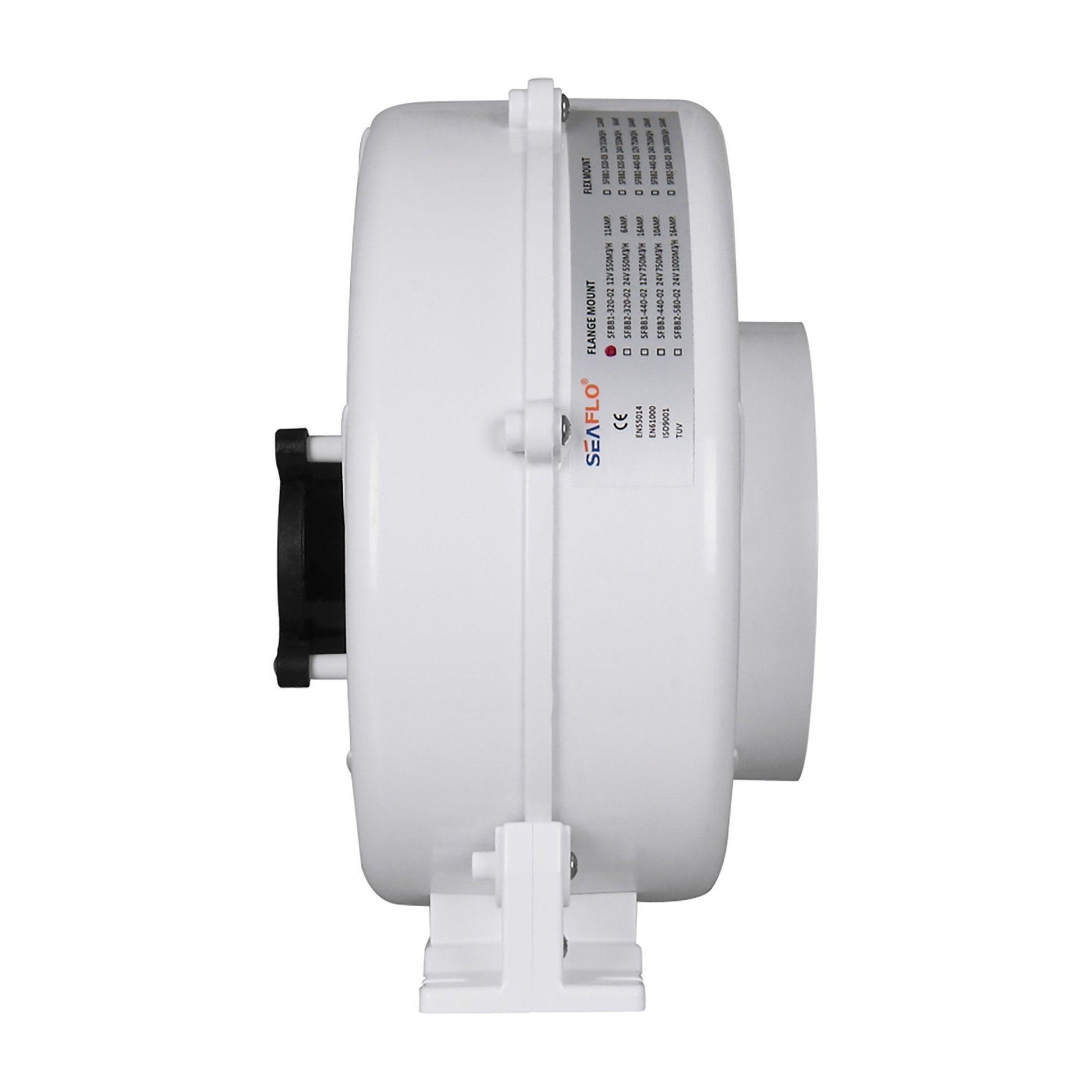

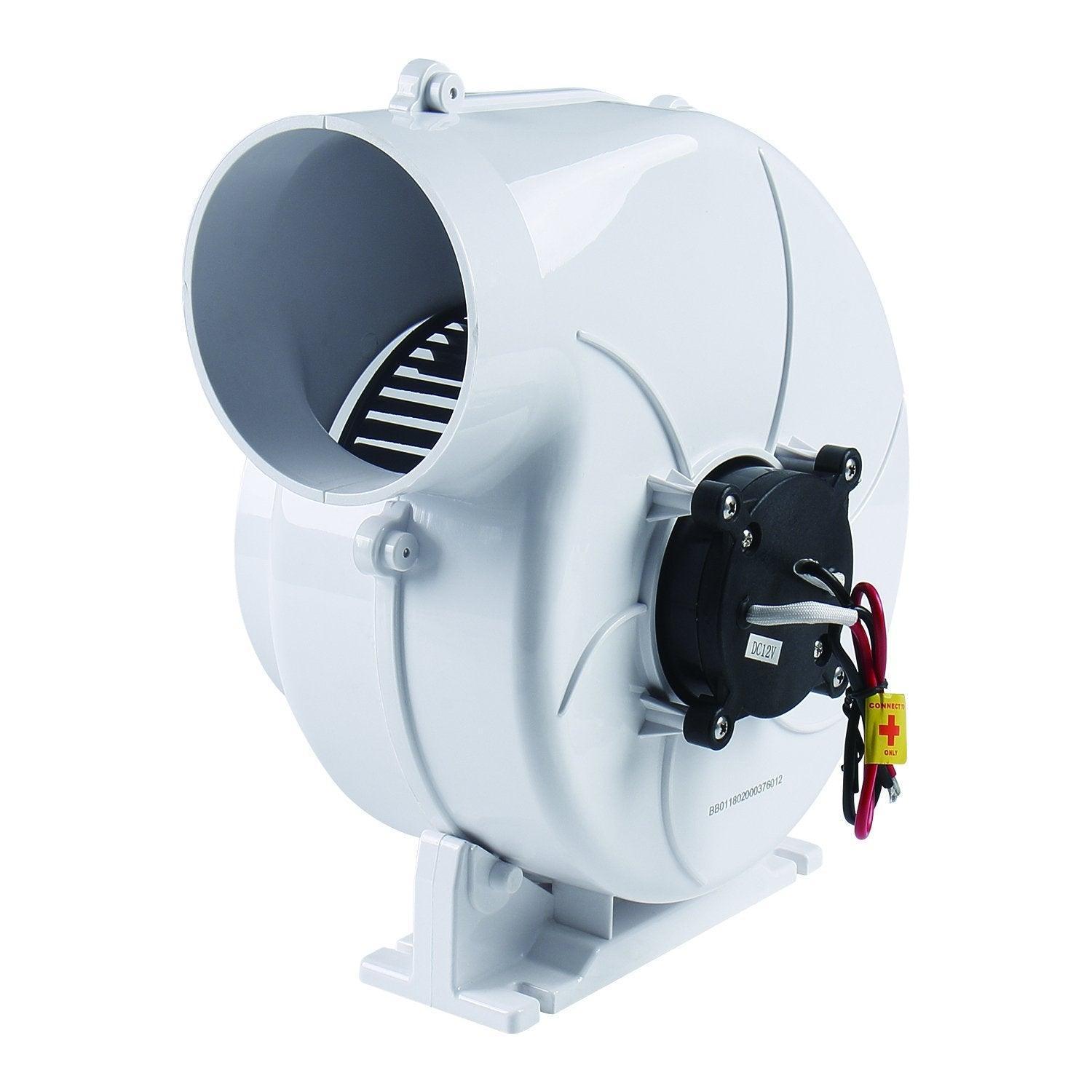

SEAFLO 24V Bilge Blower BB2-320-02
320 CFM High-Output Flex Mount Ventilation
The SEAFLO 02-Series Flex Mount Bilge Blower is engineered for high-efficiency, high-output operation in demanding marine environments. This 24V unit provides a powerful 320 CFM (550 CMH) airflow, ensuring rapid ventilation of engine compartments, bilges, galleys, and heads. Its flexible mounting design allows for versatile installation on bulkheads or flat surfaces.
Key Features
- ✔ Ignition Protected: Safe for use in gasoline engine compartments (ISO 8846).
- ✔ Efficient Flow: 4-blade fan maximizes airflow and efficiency.
- ✔ Corrosion Proof: UV-resistant white ABS plastic housing.
- ✔ Low Amp Draw: Only 6.0 Amps for high-volume output.
Technical Specs
| Voltage: | 24V DC |
| Air Flow: | 320 CFM / 550 CMH |
| Current Draw: | 6.0 Amps |
| Fuse Rating: | 10.0 Amps |
| Intake/Outlet: | 4" (102mm) |

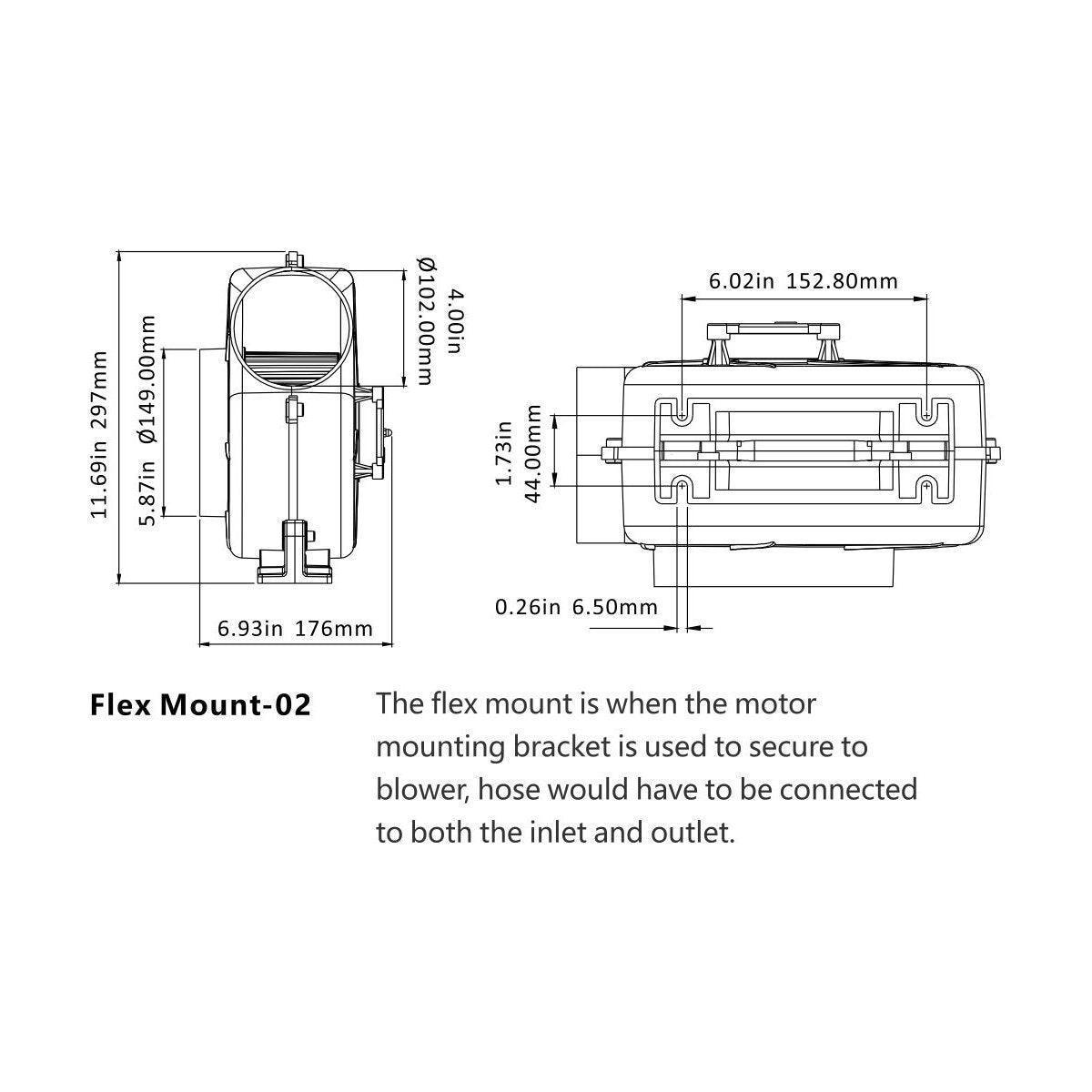

| Dimensions: | 297 x 176 x 149 mm |
Compatibility / Fitment Guide
| System/Application | Model/Fitment | Notes |
|---|---|---|
| Marine Vessels | Boats/Yachts with 24V Systems | Engine rooms, galleys, bilges |
| Commercial Transport | Buses & RVs | Interior cabin/battery ventilation |
| Specialized Ventilation | Building/Tanning Booths | High-flow air extraction |
OEM Cross Reference
| SEAFLO SKU | BB2-320-02 (SFBB2-320-02) |
| Rule Equivalent | Rule 240-24V (Functional Alternative) |
| Jabsco Equivalent | 36770-0115 (Functional Alternative) |
Questions & Answers
Is this a genuine original part?
This is a genuine SEAFLO 02-Series premium marine component, designed for professional-grade ventilation and safety compliance.
How do I know if it is compatible?
Confirm your system is 24 Volts and requires a 4-inch (102mm) ducting connection. If you are replacing an existing blower, check that you have space for the 297mm height clearance.
Can this blower be used with a speed controller?
While designed for standard on/off operation, it is a brushed DC motor and can be used with compatible 24V DC motor speed controllers if required.
Note: Proper bilge ventilation is a safety requirement. Please ensure all electrical connections are waterproofed and a 10A fuse is installed on the positive line. Visit 4boats.co.uk for more technical support.
