SEAFLO Marine Bilge Pump 2-Way Switch Panel 12V/24V ON-OFF Aluminum SP02
SEAFLO Marine Bilge Pump 2-Way Switch Panel 12V/24V ON-OFF Aluminum SP02
Couldn't load pickup availability
SEAFLO Bilge Switch Panel SP02
Premium 2-Way Aluminum Control Panel
The SEAFLO SP02 (SFSP-02) is a professional-grade 2-way bilge pump control panel designed to provide reliable manual operation for your vessel's pumping system. Constructed with an attractive black aluminum faceplate, this panel is built to withstand the rigors of the marine environment while providing a clean, modern look to your dashboard or console.
Key Features
- ✔ Dual Voltage: Compatible with 12V & 24V DC systems.
- ✔ LED Indicator: Built-in light signals when the switch is ON.
- ✔ Aluminum Face: Durable matte black finish for corrosion resistance.
- ✔ 2-Way Toggle: Simplified ON-OFF fingertip control.
Technical Specs
| Model | SFSP-02 |
| Voltage | 12V & 24V DC |
| Positions | ON - OFF |
| Material | Aluminum |

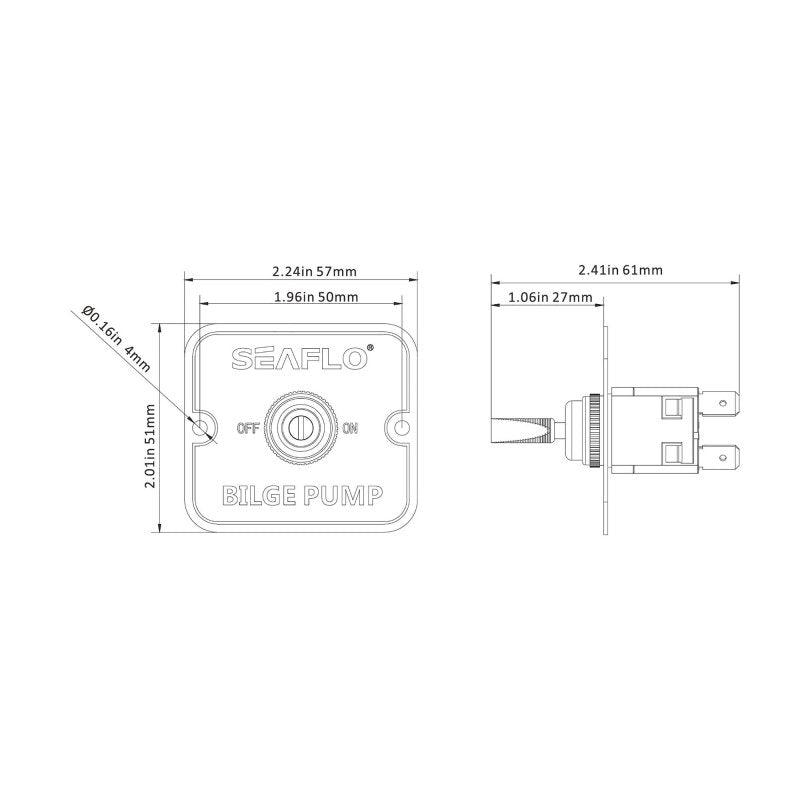

| Panel Width | ~75 mm |
| Panel Height | ~63 mm |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Marine Vessels | Powerboats, Sailboats, Yachts | Universal panel mount |
| Bilge Systems | All Manual & Auto Pumps | Requires separate fuse or breaker |
| Electrical Systems | 12V or 24V DC | LED active on 12V & 24V |
OEM Cross Reference
| Seaflo Part Number | SFSP-02, SP02 |
| MarineStore Reference | J160224 |
| Alternate Reference | SEA-SP02-1224 |
Questions & Answers
Is this a genuine original part?
Yes, this is an authentic SEAFLO product, manufactured to strict marine safety standards for use in harsh saltwater environments.
Does this include a fuse or circuit breaker?
The SP02 model is a standalone 2-way switch panel. We recommend installing an inline fuse or external circuit breaker rated for your specific pump's amperage to protect your circuit.
What is the difference between SP01 and SP02?
The SP01 is a 3-way switch (Automatic-Off-Manual), while the SP02 is a 2-way switch (On-Off) typically used for direct control of manual pumps or as a master switch for float systems.
Note: Please verify your mounting dimensions and electrical requirements before purchasing. Standard marine wiring practices should be followed during installation.
