SEAFLO 12V 800GPH Low Profile Bilge Pump 14C Non-Auto Marine Boat BP1G80014C
SEAFLO 12V 800GPH Low Profile Bilge Pump 14C Non-Auto Marine Boat BP1G80014C
Couldn't load pickup availability

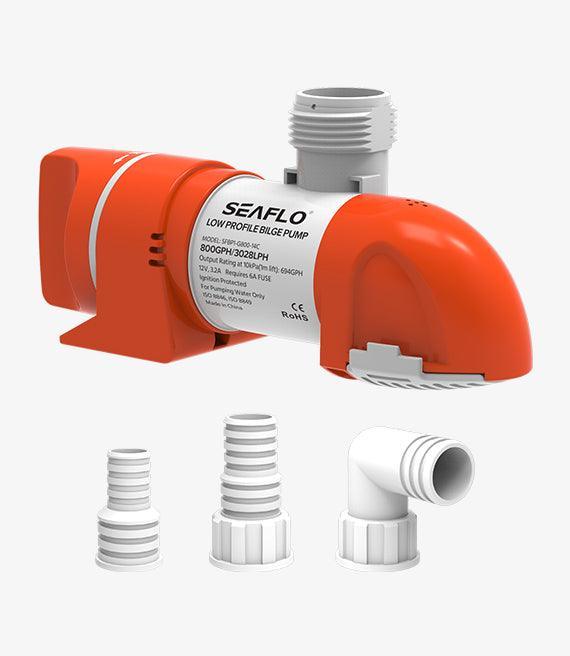

SEAFLO BP1G80014C Bilge Pump
14C Series | 12V 800GPH | Low Profile Design
The SEAFLO 14C Series Non-Automatic Bilge Pump is specifically engineered for vessels with narrow or shallow bilge areas where standard vertical pumps cannot fit. This high-efficiency 12V pump features a unique low-profile strainer that allows for water drawdown as low as 10mm (1/3"), ensuring your bilge remains virtually dry.
Key Features
- ✔ 360° Rotation: Body and outlet rotate for flexible installation
- ✔ Mounting Versatility: Can be installed horizontally or vertically
- ✔ Backflow Prevention: Includes integral non-return check valve
- ✔ Low Profile: Slim design fits in tight or awkward spaces
- ✔ Easy Maintenance: Snap-fit assembly for quick cleaning
Technical Specs
| Model: | BP1G80014C |
| Voltage: | 12V DC |
| Flow Rate: | 800 GPH (3028 LPH) |
| Max Amp Draw: | 3.2A |
| Fuse Amps: | 5.0A |
| Head Max: | 3.2m (10.5') |
| Outlet Sizes: | 19mm, 25mm, 29mm |
Compatibility / Fitment Guide
| Application Type | Vessel/System | Notes |
|---|---|---|
| Marine Bilge | Powerboats, Sailboats, Ribs | Ideal for narrow keel sumps |
| Shallow Bilge | Low-floor hulls | Fits where standard pumps fail |
| Drainage | Secondary pump systems | Requires separate float/panel switch |
OEM Cross Reference
| SEAFLO Model | SFBP1-G800-14C / BP1G80014C |
| Rule Equivalent | LP800S (LoPro Series) |
| Whale Equivalent | Supersub Smart 650/1100 (Dimensions vary) |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine SEAFLO manufactured product from the 14C Series, designed to provide high-performance low-profile bilge drainage.
How do I know if it is compatible?
We recommend checking the SKU/MPN BP1G80014C. This pump is a standard 12V manual-mode pump; it will fit most 19mm (3/4"), 25mm (1"), or 29mm (1-1/8") hose setups.
Does this pump turn on automatically?
No, this is a Non-Automatic (manual) pump. It must be connected to a dash-mounted panel switch or an external float switch (sold separately) to operate.
Note: 4boats.co.uk recommends verifying your original pump's dimensions and hose diameters against the technical specs provided before purchasing.
