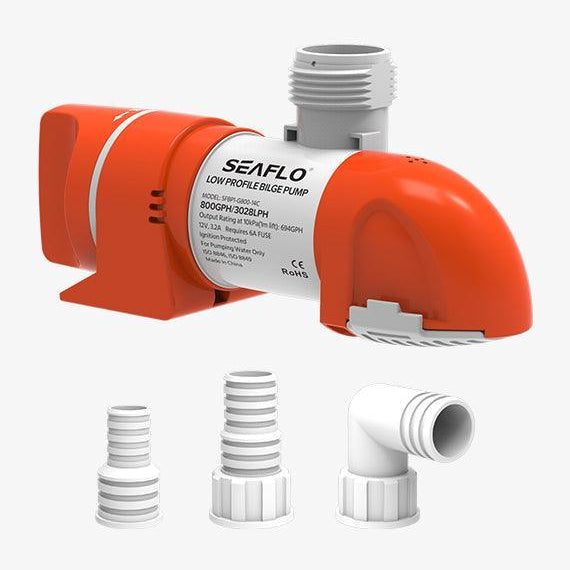

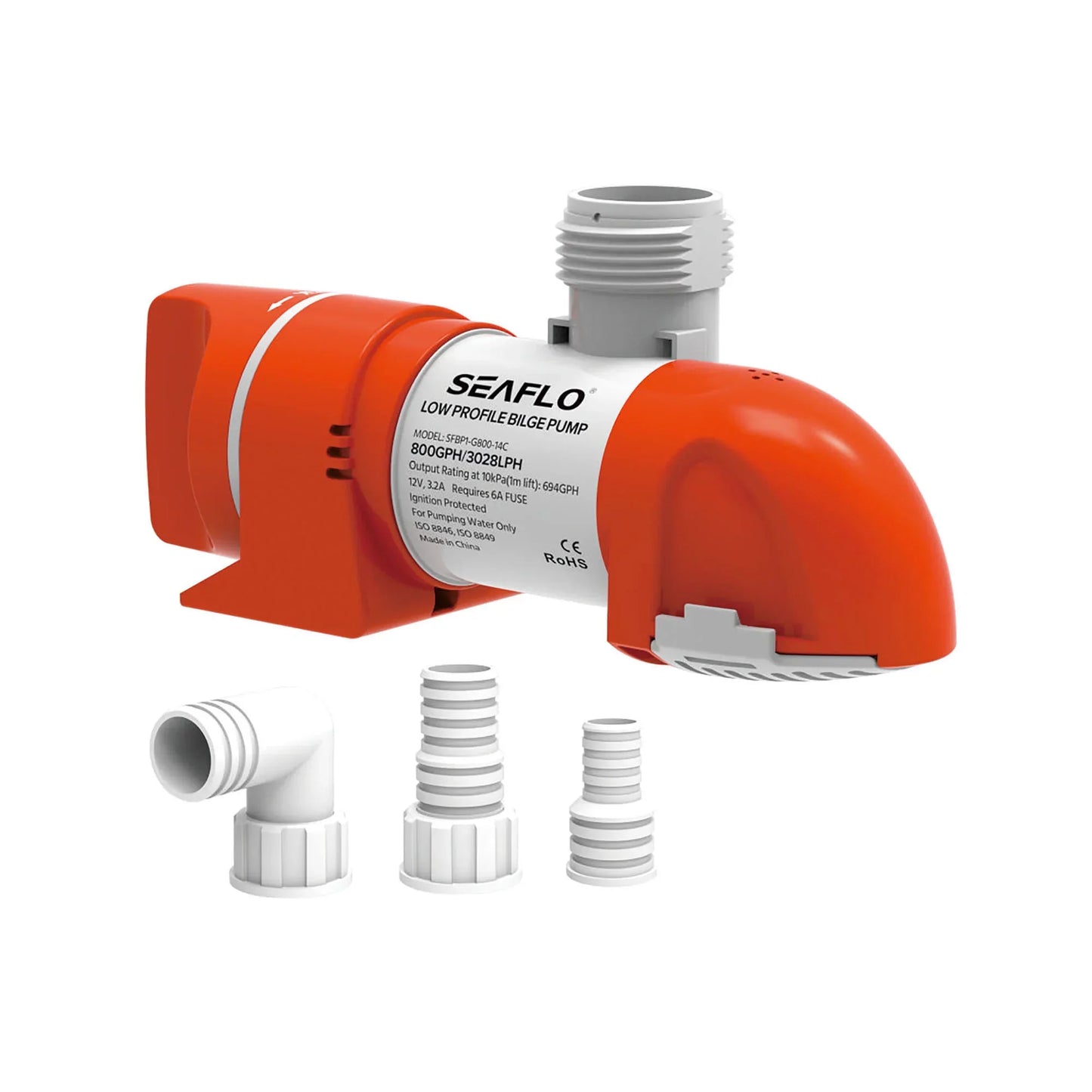

Seaflo 24V 800GPH Low Profile Bilge Pump 14C Series Non-Auto Marine BP2G80014C
Seaflo 24V 800GPH Low Profile Bilge Pump 14C Series Non-Auto Marine BP2G80014C
Couldn't load pickup availability
Seaflo 24V 800GPH Low Profile Bilge Pump
Premium 14C Series - Non-Automatic Manual Operation
The SEAFLO 14C Series Narrow Low Profile Bilge Pump is engineered for vessels with restricted bilge space where traditional pumps cannot fit. With its ultra-low height and versatile 360-degree rotating discharge body, this pump provides a professional solution for awkward installation areas. This is a non-automatic model, designed to be operated via a manual dash switch or an external float switch.
Key Features
- ✔ Almost Dry Bilge: Drains down to 10mm (1/3").

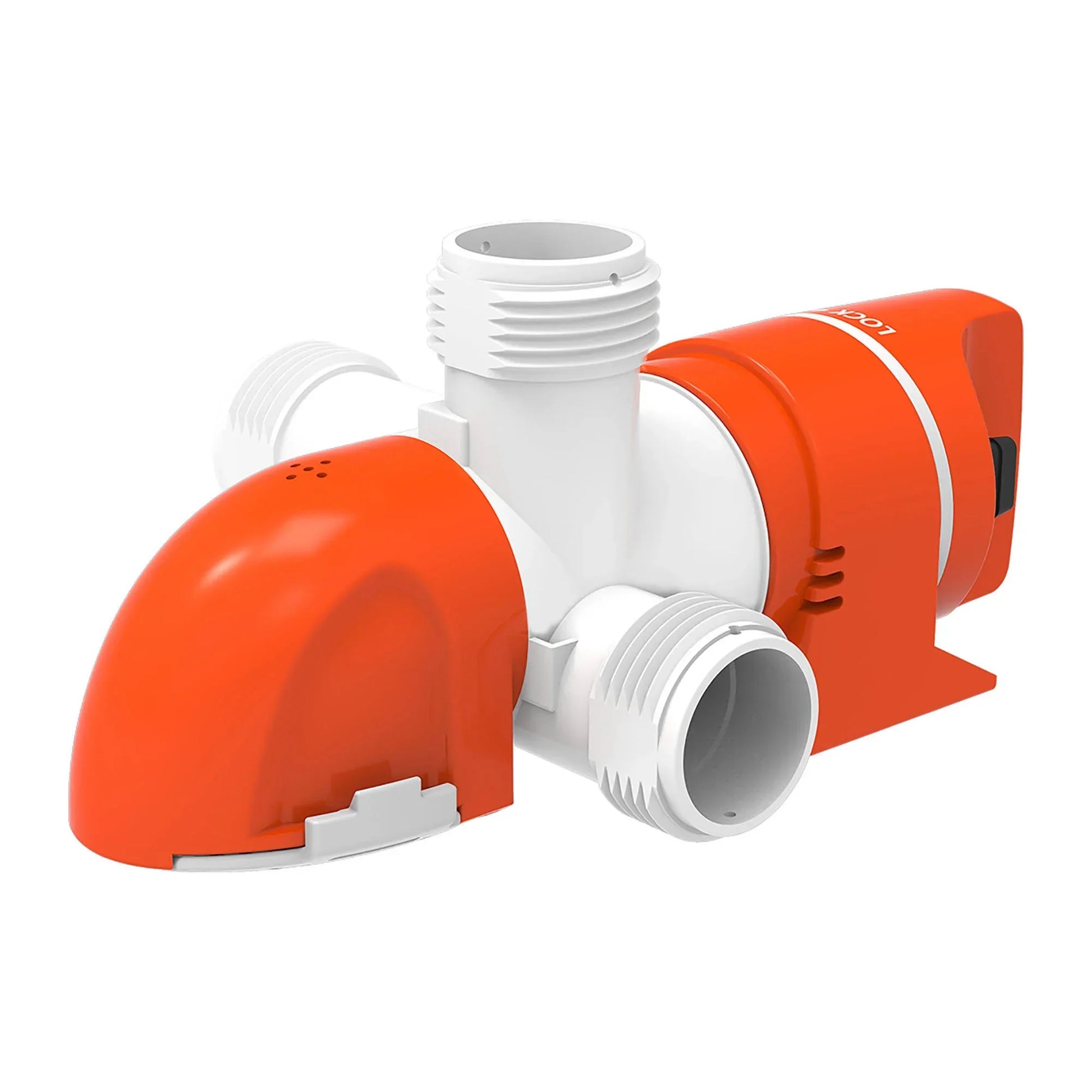

- ✔ 360° Discharge: Rotate body to fit any plumbing layout.
- ✔ Multiple Ports Included: 19mm, 25mm, and 29mm options.
- ✔ Anti-Airlock: Integrated protection for consistent flow.
- ✔ Easy Maintenance: Quick-release motor for cleaning.
Technical Specs
| Model: | BP2G80014C |
| Voltage: | 24V DC |
| Flow Rate: | 800 GPH (3028 LPH) |
| Max Current Draw: | 2.0A |
| Fuse Amperage: | 4.0A |
| Max Head (Lift): | 3.2m (10.5 ft) |
| Wire Lead: | 18 AWG, 1m Length |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Marine Vessels | Boats up to 24m (79ft) | Ideal for narrow/tight bilge compartments. |
| Power Systems | 24V DC Battery Banks | Must be used on 24V systems only. |
| Installation | Horizontal or Vertical | Snap-fit assembly for cleaning accessibility. |
OEM Cross Reference
| Seaflo MPN | SFBP2-G800-14C |
| Similar Style Reference | Rule LoPro Series (Check Voltage/GPH) |
| SKU | BP2G80014C |
Questions & Answers
Is this a genuine original part?
This is a premium quality SEAFLO replacement part, supplied by 4Boats / Aftermarket, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
Please check the voltage (24V) and flow requirements (800GPH) of your system. If your existing pump is a manual low-profile 24V unit, this 14C series is an excellent replacement choice.
Does this pump turn on automatically when water is present?
No, the 14C series is a non-automatic (manual) pump. It requires an external float switch or a manual toggle switch to be activated.
Note: Please verify your original part number and system voltage against the references above before purchasing.
