Seaflo BP2G110014C Bilge Pump
1100 GPH | 24V | Low Profile Manual Series

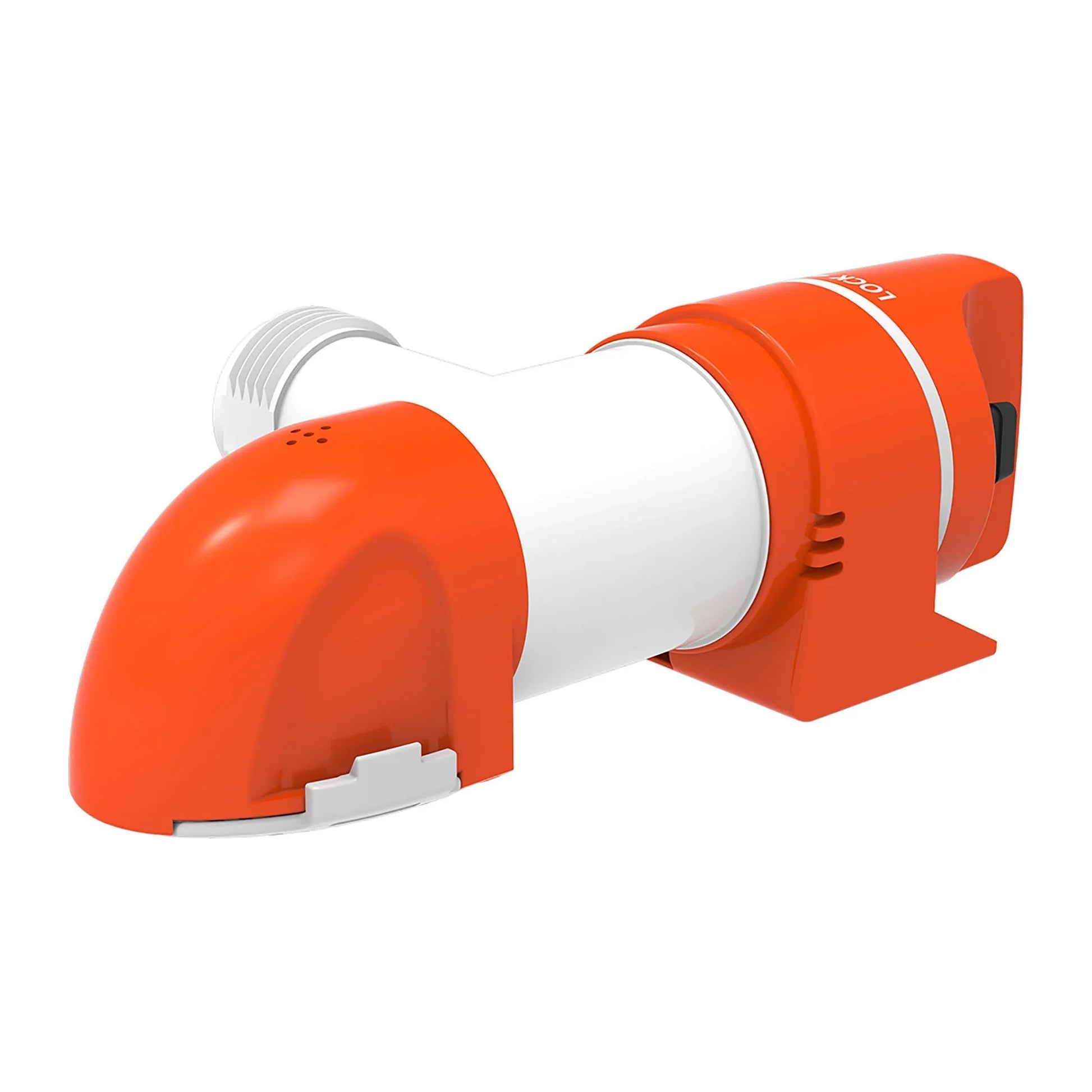

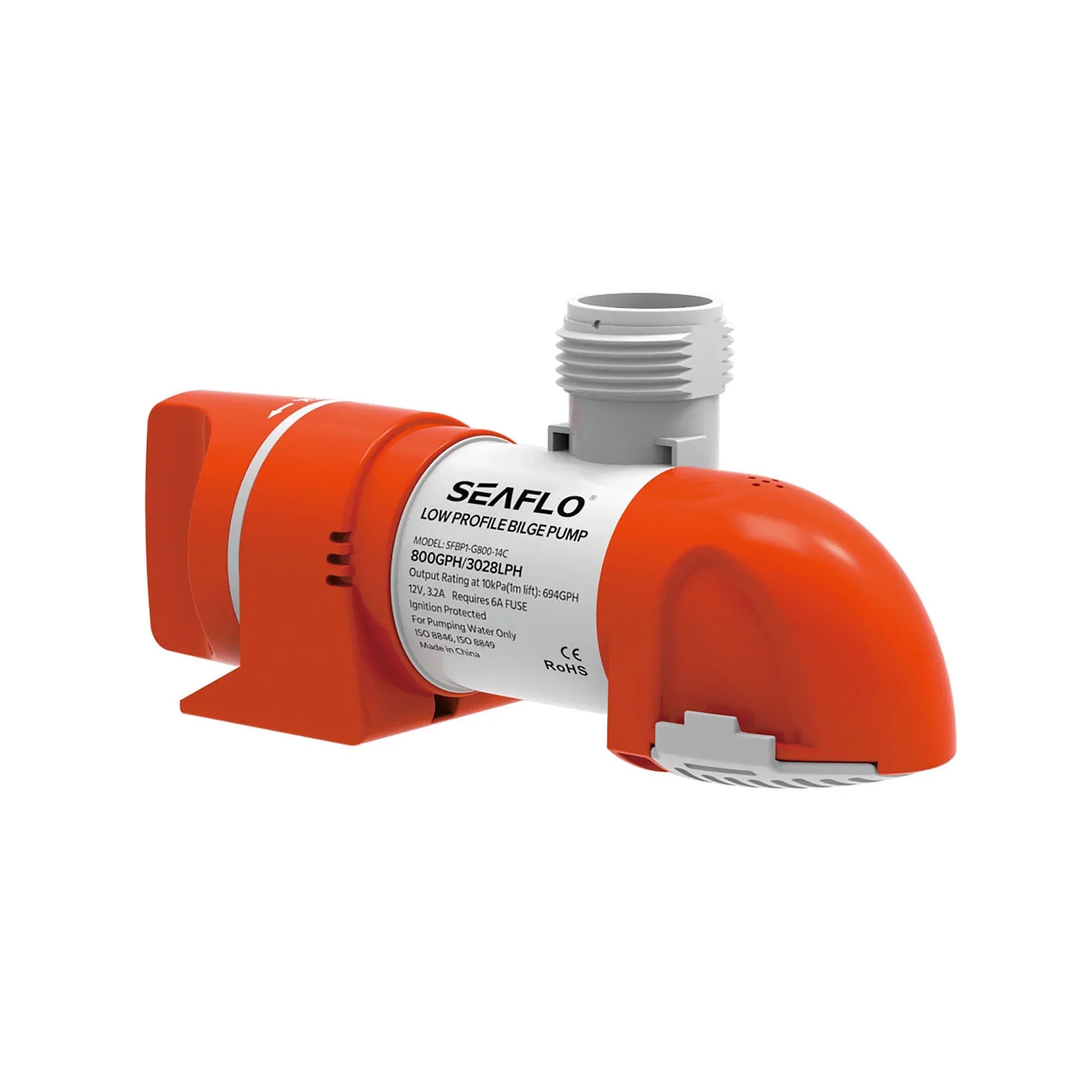

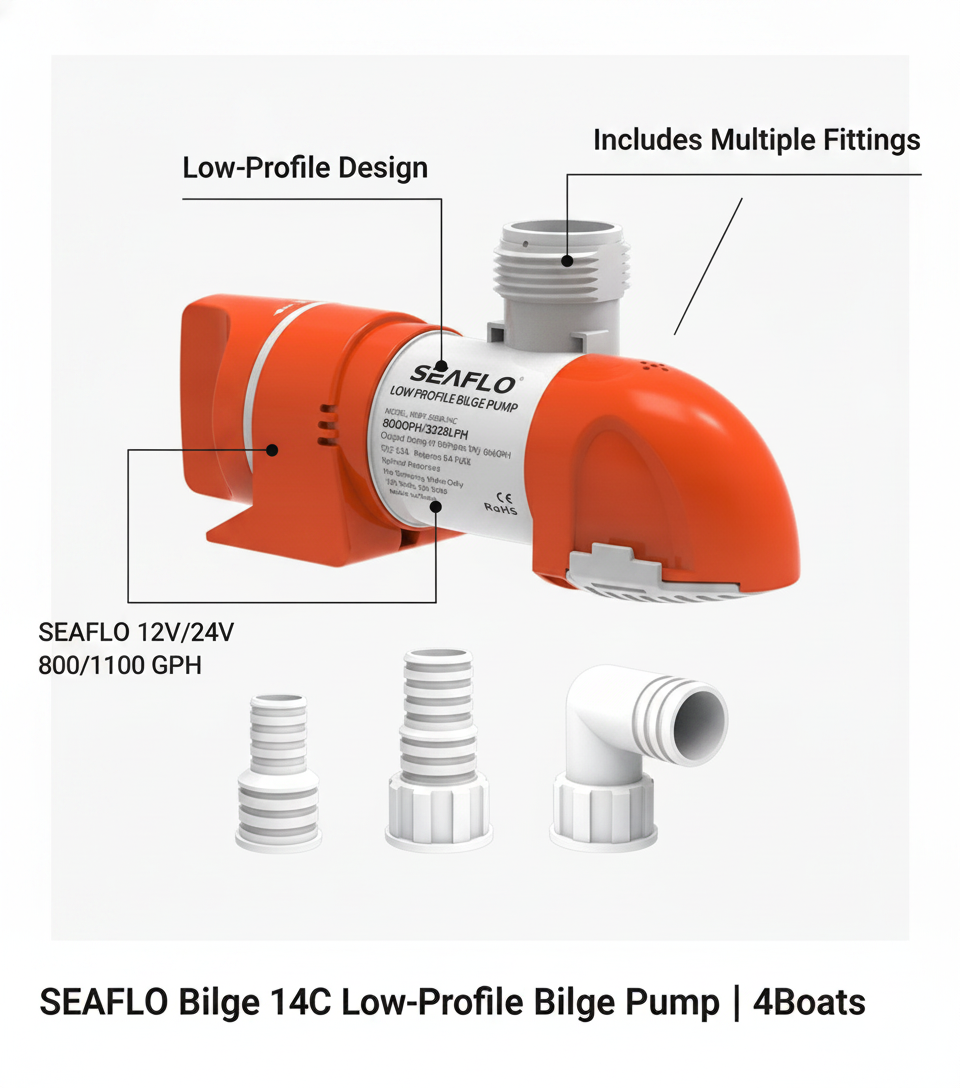

The Seaflo 14C Series BP2G110014C is a premium low-profile bilge pump specifically engineered for tight or awkward bilge spaces where standard vertical pumps simply won't fit. With its narrow design and the ability for both the outlet and pump body to rotate 360 degrees, it offers unparalleled installation flexibility for modern marine vessels.
Key Features
- ✔ Versatile Mounting: Horizontal or vertical installation

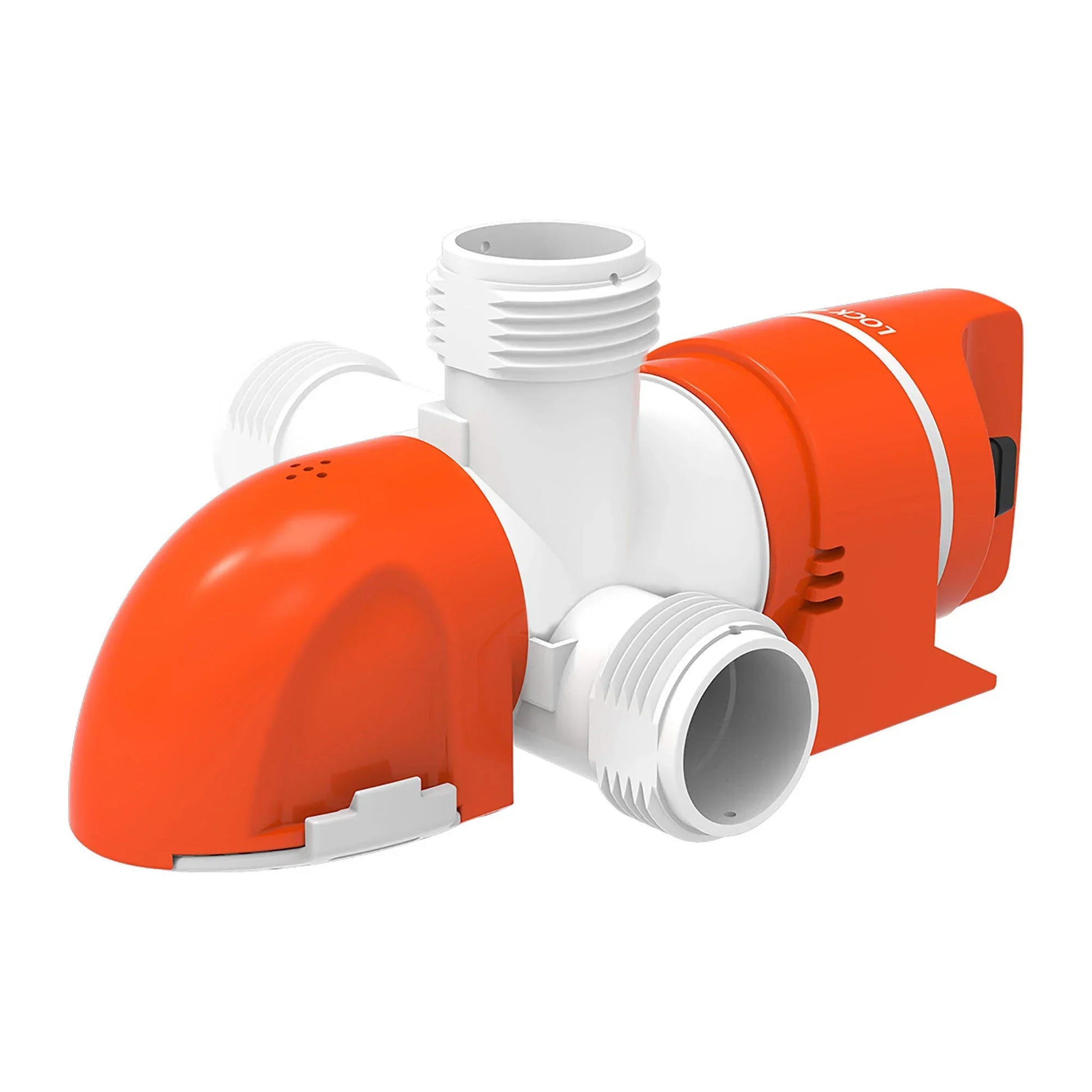

- ✔ 360° Rotation: Outlet and body rotate to suit plumbing
- ✔ Durable Build: Stainless steel shaft & ignition protection
- ✔ High Efficiency: Low power draw with high-flow 5-blade impeller
- ✔ Anti-Airlock: Integrated protection for consistent flow
Technical Specs
| Flow Rate: | 1100 GPH (4163 LPH) |
| Voltage: | 24V DC |
| Max Draw: | 3.0 Amps |
| Max Head: | 4.0m (13') |
| Outlet Dia: | 19mm, 25mm, 29mm |
| Wire Length: | 1m (18 AWG) |
Compatibility / Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Marine Vessels | Up to 24 Meters | Ideal for narrow bilge keels |
| Manual Override | 24V Electrical Systems | Requires external float/panel switch |
OEM Cross Reference
| Seaflo Model | BP2G110014C |
| Seaflo Series | SFBP2-G1100-14C |
| Certification | CE, RoHS, ISO 8846, ISO 8849 |
Questions & Answers
Is this a genuine original part?
Yes, this is an authentic Seaflo product, manufactured to their high-performance marine standards and backed by a 2-year warranty.
How do I know if it is compatible?
Ensure your vessel operates on a 24V system. This pump is a "Non-Automatic" (Manual) model, meaning it must be wired to a manual dash switch or a separate float switch for operation.
What hose sizes does this pump accept?

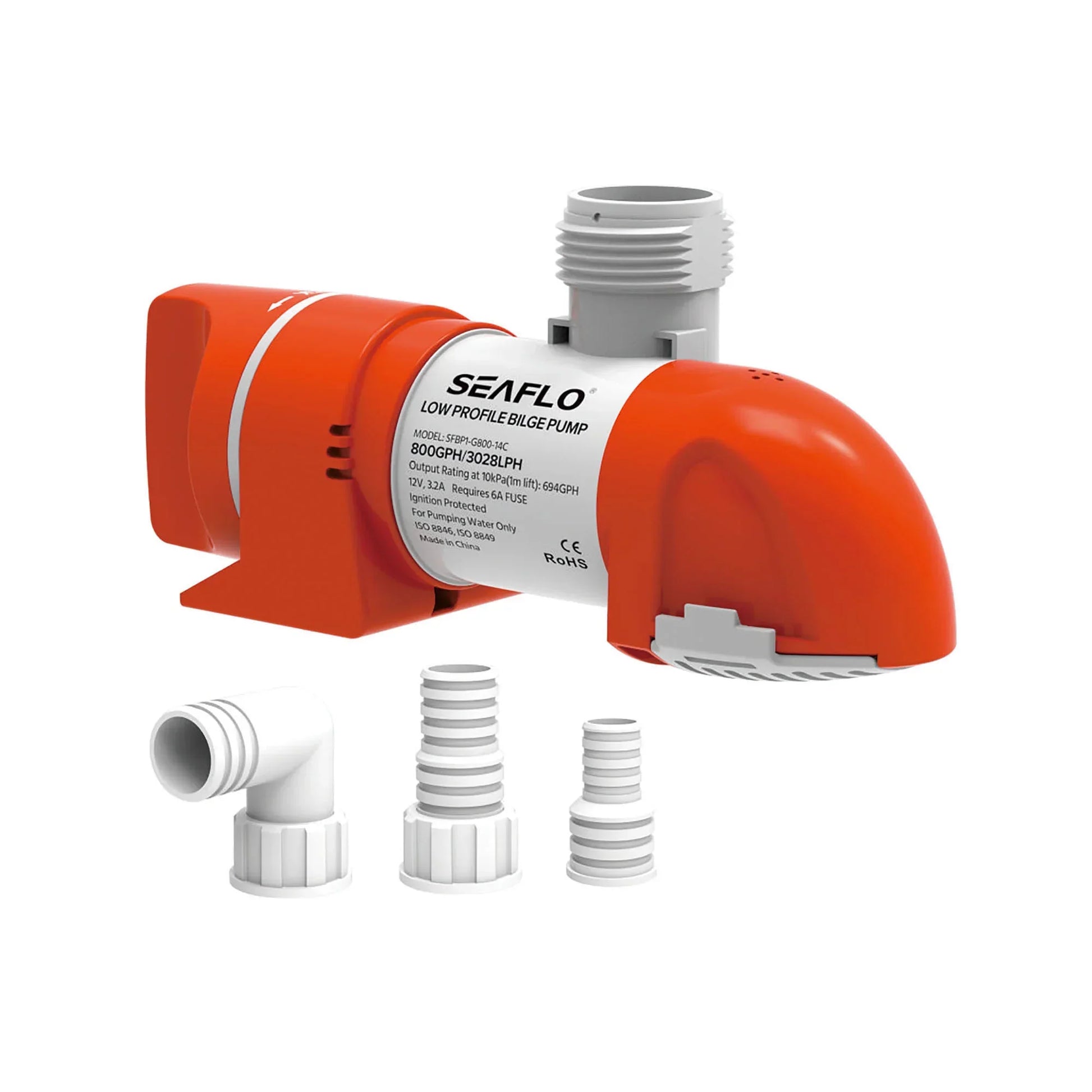

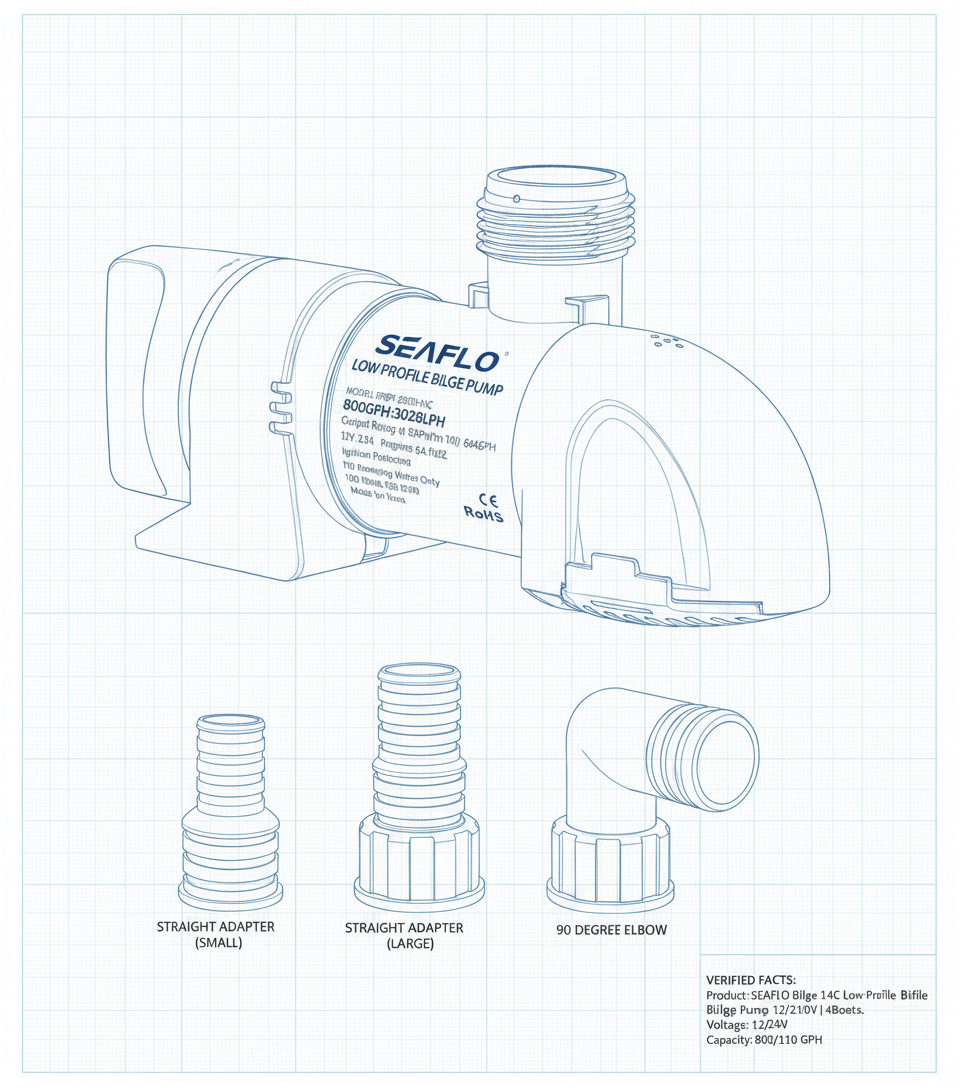

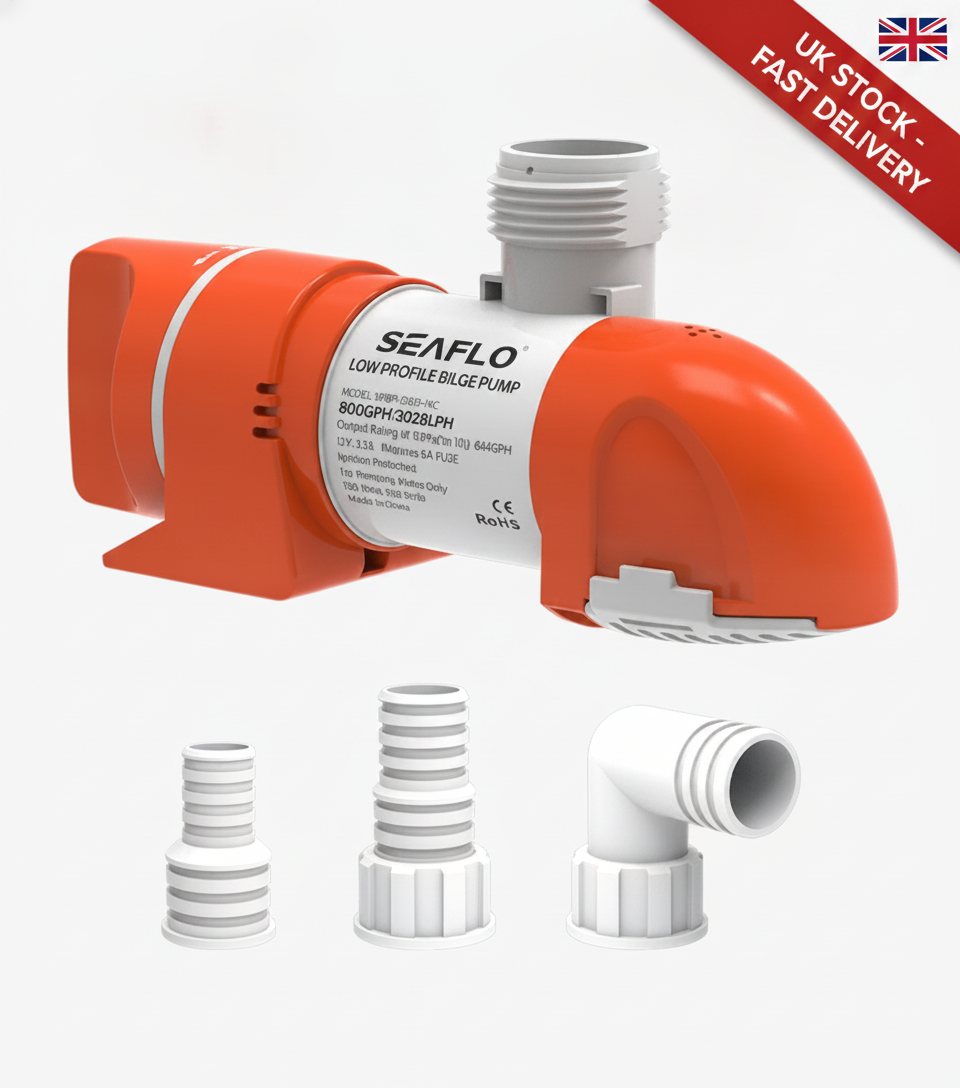

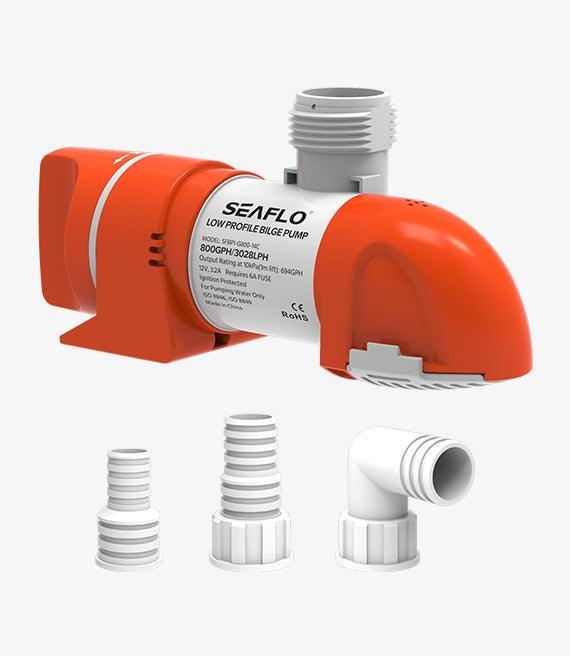

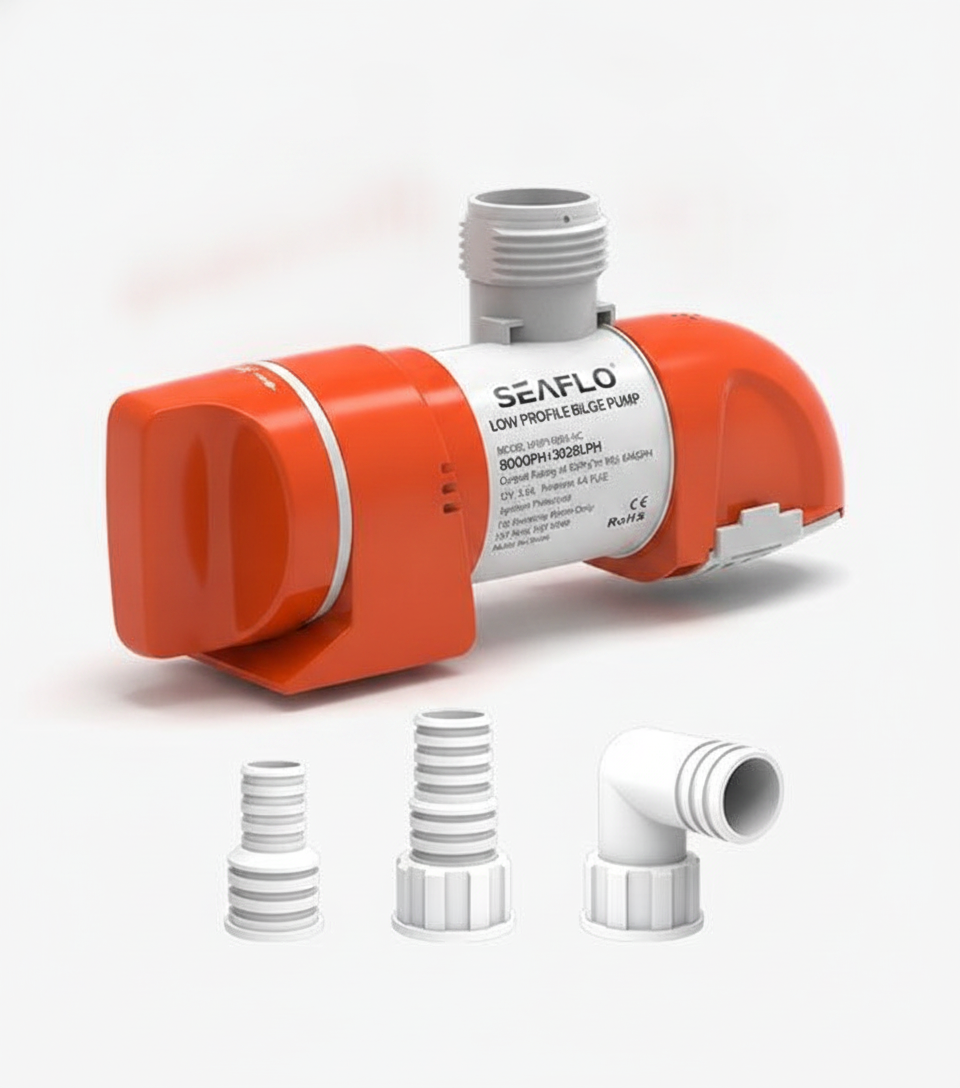

This model includes straight threaded hose barbs for 19mm (3/4"), 25mm (1"), and 29mm (1-1/8") ID hoses, as well as a 90-degree 19mm fitting for flexible plumbing options.
Note: Please verify your system voltage (24V) before purchasing. Technical support available via 4boats.co.uk.
