Seaflo 12V 2000GPH Submersible Bilge Pump 13A Series BP1G200013A - Non-Automatic
Seaflo 12V 2000GPH Submersible Bilge Pump 13A Series BP1G200013A - Non-Automatic
Couldn't load pickup availability

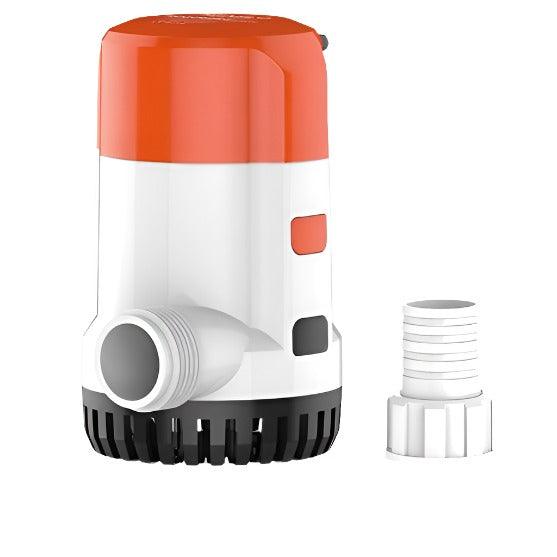

Seaflo 2000 GPH 12V Bilge Pump [BP1G200013A]
Next-Gen 13A Series | High-Capacity Submersible Marine Pump
The Seaflo BP1G200013A is a high-performance, non-automatic submersible bilge pump engineered for demanding marine environments. As part of the innovative 13A Series, this pump introduces a revolutionary split quick-connect joint design and a removable motor cartridge, allowing for rapid maintenance or replacement without disturbing your plumbing or base installation.
Key Features
- ✔ Cartridge Design: Easy-to-remove motor core for cleaning
- ✔ Anti-Airlock: Prevents airlock in plumbing systems

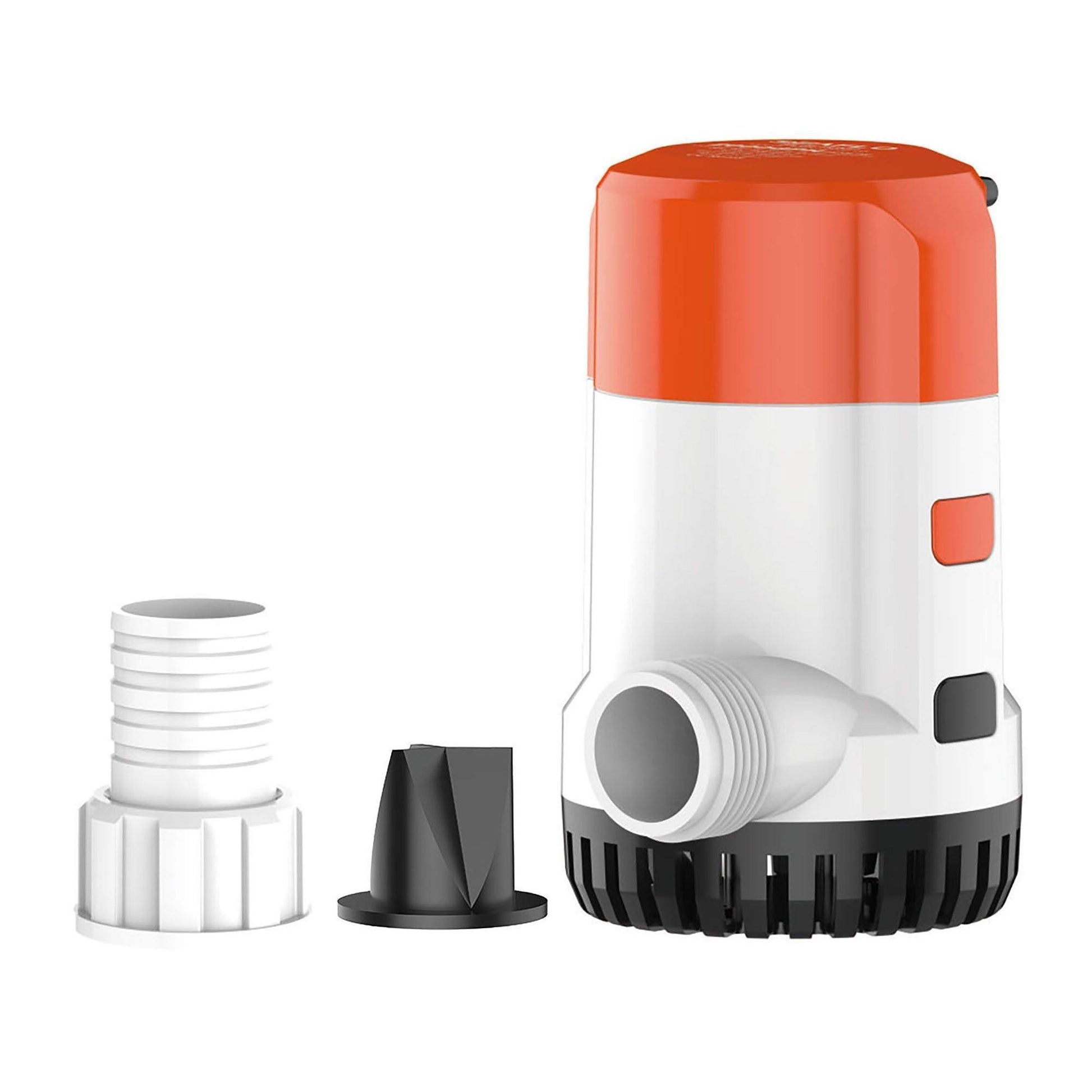

- ✔ Check Valve: Included to prevent water backflow
- ✔ Ignition Protected: Safe for gas engine compartments
- ✔ Quiet Operation: Vibration-free performance
Technical Specs
| Flow Rate: | 2000 GPH / 7570 LPH |
| Voltage: | 12V DC |
| Current Draw: | 7.5 Amps |
| Max Head (Lift): | 5.5m / 18' |
| Outlet Dia: | 29mm (1-1/8") |
| Wire Lead: | 1m (18 AWG) |
Compatibility / Fitment Guide
| Application | Vessel Type | Notes |
|---|---|---|
| Marine Bilge Systems | Boats up to 24m (78ft) | Primary or secondary dewatering |
| Standard Plumbing | 1-1/8" (29mm) Hose ID | Fits most standard high-flow bilge hoses |
| Replacement | Rule/Johnson/Attwood | Universal mounting base pattern |
OEM Cross Reference
| Seaflo Model | SFBP1-G2000-13A |
| Rule Equivalent | Rule 2000 (Model 10) |
| Johnson Equivalent | Johnson L2200 / 2000GPH Cartridge |
| Standards Compliance | CE, RoHS, ISO 8846, ISO 8849 |
Questions & Answers
Is this a genuine original part?
This is an authentic Seaflo product, manufactured by Seaflo Marine to meet strict international standards for safety and performance.
How do I know if it is compatible?
Check your existing pump's flow rate (GPH) and hose size. If you have a 1-1/8" (29mm) hose and require 2000 GPH of lift, this BP1G200013A is the correct replacement.
Does this pump turn on automatically when water is present?
No, this is a non-automatic model. It must be paired with a Seaflo float switch (SFBS-20-01 or similar) or controlled via a manual panel switch.
Note: Please verify your vessel's electrical system (12V) and fuse requirements before installation. Ensure all wire connections are above the water line using marine-grade sealant.
