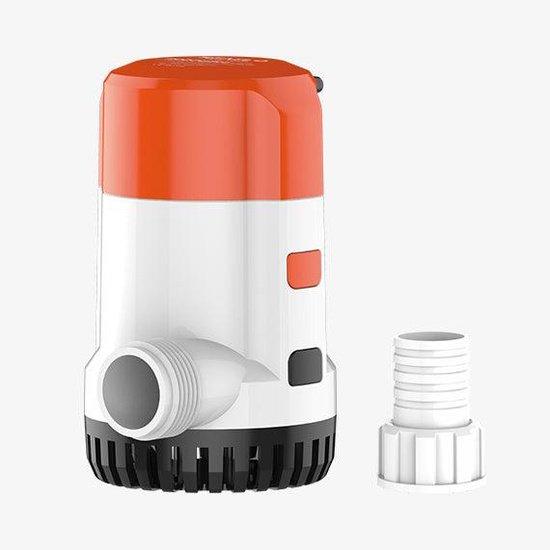

Seaflo BP2G200013A Bilge Pump
13A Series | 24V | 2000 GPH High-Capacity Performance
The Seaflo BP2G200013A is a powerhouse in marine water management. As part of the newly designed 13A Series, this non-automatic submersible pump is engineered for high-duty cycles on professional and recreational vessels. It features a robust motor and high-impact plastic housing, providing reliable drainage for hulls, bait wells, and other large-volume water removal applications.
Key Features
- ✔ Easy Maintenance: Quick-release motor cartridge.

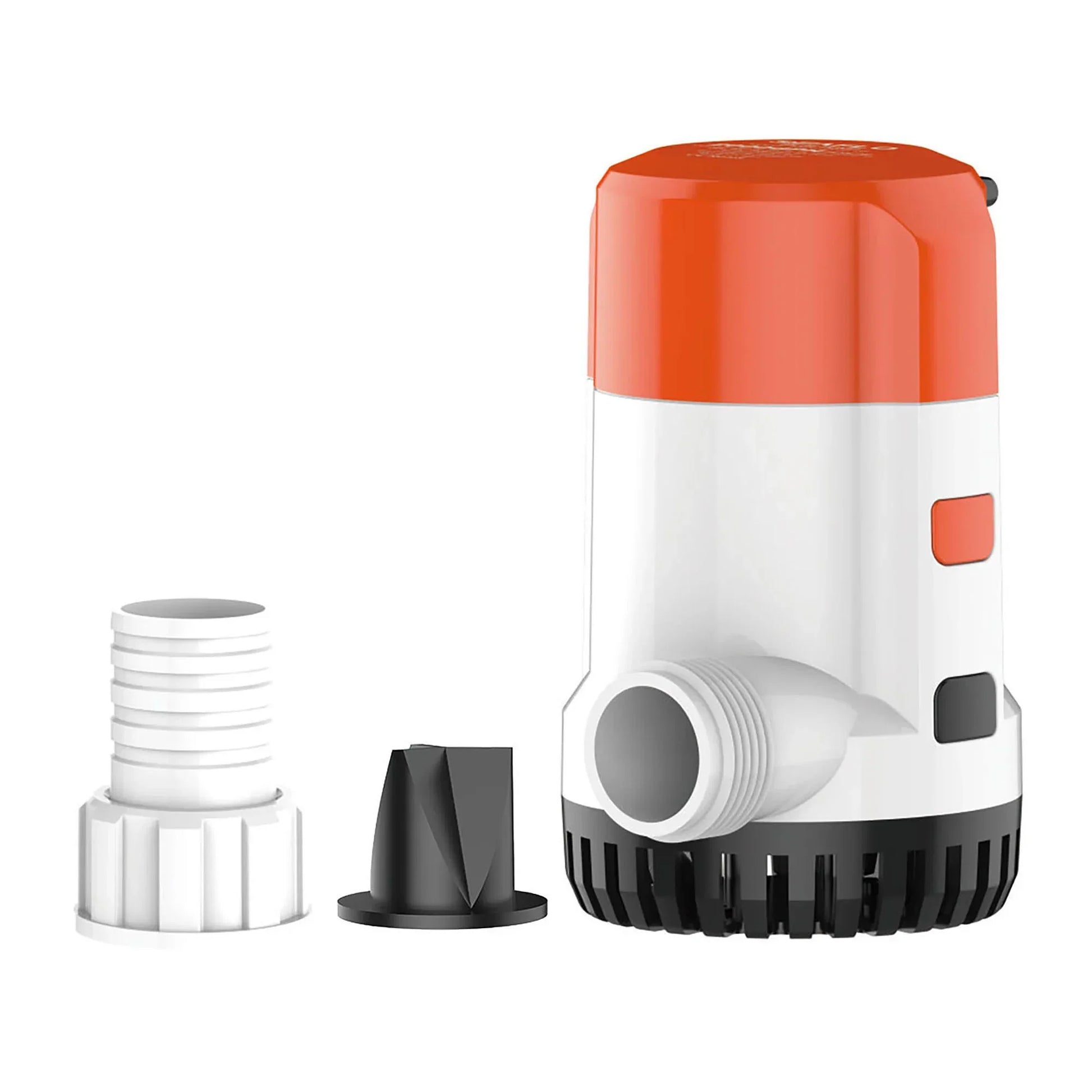

- ✔ Built-In Check Valve: Prevents water backflow.
- ✔ Safety First: Ignition protected (ISO 8846) & CE Certified.
- ✔ Durable: Marine-grade silicon blocked, tin-coated wiring.
- ✔ Anti-Airlock: Protection against air bubbles.
Technical Specs
| Voltage: | 24V DC |
| Flow Rate: | 2000 GPH (7570 LPH) |
| Max Amp Draw: | 5.5A |
| Recommended Fuse: | 10.0A |
| Max Head: | 6.0m (20') |
| Outlet Diameter: | 29mm (1-1/8") |
| Wire Lead: | 1m (18 AWG) |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| 24V Marine Power | Standard Marine Hull / Bilge | Universal fit for 24V boats |
| Bait Systems | Livewell / Baitwell Water Supply | High flow for oxygenation |
| Water Removal | Ponds, Spas, and Flooded Spaces | Intermittent use only |
OEM Cross Reference
| Seaflo | BP2G200013A, SFBP2-G2000-13A |
| Rule | Rule 12 (Rule 2000 24V Equivalent) |
| Johnson Pump | L2200 (24V Version) |
Questions & Answers
Is this a genuine original part?
This is an authentic Seaflo product, manufactured to high marine standards. Seaflo is a world-renowned brand specializing in marine and RV fluid transfer systems.
How do I know if it is compatible?
Verify that your electrical system is 24V. Check the outlet hose size (1-1/8") and compare the cross-reference numbers above. If your current pump is a 2000 GPH manual model, this is a direct upgrade.
Can the motor cartridge be replaced independently?
Yes! The 13A series features a split quick-connect joint design, which means you can swap out the motor unit without having to remove the base or disconnect your plumbing hoses.
Note: Professional installation is recommended. Ensure the correct fuse size is used as per the technical specifications. Available at 4boats.co.uk.
