SEAFLO 12V 1500GPH Bilge Pump 13A Series Marine Boat Submersible BP1G150013A
SEAFLO 12V 1500GPH Bilge Pump 13A Series Marine Boat Submersible BP1G150013A
Couldn't load pickup availability

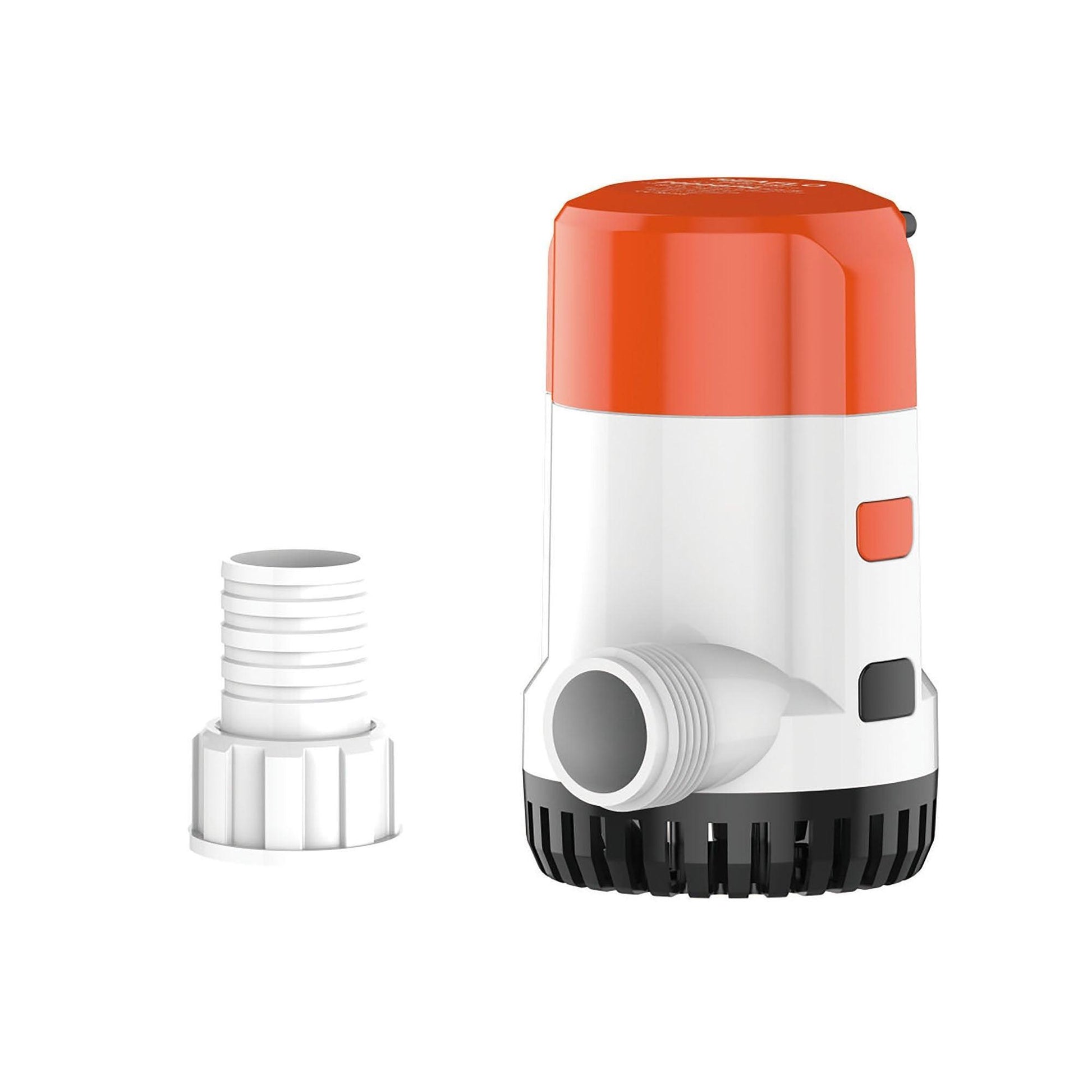

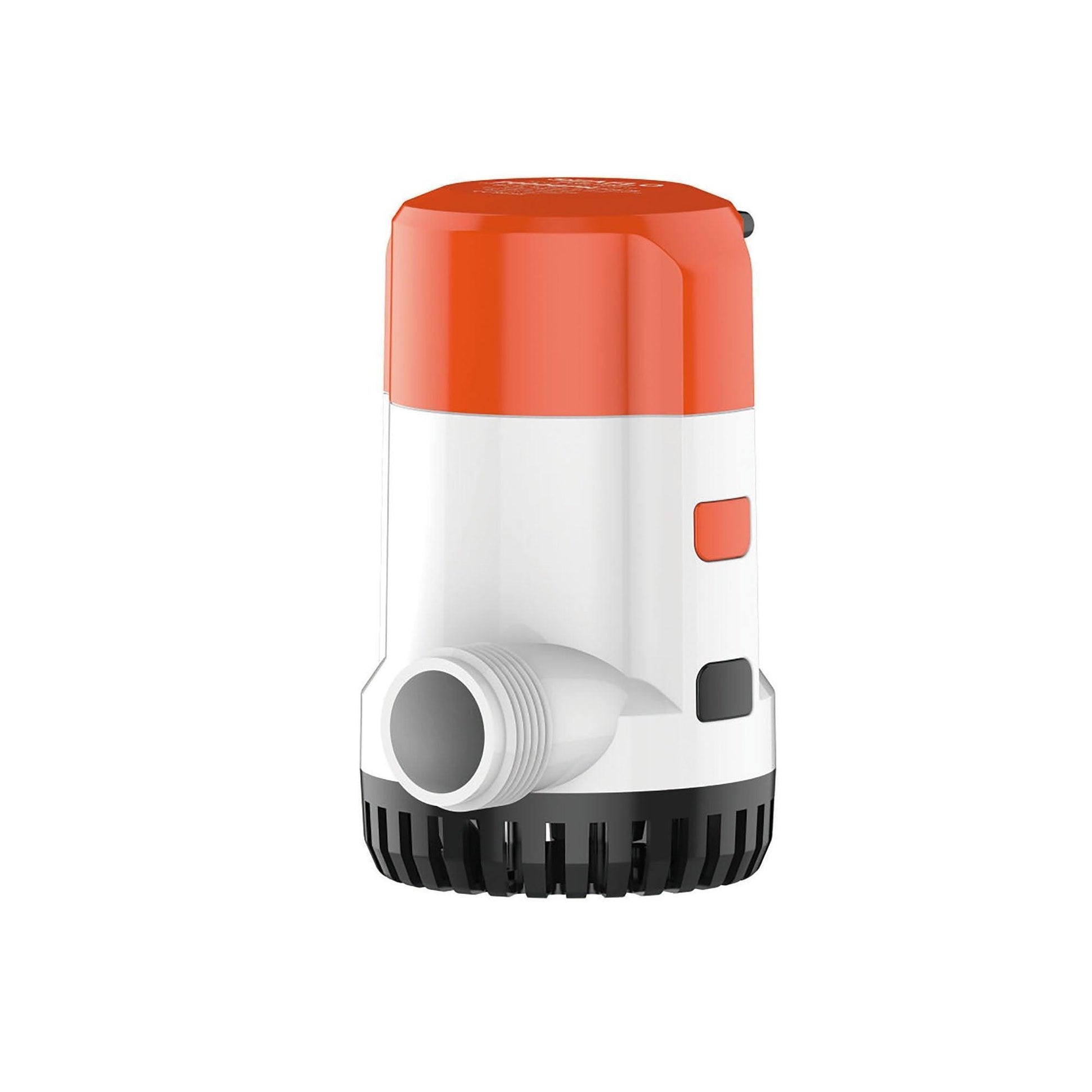

SEAFLO 1500 GPH BILGE PUMP (13A SERIES)
Model: BP1G150013A | 12V High-Flow Submersible
The SEAFLO BP1G150013A is a premium 13A Series non-automatic submersible bilge pump designed for heavy-duty marine use. Delivering a powerful 1500 Gallons Per Hour (GPH), this pump is engineered with a unique quick-connect joint system. This allows for rapid motor replacement or maintenance without the need to dismantle your existing plumbing or water pipes.
Key Features
- ✔ Quick-Connect Joint: Split lock nut for tool-less replacement
- ✔ Anti-Airlock Protection: Prevents pump burnout

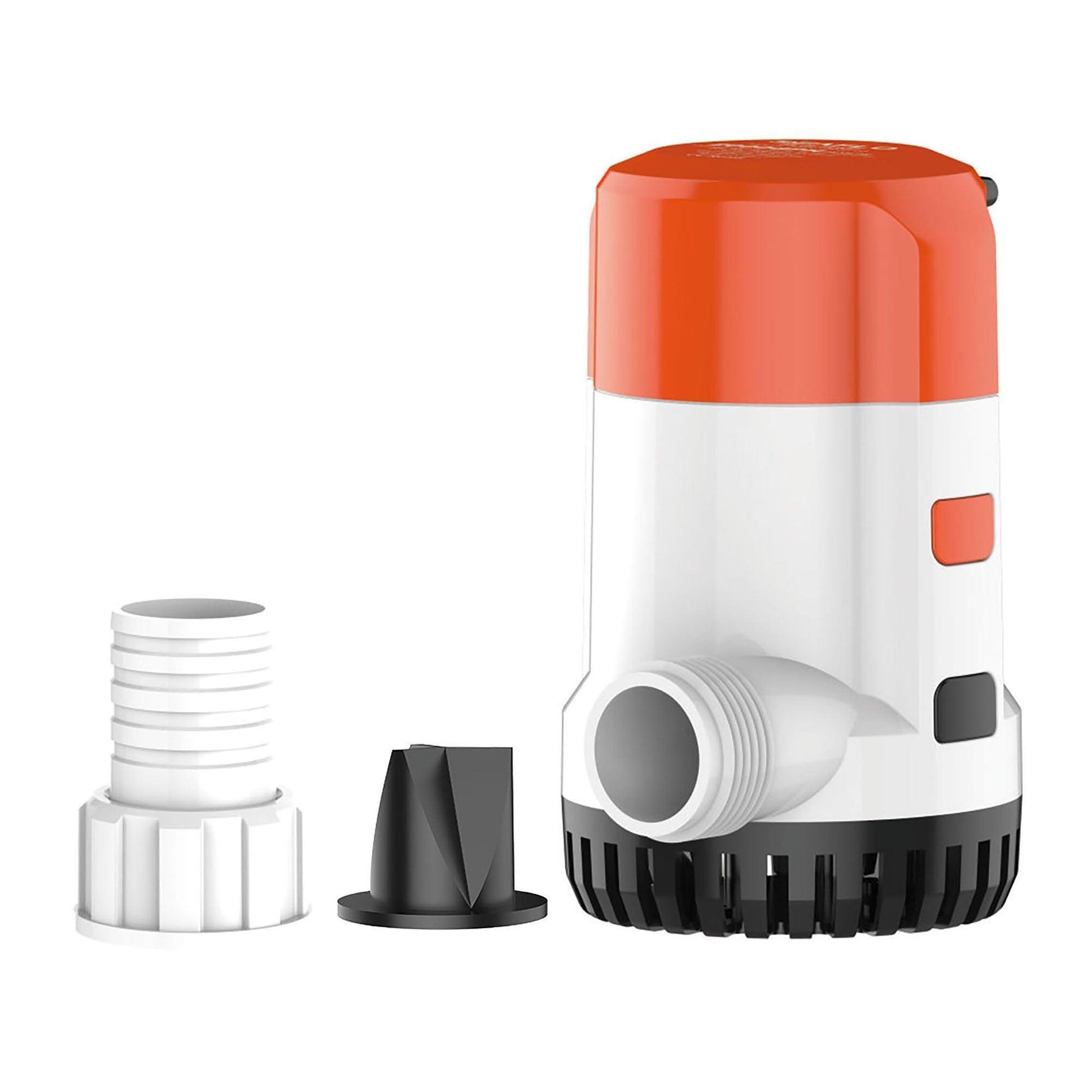

- ✔ Check Valve Included: Prevents water backflow
- ✔ Submersible: Fully moisture-tight seals
- ✔ Industry Standard Base: Fits most existing mounting patterns

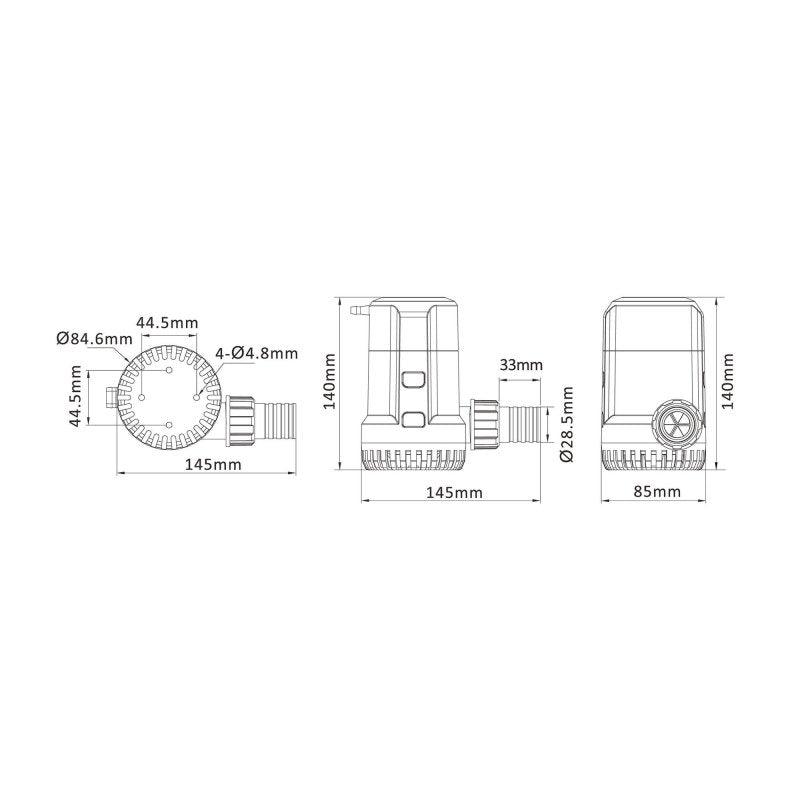

Technical Specs
| Flow Rate: | 1500 GPH (5678 LPH) |
| Voltage: | 12V DC |
| Current: | 4.5A (8A Max Draw) |
| Head (Lift): | 5.0m (16.4ft) |
| Outlet Dia: | 29mm (1-1/8") |
| Wire Lead: | 1m (18 AWG) |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Marine Vessels | Up to 24m Hull Length | Ideal for yachts and commercial boats |
| Power Systems | 12V DC Battery Systems | Requires separate float or panel switch |
| Installation | Standard 1-1/8" ID Hose | Intermittent duty only |
OEM Cross Reference
| SEAFLO Part Number | BP1G150013A |
| Industry Equivalent | Rule 1500 GPH (Standard pattern) |
| EAN Barcode | 6971170932665 |
Questions & Answers
Is this a genuine original part?
This is a genuine SEAFLO 13A Series pump, manufactured to premium standards. It is often used as a high-quality replacement for industry-standard 1500 GPH pumps.
How do I know if it is compatible?
Compare your existing outlet size (this pump is 29mm / 1-1/8") and voltage (12V). If your current pump uses a standard strainer base, the SEAFLO base will typically align with existing mounting holes.
Is this pump automatic?
No, the 13A Series is non-automatic. It must be connected to a bilge float switch or a manual control panel to operate.
Note: Please verify your original part number and hose diameter before purchasing. For the best performance, ensure all wire connections are above the water line and sealed with marine-grade sealant.
