Seaflo 1100GPH 12V Bilge Pump 13A Series Submersible Marine Water BP1G110013A
Seaflo 1100GPH 12V Bilge Pump 13A Series Submersible Marine Water BP1G110013A
Couldn't load pickup availability

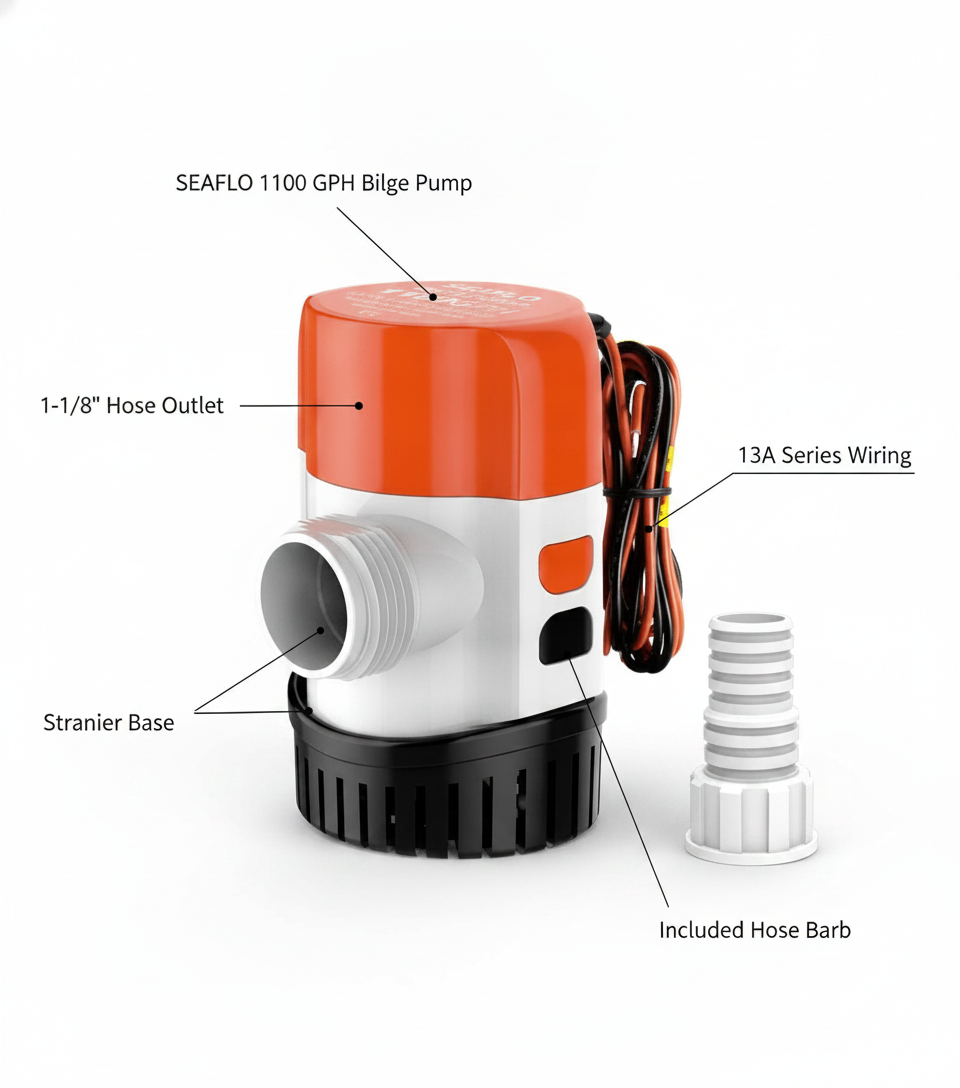

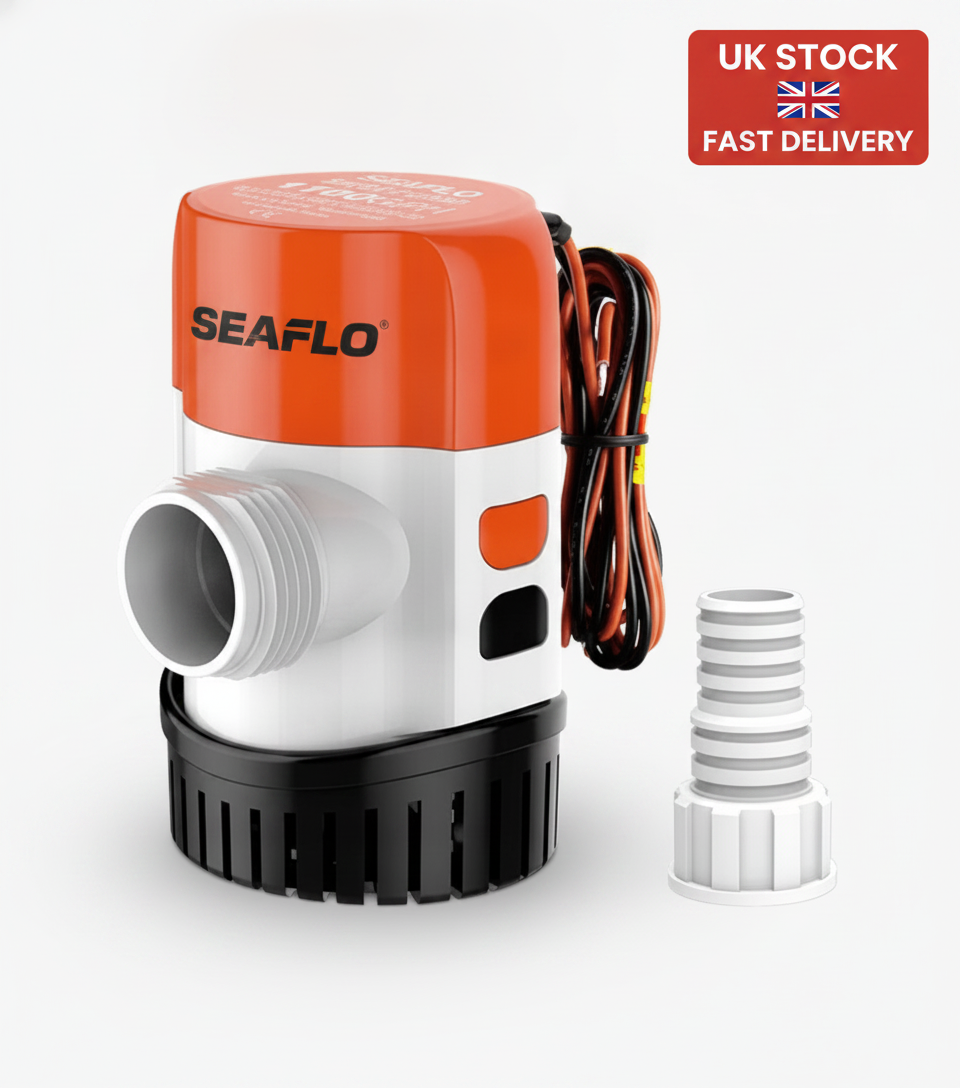

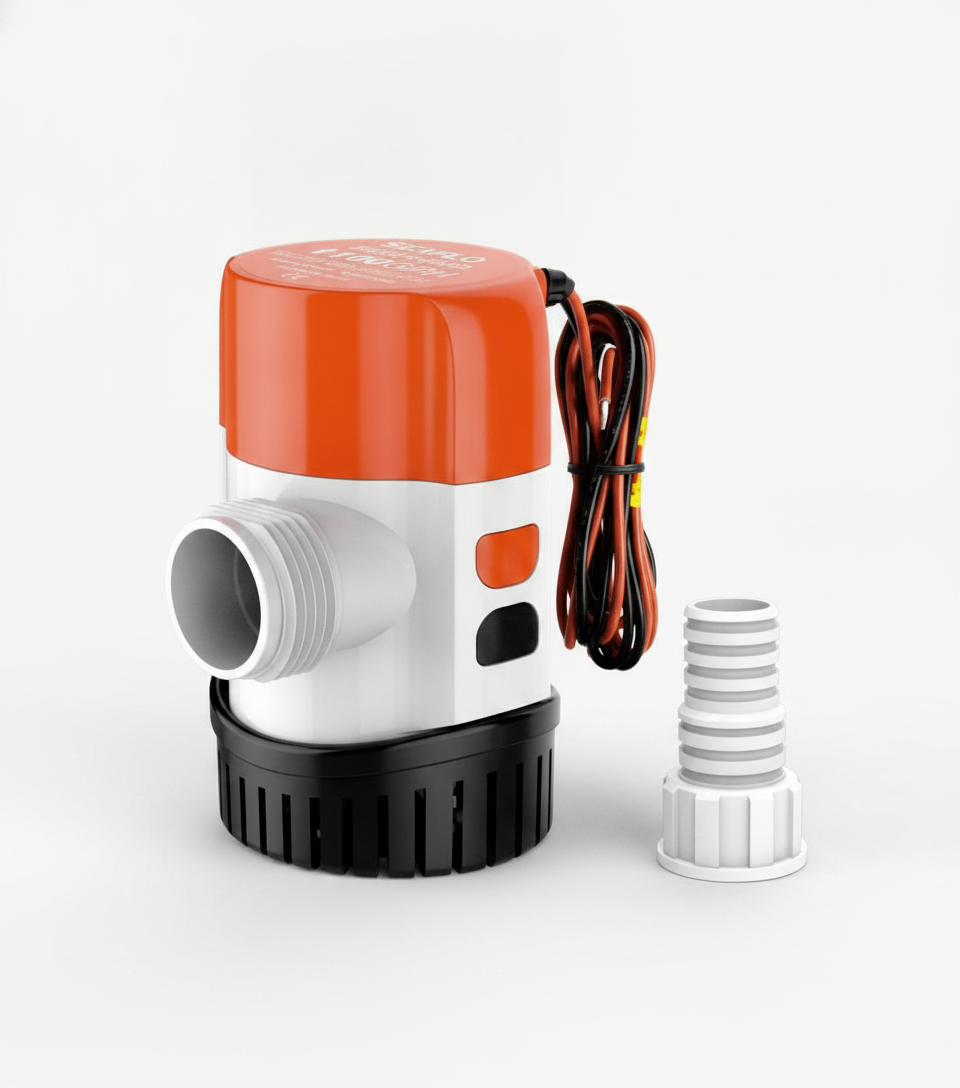

Seaflo 1100GPH Bilge Pump [BP1G110013A]
Premium 13A Series 12V Submersible Marine Pump
The Seaflo BP1G110013A is a high-capacity, non-automatic submersible bilge pump designed for the most demanding marine environments. As part of the 13A Series, this pump features a robust motor and an optimized impeller design that provides a powerful 1100 GPH flow rate while maintaining quiet, vibration-free operation.
Key Features
- ✔ Anti-Airlock Protection: Prevents airlock failures.
- ✔ Integrated Check Valve: Prevents water backflow.
- ✔ Quick-Connect Joints: Includes removable straight threaded fitting.
- ✔ Ignition Protected: Meets ISO 8846 and CE standards.
- ✔ Snap-Off Strainer: Easy cleaning and maintenance.
Technical Specs
| Flow Rate | 1100 GPH / 4164 LPH |
| Voltage | 12V DC |
| Current Draw | 3.0A - 4.0A Max |
| Fuse Size | 5.0A |
| Max Head (Lift) | 4.0m / 13ft |
| Outlet Dia. | 25mm (1") & 29mm (1-1/8") |
| Wire Lead | 1m (18 AWG) |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| Marine Vessels | Bilge Water Removal | Requires separate float or panel switch |
| Fishing Boats | Livewell / Baitwell Supply | Submersible use only |
| Standard Hose | 1-1/8" (29mm) ID Hose | Direct fit for standard marine hose sizes |
OEM Cross Reference
| Rule Equivalent | Rule 27D (Non-Auto 1100) |
| Johnson Equivalent | Johnson 1100 GPH (L650/L750 Series) |
| Attwood Equivalent | Tsunami T1200 / V1250 |
Questions & Answers
Is this a genuine original part?
Yes, this is an authentic Seaflo 13A Series product, manufactured to strict international marine standards including CE, RoHS, ISO 8846, and ISO 8849.
How do I know if it is compatible?
We recommend checking your current pump's flow rate and hose diameter. If your current system uses a 1-1/8" (29mm) hose and a 12V power source, this pump is a compatible replacement for almost any 1000-1100 GPH unit.
Does this pump turn on automatically when it senses water?
No, this is a non-automatic pump. It requires either a manual panel switch on your dashboard or a separate float switch (like the Seaflo SFBS-20-01) to automate the pumping process.
Note: Please verify your original part number and plumbing requirements at 4boats.co.uk before purchasing.
