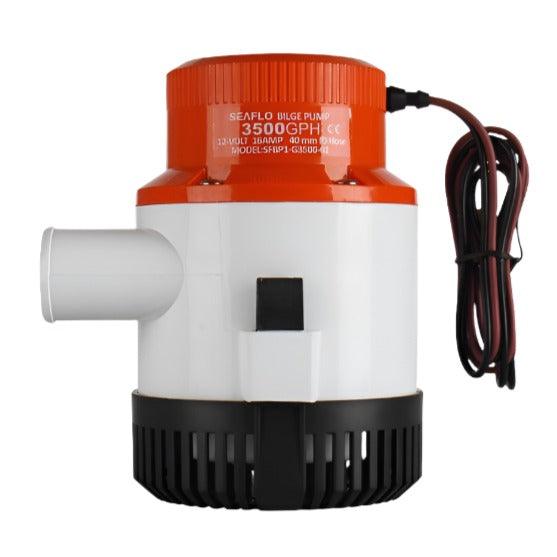

Seaflo 3500 GPH Bilge Pump [BP1G350001]
Premium 12V High-Capacity Marine Solution
The Seaflo BP1G350001 is a heavy-duty, high-capacity submersible bilge pump designed for large vessels, commercial yachts, and industrial water transfer. As part of the prestigious 01 Series, this non-automatic pump features a robust motor with a stainless steel shaft and exclusive moisture-tight seals for maximum durability in harsh marine environments.
Key Features
- ✔ High Efficiency: Heavy-duty long-life motors
- ✔ Easy Maintenance: Snap-lock strainer base
- ✔ Standard Mounting: Fits industry-standard patterns
- ✔ Quiet Operation: Silent and vibration-free
- ✔ Safety First: Ignition protected (ISO 8846)
Technical Specs
| Flow Rate | 3500 GPH / 13249 LPH |
| Voltage | 12V DC |
| Current Draw | 13.0A (Max 16.0A) |
| Outlet Dia | 40mm (1-1/2") |
| Max Head (Lift) | 8.0m (26ft) |
| Fuse Size | 25A Recommended |
| Wire Lead | 14 AWG x 1m |
Compatibility / Fitment Guide
| Application | Model/Type | Notes |
|---|---|---|
| Marine Vessels | Yachts & Fishing Boats | High volume evacuation |
| Mounting | Industry Standard Bases | Interchangeable with major brands |
| Operation | Manual/Panel Switched | Requires external float switch |
OEM Cross Reference
| Rule Equivalent | Rule 14A (3700 GPH) / 16A (4000 GPH) |
| Johnson Equivalent | Johnson 32-4000-01 (4000 GPH) |
| Brand Series | Seaflo 01-Series High Capacity |
Suitable for bilge draining, high-volume transfer, small pools and reservoirs. Manual Download
Questions & Answers
Is this a genuine Seaflo part?
Yes, this is a genuine Seaflo 01-Series pump (MPN: BP1G350001), manufactured to the highest marine standards and supplied through 4boats.co.uk.
Does this pump turn on automatically?
No, this is a non-automatic pump. It is designed to be operated via a dash-mounted panel switch or an external float switch (sold separately).
What size hose do I need for the outlet?
This pump features a 40mm (1-1/2 inch) outlet diameter. You should use a high-quality marine bilge hose with a 1-1/2 inch internal diameter.
Note: Always ensure electrical connections are made above the water line using marine-grade sealants. Verify your original part number and fuse requirements before installation.
