SEAFLO 12V 800GPH Bilge Pump 03 Series Non-Automatic Side Base
SEAFLO 12V 800GPH Bilge Pump 03 Series Non-Automatic Side Base
Couldn't load pickup availability

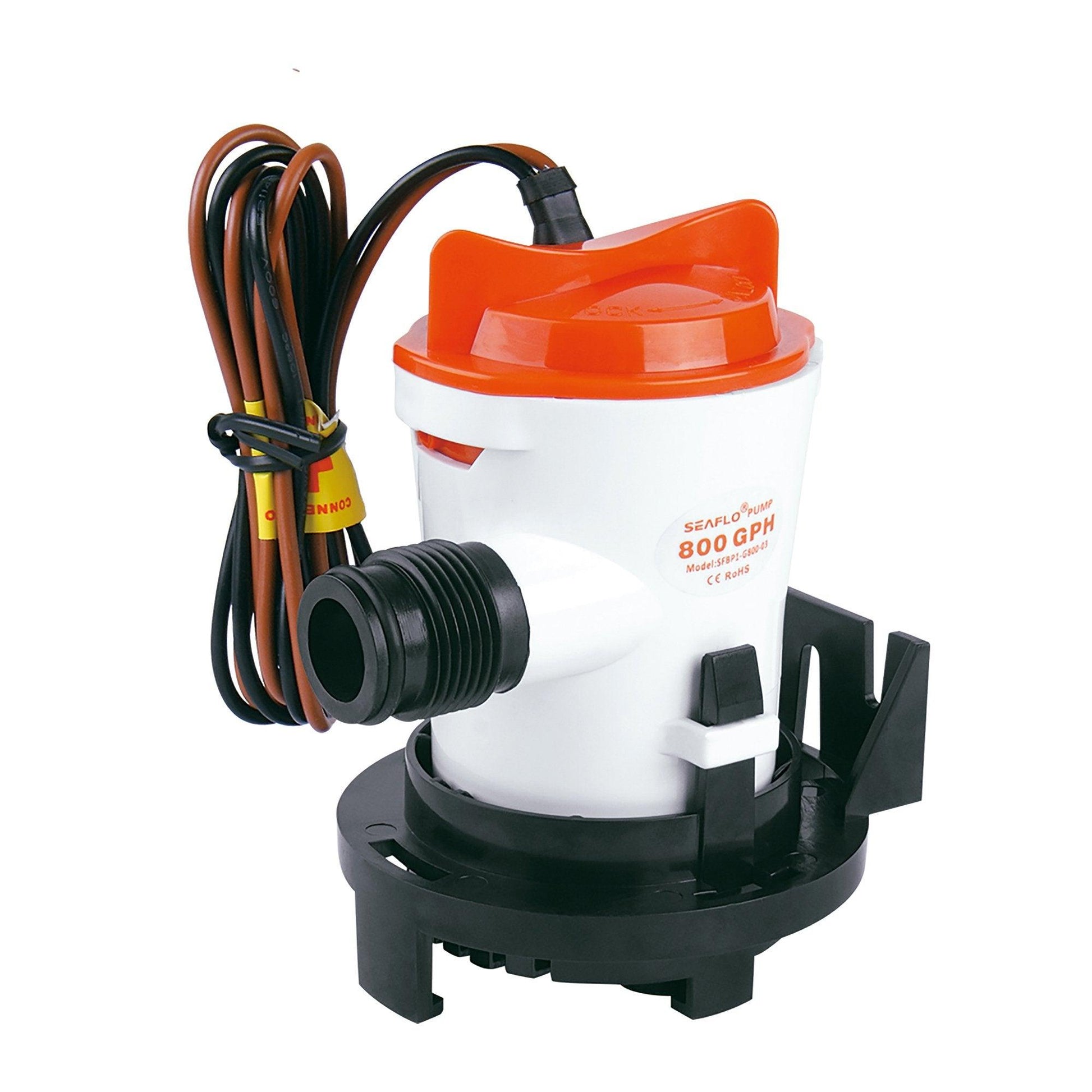

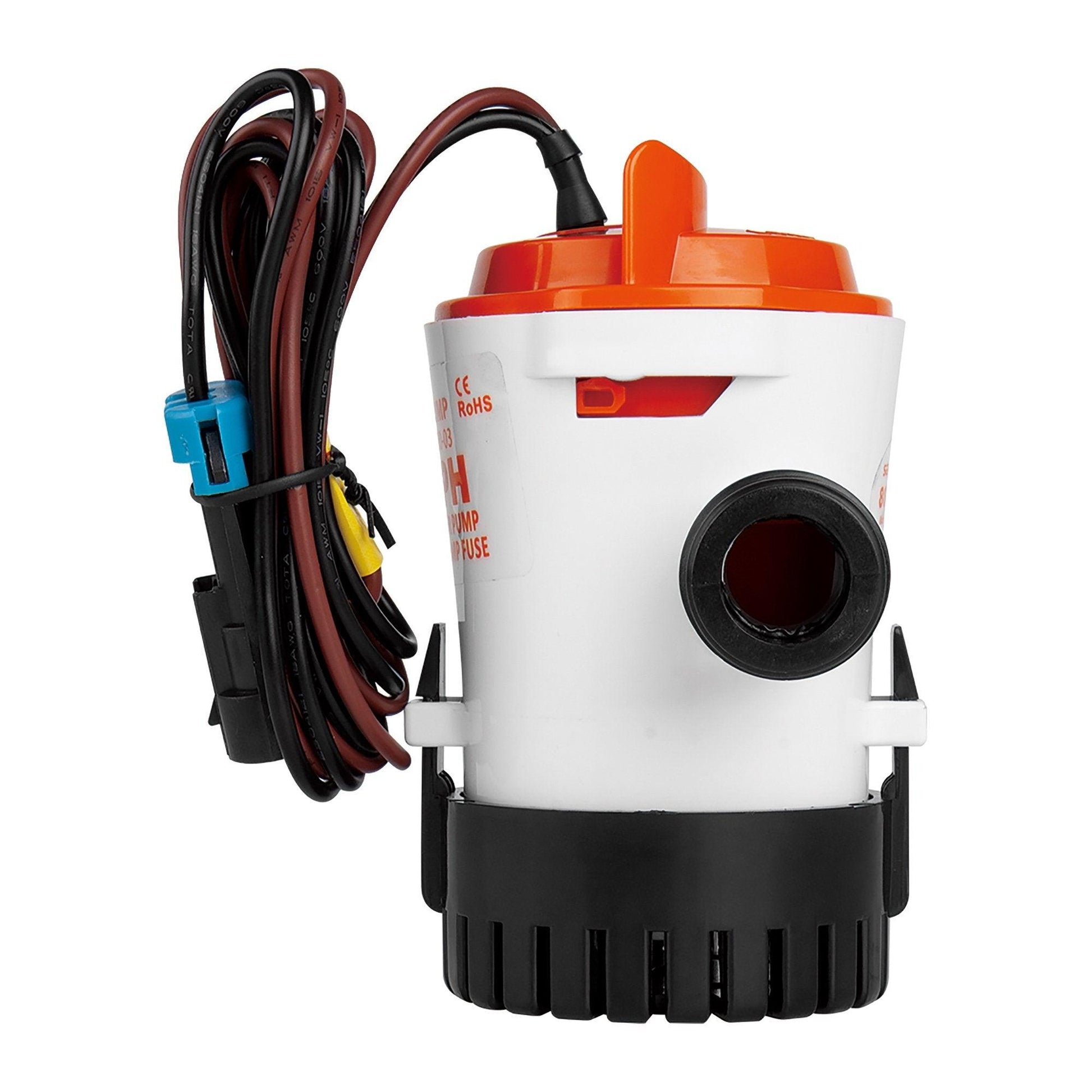

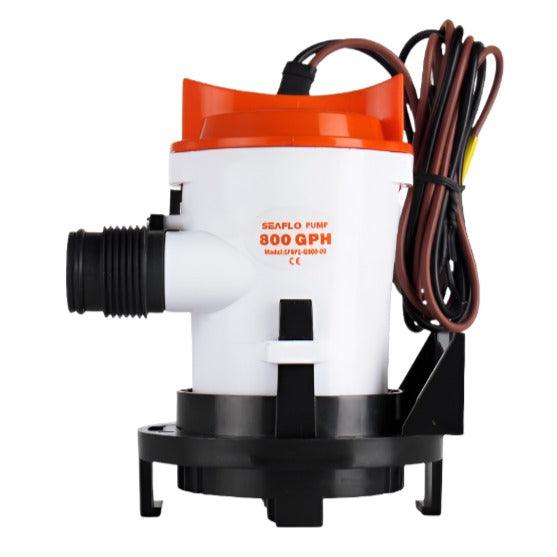

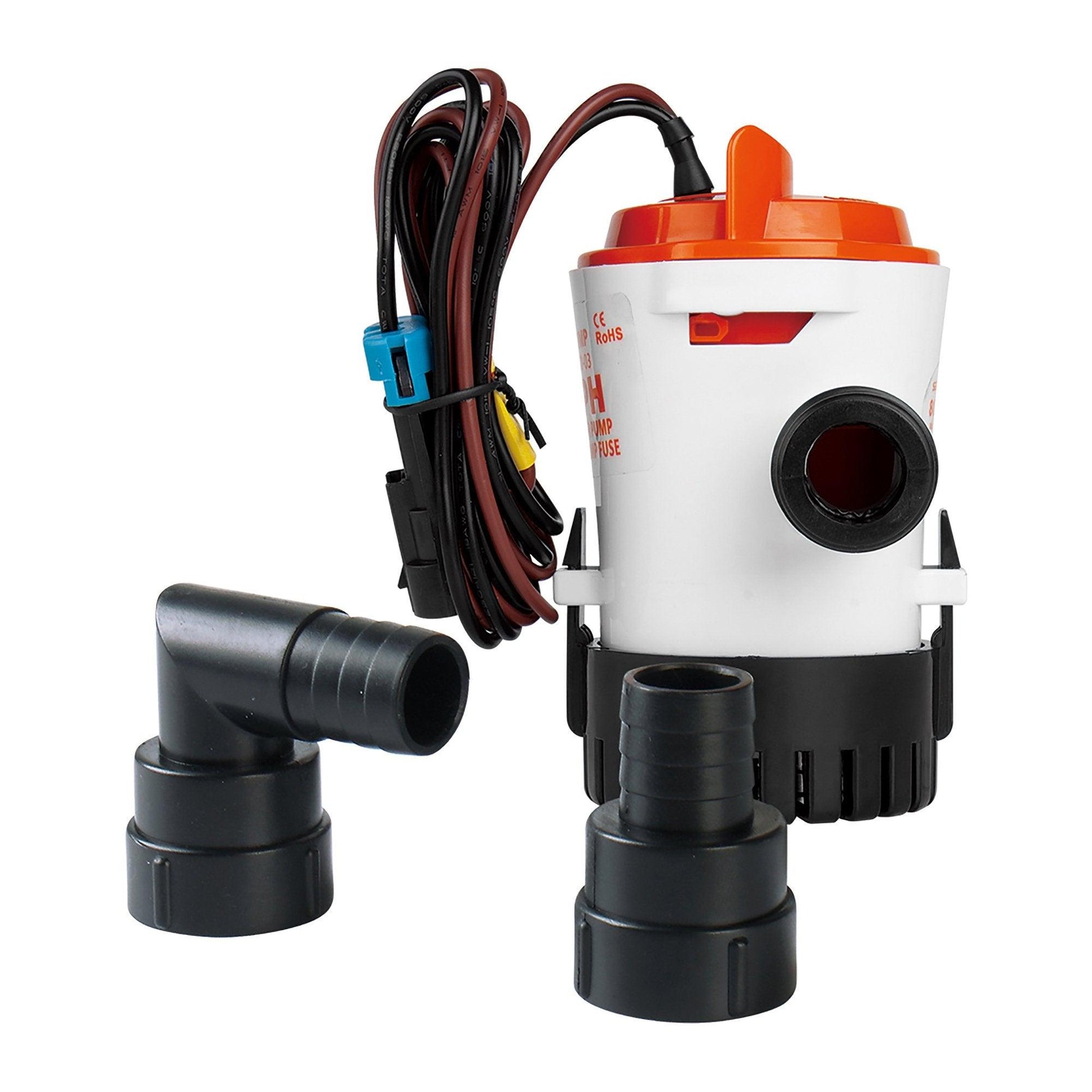

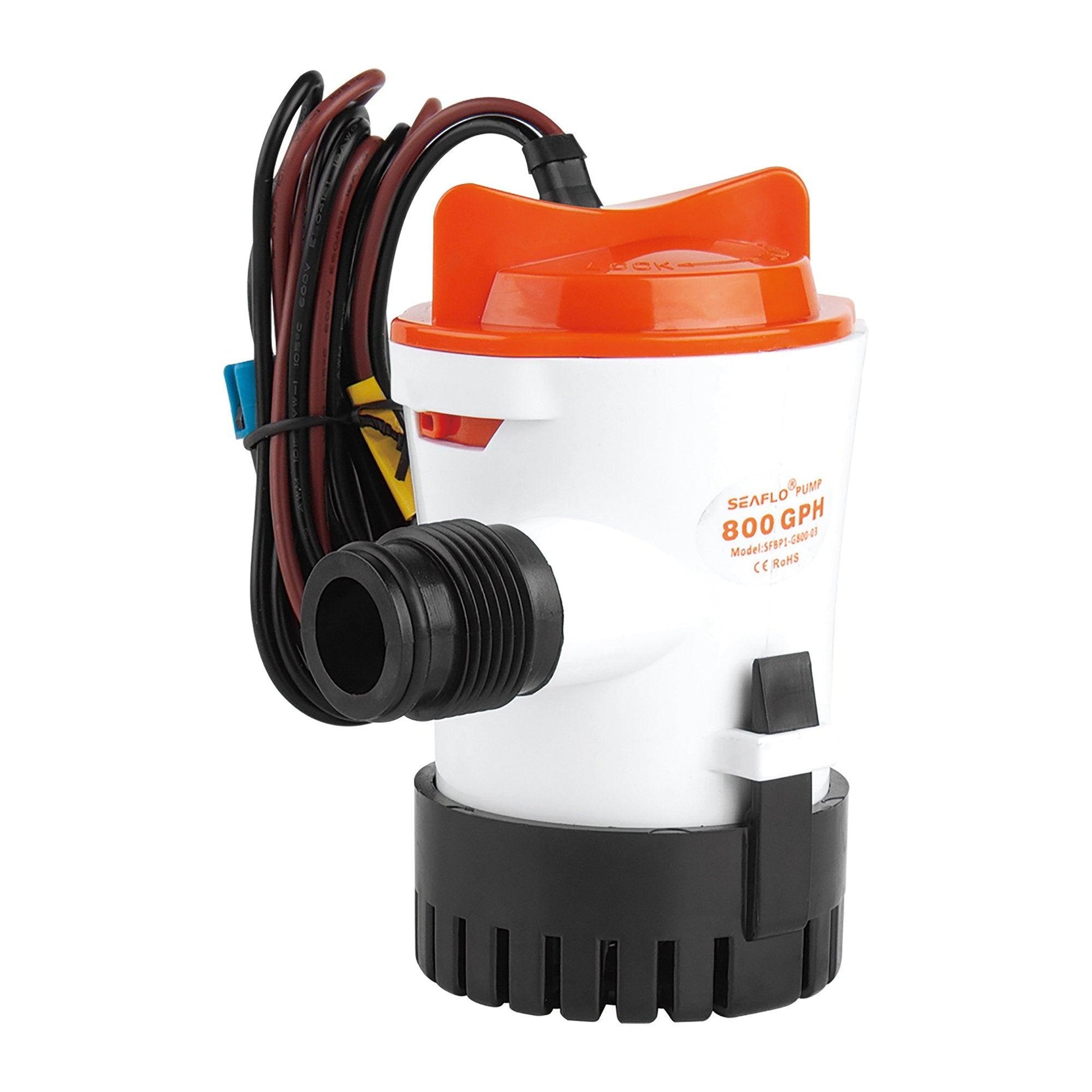

SEAFLO 12V 800GPH Bilge Pump 03 Series Non-Automatic Side Base
Compact bilge pump with side-mount strainer base
A fully submersible 12V centrifugal pump for manually or externally controlled bilge drainage. The 03 Series side-mount strainer base, click-in replaceable motor and compact form suit small craft and restricted compartments where service access is important.
Key Features
- ✔ For 12V motorboats, sailing yachts, RIBs, dinghies, fishing boats and local drainage compartments.
- ✔ Use with a correctly rated manual panel switch or automatic float/water-level switch.
- ✔ Best suited where an 800GPH nominal pump matches the vessel’s drainage plan and available electrical capacity.
- ✔ Actual delivery is lower than the open-flow rating once lift, hose length and bends are introduced.
Technical Specifications
| Manufacturer model | SFBP1-G800-03 |
| Supply voltage | 12V DC |
| Maximum open-flow rating | 800 GPH (approximately 3,028 L/h) |
| Rated current | 4.0A |
| Maximum current draw | 7.4A |
| Shut-off head | Approximately 2.7m |
| Control | Non-automatic; panel or external float switch required |
| Wiring | 18AWG marine-grade blocked leads, 1m / 3ft |

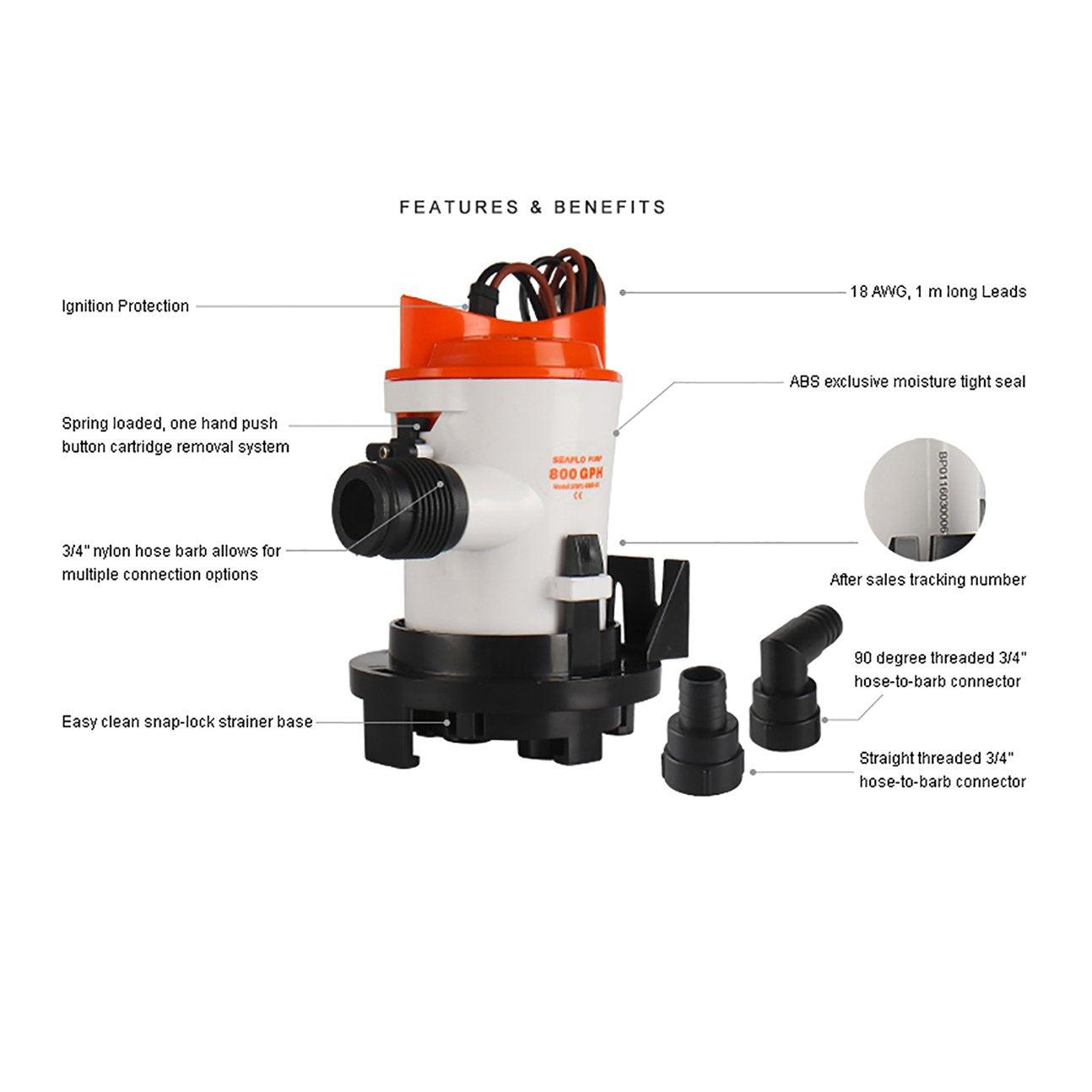

| Construction | Fully submersible; snap-lock strainer and replaceable click-in motor |
| Unit weight | Approximately 0.38kg |
| Manufacturer warranty | 2 years |
Installation and package contents
- Secure the side-mount strainer at the lowest accessible bilge point and leave room to release the motor cartridge.
- Use suitable smooth-bore discharge hose with minimal bends and route it to an appropriate above-waterline outlet.
- Wire through correctly sized circuit protection using the 7.4A maximum draw and cable run length as design inputs.
- Package contains one SEAFLO 03 Series pump with snap-lock strainer/base and 1m leads. External switch, hose and through-hull are not stated as included.
Questions & Answers
Is this pump automatic?
No. It needs a panel switch or compatible external float switch.
Can the motor be removed for cleaning?
Yes. The click-in motor and snap-lock strainer are designed for service access.
Can it be connected to 24V?
No. This version is for 12V DC only.
Why is real flow below 800GPH?
The 800GPH figure is at open flow; vertical lift, hose friction, bends and voltage drop reduce output.
Note: Please verify voltage, capacity and fitting sizes against your boat before ordering. For technical support, contact us via 4boats.co.uk.
